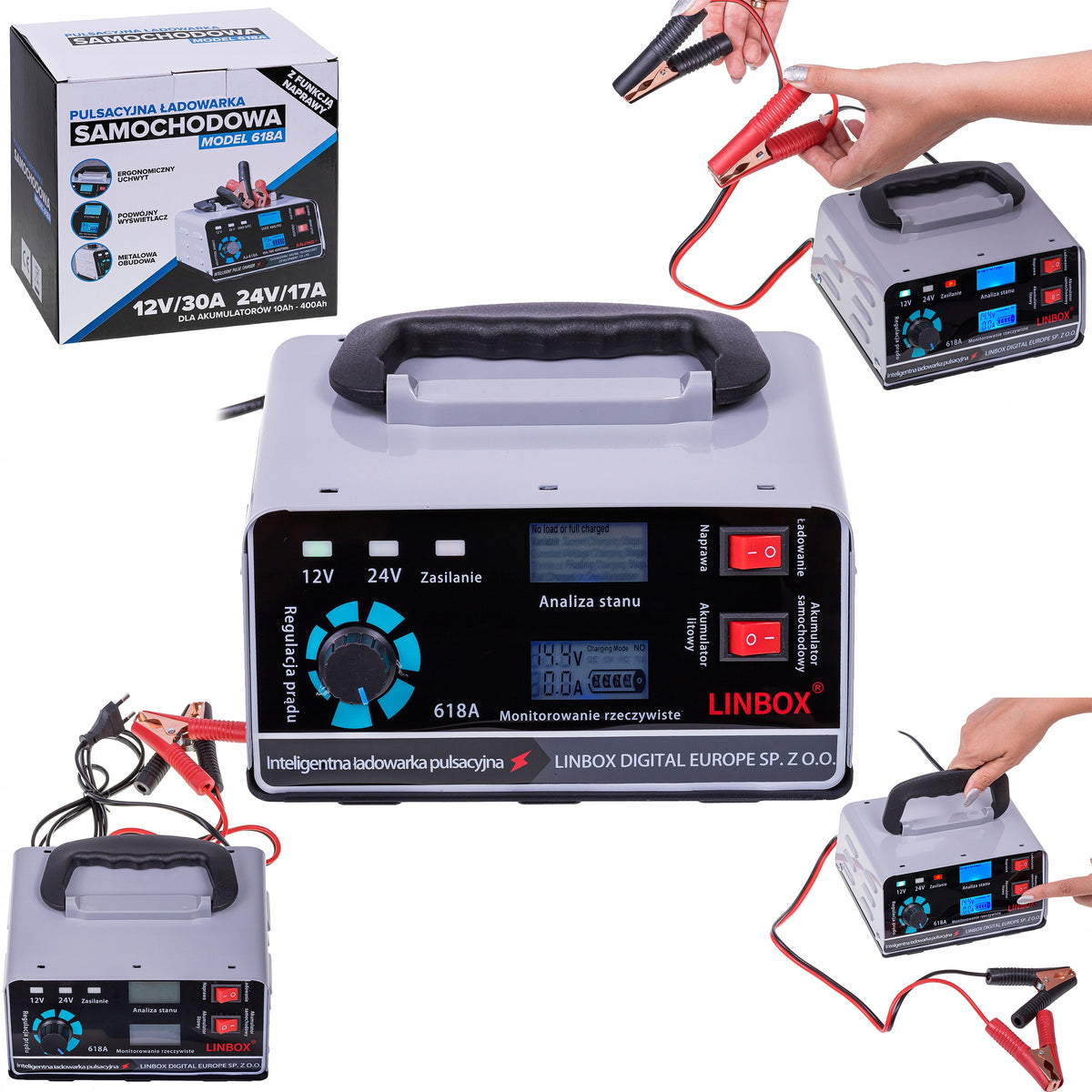

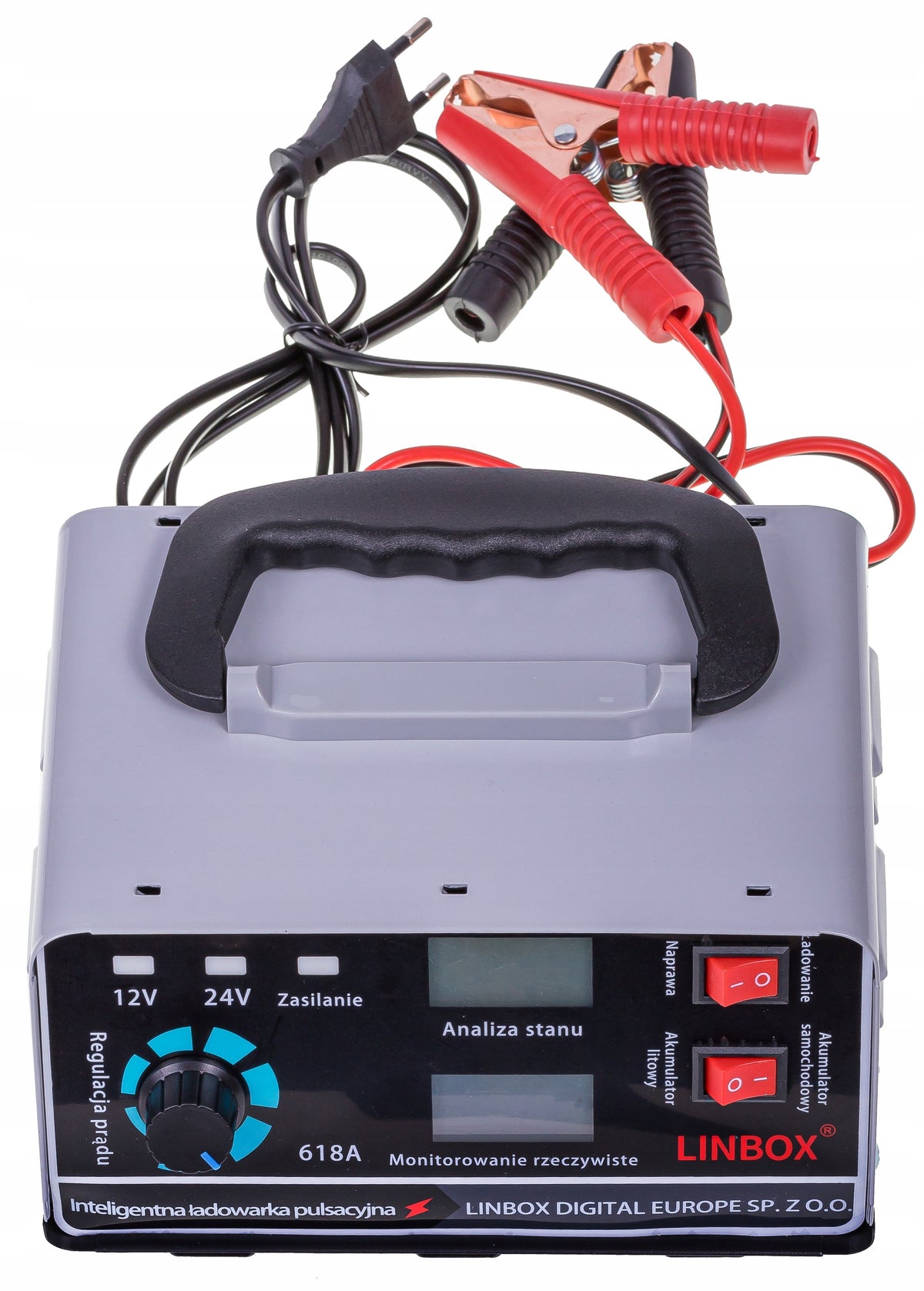

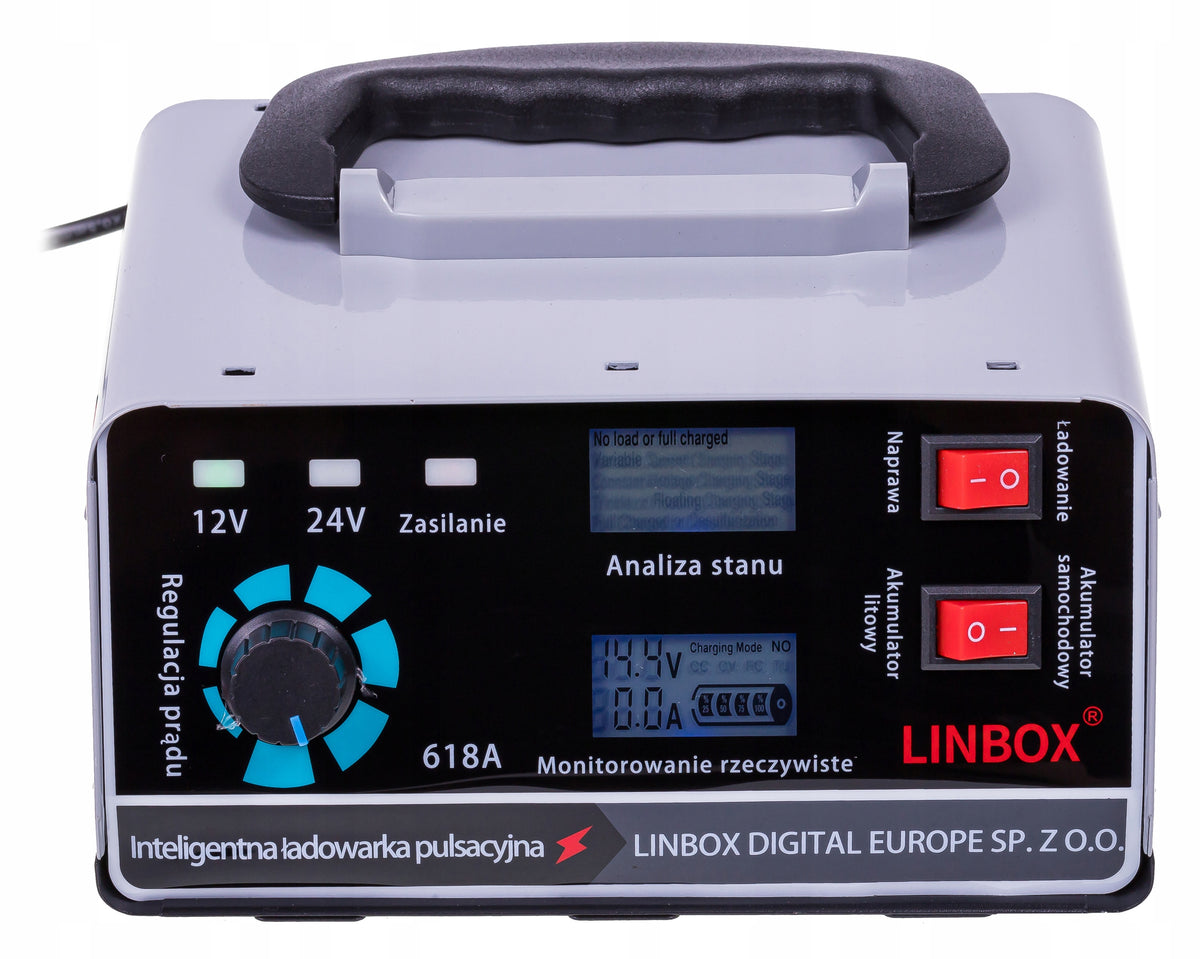

Automobilinis lygintuvas 24V/12V, 30A akumuliatoriams

Trumpai apie prekę

Prekė: Automobilinis lygintuvas 24V/12V, 30A akumuliatoriams. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Linbox
• Modelis: Prostownik do akumulatorów

It is a smart charger for the most popular 12V and 24V batteries used in the automotive and industrial sectors.

Supports most batteries available on the market: m.in. wet battery / dry battery / lead-acid battery / maintenance-free battery / AGM / gel / lithium-ion

In addition, has a fast charging function.

• microprocessor
• for the most popular 12V and 24V batteries(wet battery / dry battery / lead-acid battery / maintenance-free battery / AGM / gel / lithium-ion)
• charging and repair mode
• possibility of manual adjustment of charging current
• for charging car and motorcycle batteries
• handy and easy to store
• fast charging function
• Feel safe on every trip
• automatic selection - 12V or 24V
• consumes little electricity
• handle with finger recesses

Compact Car Rectifier - for Most Batteries Available on the Market

It is used to charge car, motorcycle and lead-acid batteries 10-400Ah. It automatically detects the charging current at 12V or 24V depending on the battery you will be charging. The rectifier is compact in size, making it handy and easy to store!

• colour: black-grey
• Material: metal
• Charging time: 4-6 h
• Purpose: batteries: 12 and 24V
• Maximum intensity: 30A
• dimensions (W/H): 26,5/19cm
• Weight: 2,05kg
• Package weight: 2,50kg

The device automatically detects the battery voltage, thanks to which it sets the correct value to 12V or 24V before charging, depending on your needs. It can easily charge popular car batteries, motorcycle batteries and more. It is extremely efficient, effective and consumes little electricity.

1. Connect the RED charging clamp to the + POSITIVE clamp on the battery.

2. Connect the BLACK charging clamp to the terminal - NEGATIVE on the battery (we recommend when charging the battery in the vehicle so that you connect the BLACK charging clamp to the engine block).

3. Set the correct battery type and operating mode

4. Connect the rectifier to electricity

STEP 1: Desulfurization: recognizing the sulphurized battery, charging with low voltage and high intensity pulsating current allows the sulphate to be removed from the battery plates, thus restoring its initial capacity.

STEP 2: Soft start: if the battery is not damaged, a relatively low current charge (about 15%), gradually increasing its value, begins.

STEP 3: Bulk charging constant current charging, voltage increases to maximum

STEP 4: Absorption charging - The battery is charged with the absorption voltage configured, with the charging current slowly dropping as the battery approaches full charge.

STEP 5: Battery test: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed.

STEP 6: Regenerative charging - used in the last phase of charging

STEP 7: Float and Maintenance Charging - When the battery is fully charged and aligned, it returns to the initial voltage, which is the current balance point for the charged battery

Thanks to the special handle with finger recesses, the handle will perfectly fit into the hand, which will allow you to comfortably move the rectifier anywhere.

In addition to the standard charging mode, the device has a repair mode.

Repair mode is an advanced battery recovery mode, old, unused, damaged, stratified or sulfured.

Note: Not every battery can be repaired.

Allows additional control of the status of your battery. The large display informs about the current, charging mode and current battery voltage. In addition, you can observe the state of charge in the form of a percentage.

Very high charging efficiency at positive temperatures. With advanced control of charging processes, the efficiency of the rectifier is 98%, which makes it incomparable to traditional types of rectifiers without this type of technology.

Specifications
