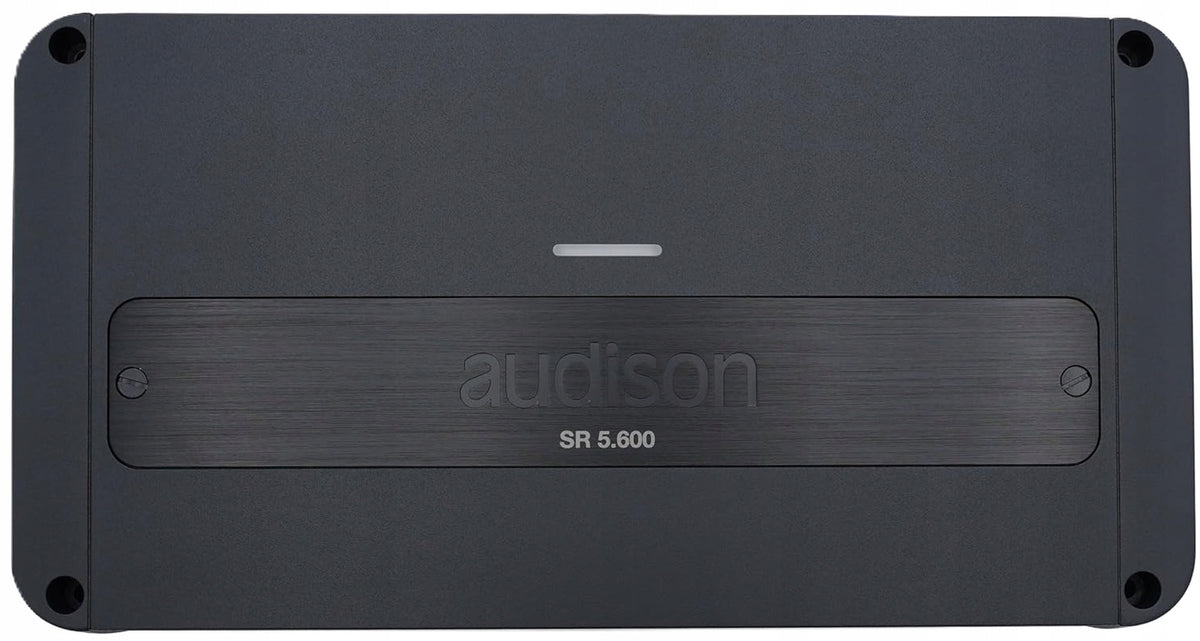

Automašīnas pastiprinātājs Audison SR 5.600, 5 kanāli, D klase, 1010 W

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Audison SR 5.600, 5 kanalų, klasė D, 1010 W. Kategorija: Stiprintuvai.

• Gamintojas: Audison
• Modelis: SR5.600

New, pre-packaged.

Audison SR 5.600 is a 5-channel amplifier with crossover and high power enclosed in ultra-compact dimensions (75 W x 4 + 330 W x 1 at 4Ω) from the SR line, improved thanks to the full use of the latest reinforcement solutions.

Thanks to the large heat sinks on the two shorter sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation. According to tradition, SR amplifiers confirm their calling for versatility by including a complete filter section in all models, suitable for any type of audio system configuration.

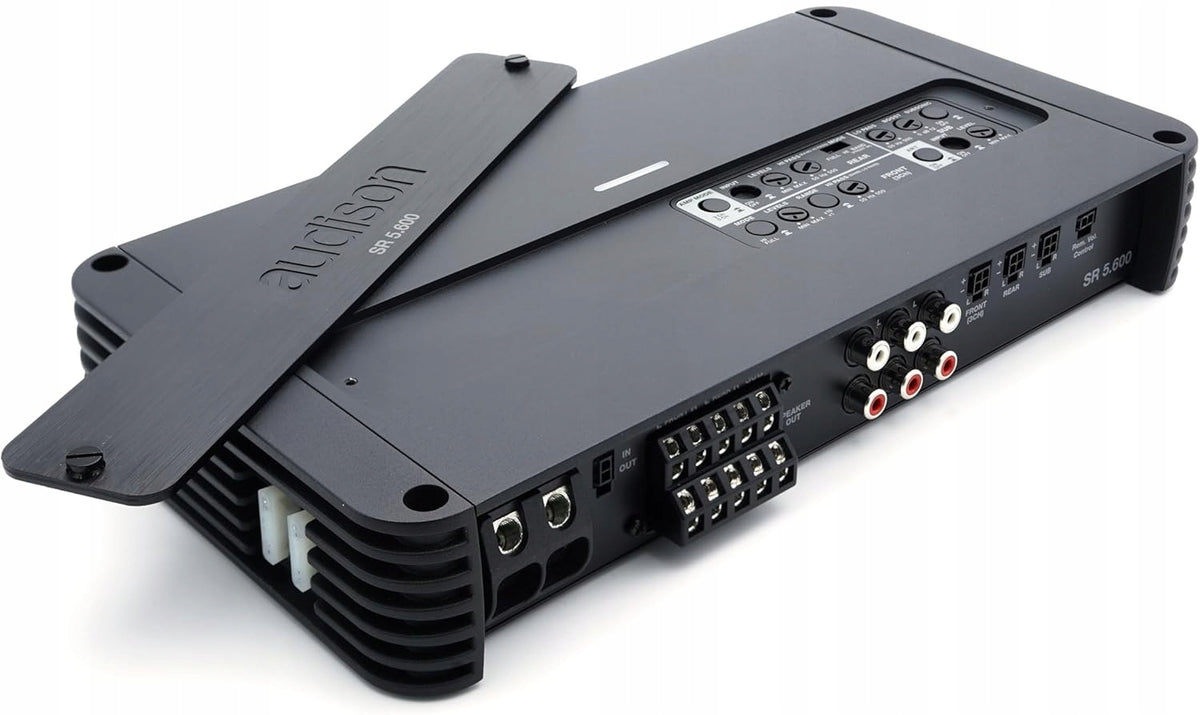

The controls, protected by a satin aluminum panel, are located on the top panel of the amplifier, so they are easily accessible from above, even after the product is installed. When the system includes an Audison bit processor, the filter section can be turned off completely.

Thanks to the integration of Audison USS (Universal Speakers Simulator) technology in high-level inputs, SR amplifiers can also be conveniently connected to OEM sources equipped with a "speaker load detection" function that monitors the presence of low-impedance load, enabling audio outputs. Audison SR 5.600 enables multiple connectivity.

You buy in a reputable Car Audio store from an authorized dealer of the Audison brand in Poland, original products with a Polish guarantee.

After numerous listening tests with professionals and enthusiasts,The research and development team of Audison decided to use new class D technology in this line of amplifiers,called ADT (Audison D-Class Technology),which allowed for a significant reduction in their size,while maintaining the sound quality characteristic of each Audison project. As for the electronic design, the Audison SR 5.600 has been designed with attention to every detail aesthetic and functional, resulting in a compact amplifier made of extruded aluminum with rounded corners, which facilitates the installation of the product in narrow spaces.

By integrating Audison USS (Universal Speakers Simulator) technology in the high-level inputs, SR amplifiers can also be conveniently connected to OEM sources equipped with a "speaker load detection" function that monitors the presence of a low-impedance load, enabling audio outputs. Audison SR 5.600 enables multiple connectivity. All models have balanced high-level inputs for connection to the speaker output of the factory radio player and a low-level RCA input for speakers from the secondary market.

When using the high-level input, you can turn on the ART function (automatic remote on/off) to control the switching on of the amplifiers using the power button of the radio player. In addition, a remote on/off socket (Remote IN/OUT) is available, allowing you to control multiple amplifiers in the cascade system, which turn on when necessary. Through the PRE-OUT signal, via the Speaker-IN socket, it is possible to connect the amplifier with OEM sources that have only reinforced outputs, which allows you to expand the system.

The optional VCR-S1 remote control offers the ability to adjust the subwoofer level (-20 / + 6 dB) to your musical preferences.

Key Features:

• Sleek and functional design with rounded corners for minimal space and easy installation.
• Built-in USS (Universal Speakers Simulator).
• Built-in crossover section.
• The optional VCR-S1 remote control allows you to adjust the subwoofer level (-20 / + 6 dB) to your own musical preferences.
• Balanced high level inputs for connection to OEM main unit speaker output
• Low level RCA connectors for aftermarket speakers.
• ART function (automatic remote on/off).
• Remote IN/OUT socket for controlling multiple amplifiers.
• PRE-OUT enables the expansion of the system.

Specification:

• Channels: 5
• Class: Class D
• High level entrance
• Low level entrance
• Supply voltage / fuse: 11 ÷ 15 V DC
• Operating supply voltage: 6,5 ÷ 17 V DC / 2 x 25 A
• Idle Current: 2,2 A
• Idle current off: 0,04 mA
• Power consumption at 14,4 V DC, 2Ω, max. Musical power: 44 A
• Remote Output: 6,5÷ 15 V DC (150 mA)
• Remote input: 6,5 ÷ 15 V DC (1 mA)
• ART - Automatic remote switching on/off of OUTPUT BTL speakers (optional)1,5 ÷ 7 V DC

Degree of amplifier

• Distortion - THD at 100 Hz, 4Ω, 70% rated power0,02%
• Bandwidth A10 Hz ÷ 35 kHz; 10 Hz ÷ 500 Hz
• Signal-to-noise ratio A105 dBA
• Damping factor A100
• Pre-In Input Sensitivity: 0,2 ÷ 5 VRMS
• Speaker input sensitivity: 0,8 ÷ 20 VRMS
• Total effective power: 1010 W
• Adjustable crossover
• Minimum load impedance: 5 channels: 2Ω , 3 channels: 4Ω + 4Ω + 2Ω

Output power (RMS) at 14,4 V DC, 1% THD

• 5Ch 75 W x 4 + 330 W x 1 (4Ω)
• 5Ch 115 W x 4 + 550 W x 1 (2Ω)
• 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)
• 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)

CEA specifications

• Output power at 4Ω, 1% THD+N, 14,4 V: Output power at 4Ω, 1% THD+N, 14,4 V: 75 W x 4 channels + 300 W x 1 channel
• SN coefficient (reference to 1 W output power): SN coefficient (reference to 1 W output power): 75 W: 84 dBA – 300 W: 75 dBA

Inputs/outputs

• Inputs: Preamplifier / SpeakerFull Hi-pass: 50 ÷ 5k Hz 12 dB/Oct.
• Rear Channel Filters: Full Hi-pass: 50 ÷ 5k Hz 12 dB/Oct. Band-pass: 50 ÷ 500 Hz (Hi) 12 dB/Oct. 50 ÷ 5 kHz (Lo) 12 dB/Oct.
• SUB filters: Lo-pass: 50 ÷ 500 Hz 24 dB/Oct
• Bass boost 50Hz (adjustable) (0 ÷12) dB
• Subsonic (incl. /off) 25 Hz 24 dB/Oct.
• Sub volume control (-20 ÷ 6) dB

Weight: 2,42 kg

OUR OFFER INCLUDES AND AVAILABLE ALL MODELS OF THE AUDISON BRAND, OF COURSE NEW FROM THE POLISH DISTRIBUTION NETWORK.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Audison
Parametry	Model	SR5.600
Parametry	Number of channels	5-channel
Parametry	Amplifier class	D
Parametry	Product weight with unit packaging	3 kg
Parametry	Manufacturer code	SR5.600
