Automobilinis stiprintuvas BassHabit REBEL, 4 kanalų, AB klasė, 800W

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas BassHabit REBEL, 4 kanalų, AB klasė, 800W. Kategorija: Stiprintuvai.

• Gamintojas: no brand
• Modelis: RA800W

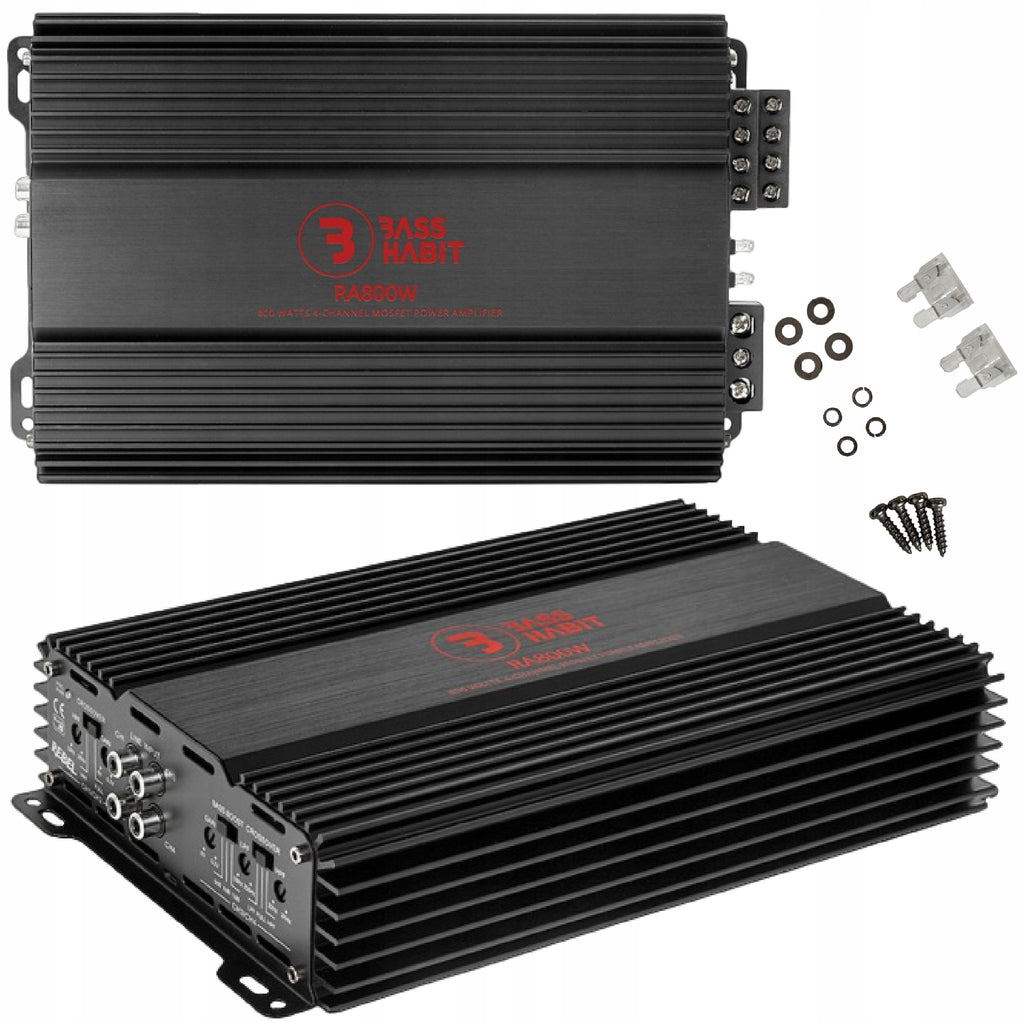

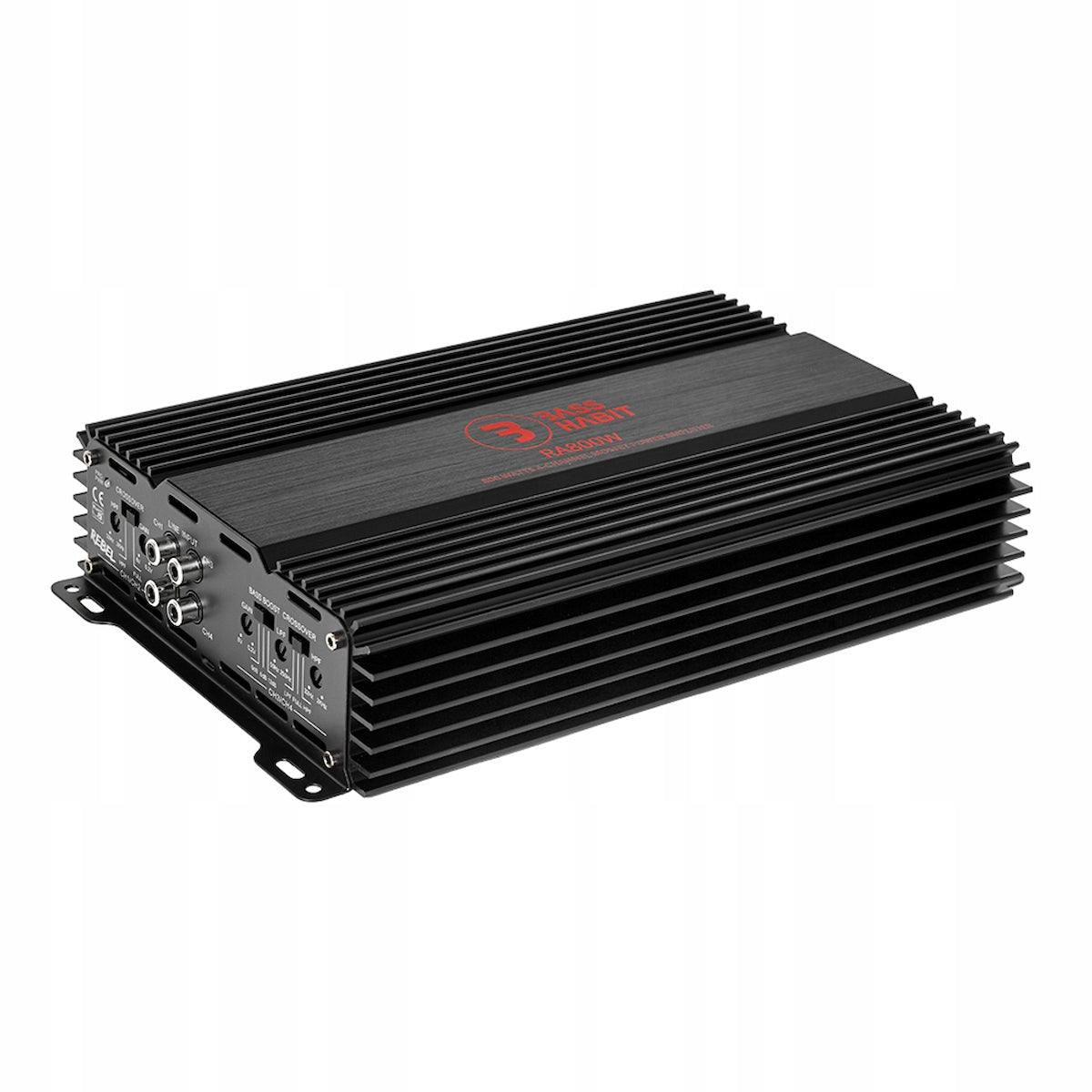

Bass Habit Rebel RA800W is a universal, 4-channel Class AB amplifier designed for those who expect significantly more power, energy, and precision from their audio system without breaking the bank. Offering a solid 4 x 100 W RMS at 2 Ω or the option to bridge to 2 x 200 W RMS at 4 Ω, it can easily power front and rear speaker sets, strong mid-bass sections, or a front + subwoofer configuration. This is the essence of the Rebel series – maximum flexibility, honest performance, and excellent value for money for anyone looking to step up their car audio game.

⚙ Technical specification

• Series: Rebel
• Model: RA800W
• Product type: 4-channel amplifier
• Class: AB
• Number of channels: 4
• RMS power @2 Ω: 4 x 100 W
• RMS power @4 Ω: 4 x 60 W
• RMS power in bridge @4 Ω: 2 x 200 W
• MAX power: 800 W
• Transmission bandwidth: 15 Hz – 20 kHz
• HPF: 32 Hz – 2 kHz
• LPF: 50-250 Hz
• Bass Boost: 0 / 6 / 12 dB @ 45 Hz
• Input voltage range: 0,2 – 6 V
• Signal/noise ratio: >90 dB
• Working voltage: 10-16 V
• Fuses: 2 x 25 A
• Dimensions: 288 x 56 x 177 mm

Key features:

✨ 4-channel AB class design – provides a full, warm and natural sound with excellent dynamics and readability of the entire band.

✨ High flexibility of configuration – stable operation in stereo (2 Ω / 4 Ω) and in bridged mode under the subwoofer.

✨ Power 4 x 100 W RMS (2 Ω) / 2 x 200 W RMS (bridge) – a real force that breathes life into every speaker system.

✨ HPF and LPF filters – a wide range of adjustments allows for precise adjustment of the speaker operating band and protection against overdrive.

✨ Step Bass Boost – 0, 6 or 12 dB bass boost option at 45 Hz for a more powerful bass beat.

✨ Compact housing dimensions – facilitate trouble-free and aesthetic installation of the amplifier in the car.

⮕ One amplifier, lots of possibilities

With 4 channels and bridging options, the RA800W is a true installation chameleon. You can use it classically to power the front and rear of the car, create a loud system with two pairs of midbass, or power the front speakers separated by channels 1 and 2, and connect channels 3 and 4 into the bridge to drive the subwoofer.

⮕ Musicality and energy class AB

Unlike the cheaper Class D amplifiers, the Class AB design of the RA800W offers a more pleasant, analogue sound. It is perfect where the clarity of vocals, dynamic midrange and precise control over the movement of speakers in the door count.

⮕ Precise bandwidth cutting without distortion

Built-in low-pass (LPF) and high-pass (HPF) filters give you full control over what frequencies go to individual transducers. This means that you can safely cut off the lowest bass from the door speakers, protecting them from damage, and direct all the lowest energy straight to the bass section.

⮕ Fair watts at the best price

When choosing Rebel series, you do not pay for marketing and expensive logos. You get equipment with parameters fully consistent with the manufacturer’s declaration, high reliability and sensational price-to-end ratio.

⭐ Frequently Asked Questions:

1. Can this amplifier handle the simultaneous drive of speakers and subwoofer? - Yes, the amplifier can be configured in 3-channel mode: the first two channels power the front speakers (2 x 60 W RMS at 4 Ω), and the other two spin into a bridge (1 x 200 W RMS at 4 Ω) to drive the subwoofer.

2. What is the difference between an AB class amplifier and a D class? - The AB class offers a more natural, warm and musical sound with higher clarity in the midrange and treble bands, which translates into a more mature sound of speakers in the door.

3. What power cords will be suitable for the Bass Habit RA800W amplifier? - Due to the protection of 2 x 25 A and the power of the set, it is recommended to use a dedicated set of copper wires (OFC) with a cross-section of 8 AWG (10 mm²).

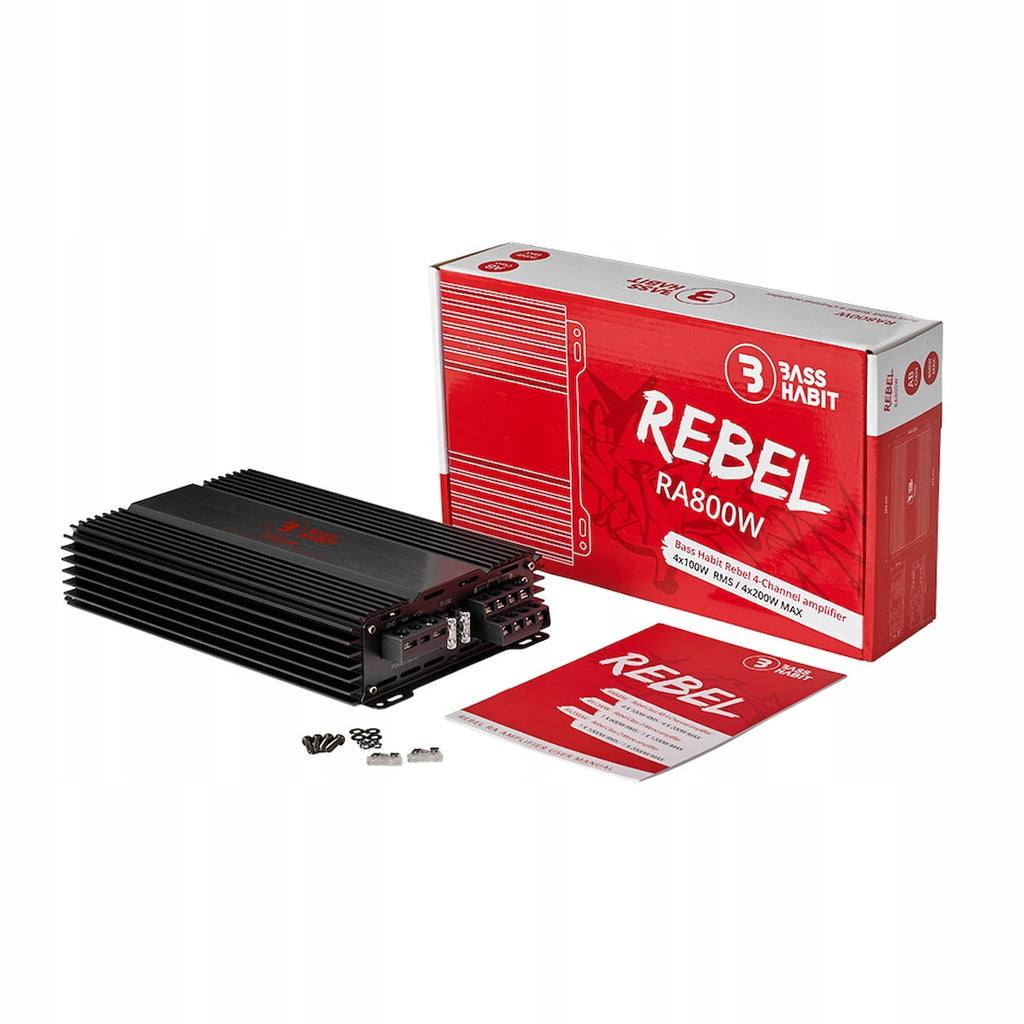

4. What is included in the product kit? - The factory package includes a Bass Habit Rebel RA800W amplifier, a set of mounting screws and an instruction manual.

➡️ What You Get:

✅ Exceptional Flexibility and System Building Freedom

Build the exact system you need. The 4-channel design with the option to bridge to 2 x 200 W RMS allows you to power a front + rear setup or a dynamic front speakers + subwoofer configuration.

✅ Warm, Analog Sound and Full Frequency Control

Bring musicality and dynamics to your car. The Class AB amplifier, built-in HPF/LPF filters, and stepped Bass Boost ensure natural sound, clear vocals, and safe speaker operation without distortion.
