Automašīnas pastiprinātājs Crunch GTX1500.1D, 1 kanāls, D klase

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Crunch GTX1500.1D, 1 kanalo, klasė D. Kategorija: Stiprintuvai.

• Gamintojas: Crunch
• Modelis: GTX1500.1D

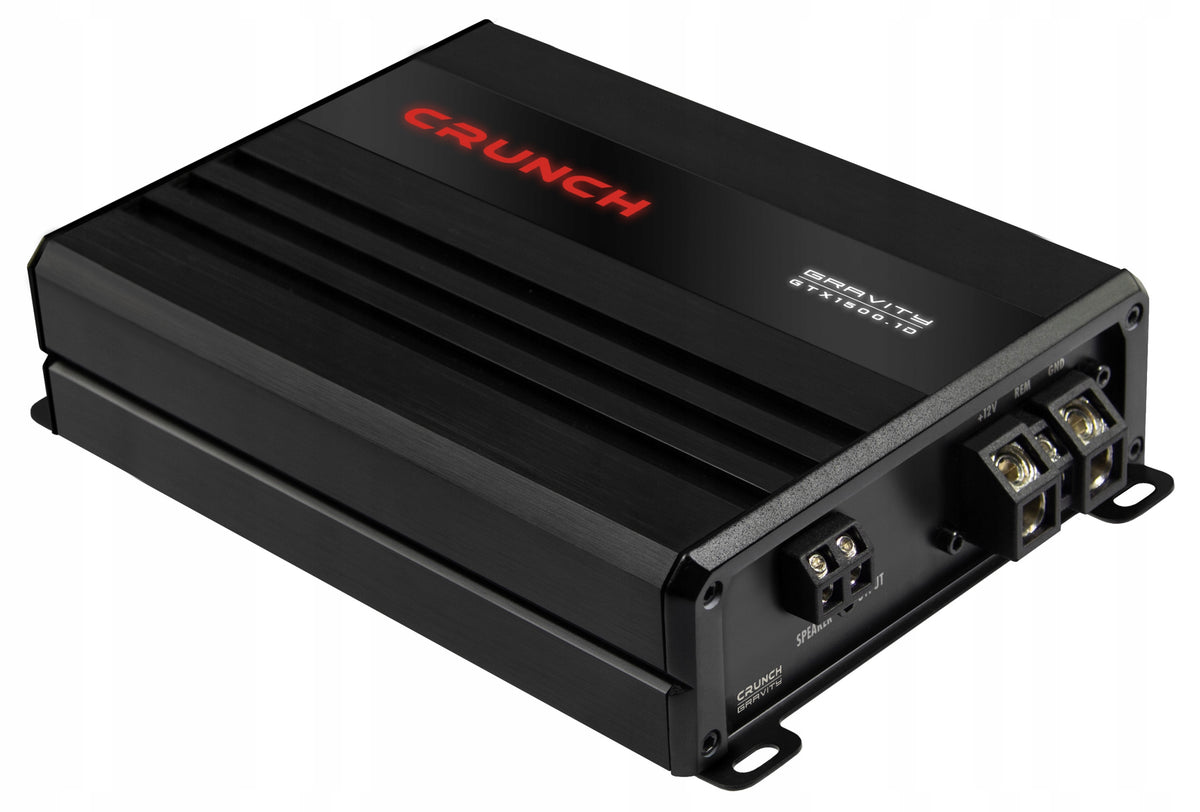

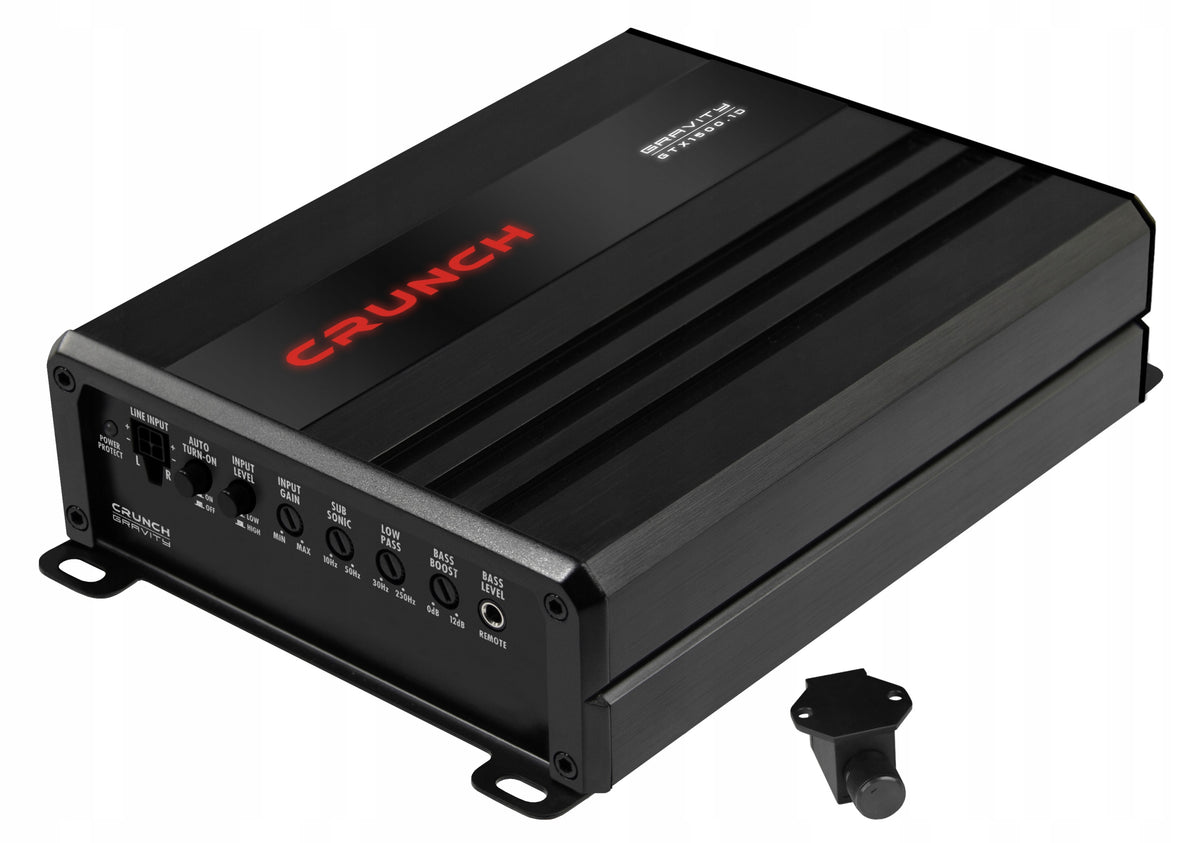

Crunch GTX1500.1D

Car Amplifier 1 Channel MONO BLOCK Class D

The Crunch GRAVITY GTX series of amplifiers includes a wide range of modern models that meet the requirements of the current market - they are to be small, efficient, current-saving and cooperate with the factory installation.

All Crunch GRAVITY GTX amplifiers have RCA signal input and high-level input from EPS speaker cables, protecting against errors entering the car installation. Together with the automatic switch-on system, this enables seamless cooperation with factory units that do not have RCA outputs.

A common feature of all models are compact dimensions. With a variable length, the width is fixed - only 135 mm and the height - 48 mm. High performance with such a small size was achieved thanks to Class D technology, common to all models.

The standard is the use of active filters in each model, allowing precise setting of the frequency band to the speaker used. All models also have a wired bass driver, allowing you to adjust the subwoofer level without having to change the signal parameters. This allows you to individually adjust the bass level to the acoustics of the car, as well as a specific track.

When designing the GRAVITY GTX series amplifiers, the aesthetic side of the product was not forgotten.

The enclosure is equipped with an acrylic illuminated panel displaying the CRUNCH logo in red and the model name in white.

Amplifiers have external current protection. The included fuse holder shall be mounted in close proximity to the amplifier, regardless of the fuse mounted on the battery.

The Crunch GTX1500.1D is the smallest single channel amplifier in the GRAVITY series operating in class D. Thanks to the built-in active crossovers and configuration options, it is suitable for powering a pair of speakers or a subwoofer.

Use to power the subwoofer. The built-in low-pass crossover allows you to correctly set the frequency response so that the subwoofer receives sound with the appropriate frequency response.

In this setting, the low-pass crossover cuts off high frequencies that the subwoofer does not carry, so that it does not heat up unnecessarily, and uses all the power to process the bass band. In addition, it is possible to raise low frequencies.

The minimum subwoofer impedance is 1 Ohm.

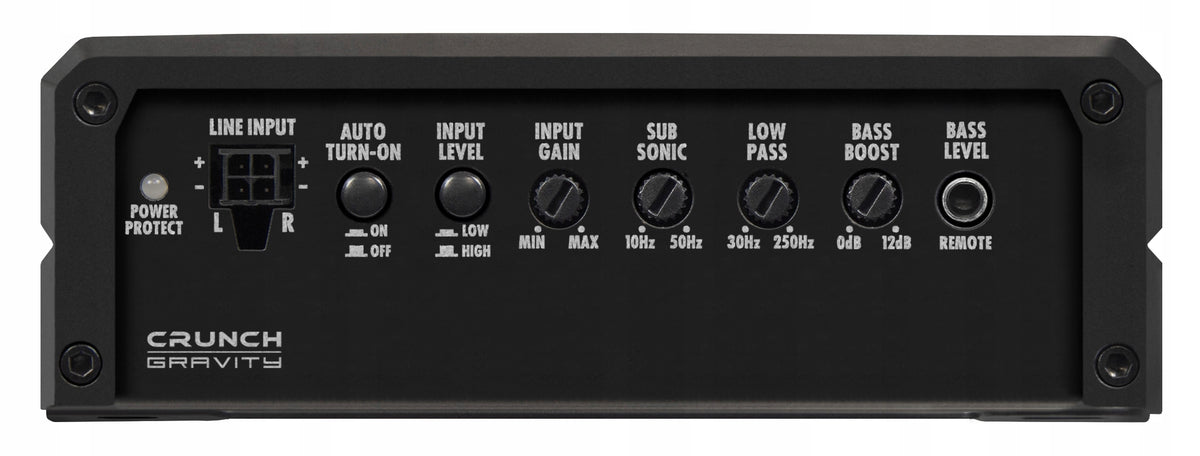

Functions:

• Low-pass filter: 30 – 250 Hz
• Subsonic filter: 10 to 50 Hz
• Bass gain: 0 to 12 dB
• RCA inputs via cable jack
• High-level inputs with EPS® protection system
• Automatic switch-on (Auto Turn-On)
• Compact remote control for bass level adjustment
• Two-tone, backlit panel with logo
• High-quality aluminum heat sink

Specification:

• RMS Power: 1 x 250 / 450 / 750 W @ 4 / 2 / 1 Ω
• Max. power: 1 x 500 / 900 / 1500 W @ 4 / 2 Ω
• Dimensions: 135 x 48 x 175 mm
• Technology: Class D
• Channels: 1
• Speaker Impedance: 1 – 8 Ω
• Distortion (THD) @ 5 W: 0,008 %
• Damping factor: > 750
• Signal-to-noise ratio: 85 dB
• Input Sensitivity:
• • Low-level: 230 mV – 5,7 V
• • High-level: 300 mV – 11,2 V
• Subsonic filter: 10 – 50 Hz @ 12 dB/oct.
• Low-pass filter: 30 – 250 Hz @ 12 dB/oct.
• Bass Boost: 0 – 12 dB @ 45 Hz
• Bass level control (pilot): ✓
• Low-level inputs (Cinch): ✓
• High-level inputs with EPS®: ✓
• Automatic switch-on (DC): ✓
• Operating voltage: 8 – 17 V
• Fuse (external): 60 A
• Dimensions: 135 × 48 × 175 mm

Included:

• Crunch GTX1500.1D
• Controller
• Instructions
• Original box

CRUNCH is a world-renowned supplier of sound equipment for cars, which guarantees excellent product quality.

The Crunch brand, together with Autotek, HiFonics and MB Quart brands, belongs to Maxxsonics from the United States. In Europe, the Crunch brand is represented by Audio Design from Germany, which ensures that products for the European market meet all the necessary standards and meet the expectations of a demanding European customer.

Production in proven factories, also producing for HiFonics and MB Quarta, is solid execution using the latest technologies.

By choosing Crunch products, you can be sure that they are worth the price.
