Automašīnas pastiprinātājs ESX SIGNUM SX-FIVE, 5 kanāli, 600 W, ar tālvadības zemfrekvences regulēšanu

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas ESX SIGNUM SX-FIVE, 5 kanalų, 600 W, su nuotolinio valdymo žemųjų dažnių reguliatoriumi. Kategorija: Stiprintuvai.

• Gamintojas: ESX
• Modelis: SX-FIVE

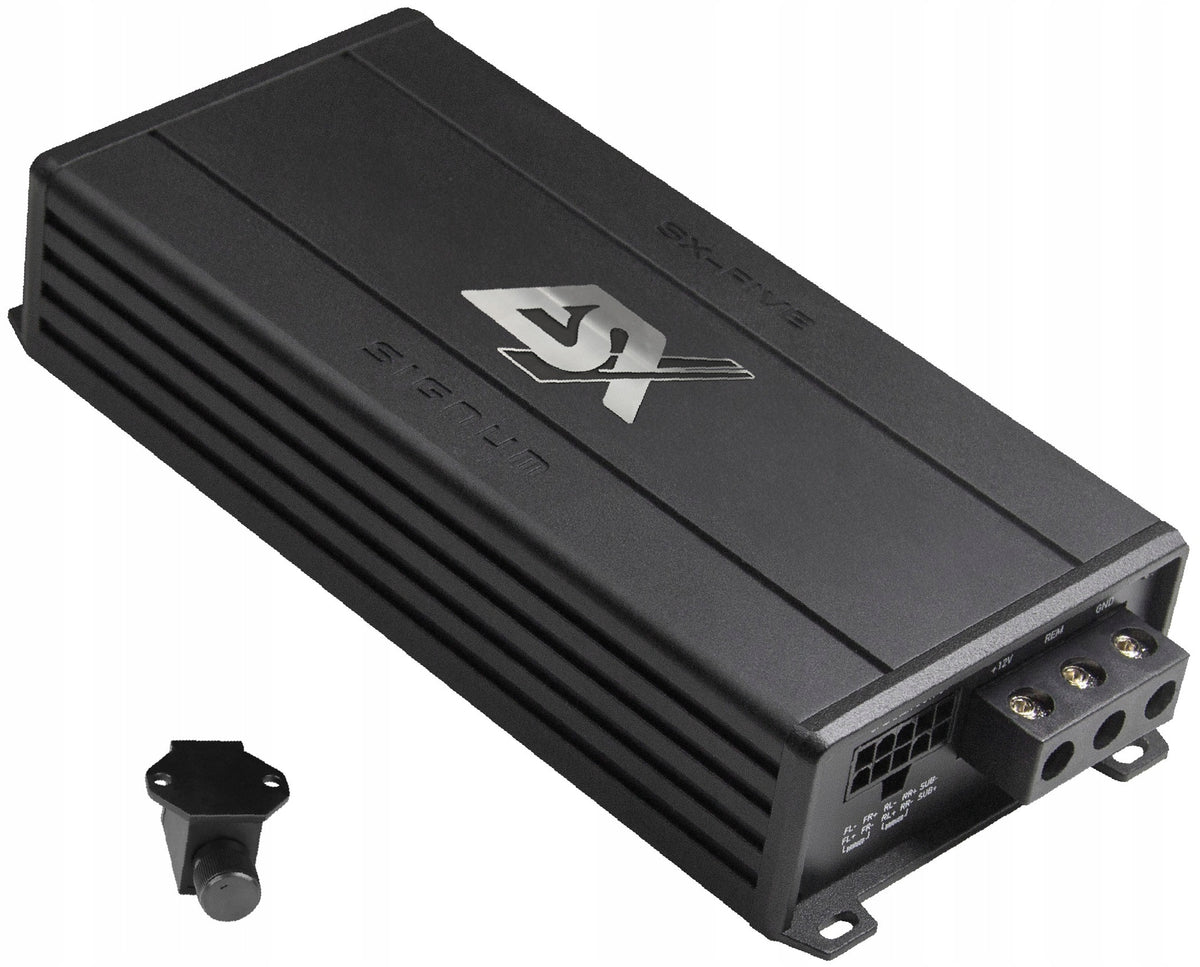

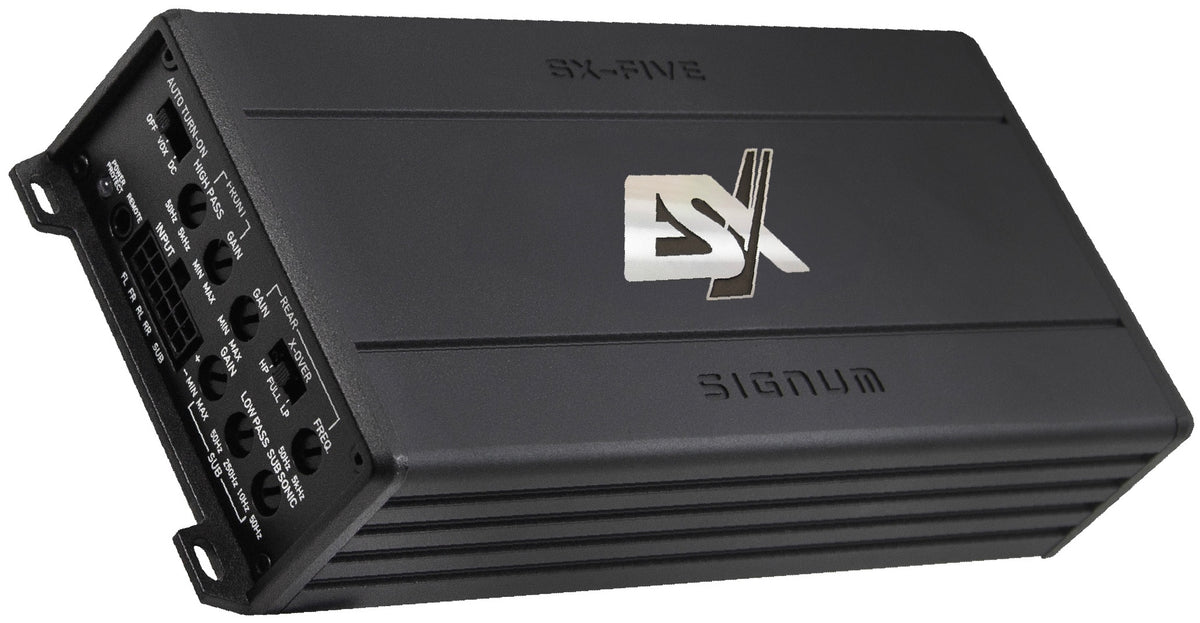

ESX SIGNUM SX-FIVE from the SX Mini series is an extremely advanced and at the same time perfectly matched 5-channel class D amplifier. It is designed to provide uncompromising sound quality and powerful bass impact wherever the factory sound system OEM cannot cope or there is no space for large devices.

The amplifier generates a real, stable total power of 600W RMS (4x50W at 4 Ohms for speakers and 1x280W at 2 Ohms for subwoofer). Thanks to advanced High Level inputs with EPS® system, the device works seamlessly with both factory radios and non-factory audio systems. It is the perfect choice for car audio enthusiasts who want a complete system from a single device without interfering with the factory structure of the vehicle.

• Mini-Size design and perfect fit – The design with dimensions of only 83 × 38 mm has been 100% adapted for discreet car audio installations. The amplifier fits perfectly under the front seats, in the side panels or in the trunk, preserving the original usable space of the car.
• Complete All-in-One system – Forget about the cumbersome installation of several devices, tangled cables or lack of space. The amplifier supports front, rear and separate subwoofer channels at the same time, closing the entire car audio installation in one compact housing.
• High-Level EPS® technology – The use of the innovative Error Protection System guarantees seamless integration with modern factory radios. The system prevents on-board computer errors and sound mute, offering automatic switching on when a signal is detected.
• High Digital Efficiency Class D – Modern digital technology allows you to squeeze maximum power from minimal dimensions, resulting in negligible heat release, excellent current efficiency and extremely low level of harmonic distortion.
• Wide bandwidth and analog filters – Full filter adjustment (from 50 Hz to 5000 Hz for speakers and a subsonic filter 10 to 50 Hz) allows for precise bandwidth cut-off, giving the sound the desired clarity, dynamics and appropriate fleshyness of low tones.
• Start/Stop Compliance and Bass Remote – The amplifier maintains full stability of operation with voltage drops up to 7V during engine start-up. The included REM-ESX1 wired controller allows you to conveniently adjust the volume of the subwoofer straight from the driver's seat.

• Amplifier type: 5-channel digital Mini Class D
• RMS power at 4 Ω: 4 x 50 W + 1 x 150 W
• RMS power at 2 Ω: 4 x 80 W + 1 x 280 W
• Speaker Impedance: 2 – 8 ΩT.H.D + N.< 0,02 %
• Signal-to-noise ratio: > 100 dB
• Input sensitivity: 200 mV 9 V
• High-pass filter: section FRONT 50 – 5000 Hz
• HP/LP filter: REAR section 50 – 5000 Hz
• Low pass filter: SUB section 50 to 250 Hz
• Subsonic filter: SUB section 10 to 50 Hz
• Low-level inputs (RCA): yes (via included cable connector)
• High Level Inputs (High Level with EPS®): yes (via included cable connector)
• Automatic switch-on (DC/VOX) via High Level inputs: yes
• Wired bass driver: REM-ESX1 (included)
• Ready Start/Stop: yes
• Power supply voltage: 10,5 – 16,5 V (max. 5 s to 7 V)
• Current protection: 1 × 50 A (external fuse)
• Dimensions (Width × H × D. ): 83 × 38 × 173 mm

• ESX SX-FIVE amplifier
• Wired bass controller REM-ESX1 with cable
• Wire Harnesses for Signal Inputs (RCA/High Level)
• Mounting accessories and instructions
