Auto pastiprinātājs ESX SXE1000.5

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas ESX SXE1000.5. Kategorija: Stiprintuvai.

• Gamintojas: ESX
• Modelis: SXE1000.5

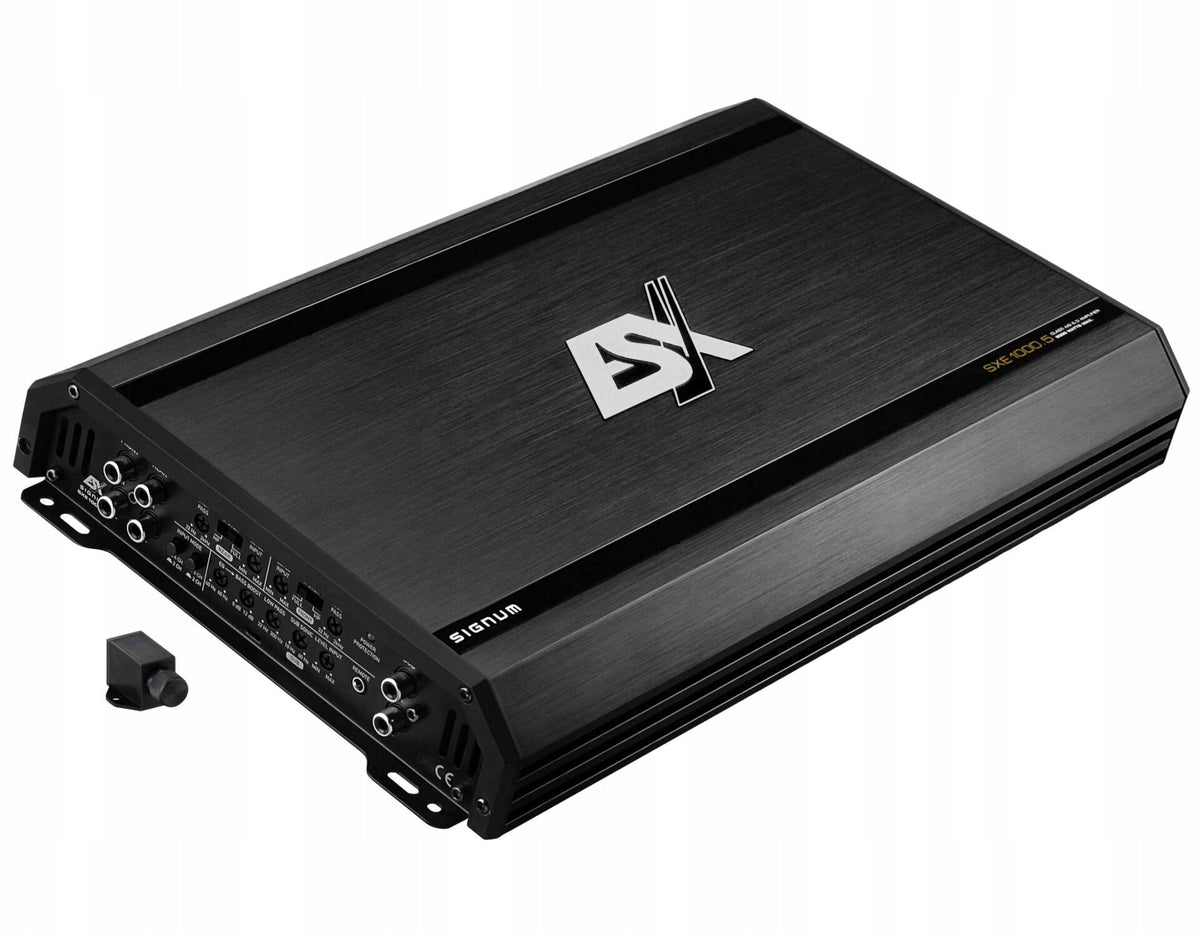

ESX SXE1000.5 - car amplifier

ESX

ESX SIGNUM SXE – a new quality of power and sound

ESX SIGNUM SXE amplifier series is designed based on the proven and highly regarded HORIZON HXE line, but offers an even higher level of quality, performance and finish . The design has been thoroughly redesigned to meet the requirements of users looking for perfect sound, solid workmanship and versatile installation.

The new SXE amplifiers feature massive connection terminals , aluminum side panels and an elegant housing with a recessed ESX logo, made of high-quality aluminum. It is not only a device with excellent technical parameters, but also a stylish element of any professional car audio system.

Perfect sound and audiophile-grade precision

SXE series amplifiers use high-quality NE5532 operational amplifiers in the input section, which guarantee excellent sound resolution across the entire frequency range and minimal harmonic distortion . This resulted in a natural, spacious and dynamic sound – both in the high and low tones.

Five-channel hybrid design – power and flexibility

New in the SIGNUM SXE series is a five-channel hybrid amplifier , combining in one housing:

• four-channel class A/B amplifier (for front and rear speakers),
• a mono Class D subwoofer channel with enough power to power the most demanding subwoofers.

The subwoofer channel has been optimized to operate at a minimum impedance of 1 Ohm , allowing for efficient power utilization even with dual voice coil subwoofers (2x2 Ohm) . Thanks to the high efficiency of the digital path, the amplifier delivers powerful power at low current consumption, maintaining stability and control.

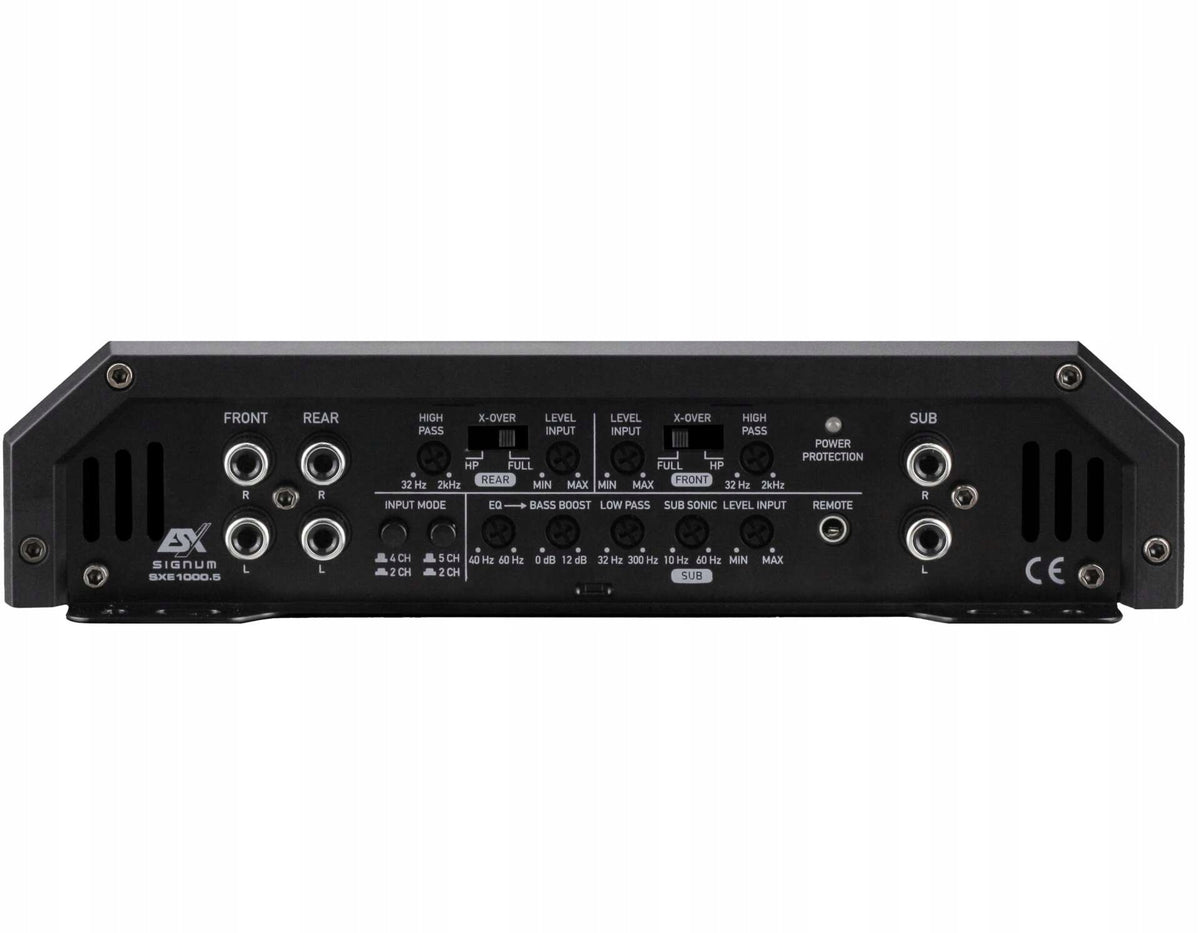

Advanced filter and adjustment section

The SXE amplifier offers a wide range of sound configuration options:

• Channels 1–4 are equipped with a high-pass filter (HPF) to cut off the low-frequency range transmitted to the full-range speakers.
• The subwoofer channel has a low-pass filter (LPF) and a subsonic filter that allow you to precisely adjust the performance of the bass system.
• Bass boost adjustment with frequency selection allows you to adjust the sound characteristics to the acoustics of a specific car interior.

The set includes a wired bass controller , allowing for convenient and precise control of the subwoofer volume level from the driver's seat.

Versatile connection options

The SIGNUM SXE amplifier is equipped with RCA inputs enabling signal transmission from the head unit – using either one or two pairs of cables. For factory systems without line outputs, a Hi-Low signal converter can be used, allowing full integration with the original audio system.

Additionally, the amplifier offers the ability to bridge channels 1-2 and 3-4 , allowing for a three-channel configuration – ideal for driving two high-power loudspeakers and one subwoofer.

Design features and security features

• Massive aluminum housing with an elegant, recessed ESX logo
• Aluminum side panels and bottom plate with mounting brackets

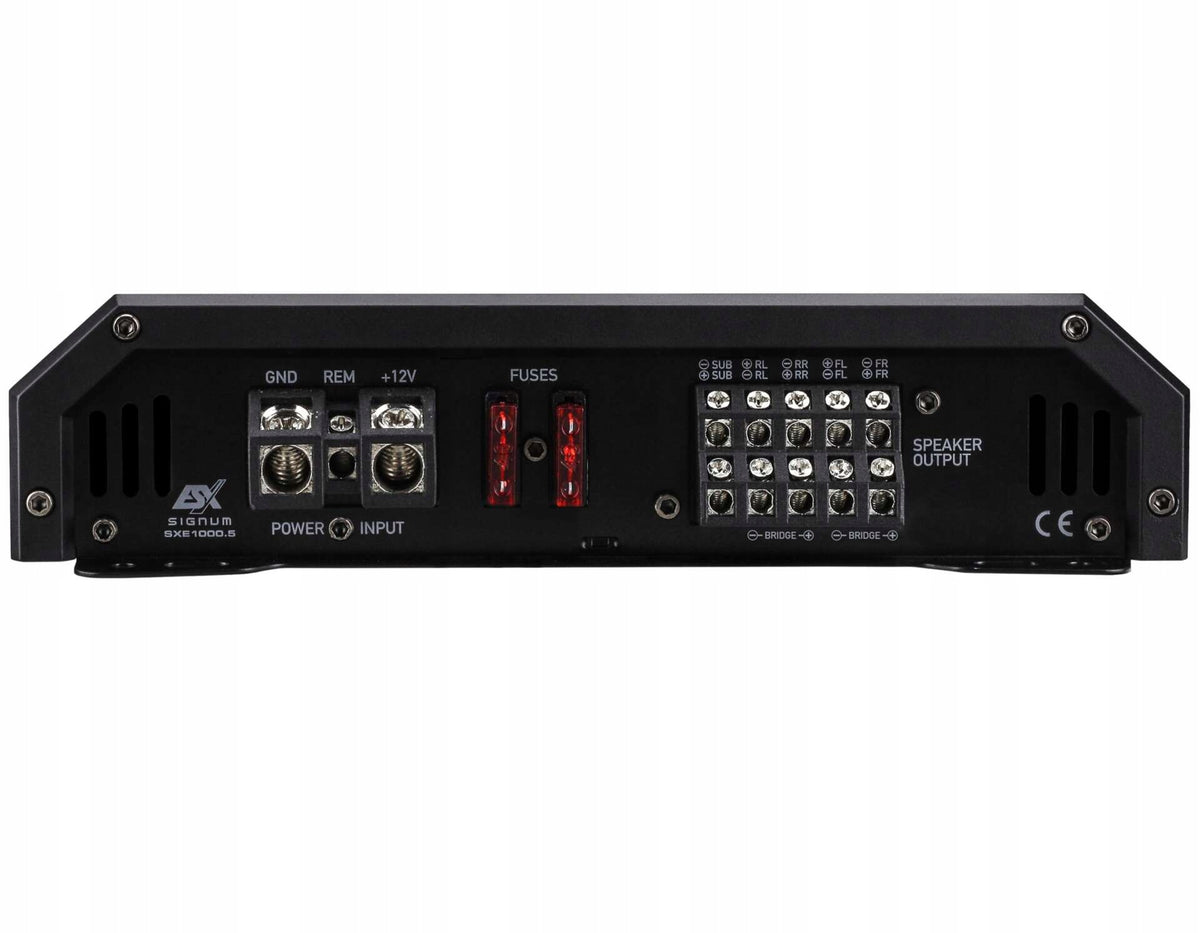

• Massive, highly durable connection terminals
• PWM MOSFET power supply with triple protection system (overload, overheating, short circuit)
• High energy efficiency and stable operation at low impedance

Summary

ESX SIGNUM SXE series is a combination of solidity, elegance and excellent sound. Its hybrid design, modern components and extensive configuration options make it an ideal choice for both pure sound enthusiasts and professional car audio installers.

This is an amplifier that will drive the entire system , providing power, precision and complete control over every sound.

• Manufacturer: ESX
• Manufacturer code: ESX SXE1000.5
• EAN: 4251476404458

Five-channel car amplifier. Hybrid design Class A/B: 4×75/125 Watt RMS @ 4/2 Ohm. Class D: 1×200/350/500 Watt RMS @ 4/2/1 Ohm

five-channel, RMS power 4×75 Watt at 4 Ohm +1x500W at 1 Ohm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	ESX
Parametry	Model	SXE1000.5
Parametry	Number of channels	5-channel
Parametry	Amplifier class	D
Parametry	Product weight with unit packaging	4.6 kg
Parametry	Manufacturer code	SXE1000.5
Parametry	Rated RMS power	200 W
Parametry	Impedance	4 Ω
Parametry	THD distortion	0.1%
Parametry	Signal-to-noise ratio	90 dB
Parametry	Packaging status	original
