Auto pastiprinātājs HERTZ DP 4.300, 4 kanāli, 4x85W RMS, Klase AB

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas HERTZ DP 4.300, 4 kanalai, 4x85W RMS, Class AB. Kategorija: Stiprintuvai.

• Gamintojas: Hertz
• Modelis: DP 4.300

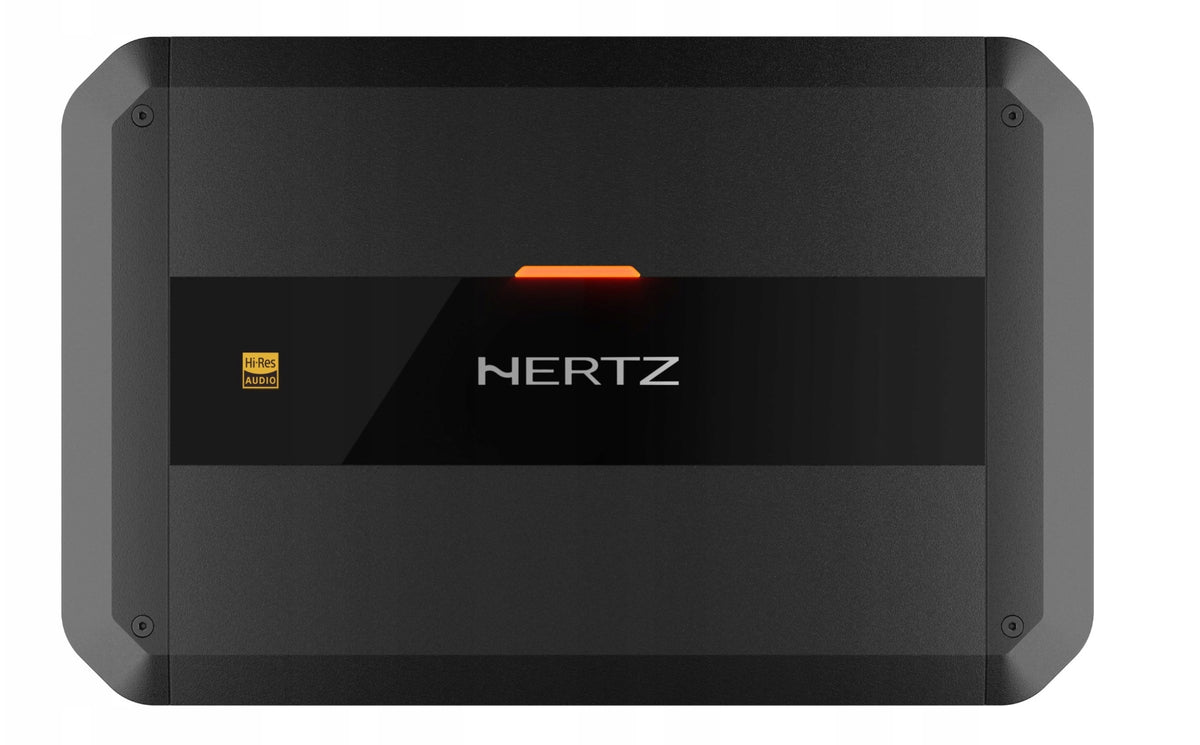

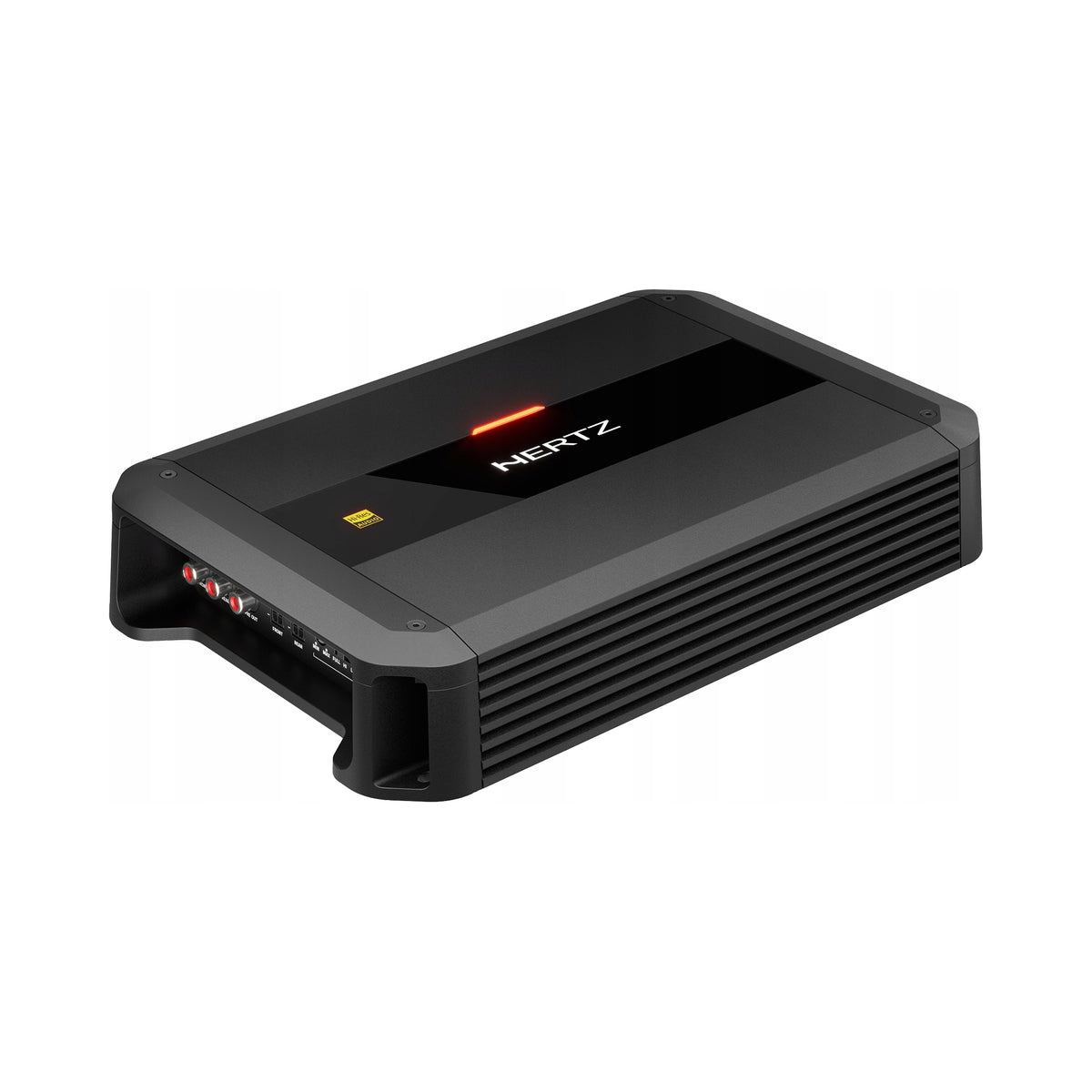

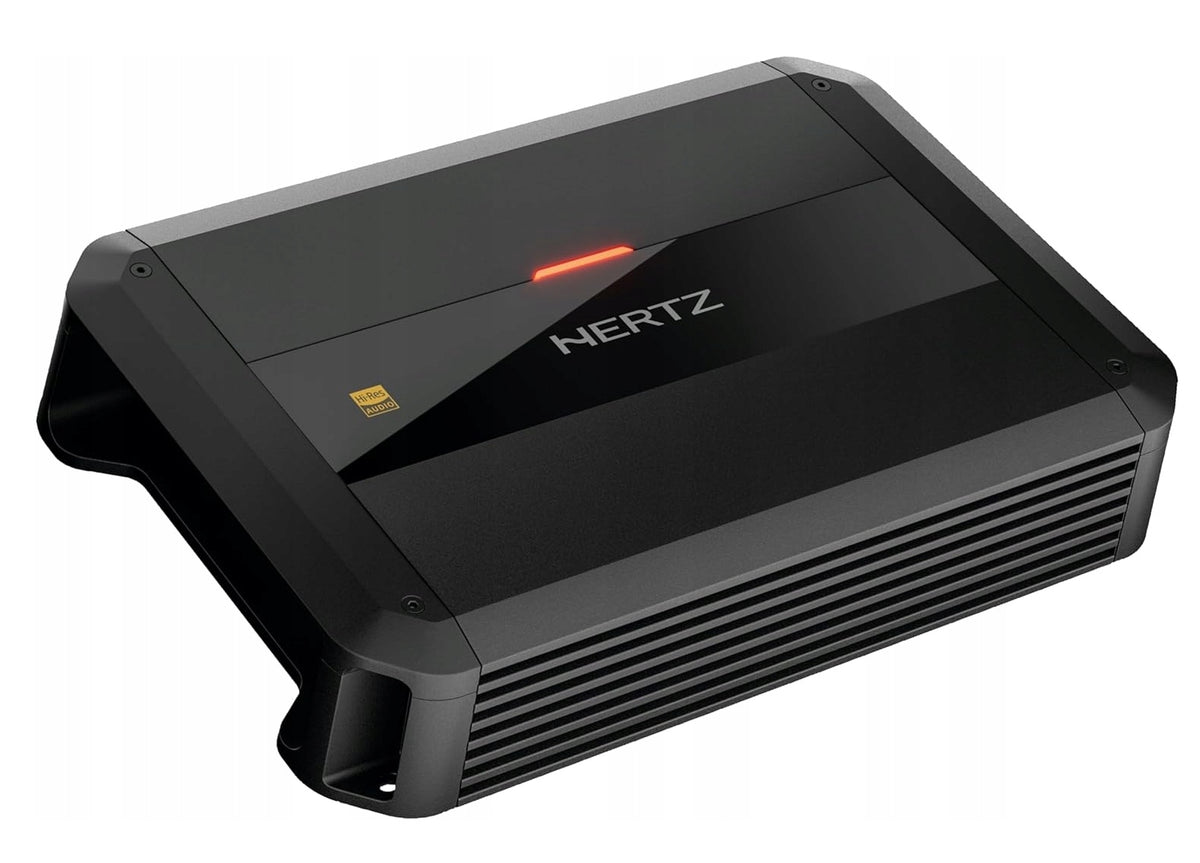

⭐ HERTZ DP 4.300 – 4-CHANNEL AB CLASS AMPLIFIER WITH BRIDGING

Hertz DIECI POWER DP 4.300 is a high-end 4-channel car amplifier class AB, which combines very good sound quality with great configuration possibilities. It can work as a 4-, 3- or 2-channel amplifier, making it suitable for both powering two pairs of speakers and a front set with a subwoofer.

The amplifier offers 4 × 60 W RMS at 4 Ohm and 4 × 85 W RMS at 2 Ohm at 1% THD. After bridged channels, you can get 2 × 170 W RMS at 4 Ohm. The wide frequency response of 10 Hz – 50 kHz and the Hi-Res Audio certificate emphasize its focus not only on power, but also on high quality music reproduction.

USS – Universal Speakers Simulator technology facilitates integration with factory units equipped with speaker load detection. There are also Speaker-In and Pre-In inputs, adjustable HPF/LPF 50 – 4000 Hz filters and adjustable bass boost.

✔ 4-channel AB class design

✔ Ability to work as 4 / 3 / 2 channels

✔ 4 × 60 W RMS at 4 Ohm

✔ 4 × 85 W RMS at 2 Ohm

✔ In bridge 2 × 170 W RMS at 4 Ohm

✔ Hi-Res Audio certificate

✔ USS technology

✔ Speaker-In and Pre-In inputs

✔ Adjustable filters HPF / LPF

✔ Ideal for expanding the factory Car Audio system

⭐ TECHNICAL SPECIFICATION

• Producer: Hertz

• Series: POWER

• Model: DP 4.300

• Type: 4-channel amplifier

• Working class: AB

• Channel configuration: 4 / 3 / 2

• Bridgeability: yes

RMS power at 1% THD:

• 4 Ohms: 4 × 60 W RMS

• 2 Ohms: 4 × 85 W RMS

• 3-channel 4 Ohm mode: 2 × 60 W + 1 × 170 W RMS

• 3-channel 2 Ohm / 4 Ohm mode: 2 × 85 W + 1 × 170 W RMS

• 2-channel mode / 4 Ohm bridge: 2 × 170 W RMS

Power at 14,4 V / 10% THD:

• 4 Ohms: 4 × 75 W

• 2 Ohms: 4 × 105 W

• 3-channel 4 Ohm mode: 2 × 75 W + 1 × 210 W

• 3-channel mode 2 Ohm / 4 Ohm: 2 × 105 W + 1 × 210 W

• 2-channel mode / 4 Ohm bridge: 2 × 210 W

• Total power: 840 W

• Minimum impedance in 4-channel mode: 2 Ohm

• Minimum impedance in 3-channel mode: 2 + 2 + 4 Ohm

• Minimum impedance in 2-channel mode: 4 Ohm

• Frequency response: 10 Hz – 50 kHz

• HPF / LPF filters: 50 – 4000 Hz / 12 dB/oct.

• Bass Boost: adjustable

• USS Technology: yes

• Speaker input sensitivity: 1,6 – 40 Vrms

• Operating voltage: 6,5 – 16,5 V

• Nominal supply voltage: 11 – 15 V DC

• Fuses: 2 × 20 A

• Automatic on/off: yes

• Full Range preamplifier outputs: yes

• Certificate: Hi-Res Audio

⭐ ONE AMPLIFIER – MANY POSSIBILITIES OF SYSTEM EXPANSION

The biggest advantage of the Hertz DP 4.300 is its versatility. You can use four channels to power the front and rear speakers or leave two channels for the front set, and the other two bridge and get 170W RMS for the 4 Ohm subwoofer. You can also bridge all channels and get 2 × 170W RMS at 4 Ohm.

This is a particularly interesting choice when upgrading the factory sound system. Speaker-In, automatic switching on and USS technology facilitate integration with the factory radio, while extensive filters allow you to properly adjust the amplifier to the speakers used.

If you are looking for one amplifier that will allow you to build a powerful and quality Car Audio system, and at the same time leave you with several configuration options, the Hertz DP 4.300 gives you much more freedom than a classic 2-channel amplifier.

Contents of the set:

✔ 1 × amplifier Hertz DP 4.300

✔ 2 × connector Speaker IN

✔ 2 × fuse 20 A

✔ Operating / assembly instructions
