Automašīnas pastiprinātājs Hifonics Juno DSP, Audi A3/A4/A5/A6/Q3/Q5, Plug&Play

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Hifonics Juno DSP, Audi A3/A4/A5/A6/Q3/Q5, Plug&Play. Kategorija: Stiprintuvai.

• Gamintojas: no brand
• Modelis: JUNO-IV-DSP-ISO + QL52-AUDI

HiFonics JUNO IV-DSP-ISO + Quadlock 52-pin AUDI – 4 × 115 W RMS + DSP

A complete set for the expansion of the factory Car Audio system in selected Audi cars, consisting of a compact HiFonics JUNO IV-DSP-ISO amplifier with a built-in 6-channel DSP processor and a Quadlock 52-pin → ISO adapter.

The kit allows you to connect the amplifier to the factory installation of a compatible Audi without cutting the original speaker cables.

This solution is for people who want to increase the power of the factory system, improve the sound quality and get the opportunity to professionally tune the DSP.

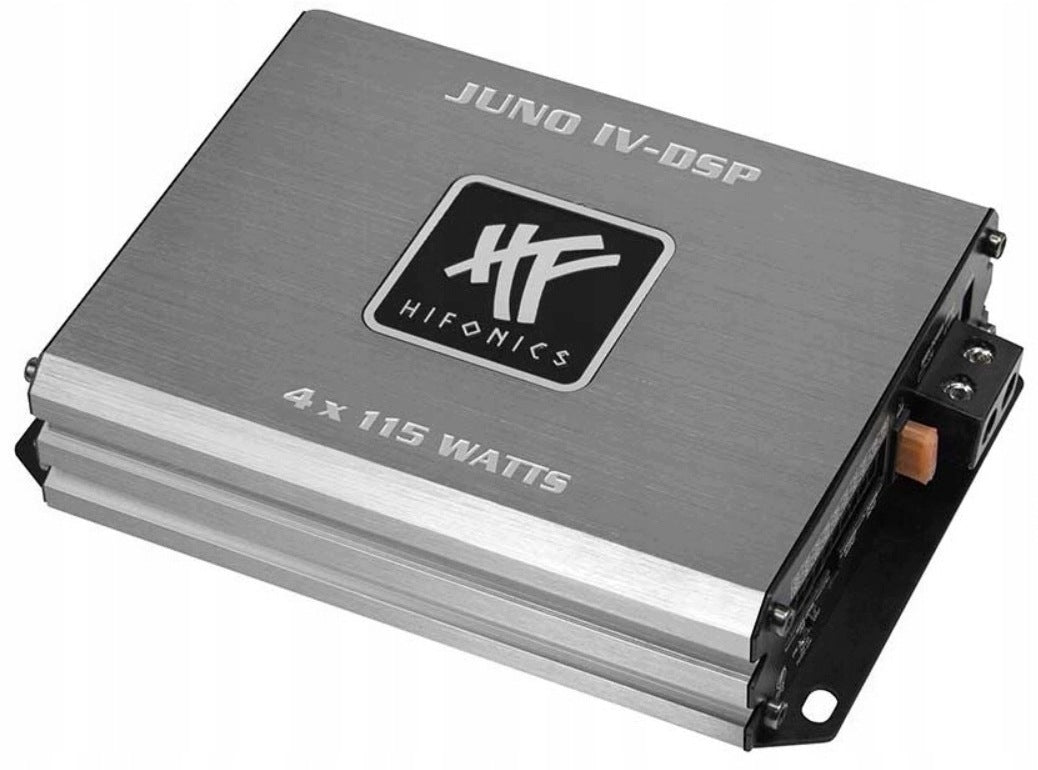

⭐ HIFONICS JUNO IV-DSP-ISO – 4 × 115 IN RMS IN A COMPACT HOUSING

HiFonics JUNO IV-DSP-ISO is a modern 4-channel Class D amplifier designed to expand factory Car Audio systems.

Despite dimensions of only 166 × 115 × 35 mm, the amplifier offers:

✔ 4 × 75 W RMS at 4 Ω

✔ 4 × 115 W RMS at 2 Ω

✔ 4-channel Class D power amplifier

✔ Built-in 6-channel DSP processor

✔ Bluetooth 5.0

✔ Streaming music A2DP / aptX

✔ Configuration of DSP by application

✔ Configurable via PC

✔ High Level inputs

✔ AUX RCA Input

✔ Digital optical input S/PDIF

✔ Additional processed outputs RCA

The JUNO IV-DSP-ISO version is equipped with a 2,5-meter ISO beam, thanks to which it can work with dedicated car adapters – such as the Quadlock 52-pin adapter for VW included in this offer.

Technical data of the amplifier:

• Producer: HiFonics

• Model: JUNO IV-DSP-ISO

• Type: 4-channel amplifier with DSP

• Working class: D

• RMS power at 4 Ω: 4 × 75 W

• RMS power at 2 Ω: 4 × 115 W

• Number of amplifier channels: 4

• Number of DSP channels: 6

• Processor: Dual Core 32-bit / 122,88 MHz

• Sampling rate: 48 kHz

• Bluetooth: 5.0

• Streaming: A2DP / aptX

• High Level Input: 4-channel

• AUX: RCA L/R

• Optical input: S/PDIF 192 kHz / 24 bit

• USB: Type B

• Signal outputs: 2 × RCA

• Speaker outputs: 4 channels

• Dimensions: 115 × 35 × 140/166 mm

⭐ 6-CHANNEL DSP – FULL CONTROL OVER THE AUDIO SYSTEM

The built-in DSP processor allows you not only to increase the power of the factory speakers, but above all precisely tune the audio system to the specific car and the speakers used.

Four DSP channels support the power amplifiers, while two additional channels are available as RCA outputs, which allows you to expand the system with another amplifier in the future – e.g. to the subwoofer.

DSP offers:

✔ Crossovers HP / LP / BP

✔ Slope of filters 6 to 48 dB

✔ Time correction

✔ Multi-Band Output Equalizer

✔ 0° / 180° phase adjustment

✔ Master Gain

✔ Independent Channel Gain

✔ Mixer of inputs

✔ Subwoofer level adjustment

✔ Possibility to expand the system by RCA outputs

Thanks to Bluetooth 5.0 it is also possible to wirelessly transfer music and control the DSP processor from a compatible mobile device.

JUNO IV-DSP-ISO is therefore not only an amplifier, but also a central processor of the entire Car Audio system.

⭐ Quadlock 52-pin → ISO for AUDI – Plug & Play

The set includes a Quadlock 52-pin → ISO adapter, which allows you to connect the HiFonics amplifier to the factory installation of compatible Audi cars.

The solution avoids cutting through factory speaker wires and facilitates a later return to the original configuration of the car.

Audi compatibility

✔ Audi A1 8X – 2010 – 2018

✔ Audi A1 GB – from 2018

✔ Audi A3 8V – 2012 – 2020

✔ Audi A3 8Y – since 2020

✔ Audi A4 B8 / 8K – 2007 – 2015

✔ Audi A4 B9 / 8W – from 2015

✔ Audi A5 8T / 8F – 2007 – 2016

✔ Audi A5 F5 – since 2016

✔ Audi A6 C7 / 4G – 2011 – 2018

✔ Audi A6 C8 / 4K – from 2018

✔ Audi A7 C7 / 4G – 2010 – 2018

✔ Audi A7 C8 / 4K – from 2018

✔ Audi Q2 GA – from 2016

✔ Audi Q3 8U – 2011 – 2018

✔ Audi Q3 F3 – since 2018

✔ Audi Q5 8R – 2008 – 2017

✔ Audi Q5 FY – since 2017

IMPORTANT: compatibility applies to cars equipped with the appropriate factory Quadlock 52-pin connector and basic audio system without an external factory amplifier.

The kit may not be suitable for cars equipped with extensive factory sound systems such as BOSE, Bang & Olufsen, Audi Sound System or other configurations using an additional factory amplifier.

Due to the different versions of equipment available under the same model and year, please check the type of factory audio system and the connector used before purchasing.

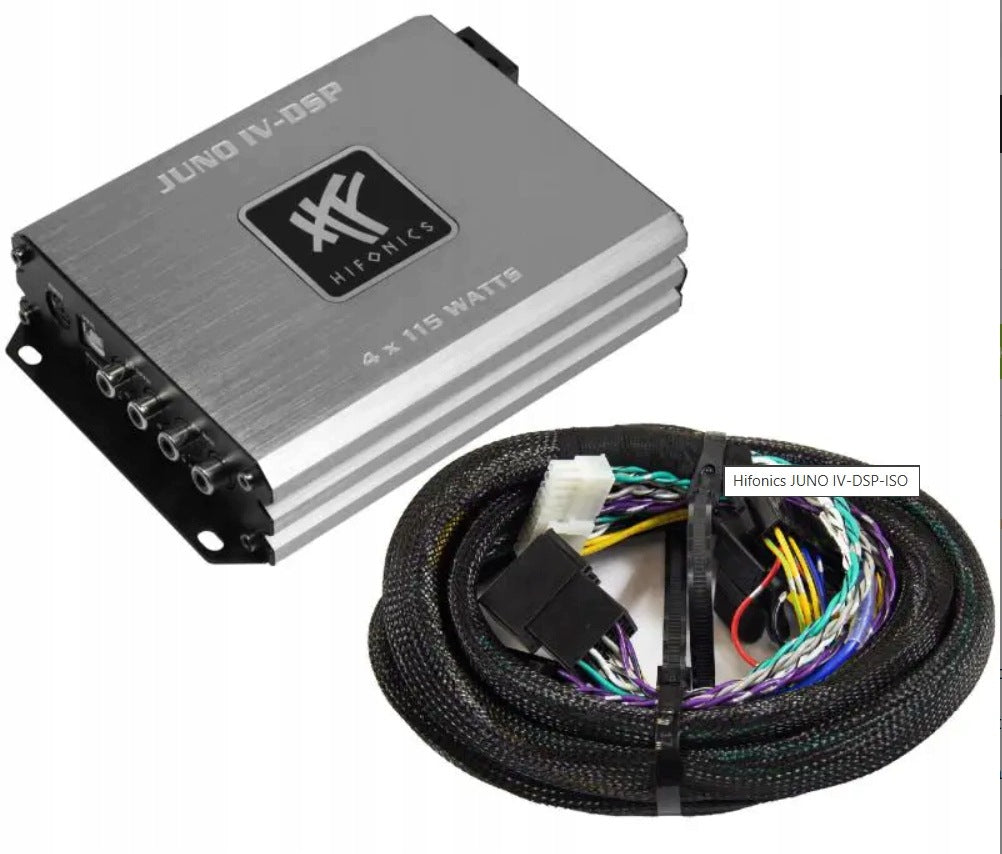

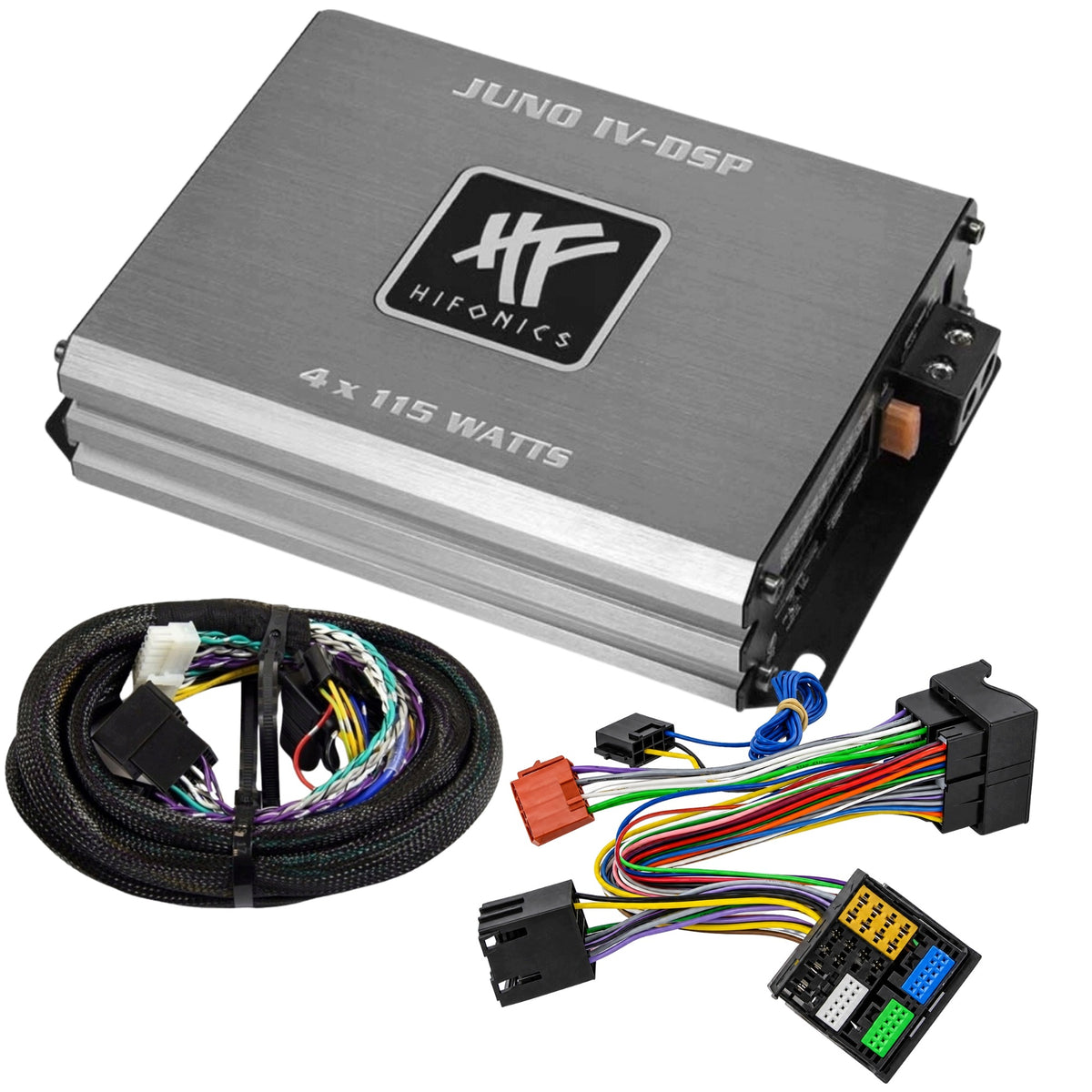

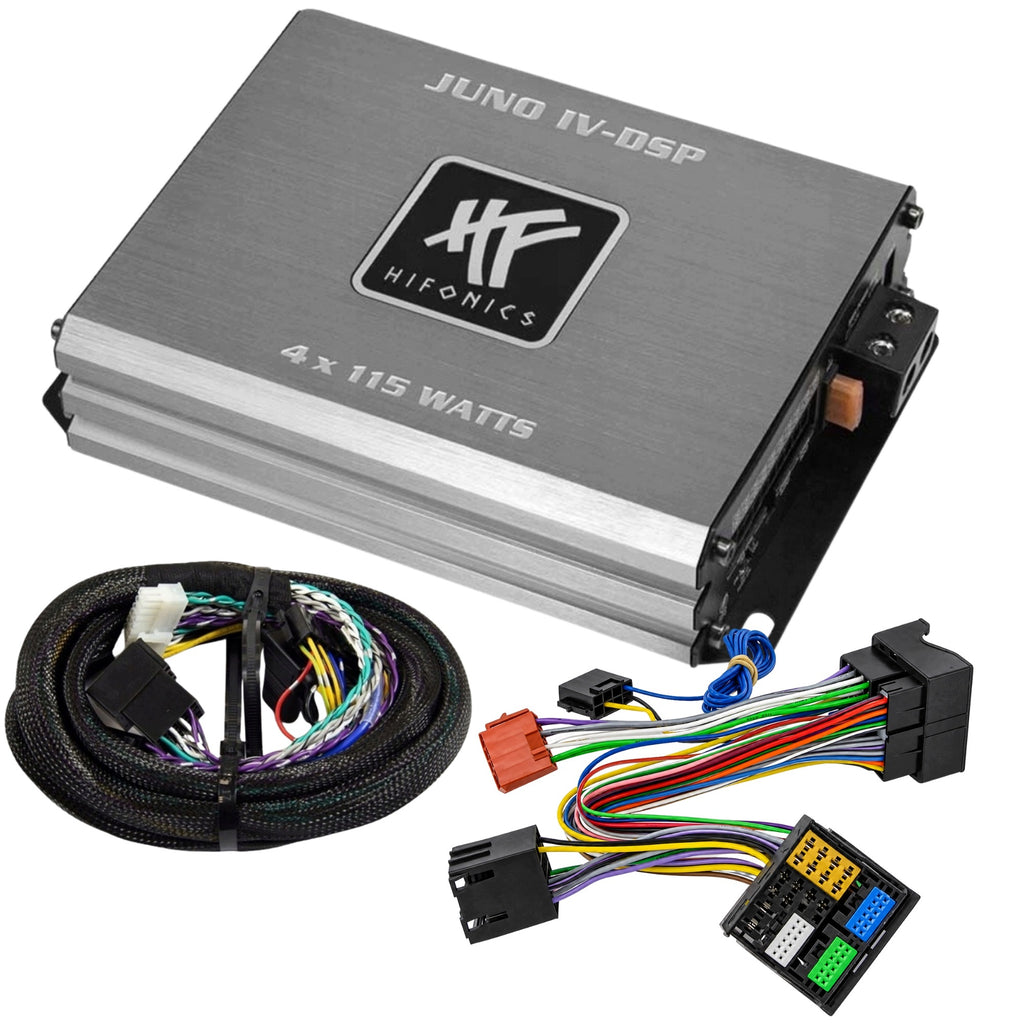

Contents of the set:

✔ HiFonics JUNO IV-DSP-ISO amplifier

✔ ISO Plug & Play 2,5 m

✔ Quadlock 52-pin → ISO Adapter for Audi

✔ USB cable for DSP configuration

✔ Components included in the factory amplifier kit

✔ Original manufacturer packaging

NOTE: due to the lack of +12 V after ignition in some factory radio connectors, it may be necessary to connect the blue wire to the appropriate signal in the car installation if it is required to control the switching on and off of the device depending on the position of the ignition.
