Automašīnas pastiprinātājs KICX Angry Ant D4, 4 kanāli, 4x150/225W, 2x450W

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas KICX Angry Ant D4, 4 kanalai, 4x150/225W, 2x450W. Kategorija: Stiprintuvai.

• Gamintojas: Kicx
• Modelis: ANGRY ANT D4

⭐ COMPACT CLASS D DIGITAL AMPLIFIER

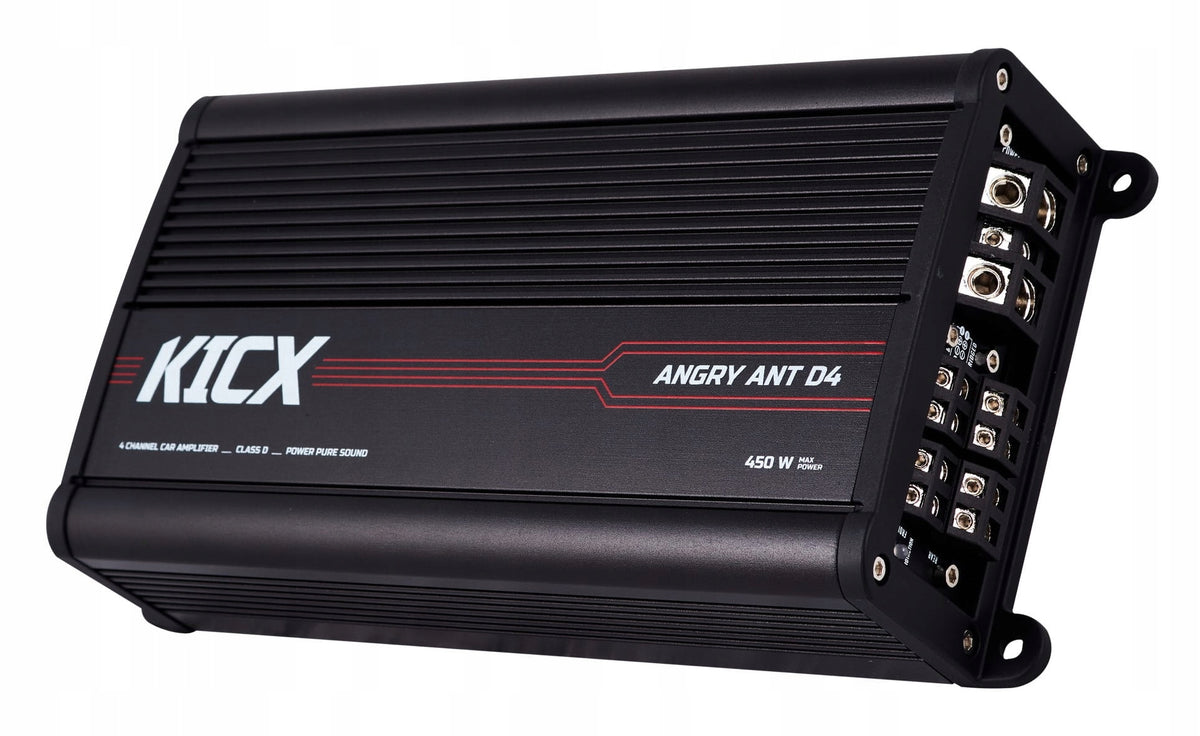

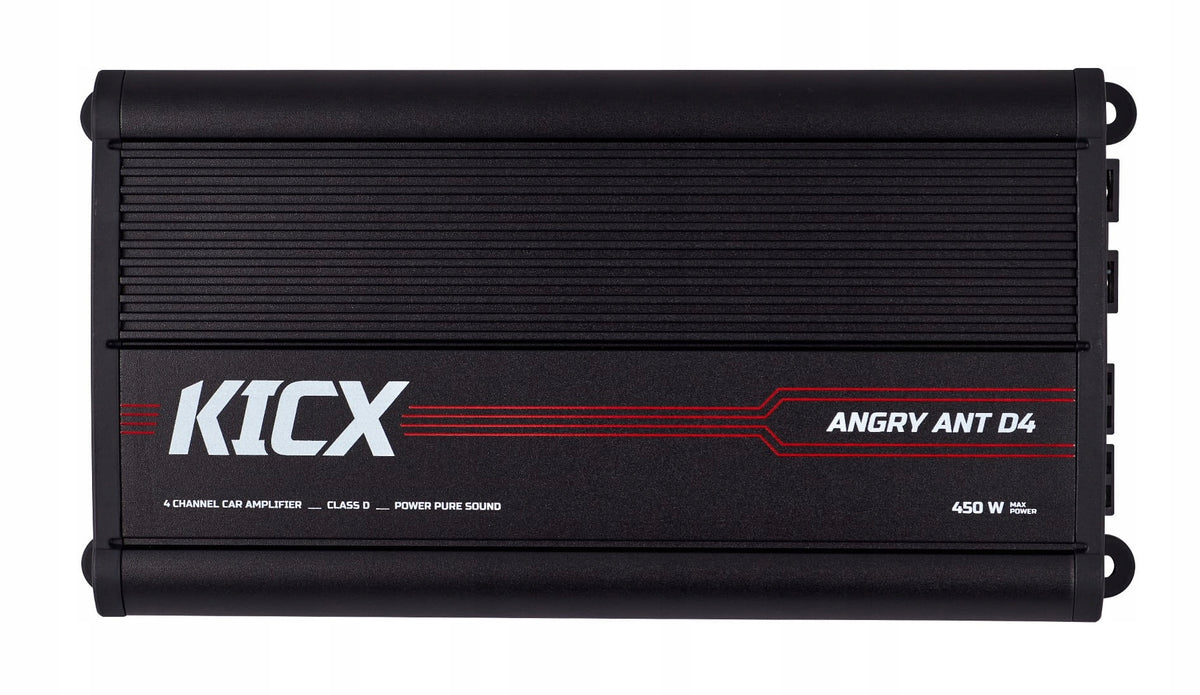

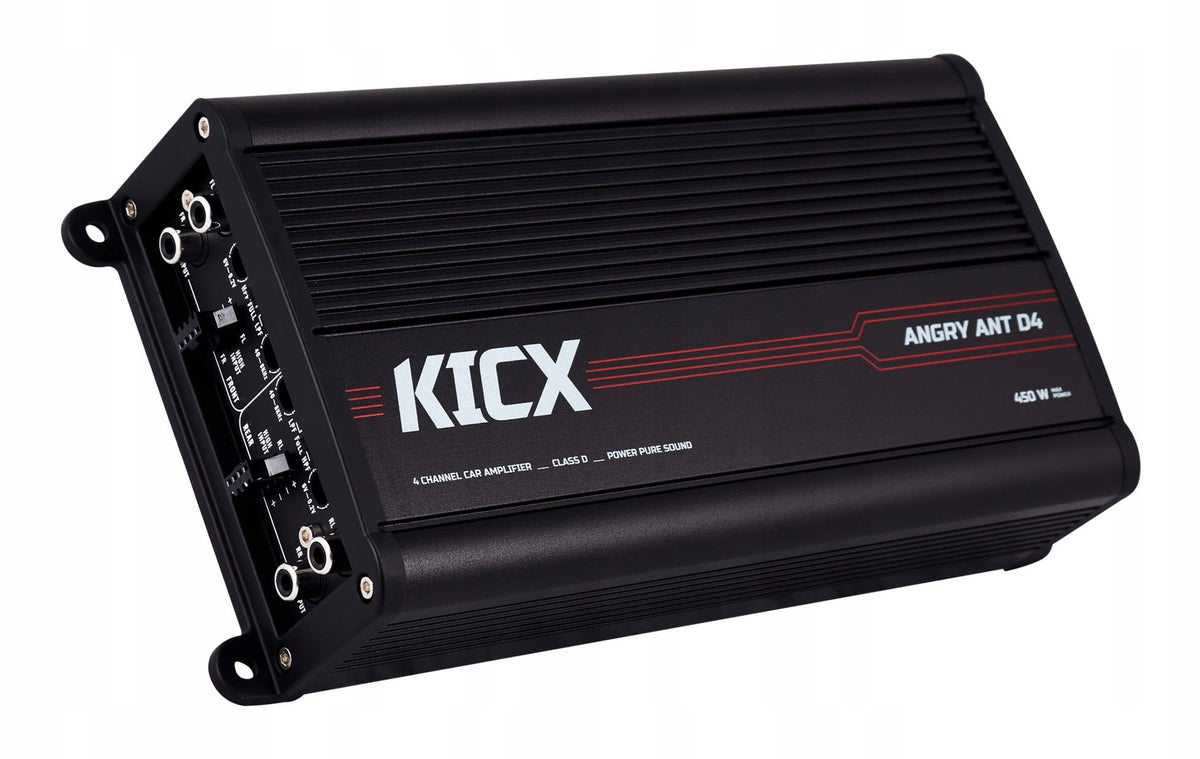

The KICX ANGRY ANT D4 amplifier is an advanced audio device operating in the digital class D, which combines high power with extremely compact dimensions. Thanks to the aluminum housing measuring only 280x123x56mm, the amplifier can be installed in virtually any car, even where space is limited. The device achieves an impressive power of 4x150W RMS at 4Ω and 4x225W RMS at 2Ω, and in bridge configuration up to 2x450W RMS at 4Ω.

Built-in Hi-Input high-voltage input allows direct connection to the factory car radio without the need for additional converters. It is an ideal solution for those who value simplicity of installation and professional sound quality.

⭐ KEY ADVANTAGES OF THE AMPLIFIER

The ANGRY ANT series is distinguished by its excellent value for money, offering parameters comparable to much more expensive models. The amplifier is characterized by low harmonic distortion of 0,005% and an excellent signal-to-noise ratio of 93dB, which translates into clear and precise sound.

✅ Digital class D for high efficiency and low heat release

✅ Compact dimensions 280x123x56mm for easy installation in any vehicle

✅ Built-in Hi-Input for direct connection to factory radio

✅ Adjustable HPF and LPF filters in the range of 40-8000 Hz with a slope of 12dB/octave

✅ Multi-level protection against overheating, short circuit and overload

✅ High damping factor of 100 for precise speaker control

⚙ TECHNICAL PARAMETERS

• Brand: Kicx
• Model: ANGRY ANT D4
• Number of channels: 4-channel
• Amplifier class: D (digital)
• RMS output power at 4Ω: 4x150W
• RMS output power at 2Ω: 4x225W
• Power in the bridge at 4Ω: 2x450W
• High-pass filter HPF: 40-8000 Hz/12dB per octave
• Low pass filter LPF: 40-8000 Hz/12dB per octave
• Transmission bandwidth: 20-30000 Hz
• High Level Input Impedance: 100Ω
• Input Impedance Low Level: 20kΩ
• Suppression factor: 100
• Minimum speaker impedance: 2Ω
• THD harmonic distortion: 0,005%
• Signal-to-noise ratio: 93dB
• Channel separation: 75dB
• Power supply voltage: 9-15V
• RCA input sensitivity: 0,2-6V
• Hi-Input sensitivity: 0,2-10V
• No-load current consumption: 1,2A
• RCA inputs: 4
• Dimensions: 280x123x56mm
• Speaker connectors: 8 GA/8,35mm²
• Power connectors: 2 GA/35mm²
• Weight: 1630g
• Protection: thermal, short circuit, overload with signal diode

⭐ APPLICATION AND CONFIGURATION OPTIONS

The KICX ANGRY ANT D4 amplifier is a universal solution for demanding users of car audio systems. Thanks to 4 independent channels it can be used in various installation configurations, adapting the system to individual needs.

➡ 4-channel configuration: powering a set of front and rear speakers with full control over each channel

➡ 2+1 configuration: two channels for front speakers, two bridged for subwoofer

➡ Bridge configuration: two powerful channels of 450W RMS for powering demanding speakers or subwoofers

➡ Component systems: ideal for powering high-end speaker systems with separation

Adjustable HPF and LPF filters allow you to fine-tune the frequency response to the characteristics of the speakers, eliminating unwanted frequencies and maximizing sound quality. The 75dB channel separation provides excellent separation of stereo signals, creating a spatial soundstage.

⭐ FREQUENTLY ASKED QUESTIONS

✅ Can I connect the amplifier directly to the factory radio?

☑ Yes, the amplifier has a built-in Hi-Input high-voltage input, which allows direct connection to a serial car radio without the need for additional signal converters.

✅ Which speakers can I connect to this amplifier?

☑ The amplifier supports speakers with a minimum impedance of 2Ω. You can connect both car speakers and subwoofer in different configurations - 4-channel or bridge.

✅ Does the amplifier require special power cables?

☑ The amplifier is equipped with 2 GA power connectors with a cross section of 35mm² and 8 GA speaker connectors with a cross section of 8,35mm². We recommend using cables with the right cross-sections to ensure optimal performance.

✅ How does the amplifier protection system work?

☑ The amplifier has multi-level protection against overheating, short circuit and overload. The indicator light informs about the operating status of the device and possible problems.

✅ What is included with the amplifier?

☑ The kit includes an amplifier, mounting screws, plugs with wires for Hi-Input sockets, warranty card and user manual in Polish.
