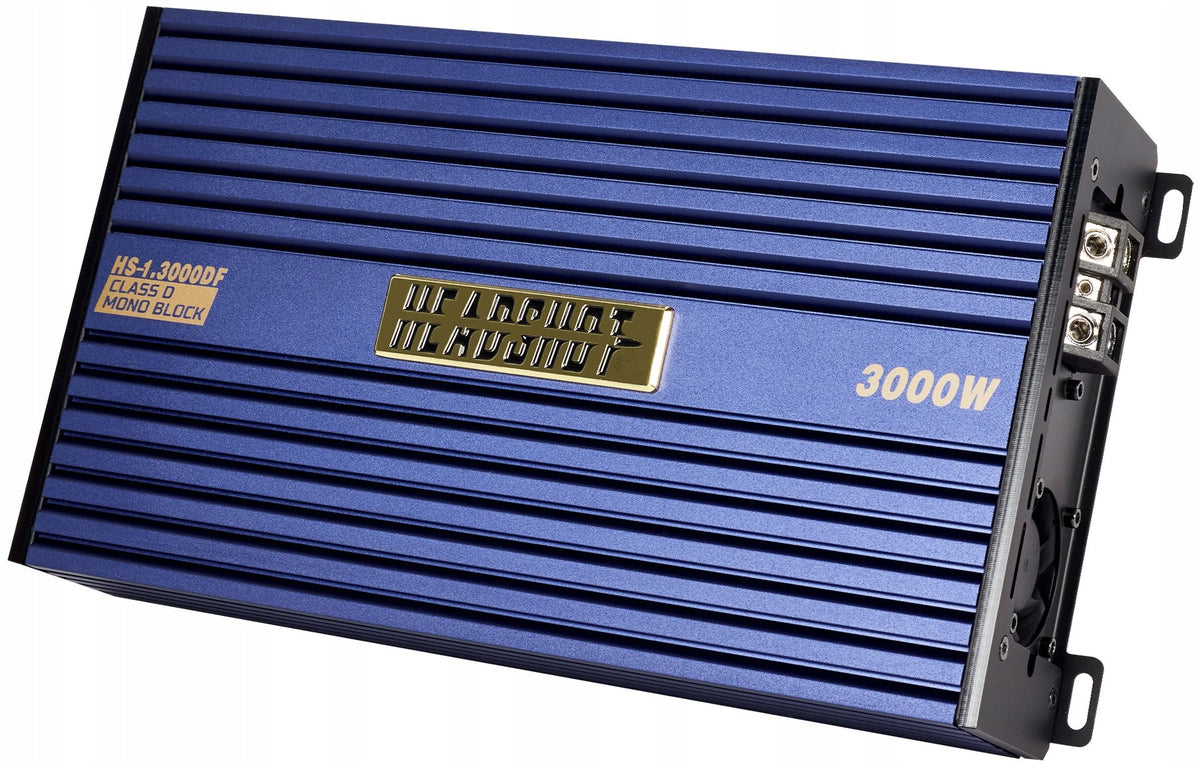

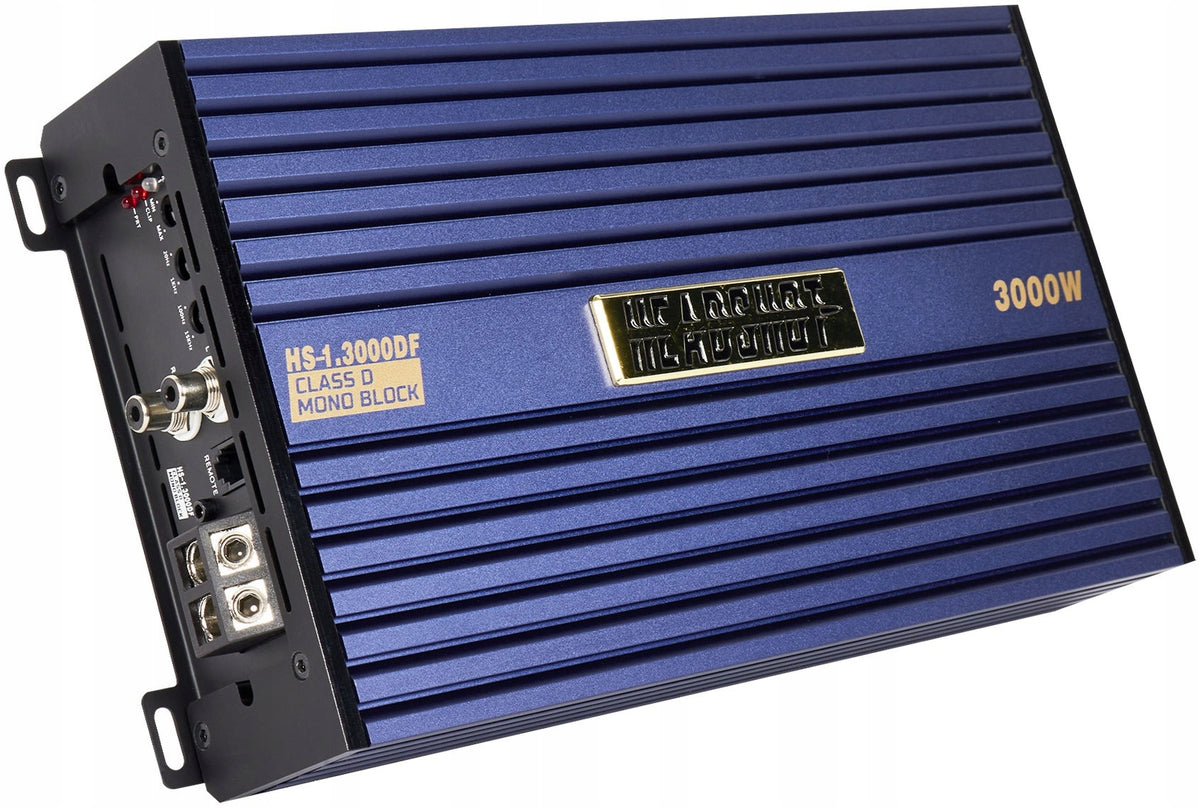

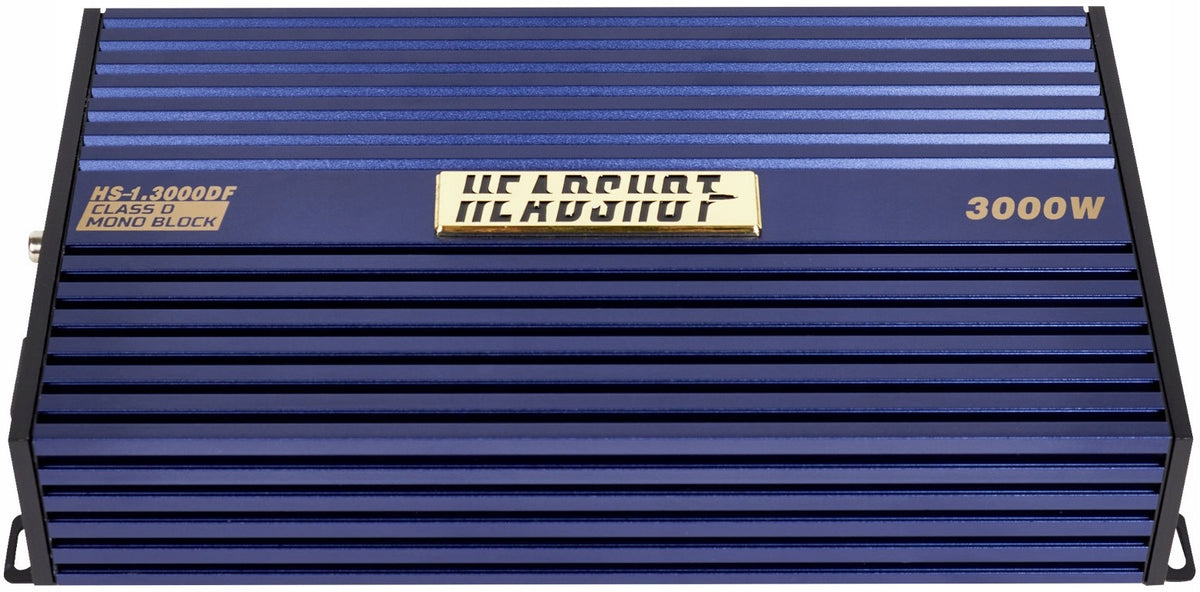

Auto pastiprinātājs KICX HS-1.3000DF, 1 kanāls, 3000W RMS

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas KICX HS-1.3000DF, 1 kanalo, 3000W RMS. Kategorija: Stiprintuvai.

• Gamintojas: Kicx
• Modelis: HeadShot HS-1.3000DF

⭐ PROFESSIONAL CLASS D MONOBLOCK WITH 3000W RMS POWER

The Kicx HeadShot HS-1.3000DF amplifier is an advanced 1-channel unit designed to power demanding subwoofers and speaker systems with high power requirements. The model is distinguished by stability of operation at a load of up to 1 Ohm and a wide frequency response of 10 Hz – 20 000 Hz, which allows you to power not only subwoofers, but also demanding front systems.

The design based on the digital class D ensures high energy efficiency while maintaining compact dimensions. Thanks to the powerful converter and robust 4 GA (22,50mm²) power terminals, the amplifier delivers continuous power adapted to the speaker impedance, reaching a peak value of 3000W RMS at 1 Ohm.

⭐ KEY ADVANTAGES AND TECHNICAL FEATURES

The HS-1.3000DF amplifier is distinguished by an extremely high damping factor above 900, which positions it in the segment of professional devices. Standard Class D monoblocks offer values of 150 to 200, while this model provides full control over the mechanical movement of the transducer.

✅ 3000W RMS power at 1 Ohm – ideal for SPL systems and demanding subwoofers

✅ Full Range Architecture 10 Hz – 20 000 Hz – powering subwoofers and front systems

✅ Suppression factor >900 – professional control over transducers

✅ Stable operation at 1 Ohm – maximum performance at low impedance

✅ Precise section of HPF and LPF filters – accurate band cut-off without external crossovers

✅ Power terminals 4 GA – minimizing voltage drops at peak current consumption

✅ Bass control panel included – convenient adjustment of the bass level from the driver’s position

✅ Compact dimensions 288 x 56 x 155 mm – easy installation in limited space

⚙ TECHNICAL PARAMETERS

• Number of channels: 1 (monoblock)
• Amplifier class: D
• Stable operation under load: to 1 Ohm
• Rated Power @ 4 Ohms: 1000W x 1 (THD < 1%)
• Rated Power @ 2 Ohms: 2000W x 1 (THD < 1%)
• Rated Power @ 1 Ohm: 3000W x 1 (THD < 1%)
• Damping Factor: 900
• Signal-to-noise ratio: 90 dB
• Power consumption without load: 0,6A
• Input Impedance: 20 kOhm
• Delay on: 3 seconds
• Channel separation: >60 dB
• Input sensitivity: 0,4-4V
• Power supply voltage: 10-15V
• Low pass filter range LPF: 100-15000 Hz (12 dB/oct)
• High-pass filter range HPF: 20-1000 Hz (12 dB/oct)
• Band Pass filter: 10-20000 Hz / 12 dB/Okt
• Subsonic filter: 10-1000 Hz / 12 dB/Okt
• Scope of frequency played: 10-20000 Hz
• Dimensions: 288 x 56 x 155 mm
• Speaker connectors: 8 GA (8,35mm²)
• Power connectors: 4 GA (22,50mm²)
• External fuse: 300A (not more than 30cm from terminals)
• Protection: thermal / short circuit / overload with signaling diode
• Certificates of conformity: CE

⭐ USE IN CAR AUDIO INSTALLATIONS

The Kicx HS-1.3000DF amplifier is designed for the most demanding car audio applications. Its versatility and power make it suitable for a variety of configurations.

▶ SPL (Sound Pressure Level) systems – 3000W RMS power at 1 Ohm makes it an ideal solution for driving high-performance subwoofers in SPL competitions, where maximum sound pressure counts

▶ Open Show systems – wide frequency response and high power make the amplifier perfect as a drive source for loudspeaker walls with multiple mid-range speakers in the door

▶ Advanced subwoofer installations – stable operation at 1 Ohm allows you to connect multiple subwoofers in a parallel configuration, achieving maximum system performance

▶ High power front systems – Full Range architecture enables power supply to demanding midrange and tweeters, eliminating the need for additional amplifiers

▶ Professional audio installation – high attenuation factor ensures precise control over the drivers, which translates into clarity and accuracy of sound reproduction

⭐ FREQUENTLY ASKED QUESTIONS

✅ Does the amplifier require special wiring?

☑ Yes, due to the high power, it is recommended to use power cables with a minimum cross-section of 4 GA (22,50mm²) and a fuse 300A located no more than 30cm from the amplifier terminals. Speaker connectors should have a minimum cross-section of 8 GA (8,35mm²).

✅ Can I connect speakers with 4 Ohm impedance?

☑ Yes, the amplifier is stable at a load of 4 Ohm to 1 Ohm. At 4 Ohms it delivers 1000W RMS power, at 2 Ohms – 2000W RMS, and at 1 Ohm – 3000W RMS. The lower the impedance, the higher the output power.

✅ What is the bass control remote?

☑ The Bass Remote included in the set allows you to conveniently adjust the bass level directly from the driver's position, without having to reach for the amplifier mounted in the trunk. This allows you to quickly adjust the sound to your preferences or the type of music you play.

✅ Is the amplifier suitable for powering midrange speakers?

☑ Yes, thanks to the Full Range architecture and the 10 Hz – 20 000 Hz frequency response, the amplifier can power not only subwoofers, but also midrange and tweeters. The precise section of HPF and LPF filters allows for accurate bandwidth cut-off.

✅ What protections does the amplifier have?

☑ The amplifier is equipped with a full protection system: thermal protection against overheating, short circuit and overload protection. The signaling diode informs about the activation of security, which facilitates the diagnosis of possible problems.
