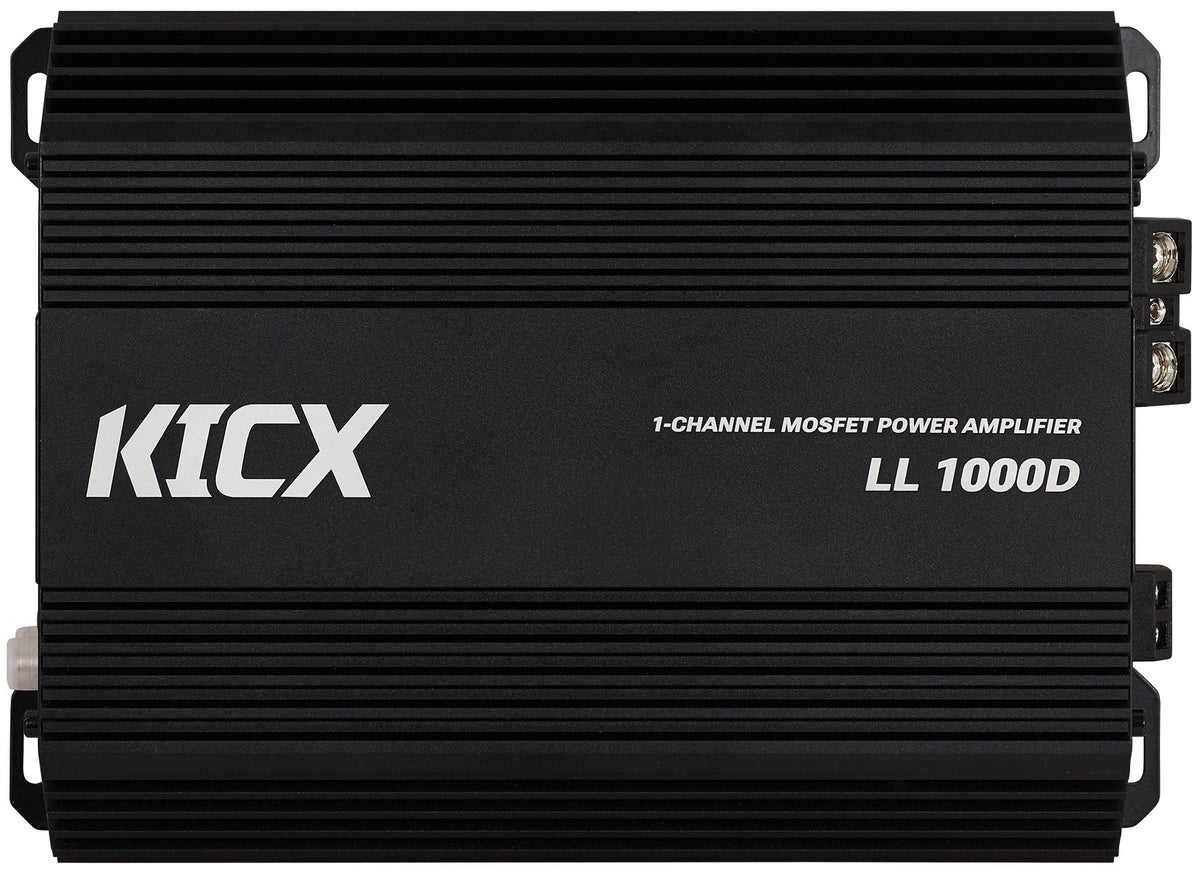

Automobilinis stiprintuvas KICX LL 1000D, 1000 W RMS, 1 kanalo, 1 oma, su nuotoliniu valdymu

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas KICX LL 1000D, 1000 W RMS, 1 kanalo, 1 oma, su nuotoliniu valdymu. Kategorija: Stiprintuvai.

• Gamintojas: Kicx
• Modelis: LL 1000D

✳ Kicx LL 1000D – Compact class D monoblock with 1000 W RMS power.

✴ Kicx LL 1000D is an advanced single channel amplifier (monoblock) from the Loud Level series, designed for efficient power supply of car woofer sections (bass).

⭐ The design based on the high-efficiency class D allows you to achieve a real power of 1000 W RMS with a stable load of 1 Ohm, while maintaining minimal thermal losses and compact external dimensions. The device has been equipped with a full range of analog filters for precise tuning of the subwoofer and extensive electronic security systems.

➡ The KICX brand is dynamically gaining recognition on our market, providing high-performance equipment at a reliable, optimal price.

✅ KEY DESIGN FEATURES AND INSTALLATION BENEFITS:

• High efficiency class D: The energy efficiency of the system allows you to generate powerful bass power with much lower current consumption and lower operating temperature compared to traditional class A/B amplifiers.
• Stable operation at 1 Ohm: Full stability at low impedance allows for optimal pairing of the amplifier with demanding single- and double-coil subwoofers (e.g. 2x2 Ohm configurations connected in parallel).
• Compact housing architecture: External dimensions of only 228 x 159 x 57 mm make it much easier to install in places with limited space, such as space under the seat, behind the backrest of the sofa or in the side panels of the trunk.
• Comprehensive filter section: Integrated low-pass filter (LPF), adjustable subsonic filter (protecting the speaker from the destructive infrasound band suspension) and smooth phase adjustment allow full acoustic correction.
• Remote bass control (Pilot included): Wired signal level controller allows you to conveniently and quickly adjust the bass intensity directly from the passenger compartment, without having to change the settings in the main unit.
• Solid connection terminals: The amplifier is equipped with massive screw terminals for power cables up to 22,5 mm² (4 Ga) and speaker terminals up to 8,35 mm² (8 Ga), which guarantees stable current flow without voltage loss on the connectors.

⚙ TECHNICAL SPECIFICATION ⚙

• Amplifier class: D
• Number of channels: 1 (Monoblock)
• RMS output power (4 Ohms): 1 x 420 W
• RMS output power (2 Ohms): 1 x 720 W
• RMS output (1 Ohm): 1 x 1000 W
• Transmission bandwidth: 10 Hz – 300 Hz
• Total Harmonic Distortion (THD): 0,08%
• Signal-to-noise ratio (S/N): > 90 dB
• Input sensitivity (RCA): 0,2 V – 6 V
• Working voltage (power supply): 10,5 V – 14,0 V
• Power consumption (resting): 0,6 A
• Built-in fuses: 105 A
• Dimensions (L. x W. x H. ): 228 x 159 x 57 mm
• Net weight: 1,675 kg

⚙ FILTER AND ADJUSTMENT SECTION ⚙

• Low-pass filter (LPF): 50 Hz – 250 Hz (slope 12 dB/oct. )
• Subsonic filter: 10 Hz – 50 Hz
• Phase Shift: Smooth adjustment in the range of 0° – 180°
• Bass Boost: 0 – 12 dB at 50 Hz

⚠ MULTI-LEVEL PROTECTION SYSTEM:

✅ The Kicx LL 1000D amplifier has an integrated electronic monitoring system. The system protects the equipment against:

• Current overload
• Short-circuit on speaker outputs
• Overheating (thermal protection)
• Dangerous drops and voltage spikes in the car installation

➡ Visual control over the operating status of the device is provided by built-in LED indicators (Power / Protect), and the delayed start system (3 seconds) prevents dangerous acoustic impacts ("knocks") on the speaker when turning on the system.

✅ The factory set includes:

• Monoblock amplifier Kicx LL 1000D
• Wired remote control bass with connection cable
• Mounting accessories (screws)
