Automašīnas pastiprinātājs KICX ST D4, 4 kanāli, 4x100/150W, 2x300W, D klase

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas KICX ST D4, 4 kanalų, 4x100/150W, 2x300W, D klasė. Kategorija: Stiprintuvai.

• Gamintojas: Kicx
• Modelis: ST D4

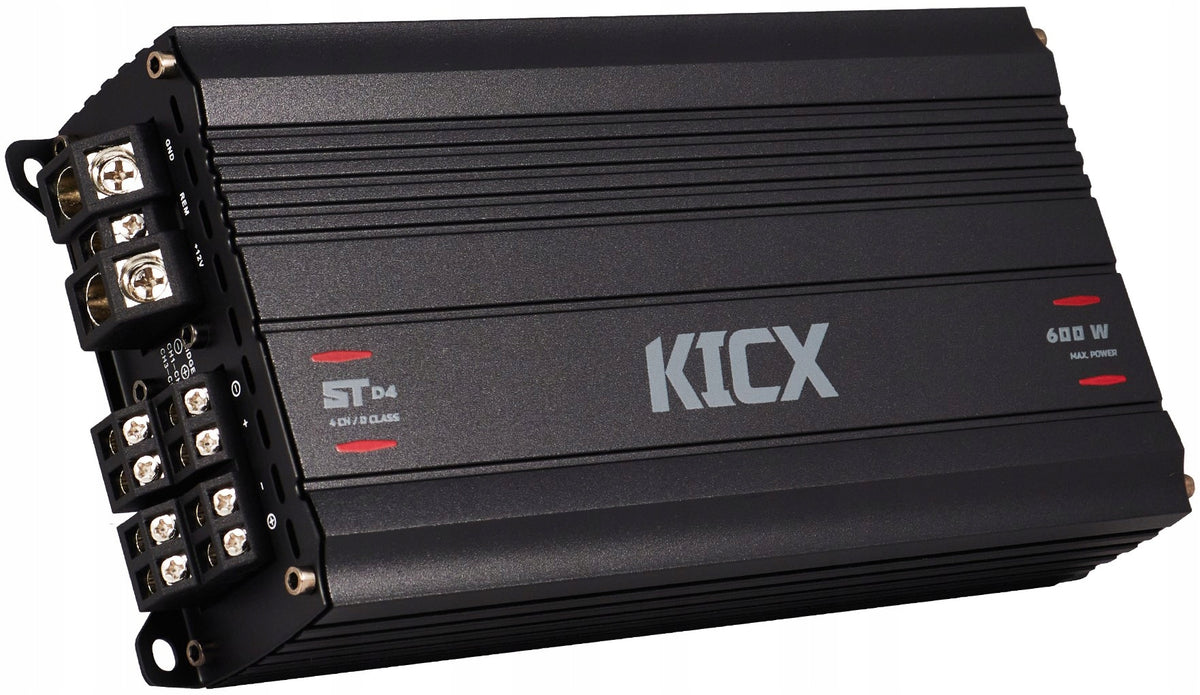

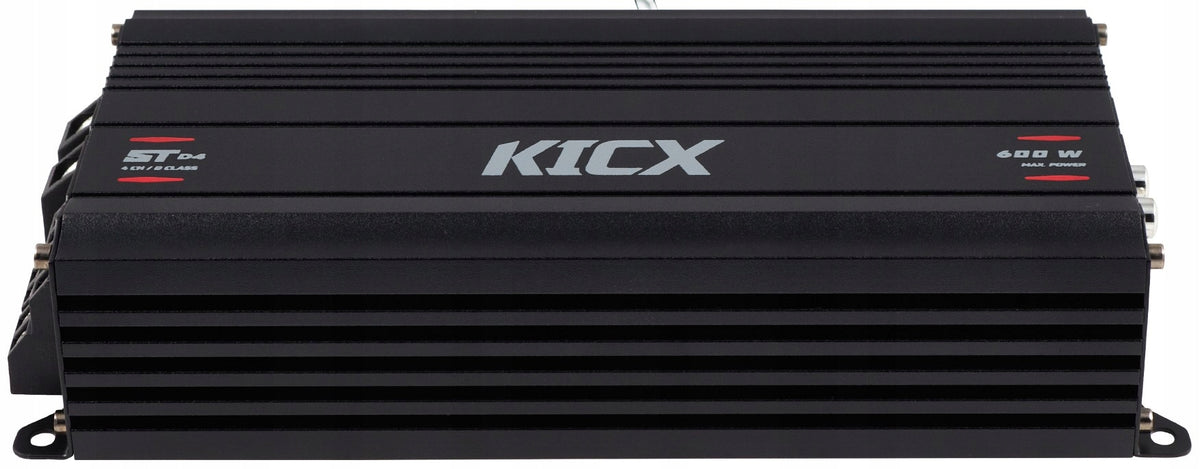

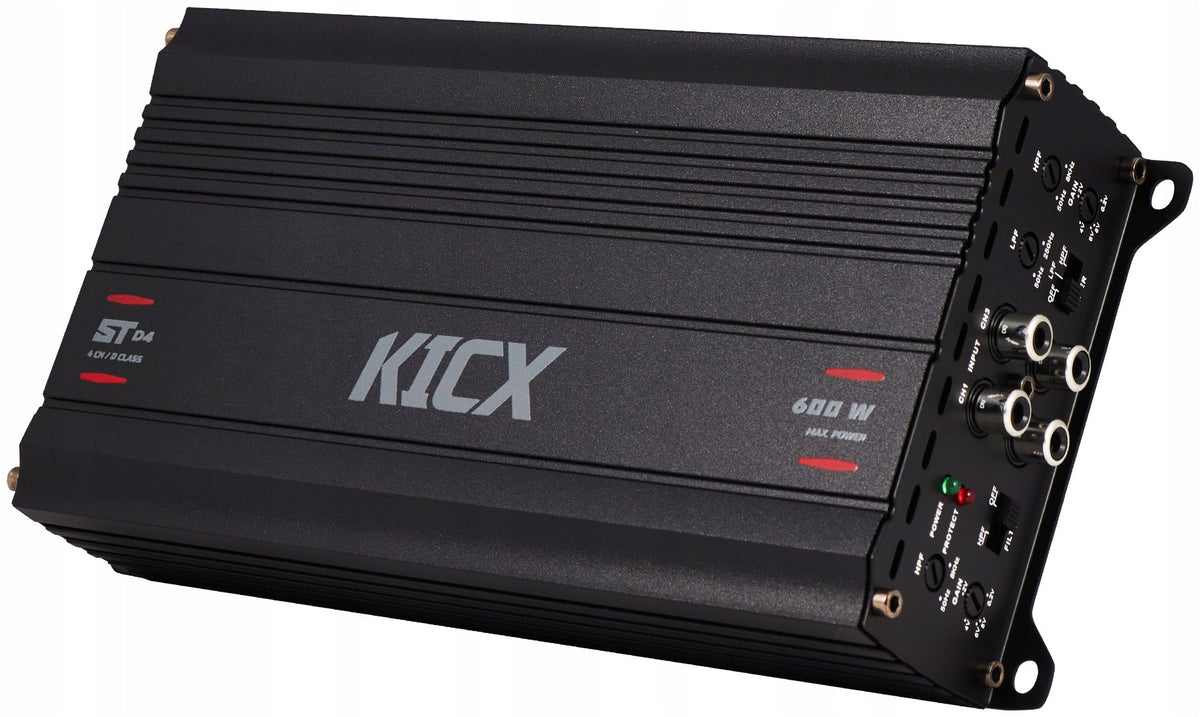

✳ ✳ ✳ KICX ST D4 - 4-channel amplifier.

✴ ✴ ✴ This is a RELIABLE line of amplifiers introduced by the KICX brand.

⭐ ⭐ ⭐ KICX ST D4 is a 4-channel broadband amplifier operating in digital class D. Thanks to this, it is characterized by high powers enclosed in a compact aluminum housing. The amplifier reaches 4x100W RMS at 4ohm and 4x150W RMS at 2ohm. In bridge 2x300W RMS at 4ohm.

➡ Stable and reliable operation with VERY HIGH EFFICIENCY.

➡ Broadband amplifier KICX ST D4 is a universal solution for both powering loudspeaker sets and woofers (subwoofers). It can also be used in active systems.

➡ COMPACT DIMENSIONS make installation much easier. The amplifier length is 232mm, width is 112mm and height is 46mm.

➡ The amplifiers from the ST series are characterized by very good technical parameters in EXCELLENT VALUE FOR MONEY.

⚙ BASIC TECHNICAL DATA ⚙

• Class D
• Bridge connection at 4 Ohm - 2x300 W
• Output power (RMS) 4 Ohm - 4x100 W
• Output power (RMS) 2 Ohm - 4x150 W
• High-pass filter HPF: 50-8000 Hz/12dB per octave
• Low pass filter LPF: 50-250 Hz/12dB per octave
• Input sensitivity - Low-Level Input, RCA: 0,2-8V
• Damping Factor: 43
• Minimum speaker impedance: 2 Ohms
• Harmonic distortion: 0,03%
• Signal-to-noise ratio: 95dB
• Transmission bandwidth: 10-40000 Hz
• No-load current consumption: 0,8A
• Delay of switching on: 1,5 sec.
• Power supply voltage: 9-16V
• Fuses: 2x30A
• Protection: thermal / short circuit / overload - Signaling diode
• Dimensions: 232x112x46mm COMPACT SIZE
• Speaker connectors: 10 GA/5,2 mm2
• Power connectors: 4GA/21mm2
• RCA inputs: 4
• Weight: 1254g

✅ CONTENT:

• Amplifier
• User manual
• Screws for mounting
• Warranty card

Specifications
