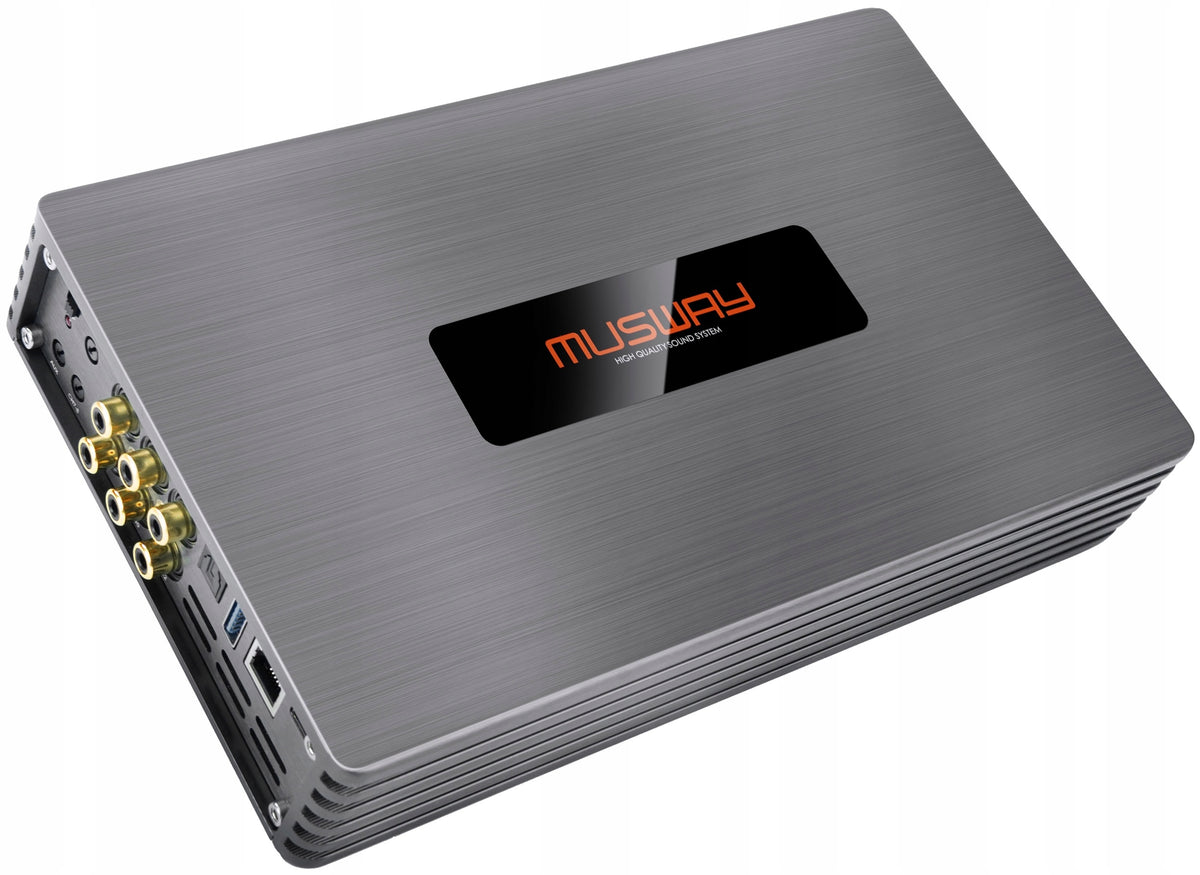

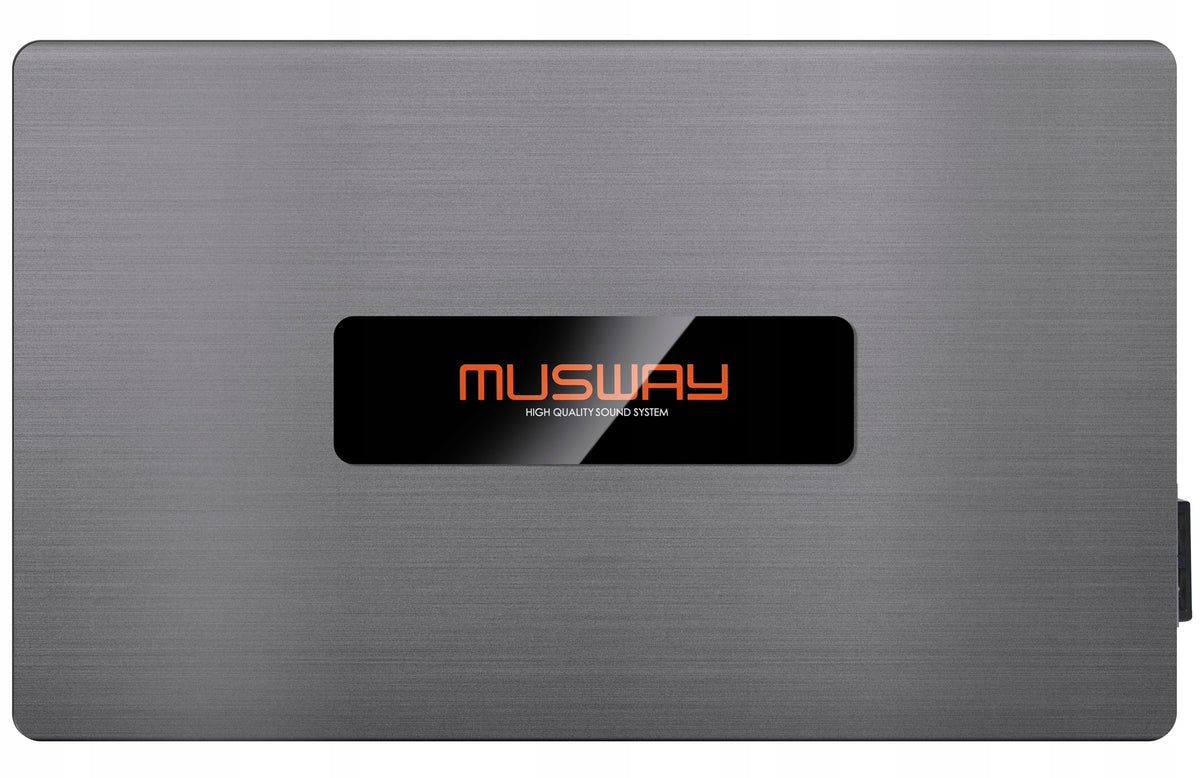

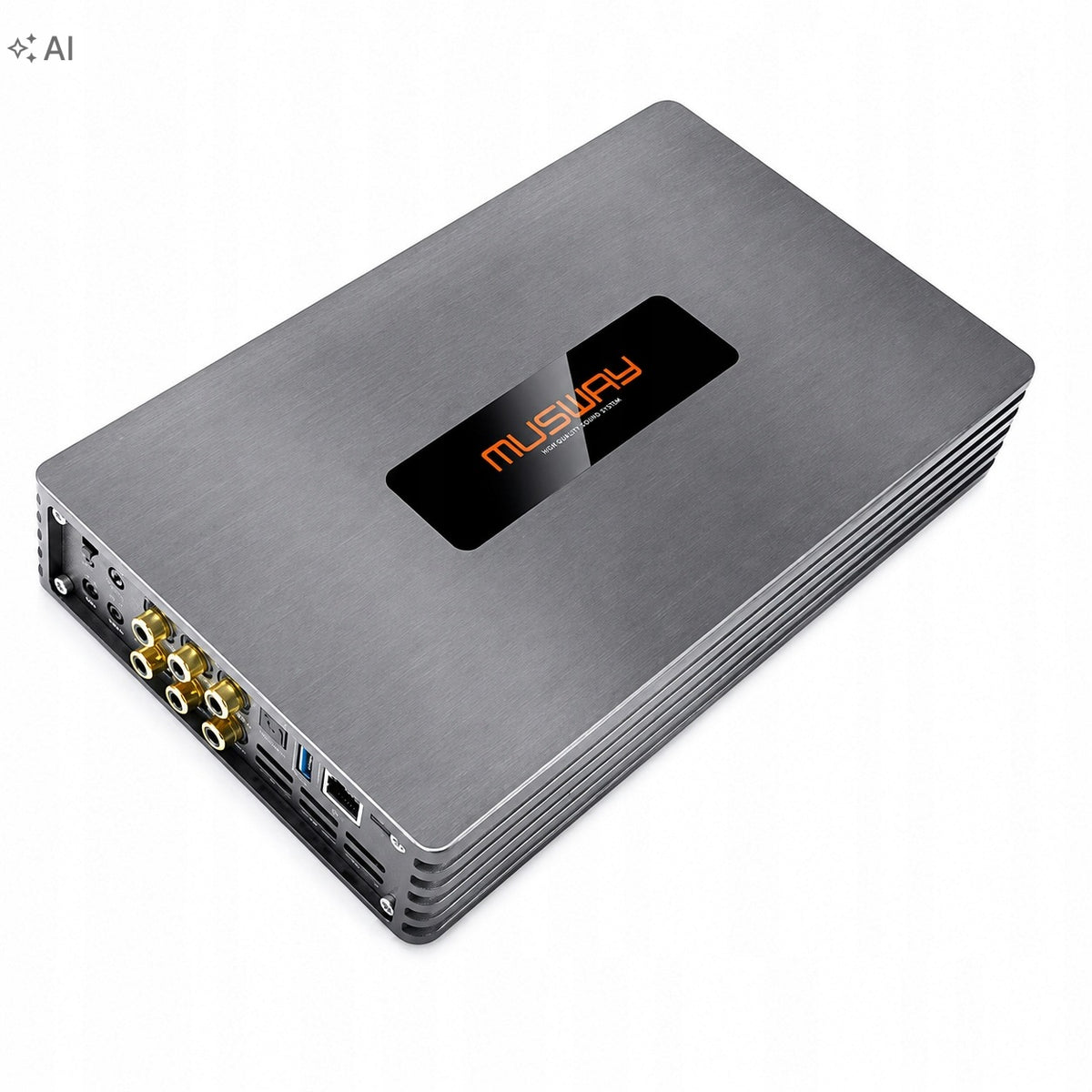

Auto pastiprinātājs MUSWAY M8 DSP, 8 un 12 kanāli, 1250W, 512K

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas MUSWAY M8 DSP, 8 ir 12 kanalų, 1250W, 512K. Kategorija: Stiprintuvai.

• Gamintojas: Musway
• Modelis: M8

⭐ MUSWAY M8 512K – 8-CHANNEL CLASS D AMPLIFIER WITH 12-CHANNEL DSP

Musway M8 512K is an advanced 8-channel Class D car amplifier with a built-in 12-channel DSP processor, designed for extensive Car Audio systems and professional modernization of the factory sound system.

The device combines 8 amplified speaker channels with 4 additional RCA outputs controlled by DSP, allowing you to create up to 12-channel system configuration.

Six channels offer 80W RMS at 4Ω or 135W RMS at 2 Ω, while two additional High-Power channels provide up to 120W RMS at 4Ω or 220W RMS at 2Ω.

The extensive 12-channel DSP 512K processor, offering m.in, is responsible for precise tuning. parametric correction, active crossovers, time correction and the ability to save presets.

⭐ KEY ADVANTAGES

✔ 8-channel Class D amplifier

✔ Advanced 12-channel DSP 512K processor

✔ Channels 1 to 6: 6 × 80 W RMS @ 4 Ω

✔ Channels 1 to 6: 6 × 135 W RMS @ 2 Ω

✔ Channels 7 to 8 High-Power: 2 × 120 W RMS @ 4 Ω

✔ Channels 7 to 8 High-Power: 2 × 220 W RMS @ 2 Ω

✔ Bridge Work: 3 × 270 W RMS + 1 × 440 W RMS @ 4 Ω

✔ 8 High Level inputs with EPS®

✔ 6 RCA Low Level inputs

✔ 4 additional RCA outputs controlled by DSP

✔ Optical input for digital audio signal

✔ Dynamic Headroom DHR technology

✔ 31-band parametric output EQ

✔ Extensive active DSP crossovers

✔ Precise time correction

✔ Ability to save 6 presets

✔ Control and tuning with a computer

✔ Controllable from mobile app

✔ Optional Bluetooth HD with BTA-HD

✔ Compatible with optional Musway myCON and DRC1 controllers

⭐ 8 AMPLIFIER CHANNELS + 12 DSP CHANNELS

Musway M8 512K allows you to build an advanced, actively controlled Car Audio system using a single compact device.

The amplifier has 8 physical, amplified speaker outputs, while the DSP processor supports a total of 12 channels.

Channels 9–12 are available via four RCA Pre-Outs and can be used to control additional external amplifiers.

This allows, for example, to power an active front system directly from the M8, and use the additional DSP channels to control a separate subwoofer amplifier or other system sections.

⭐ TWO MORE POWERFUL HIGH-POWER CHANNELS

One of the most important features of the Musway M8 is the use of two more powerful channels, 7 and 8.

While channels 1–6 provide:

6 × 80 W RMS at 4 Ω

or

6 × 135 W RMS at 2 Ω

channels 7–8 offer:

2 × 120 W RMS at 4 Ω

or up to

2 × 220 W RMS at 2 Ω.

Channels 7 and 8 can also be bridged, providing 440 W RMS at 4 Ω, giving the M8 much greater flexibility when designing an extensive system.

⭐ ADVANCED 12-CHANNEL DSP 512K

The built-in DSP processor allows for very precise adjustment of the system's operation to the speakers used, their location, and the acoustics of a specific car.

Users have access to, among others:

✔ 31-band parametric output equalizer

✔ EQ adjustment in the range of ±15 dB

✔ Filters: Full / High Pass / Low Pass / Band Pass

✔ Characteristics: Bessel / Butterworth / Linkwitz

✔ Filter slopes from 6 to 48 dB/oct.

✔ Crossover frequency adjustment in the range of 20 Hz – 20 kHz

✔ Phase inversion: 0° / 180°

✔ Precise time correction

✔ Delay adjustment up to 20 ms

✔ Distance correction up to 708 cm

✔ Ability to save 6 presets

The 512K version uses expanded processor memory, allowing for additional DSP functions, including advanced input signal correction.

⭐ INTEGRATION WITH FACTORY AUDIO SYSTEM

The Musway M8 512K has also been prepared for integration with modern factory audio systems.

There are as many as 8 High Level inputs with EPS® – Error Protection System, enabling signal retrieval directly from the factory radio or audio system.

The device also supports the Auto Turn-On function, so it can automatically start when the appropriate signal is detected.

In addition, the amplifier is Start-Stop Ready, which facilitates its use in modern cars equipped with an automatic engine shutdown and start-up system.

⭐ OPTICAL INPUT AND OPTIONAL BLUETOOTH HD

The M8 can also work with digital signal sources.

Built-in optical input allows you to transmit a digital PCM stereo signal without having to convert it to an analog signal beforehand.

In addition, the device can be expanded with an optional Musway BTA-HD module, enabling high-quality wireless audio streaming and control via the application.

The M8 also works with optional Musway DRC1 and myCON controllers.

myCON in combination with BTA-HD allows, among other things, volume control, song change and DSP support.

⭐ TECHNICAL SPECIFICATION MUSWAY M8 512K

✅ Producer: Musway

✅ Model: M8 512K

✅ Type: car amplifier with DSP

✅ Amplifier class: D

✅ Number of channels amplified: 8

✅ Number of DSP channels: 12

✅ POWER CH1–CH6 @ 4 Ω: 6 × 80 W RMS

✅ POWER CH1–CH6 @ 2 Ω: 6 × 135 W RMS

✅ POWER CH7–CH8 @ 4 Ω: 2 × 120 W RMS

✅ POWER CH7–CH8 @ 2 Ω: 2 × 220 W RMS

✅ Bridge Power CH1–CH6 @ 4 Ω: 3 × 270 W RMS

✅ Bridge Power CH7–CH8 @ 4 Ω: 1 × 440 W RMS

✅ Dynamic Headroom CH1–CH6: to 156 W RMS/channel @ 2 Ω

✅ High Level Inputs: 8 × EPS®

✅ Low Level RCA Inputs: 6

✅ AUX: stereo RCA

✅ Optical input: stereo PCM

✅ RCA DSP outputs: 4 × CH9–CH12

✅ RCA Output Voltage: 6 V RMS

✅ Speaker outputs: 8

✅ Amplifier band: 10 Hz – 20 kHz (-1 dB)

✅ THD: 0,02%

✅ Signal/Noise Ratio: 100 dB

✅ Damping factor: >80

✅ Internal fuses: 3 × 40 A

✅ Output EQ: 31-band parametric ±15 dB

✅ Crossover: Full / HPF / LPF / BP

✅ Filter type: Bessel / Butterworth / Linkwitz

✅ Filter slope: 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB/oct.

✅ Crossover frequency range: 20 Hz – 20 kHz

✅ Time correction: 0 – 20 ms / 0 – 708 cm

✅ Number of saved presets: 6

✅ DSP control: PC / mobile app

✅ Bluetooth: optional BTS / BTS-HD / BTA-HD module

✅ Controllers: optional DRC1/myCON

✅ Dimensions: 245 × 44 × 150 mm

✅ Net weight: 2,1 kg

⭐ WHY CHOOSE MUSWAY M8 512K?

Musway M8 512K is a solution for people building an advanced Car Audio system who want to combine a multi-channel amplifier and an extensive DSP processor in one device.

✔ 8 amplifier channels + 12 DSP channels – the possibility of building an extensive active system.

✔ Two stronger channels 7 to 8 – up to 220 W RMS per channel at 2 Ω.

✔ 4 additional RCA DSP outputs – the ability to connect additional amplifiers or active subwoofers.

✔ Advanced DSP tuning – EQ, active crossovers, phase and precise time correction.

✔ Integration with OEM – 8 High Level inputs with EPS® technology.

✔ Optical input – the possibility of using a digital signal source.

✔ Optional Bluetooth HD – the ability to expand the system with high-quality wireless streaming.

✔ Compact housing – an extensive amplifier and DSP enclosed in a housing measuring only 245 × 44 × 150 mm.

📦 CONTENTS OF THE SET

✅ 1 × DSP amplifier Musway M8 512K

✅ 1 × USB cable 1,5 m

✅ 1 × 24-pin High Level input beam

✅ 1 × 20-pin speaker output beam

✅ 1 × RCA MPK-RCA-M8 adapter set

✅ 4 × mounting bracket with screws

✅ 3 × spare fuse 40 A

✅ 1 × Allen key 5 mm

✅ Operating instructions

✅ Original manufacturer packaging

The Musway DRC1/myCON controllers and Bluetooth BTS/BTS-HD/BTA-HD modules are optional accessories and are not included in the standard kit.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Musway
Parametry	Model	M8
Parametry	Number of channels	other
Parametry	Amplifier class	D
Parametry	Manufacturer code	M8
Parametry	Rated RMS power	1250 W
Parametry	Signal-to-noise ratio	106 dB
