Auto pastiprinātājs Renegade RXA1100, 4 kanāli, 4x75 W RMS pie 4 Ω

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Renegade RXA1100, 4 kanalai, 4x75 W RMS prie 4 Ω. Kategorija: Stiprintuvai.

• Gamintojas: Renegade
• Modelis: RXA1100

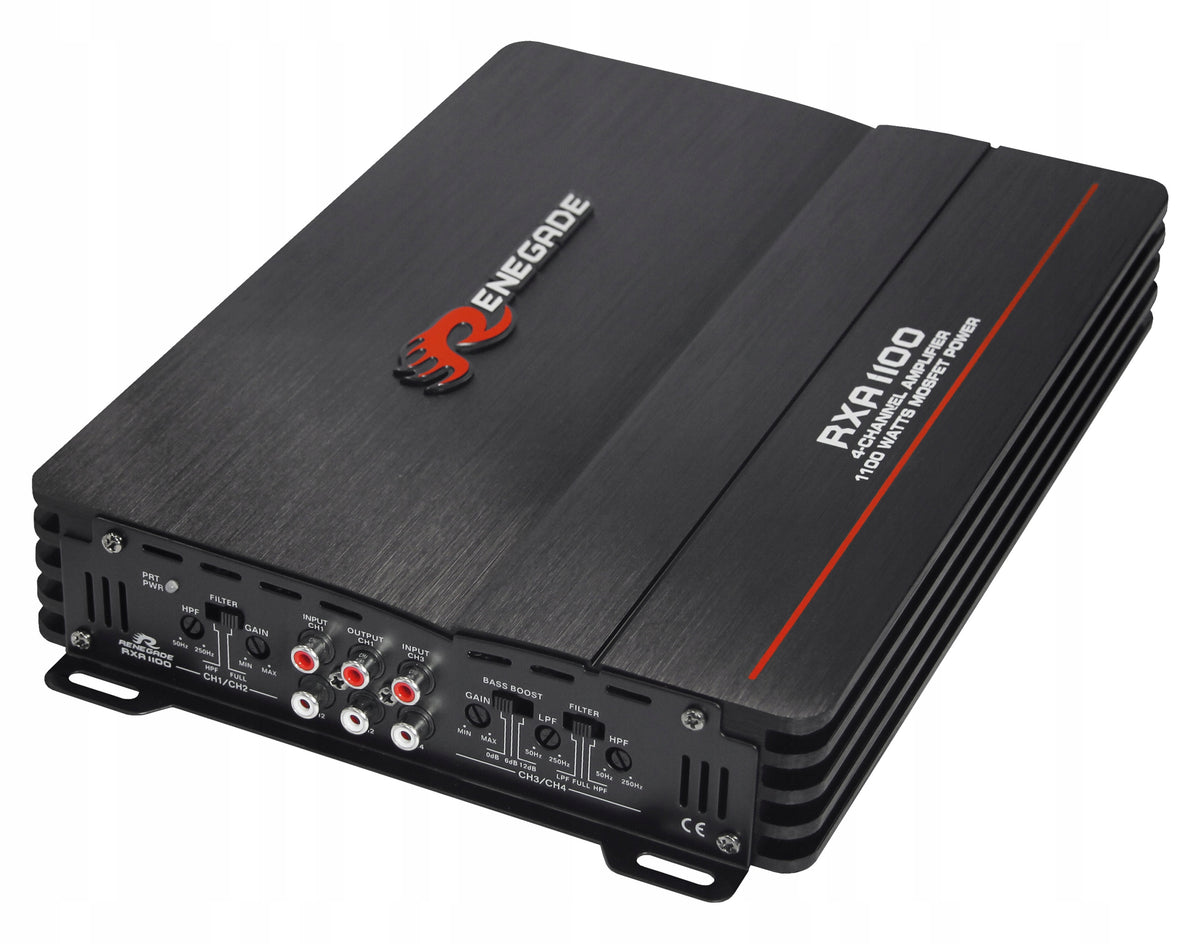

The Renegade RXA1100 amplifier is the basic four-channel amplifier of the German brand Renegade. Reliability and offered parameters make it one of the most interesting items on the market at this price.

The RXA1100 is a four-channel analog amplifier. It has a number of extensive functions achievable in much more expensive models, which makes its application universal.

With built-in active crossovers and configuration options, it is suitable for powering both two pairs of speakers and one pair of speakers and a subwoofer.

Use to power two pairs of speakers.

Possibility of using built-in high-pass crossovers. High-pass crossovers cut off the lowest frequencies, which speakers, especially those with a smaller diameter, do not carry, and which largely burden them and are the cause of sound distortion. Thanks to the crossovers, the sound is clear and pleasant to the ear. The ability to raise high frequencies makes them better audible, especially if the speakers are mounted at the back or low in the door.

Use to power the subwoofer.

The amplifier has the ability to bridge, i.e. combine the power of the left and right channels to power one woofer. To power the subwoofer, you need to bridge channels 3-4, which have a low-pass crossover Built-in low-pass crossover allows you to correctly set the frequency response so that the subwoofer receives sound with the appropriate frequency response.

In this setting, the low-pass crossover cuts off high frequencies that the subwoofer does not carry, so that it does not heat up unnecessarily, and uses all the power to process the bass band. In addition, it is possible to raise low frequencies.

RCA output from channels 1-2 to an additional amplifier allows you to connect another amplifier, for example mono, to power the subwoofer with more power.

Ease of configuration and settings, at a very attractive price, makes it an excellent proposition for debutants starting their adventure with music in the car.

• Number of channels: 4
• RMS power at 4Ω: 4 x 75 Watt
• RMS power at 2Ω: 4 x 135 Watt
• Dynamic power at 4Ω: 4 x 150 Watt
• Dynamic power at 2Ω: 4 x 275 Watt
• Bridgeability: yes - it is recommended to bridge channels 3-4
• RMS power in the bridge at 4Ω channels 3-4: 1 x 250 Watt
• Maximum power in bridge at 4Ωchannels 3-4: 1 x 500 Watt
• Transmission bandwidth: 5Hz – 40kHz (-3dB )

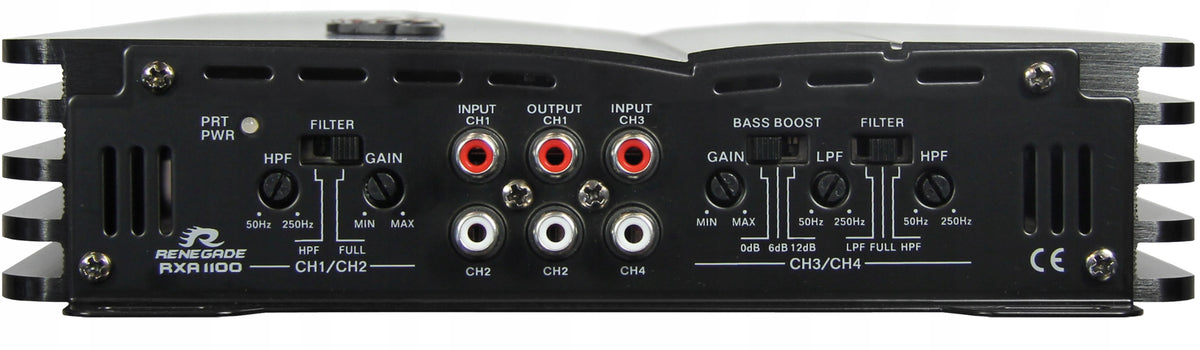

• Crossover settings: Full – HPF - LPF
• High-pass crossover channels1-2/3-4: 50 – 250Hz 12dB/octave
• Low pass crossover channels 3-4 : 50 – 250Hz 12dB/octave
• Working in stereo mode: yes
• Low tone boost channels 3-4: 0/6/12 dB
• Signal-to-noise ratio: > 90 dB
• Sum of harmonic distortion T.H.D & N.: < 0,5% (1 kHz )
• Input sensitivity: 0.1-7 V
• Input Impedance: 10 kOhm
• RCA signal line input: yes
• Hi-level signal input: no
• Signal input: 1 pair RCA
• Diagnostic indicators: power supply / protection / overheating
• Class Circuit: Analog A/B
• Current protection: 2 x 20 A
• Dimensions (H x W x L): 220 x 48 x 330 mm

The Renegade brand was created to meet the needs of the German market for basic products. The German market is governed by its own laws, so even the basic product line must meet the requirements of customers tailored to the high standards to which Western society is accustomed.

Audio Design, the largest independent distributor of car audio equipment in Europe, has created the Renegade brand, whose products perfectly fit into this market segment. Due to the very high level of sales, the prices of these products are very competitive.

Thanks to the distributor’s experience in designing the most technically advanced amplifier designs for brands from the first world league, the solutions used in Renegade products and the reliability of products have made the brand’s products cover a wide segment of sales in the field of car audio.
