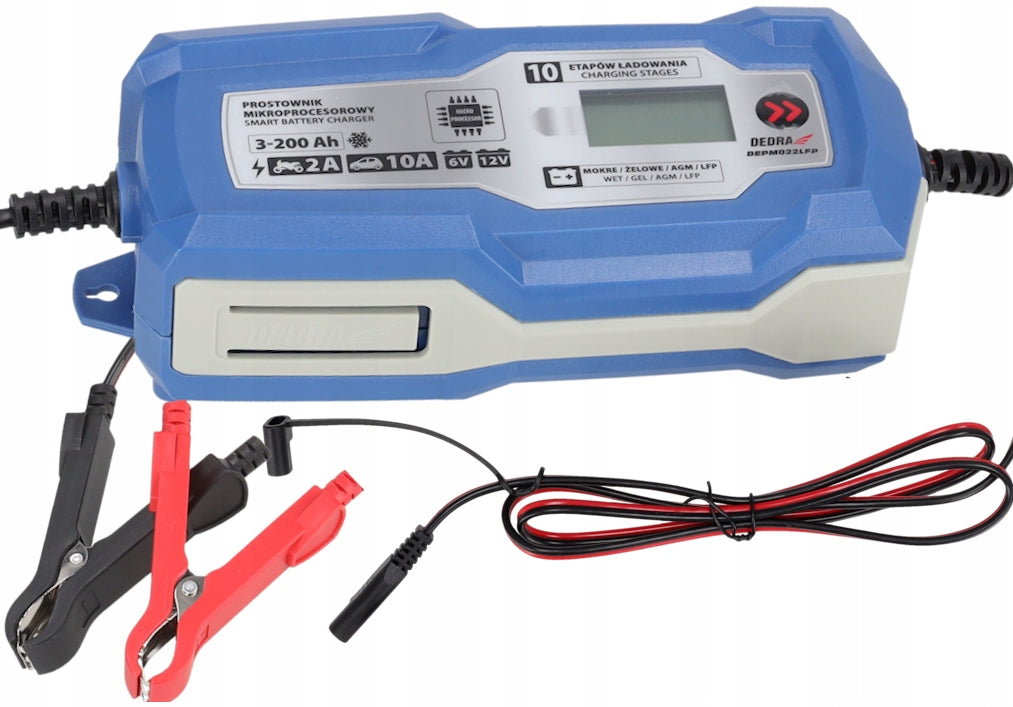

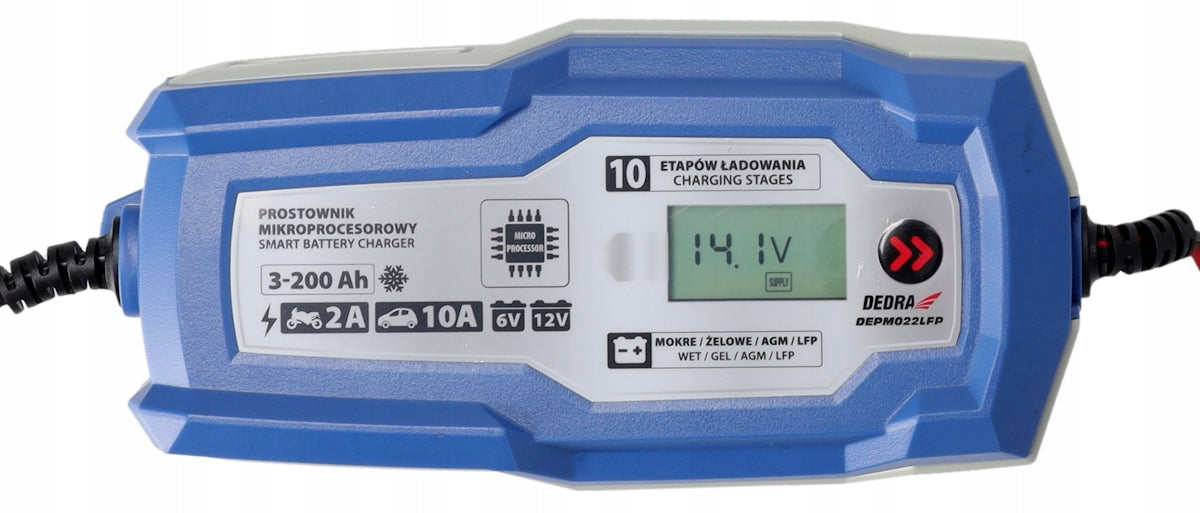

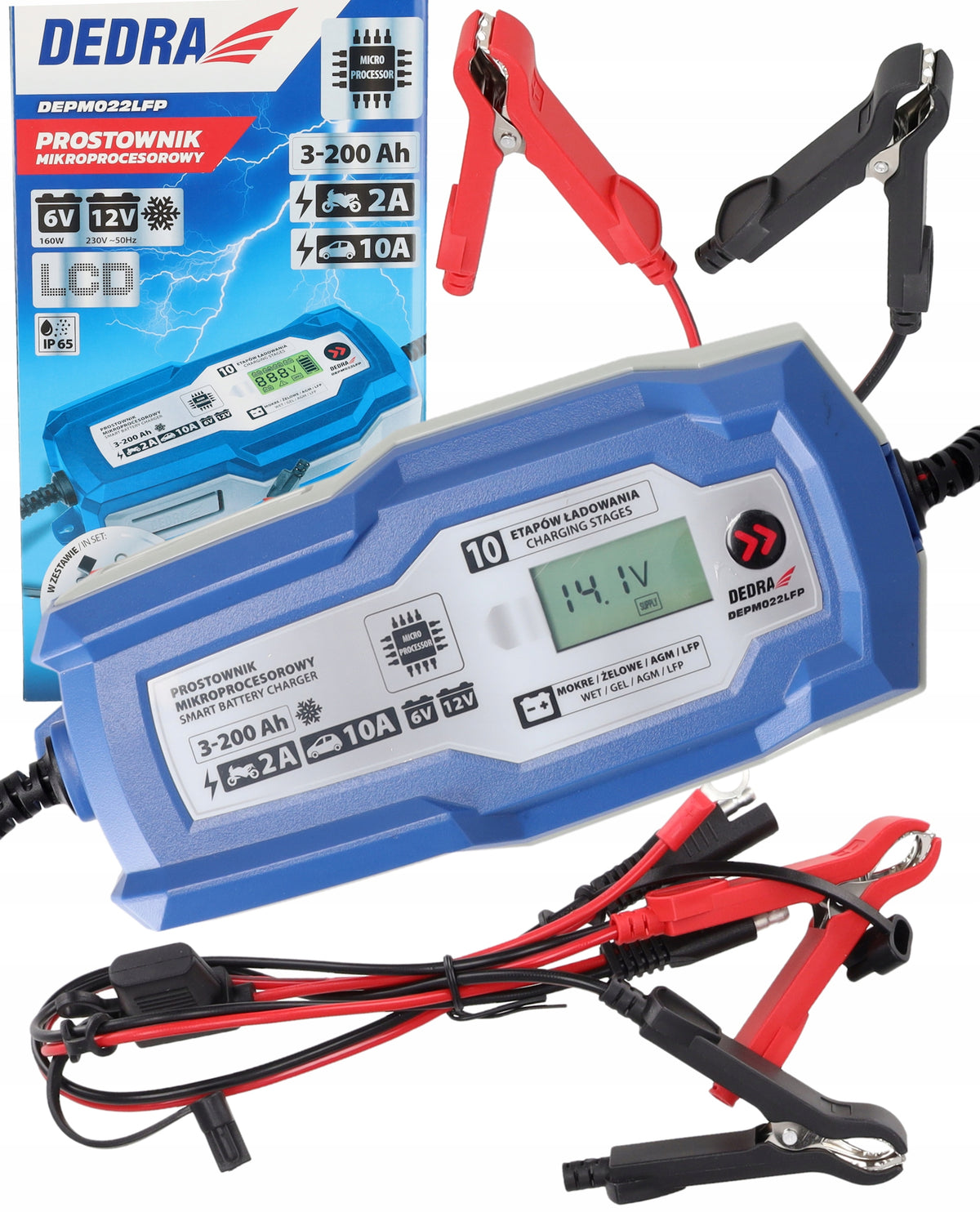

Automobilio akumuliatoriaus įkroviklis, 10A, LCD, 6/12V, 3–200Ah

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus įkroviklis, 10A, LCD, 6/12V, 3–200Ah. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Dedra
• Modelis: DEPM022LFP

• Supply Voltage: 230V
• Frequency: 50kHz
• Charging power: 160W
• Voltage and charging intensity level: 6V=2A, 12V=10A
• Minimum battery capacity: 3Ah
• Maximum battery capacity: 200Ah
• Ambient temperature range from -20 to 40°C
• Protection class: IP 65

The DEPM022LFP rectifier is a universal device with advanced technology DESIGNED FOR CHARGING BATTERIES:

• lead-acid (wet)
• gel
• AGM,
• LFP

with a voltage of 6/12V and capacities of 3-200Ah, which are used in:

• motorcycles
• passenger cars
• caravans
• yachts
• agricultural machinery
• construction machinery, etc.

It allows you to precisely monitor its condition, which allows you to optimally adjust the charging process to its requirements.

Thanks to the microprocessor, the rectifier SAM WILL CARRY OUT CHARGING CYCLES of the battery, adjusting the stages of operation to the condition of the battery.

The device is designed for use in households, repair workshops, amateur work.

✔ anti-spark

✔ short-circuit

✔ overload

✔ against reverse polarity

✔ before overcharging the battery

Error connecting the rectifier or battery failure are indicated by an icon. In case of incorrect connection of the battery (misguided poles), the terminals should be replaced.

1. Diagnostics
2. Desulfurization
3. Stimulation
4. Pulse charging
5. Primary charging
6. Slow charging
7. Maintenance charging
8. Final loading
9. Battery analysis
10. Maintenance of tension

In case of almost complete discharge of the battery and the inability to charge it with normal mode, it is enough to use SUPPLY mode.

The cables for charging the battery are terminated with a socket to which the tips included in the completion can be connected.

The terminal with terminals is used for standard charging of batteries, and the terminal with an eye is used to mount it permanently to the battery to which access is difficult (e.g. motorcycle).

Eyelet tips can be permanently connected to the battery, and in an easily accessible place a connection socket.

• Tip with clamps (1 pc)
• Tip with eyelets (1 pc)
