Automobilio akumuliatoriaus įkroviklis, 6/12/24V, 8A, mikroprocesorinis

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus įkroviklis, 6/12/24V, 8A, mikroprocesorinis. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Powermat
• Modelis: PM-PM-8T

Model: POWERMAT PM-PM-8T

• Rated voltage: 230V / 50Hz
• Charging current: 12V [0 - 8A / 8 - 15 V] / 24V [0 - 4A / 20 - 29,5 V]
• Battery capacity: 12V: 4 - 120 [Ah]; 24V: 4 - 120 [Ah]
• Charging current voltage: 12V / 24V(pulse dynamic)
• Charging process: 10 - gradual (automatic)
• Operating temperature: -20°C - 40°C
• Efficiency: 98%
• Waterproof class: IP 65
• Length of cables type "clamp": 120 cm
• Power cord length: 135 cm

• 1x Rectifier
• Cables with terminals "-" ; "+"
• Box
• User manual in Polish

Protection against polarity reversal - blocks the transmission of energy to the output wires if the reverse connection of the poles is detected.

Short-circuit protection - energy will be blocked on the output wires.

Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.

Battery diagnostic function - the rectifier constantly monitors the condition of the battery and can report a charging error in the form of an error code.

Protection against overheating - the rectifier will reduce the charging intensity and even turn off completely if overheating is found. After cooling, the rectifier will automatically resume operation.

The 10-step charging process ensures optimal battery charging conditions. The automatic control system will adjust each of the 10 charging stages to properly charge the battery.

The rectifier for charging 12 V and 24 V batteries from 2 to 120 Ah also enables maintenance charging.

CHARGING MODES

• 24V STD - up to 28,8V (24V standard lead-acid battery charging)
• 24V AGM/C - up to 28V (24V AGM battery charging or winter charging at ambient temperature from - 20 to +5 degrees Celsius)
• 24V GEL - up to 28,5V (24V gel battery charging)
• 24V LFP - up to 29,4V (24V lithium battery charging)
• 12V STD - up to 14,5V (charging standard 12V lead-acid battery)
• 12V AGM/C - up to 15V (recharging the 12V AGM battery or charging in winter mode at ambient temperature from - 20 to +5 degrees Celsius)
• 12V GEL - up to 14,3V (12V gel battery charging)
• 12V LFP - up to 14,6V (12V lithium battery charge)
• Pulse reconditioning "PUL"

The core of the cable made of copper and fully rubber-coated clamps "crocodiles" ensure full operational safety and protection against frost.

Fully secured "crocodiles"

Durable and durable, safe to use.

Wire core made of copper

The use of copper wire can guarantee stable current performance. Charging cables are viable and do not produce heat.

• Passenger cars
• Quadricycles
• Motorcycles
• Mower
• Snowmobiles and water scooters
• Boats
• Forklifts
• Tractors

For equipment / vehicles using:

• AGM batteries
• Gel batteries
• Lead-acid batteries (SLA)
• Liquid electrolyte batteries

Rectifier housing has a degree of protection IP 65 (splash-proof and dustproof)

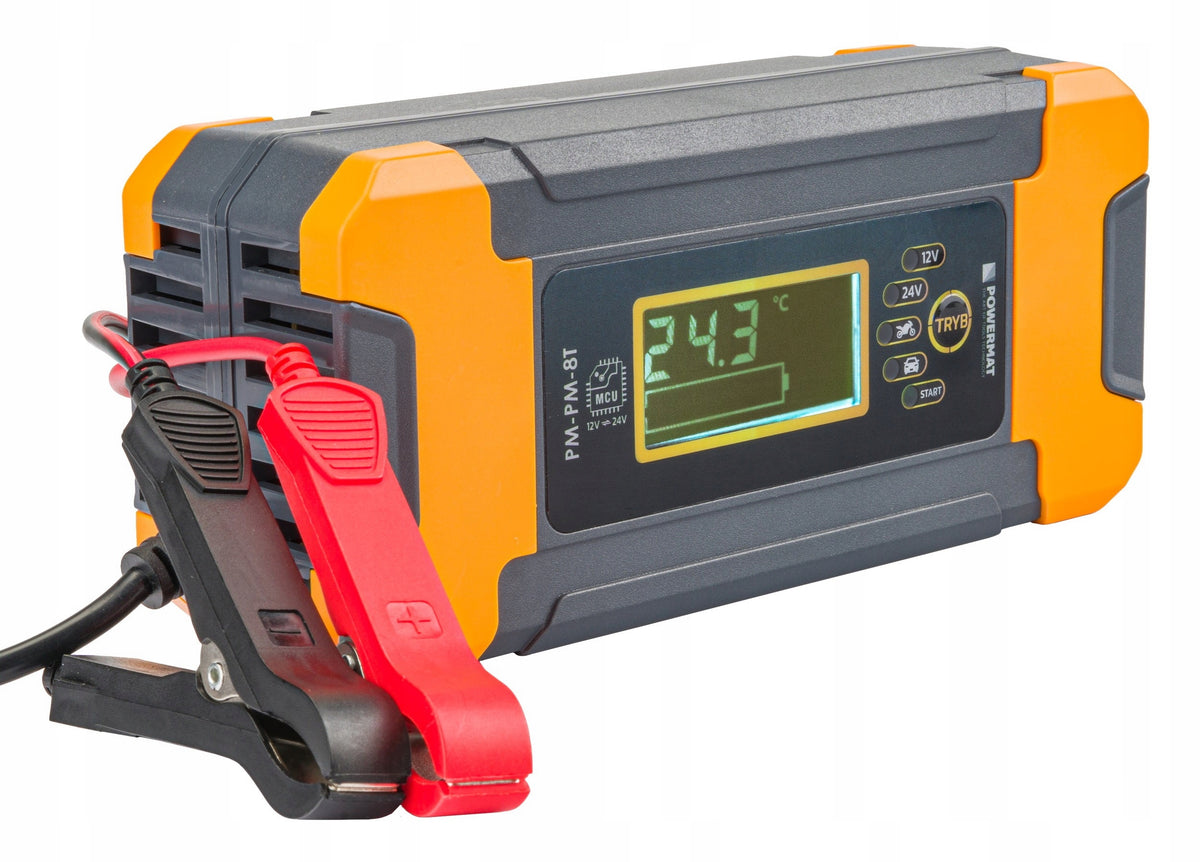

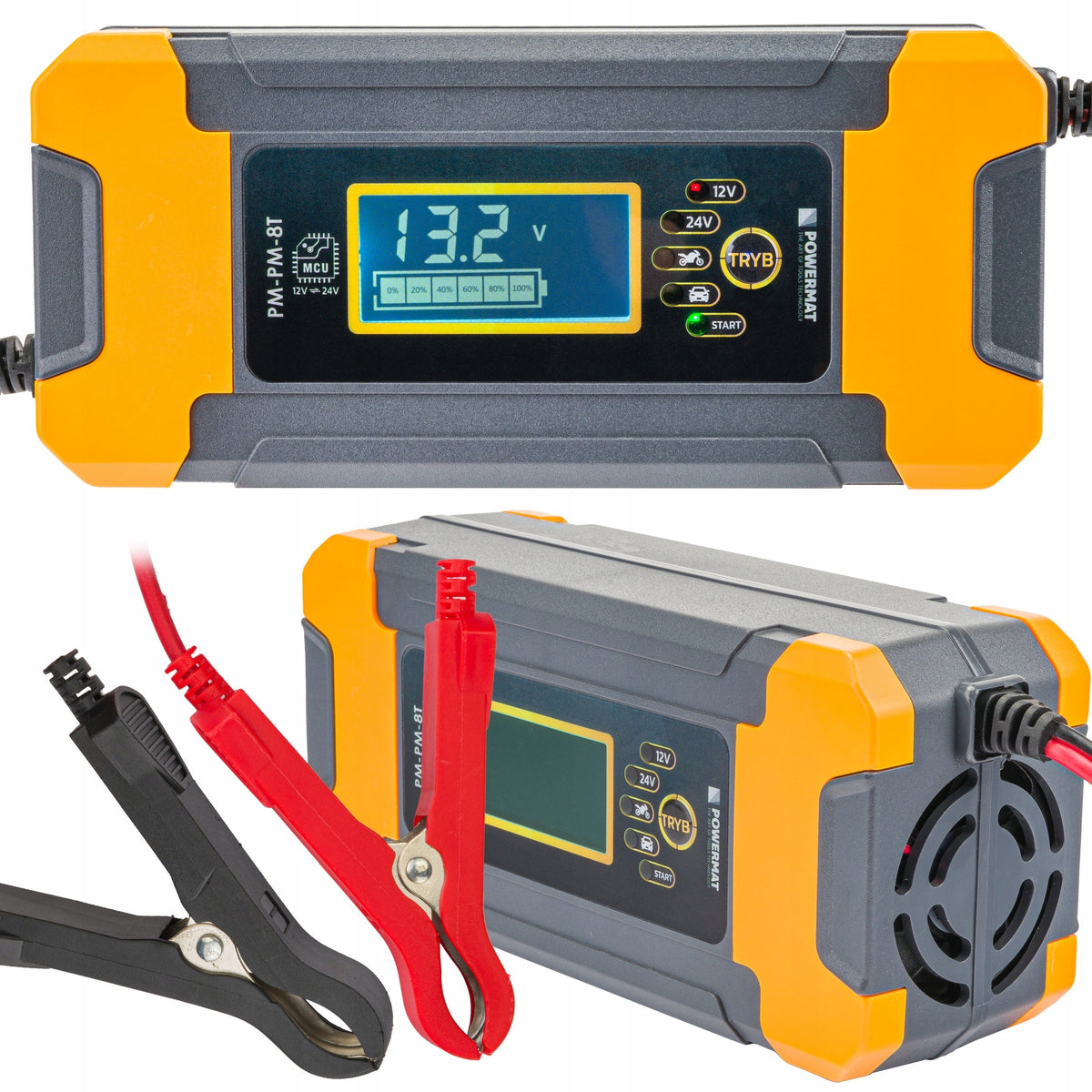

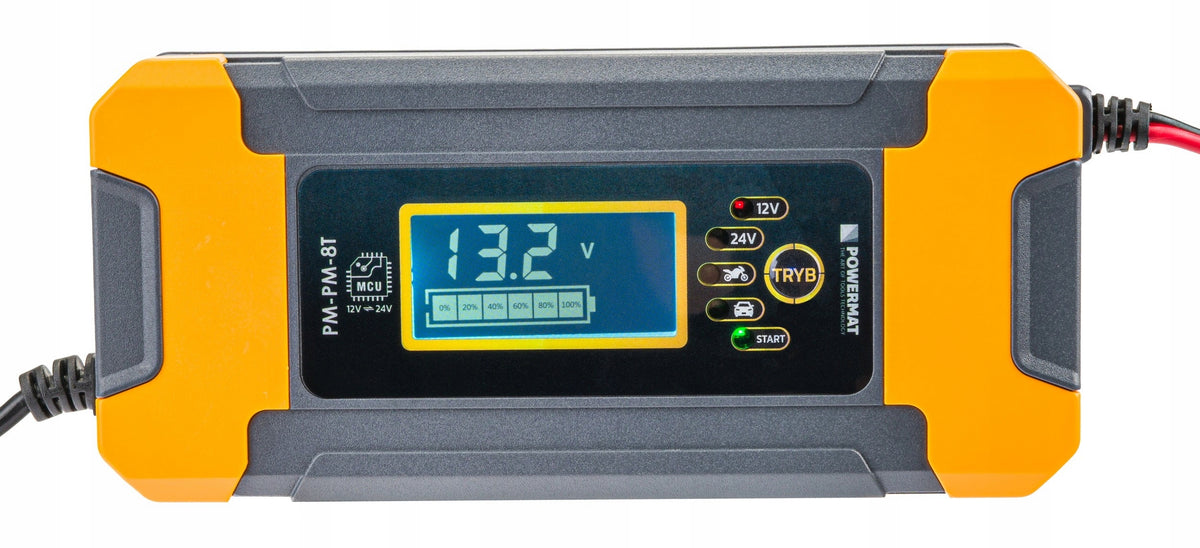

High-quality automatic and precise microprocessor battery rectifier POWERMAT PM-PM-8T is perfect for professional car services and workshops as well as in home garages. The device can charge batteries with a voltage of 12V and 24V.

It has a voltage support function. By recharging the battery with low current, you will regain its life and in addition it will be constantly charged to the maximum voltage value.

Specifications
