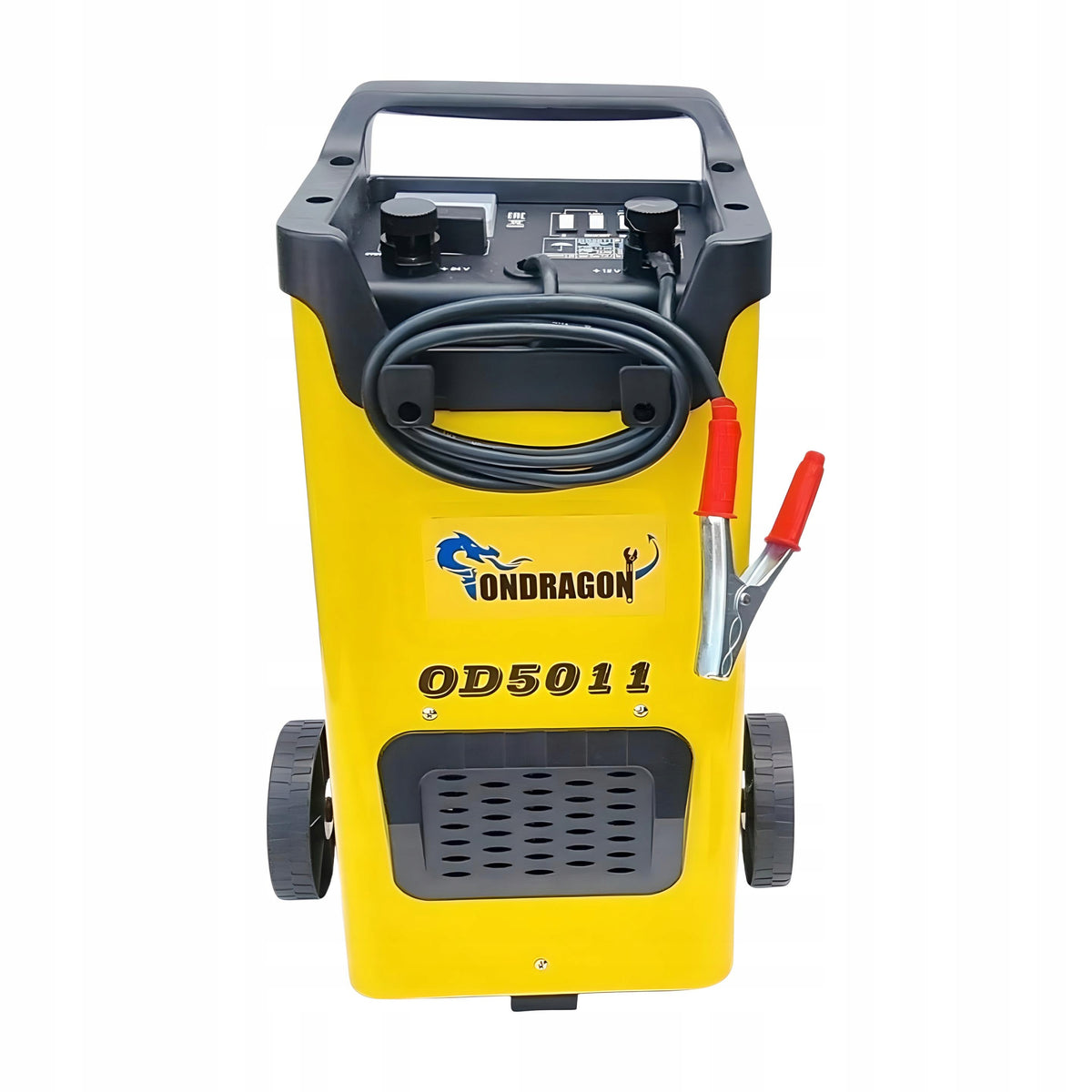

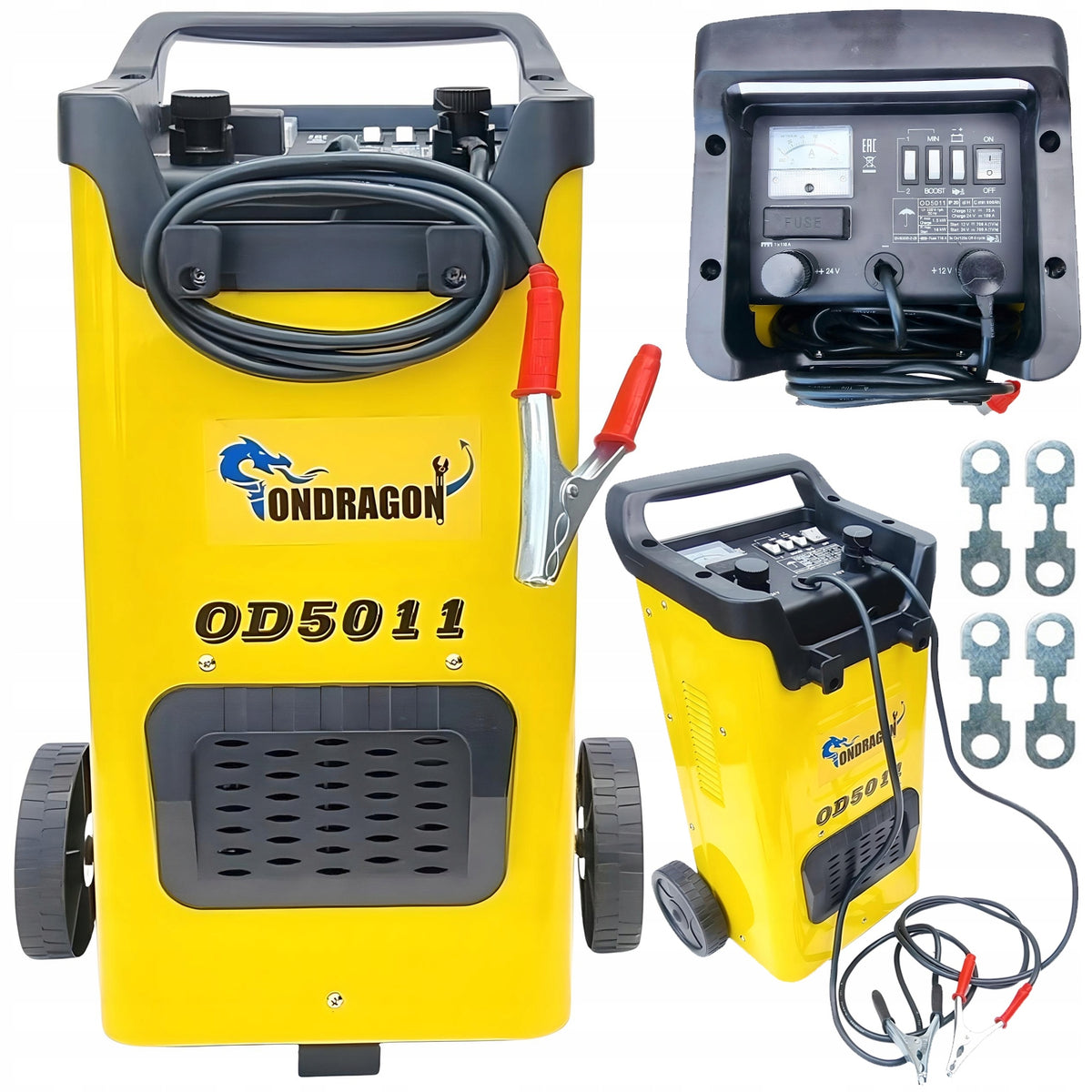

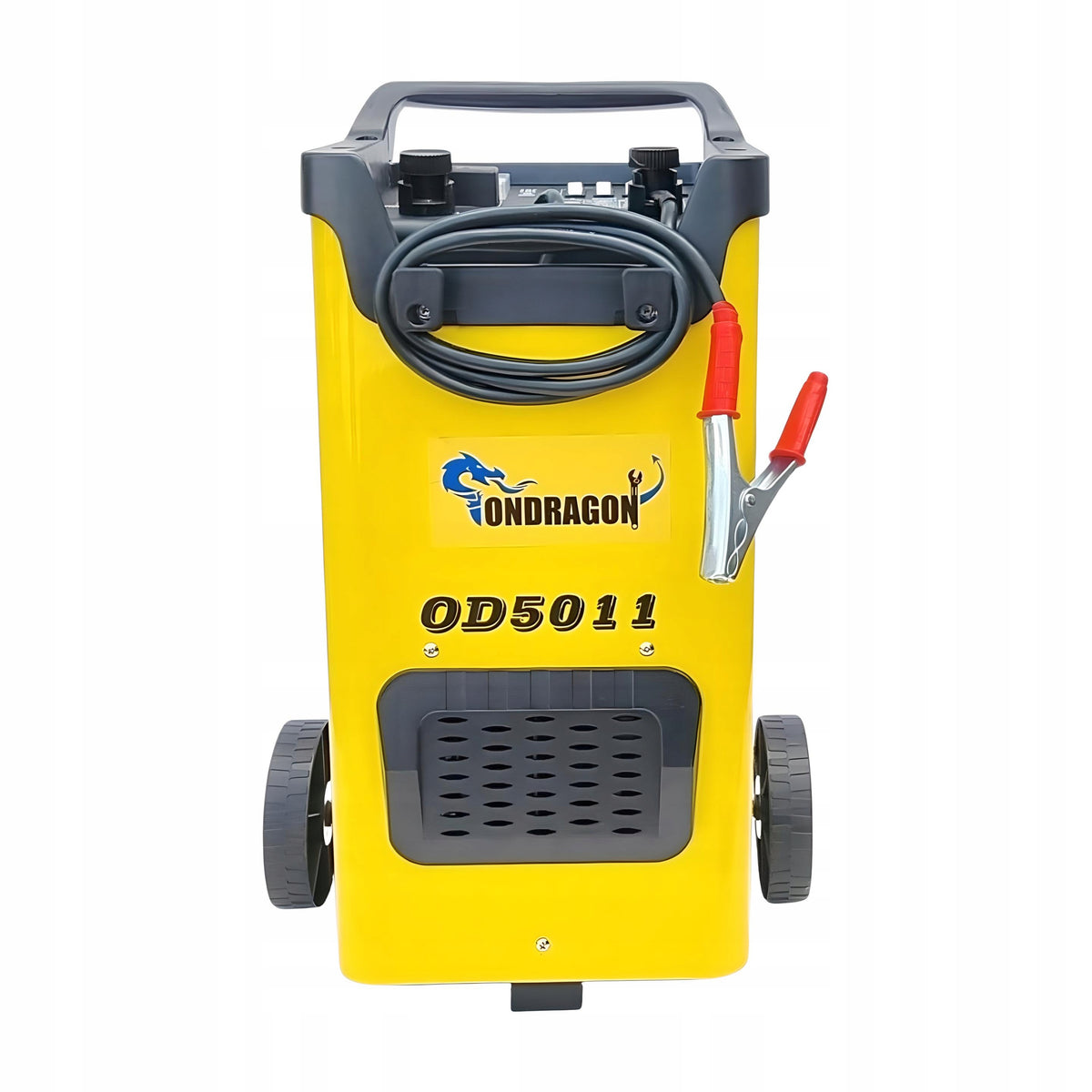

Automobilio akumuliatoriaus įkroviklis ir paleidėjas 700A 12/24V

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus įkroviklis ir paleidėjas 700A 12/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Ondragon
• Modelis: od5011

• power supply: 230 V / 50 Hz
• Supported battery capacity: 50-900 [Ah]
• Charging / starting voltage: 12 V / 24 V
• 12 V inrush current : 700 A
• 24 V inrush current : 700 A
• charging current max : 12 V - 75 A
• charging current max : 24 V - 100 A
• maximum input power during charging: 1,5 kW
• maximum input power during start-up: 10 kW
• Minimum network security required: 16 A
• plus cable : 1,9 m
• minus cable: 1,9 m
• power cord: 1,8 m
• dimensions of the device with wheels: 68 x 39,5 x 28 [mm]
• Gross weight: 17,7 kg

Equipment

• rectifier
• plus cable with connector and alligator
• 2x spare fuse
• box
• User manual PL

Modern and precise rectifier for charging batteries ONDRAGON ensures high quality and efficiency. It is perfect for professional car workshops and home garages. The device allows charging batteries with a voltage of 12V and 24V.

It is equipped with a start function for both gasoline and diesel engines. Thanks to the fast charging option, it is possible to increase the charging current, which accelerates the process of charging the battery, especially in the case of batteries with a larger capacity.

The built-in ammeter placed in the rectifier informs about the battery level and the power consumed during vehicle start-up.

With its high power output, this rectifier is perfect for a variety of applications.

The rectifier is characterized by manual ammeter two current connections PLUS 12V and PLUS 24V, fuse fuse and minus cable permanently mounted.

On an extensive screen , the user can track the current flow, which allows precise adjustment of charging parameters to a specific battery in an easy and intuitive way.

In addition, the device has solid current connectors and an easily accessible fuse, which ensures not only safety, but also convenience of use.

The device offers a wide range of possibilities to adjust the charging intensity and start-up function.

There is the ability to adjust the charging current from the lowest to the highest: 1 + Min ; 1 + Max; 2 + Min and 2 + Max.

In the case of the start-up function, the user can use the rectifier for 5 engine revolutions or for a maximum of 120 seconds.

When charging the battery with this powerful device, it is recommended to monitor the ammeter so that the current does not exceed 10% of the battery capacity, for example:

• For battery with a capacity of 20 Ah, the maximum charging current is 2A,
• For abattery with a capacity of 100 Ah, the maximum charging current is 10A

Rectifiers with start-up function from the Ondragon brand are characterized by the presence of solid, large wheels, which significantly facilitates the movement of the device in various terrain conditions and during transport. Thanks to this, the user can quickly and easily move the rectifier where it is needed, without having to carry it difficultly on his own back or hands. In addition, the solid wheel design ensures stability and safety during use, which translates into ease of use and long-lasting functionality of the device.

The devices are equipped with a special pocket, in which you can hide the wires during transport or storage. In addition, they also have a convenient power cable holder, which makes them easy to carry and operate.
