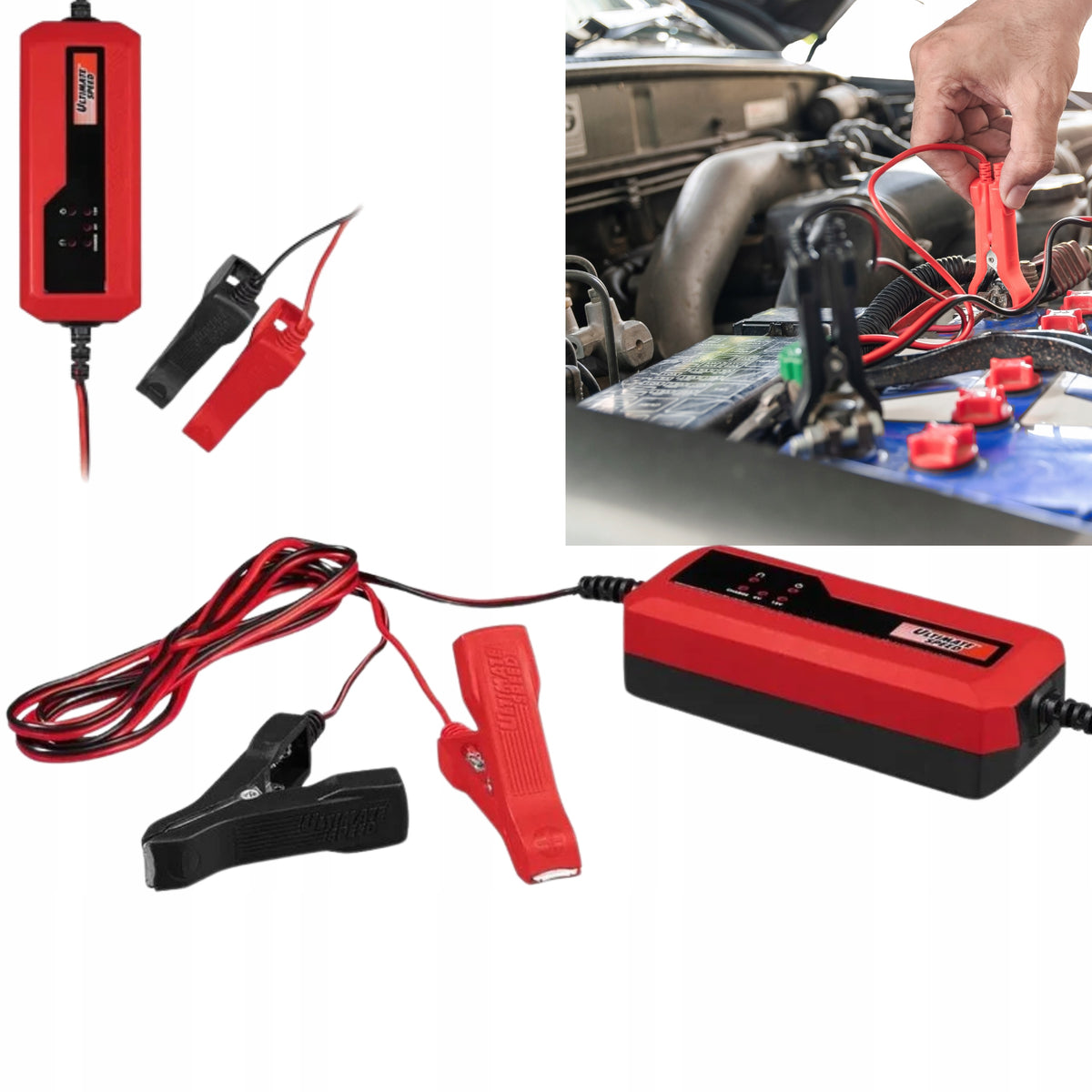

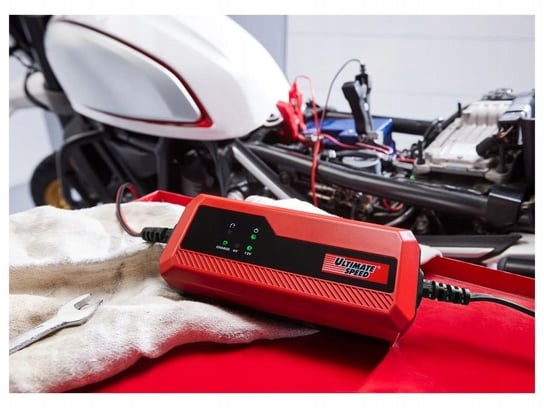

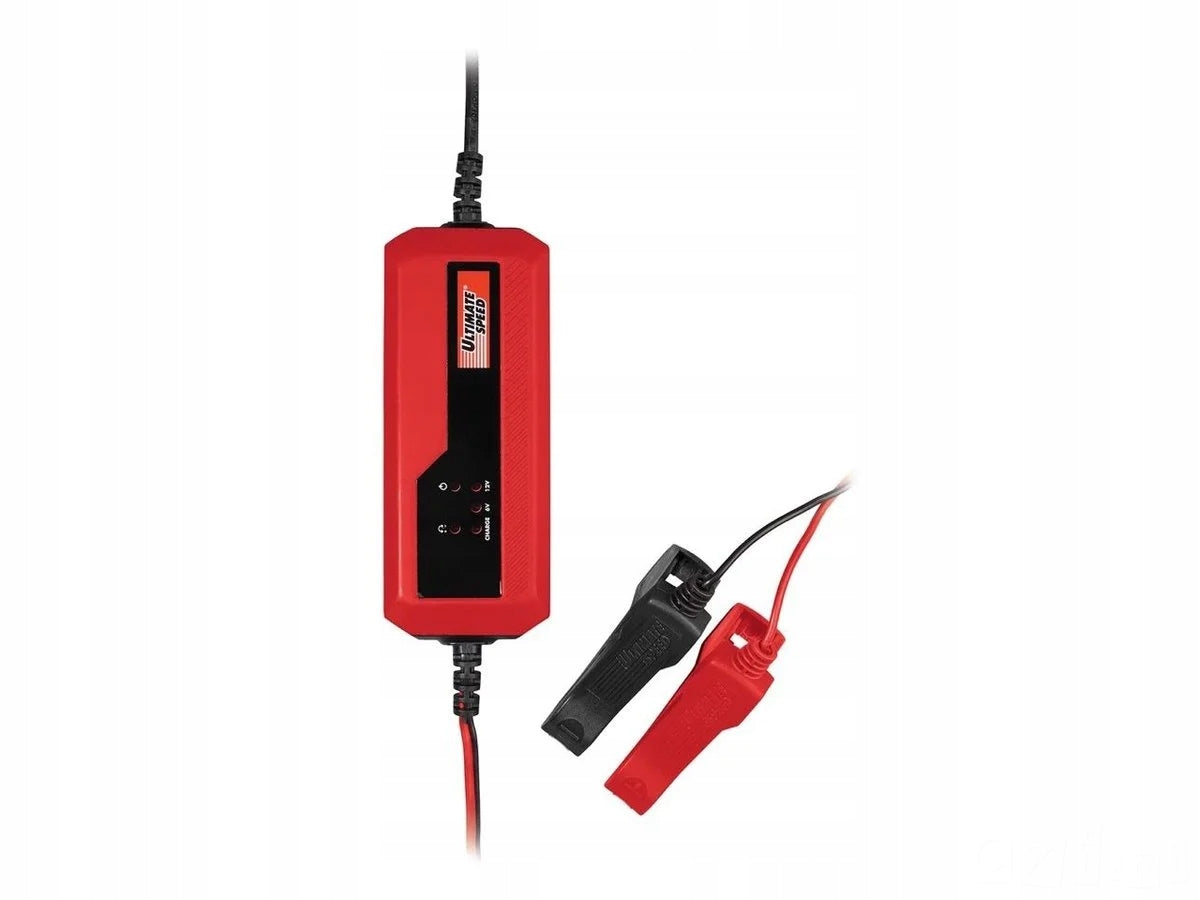

Automobilio akumuliatoriaus įkroviklis ULGD 1.0 A1, automatinis

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus įkroviklis ULGD 1.0 A1, automatinis. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Ultimate Speed
• Modelis: ULGD 10 A1

ULTIMATE SPEED® Battery charger for car batteries ULGD 1.0 A1, automatic charging

Product Description

• fully automatic charging process
• for all lead-acid batteries with a voltage of 6 V or 12 V and a capacity of 1,2-100 Ah
• suitable for charging batteries up to 100 Ah
• 2 programs for optimal adaptation to the battery type (6 V / 12 V)
• display with 5 LEDs for: standby, 6 V, 12 V, reverse polarity warning and charging status
• protection against pole conversion, short circuit and overload
• with long-term connection: automatic charging as needed
• charging currents – maximum values: 7,2 V/1A; 14,4 V/1A
• application to lead-acid batteries such as open, MF and calcium batteries
• Intelligent charging control with 5 charging levels

  1. Reverse polarity protection and diagnostics

  2. Pulse charging with current 1 A

  3. Charging up to 7,2 / 14,4 V

  4. Surveillance

  5. If necessary, top-up

Technical data

• charging current: max. 1 A
• Ambient temperature: -20°C / +50°C
• Operating voltage: 230V~50Hz
• Primary: 230V
• secondary: 6 V / 12 V (nominal)
• Standby mode: < 1W

Material

• plastic

Dimensions

• housing: approx. 14,1 x 5,55 x 4 cm
• power cord H03VVH2-F: approx. 2 x 0,5 mm² (PVC); L 1,80 m (without plug)
• connection cable (plus/minus): approx. 2 x 5 mm² (copper); L 1,80 m

Libra

• Approx. 251 g
