Automobilio akumuliatoriaus lygintuvas 12V/24V 15A

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus lygintuvas 12V/24V 15A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Anytech
• Modelis: Anytech.pl

High-end microprocessor rectifier for charging 12V-24V batteries

Very popular in the world model BLM-CDQ-168 controlled by a microprocessor

Suitable for 6-200 Ah lead-acid batteries, lithium batteries are suitable.

Suitable for both 12V and 24V batteries, it works with SLA, WET, MF, FLOODED, GEL, VRLA, AGM, EFB, which means it can be used for batteries in cars, motorcycles, boats, mowers, agricultural vehicles and more.

The device is controlled by a microprocessor - when fully charged, it automatically turns off, keeping the battery ready.

The rectifier is small in size and is extremely easy to use, making it great for home use.

The rectifier has the function of automatic detection of battery voltage (12V or 24V)

The rectifier is ideal for charging batteries for cars with START / STOP engine. More and more cars have the function of turning off the engine during a stop. The batteries in these cars require special charging.

The rectifier has a special function " repairing batteries discharged to zero . The device uses high and low frequency pulse technology in this mode, it has a good effect of repairing and activating a very heavily discharged battery. We use this function when charging batteries that are completely discharged or have been idle for a long time and cannot be charged with other rectifiers. The device is not able to repair the battery, which is severely damaged, will not charge the damaged battery to 100%

Advantages of microprocessor control

- intelligent operating modes

• Constant Voltage: Using DC voltage to charge the battery to check that the charging current is not too high reducing it during the process.
• Constant Current (Constant Current): This means that the battery voltage is lower than the set voltage of the charger, but the charger will support the constant charging current of the battery.
• Trickle Charge Modulation: When the battery voltage approaches the rated voltage and the charging current is already low to the set current, it will switch to floating charge modulation mode. This means that the battery is charged, but it is constantly checked for voltage drops and recharged automatically with alternating current.
• Floating Charge Modulation: The mode will maintain the state of full charge of the battery.

Product parameters:

Product Model: BLM-CDQ-168

Product size: 17,5x13,5x7,5cm.

Net weight: 870 g.

Length of output cable: 120 cm,

Input cable length: 140 cm.

Input voltage: AC 110 - 220 V (50 - 60 Hz).

Output current: 0 - 15A

Voltage identification for 12 V: 8V - 14,5V

Voltage identification for 24 V: 18V - 29V

Supported battery capacity 12V: 3Ah - 30Ah

Supported battery capacity 24V: 30Ah - 200Ah

Charging intensity: 0A - 15A

Charging process: 8-stage (smart or fast)

Working temperature: -30 °C to +50 °C

Metal housing

Power: 250 W (max.)

The rectifier has multiple

safeguards.

• Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.
• Battery diagnostic function - the rectifier constantly monitors the condition of the battery.
• Overheating protection: When the temperature of the charger exceeds 150°C, the charger will stop charging. When the temperature is reduced to 80°C, or the rectifier turns off for about 10 minutes, after this time you can charge the battery again.
• Short-circuit protection: When a short circuit occurs, the circuit will automatically stop working. This will be manifested by a long beep. Just plug in the charger thoroughly, then it will charge again automatically.
• Reverse-connecting protection: While the terminals (+/-) will be connected by mistake in reverse, the charger will alert you in the form of intermittent long beeps. After properly connecting the terminals, it will be recharged.

The device charges the battery automatically which additionally protects the battery. With these features, you can leave your charger connected to the battery indefinitely.

The device has a very thick wire of pure copper.

Full load testing and Burn-In-Tests confirm high reliability, stable performance and longer service life.

8-Step Charging

• STEP 1: DIAGNOSTICS: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier.
• STEP 2: DESULPHURIZATION: recognition of the sulphurized battery, charging with low voltage and high intensity pulsating current allows the sulphate to be removed from the battery plates, thus restoring its initial capacity.
• STEP 3: ANALYSIS: checking whether the battery is not damaged and whether it can accept charging current - prevents charging the damaged battery.
• STEP 4: SOFT START: if the battery is not damaged, a relatively low current charge (about 15%), gradually increasing its value, begins.
• STEP 5: ESSENTIAL CHARGING: constant current maximum charging with a value automatically adjusted depending on the state of charge of the battery, until 80% of the battery capacity is reached.
• STEP 6: FINAL CHARGING: charging with decreasing current and constant voltage until 100% of the battery capacity is reached.
• STEP 7: ANALYSIS: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed.
• STEP 8: PULSING: monitoring the battery voltage and maintaining an optimal charge of 95-100% capacity through charging current pulses

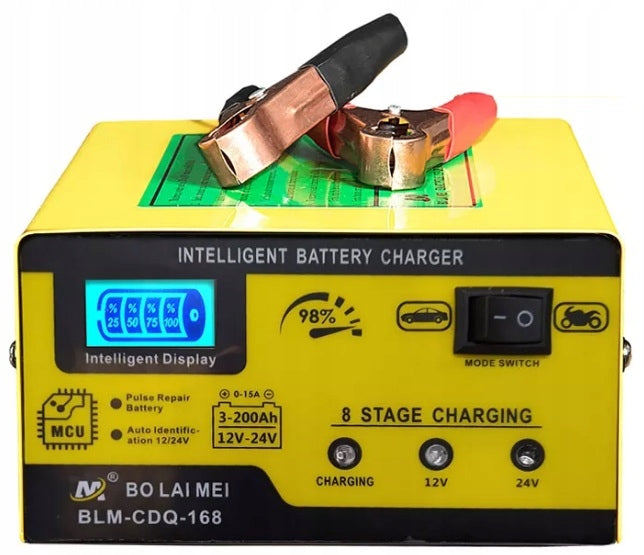

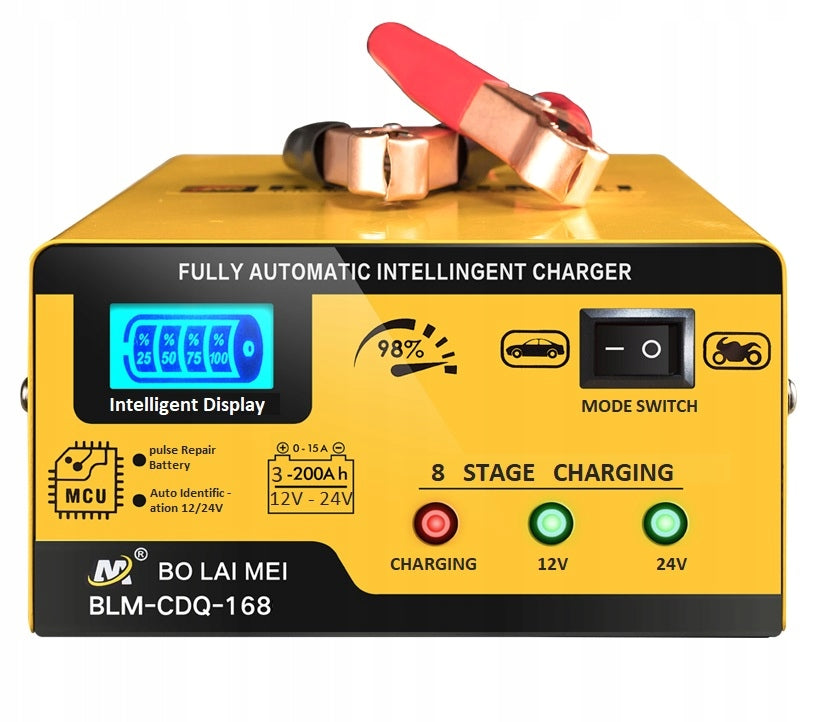

VERY LARGE and READABLE

DISPLAY

The rectifier has a display on which shows the most important parameters e.g. degree of battery charge. This allows you to charge the device to the selected level. With this feature, you don’t have to wonder if the battery has charged enough – the rectifier will just show you.

Connection instructions

1. Connect the red crocodile to the electrode +

2. Connect the black crocodile to the electrode -

3. After properly connecting the rectifier - the battery parameters will appear on the display.

4. Insert plug into 220 V power supply

5. When charging is finished on the display, the battery is full 100%.

6. For better charging, you can leave the battery connected to the charger for another hour

7. We disconnect the device in reverse order: first we pull the plug from the contact, then we disconnect the black crocodile, and finally the red one.

Very wide application

passenger cars and trucks

motorcycles

yachts

agricultural and construction machinery

Golf carts

mowers

quads

Snowmobiles

Forklifts

tractors

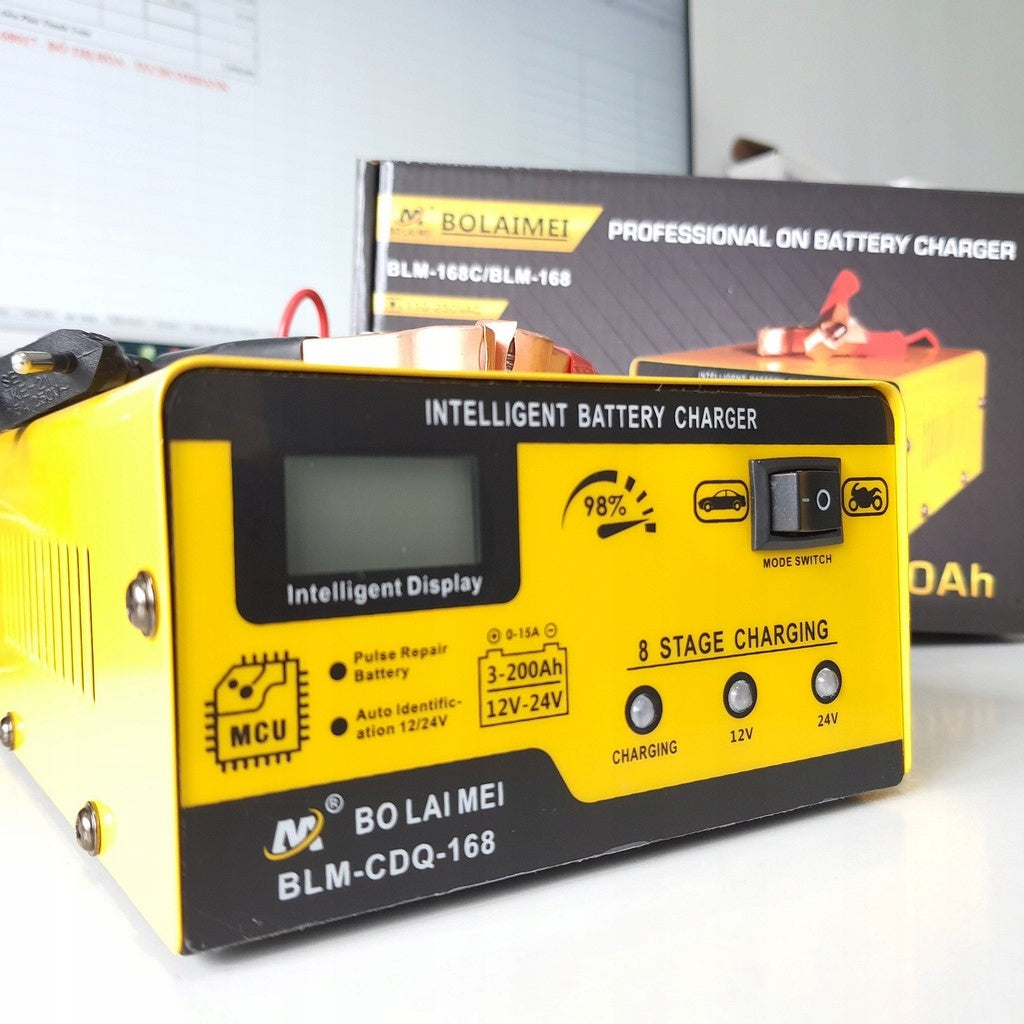

Device packed

in a box suitable for a gift

Why is it worth having a Anytech rectifier?

The BLM-CDQ-168 rectifier is an advanced device that not only effectively charges batteries, but also helps to restore the efficiency of heavily discharged batteries thanks to the impulse regeneration function.

Intelligent control system, wide compatibility and extensive security make it a reliable solution for both everyday home use and professional use.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	Anytech.pl
Parametry	Brand	Anytech
Parametry	Maximum amperage	15 A
Parametry	Product weight with unit packaging	0.8 kg
Parametry	EAN (GTIN)	5904310264556
Parametry	Batteries included	no
Parametry	Packaging status	original
