Automobilio akumuliatoriaus testeris 12V/24V, 3–200Ah

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus testeris 12V/24V, 3–200Ah. Kategorija: Baterijų testeriai.

• Gamintojas: Xtreme
• Modelis: 58-671#

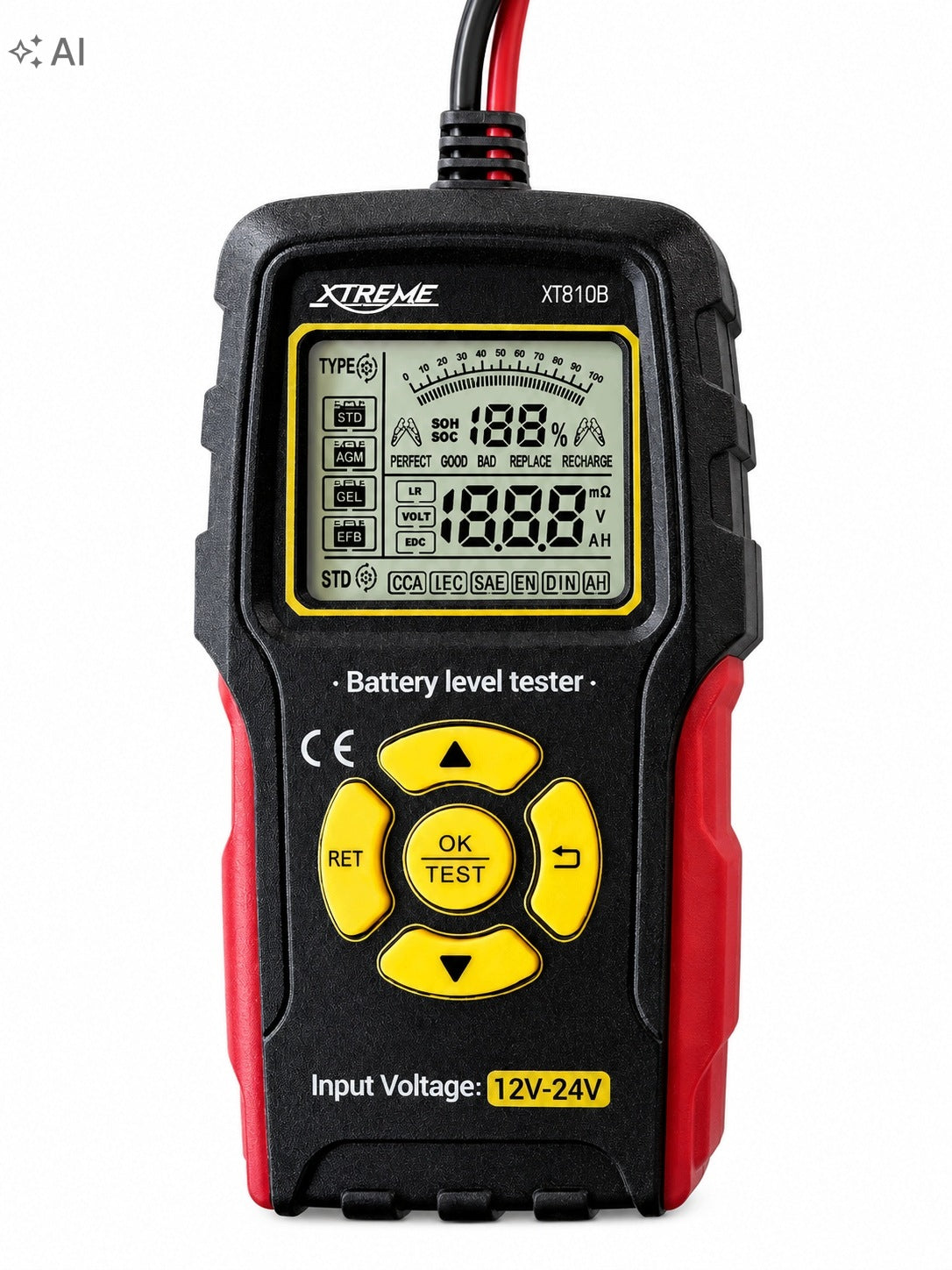

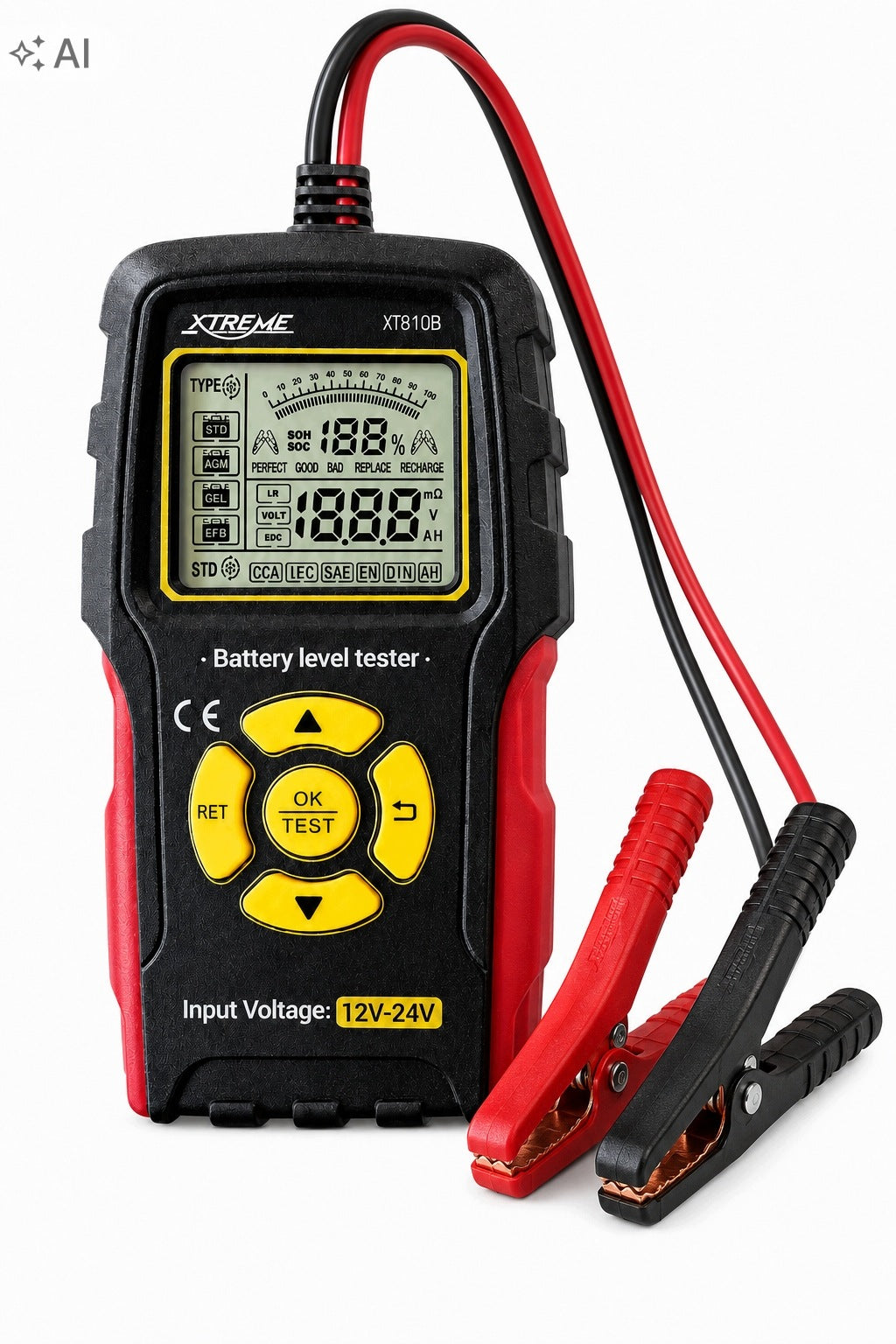

TESTER XTREME XT810B is a practical tester designed for quick diagnostics of lead-acid batteries 12 V and 24 V. The device allows you to check the current battery status, charge level, voltage, internal resistance and starting capacity.

The easy-to-read LCD display shows the measurement results and tells you whether the battery is working, needs to be recharged or should be replaced. The test takes about 3 seconds and the device starts immediately when connected to the battery.

✅ Support 12V and 24V batteries

✅ Capacity range from 3 Ah to 200 Ah

✅ Measurement of voltage and internal resistance

✅ Control of battery level and condition

✅ Measurement of CCA starting capacity

✅ Supported standards: CCA, EN, IEC, DIN, SAE and CA

✅ Works with STD, AGM, GEL and EFB batteries

✅ Measurement result in about 3 seconds

✅ Easy-to-read LCD display

✅ Protection against reverse connection of terminals

✅ Protection against too high voltage

✅ Power supply directly from the tested battery

✅ Testing without the need to disassemble the battery

➡ Clear assessment of battery status

The tester can display one of the messages specifying the current status of the battery:

PERFECT – excellent condition

GOOD – good condition

BAD – poor condition

REPLACE – recommended replacement

RECHARGE – top-up required

➡ Wide application

The tester will work well when diagnosing batteries used, among others, in:

• passenger cars,
• vans and trucks,
• motorcycles,
• boats and marine vehicles,
• electric vehicles,
• forklifts,
• construction and garden machinery.
• The device is designed for lead-acid batteries, including starter batteries, deep discharge, AGM, EFB, GEL, VRLA, MF and SMF.

➡ SUPPORT FOR MULTIPLE MEASUREMENT STANDARDS

The tester works with the most common standards determining the starting current of the battery:

CCA – cold start current

EN – European standard

IEC – international standard

DIN – German standard

SAE – American standard

CA – inrush current

Thanks to the wide range of standards, the device can be used to diagnose many battery models available on the market.

➡ FOR DIFFERENT TYPES OF BATTERIES

XTREME XT810B is designed for testing 12V and 24V lead-acid batteries, including:

• standard STD batteries,
• AGM batteries,
• GEL batteries,
• EFB batteries,
• VRLA batteries,
• maintenance-free batteries MF and SMF,
• starter batteries,
• deep discharge batteries.

The capacity range from 3 Ah to 200 Ah allows the tester to be used for both smaller motorcycle batteries and larger batteries used in cars, machines and commercial vehicles.

➡ MORE THAN JUST VOLTAGE MEASUREMENT

XT810B is not limited to indicating the current voltage. The tester also analyzes the internal resistance, starting capacity and overall condition of the battery.

The screen can read, among other things:

• current battery voltage,
• value of inrush current,
• internal resistance,
• level of charge,
• assessment of technical condition,
• information about the need for charging or replacement.

Thanks to this analysis, the user receives more reliable information than when using a standard voltage meter.

➡ SIMPLE AND INTUITIVE OPERATION

1. To perform the test, simply connect the terminals to the appropriate battery poles:
2. Red clamp to the positive pole,
3. Black clamp to the negative pole.
4. When properly connected, the device starts automatically. Then select the type of battery, the applicable measurement standard and the inrush current value given on its label.
5. The tester performs the analysis and presents the result on a clear LCD screen. The device is powered directly from the tested battery, so it does not require the use of additional batteries or charging.

Technical specification

• Brand: XTREME
• Model: XT810B
• Product code: 58-671#
• Battery voltage: 12 V / 24 V
• Working voltage range: 8 – 30 V
• Capacity range: 3 to 200 Ah
• Measurement method: Kelvin method
• Supported standards: CCA, EN, IEC, DIN, SAE, CA
• Working temperature: from -10°C to +50°C
• Display: LCD
• Power supply: from the tested battery
• Supported batteries: lead-acid
• Test time: about 3 seconds

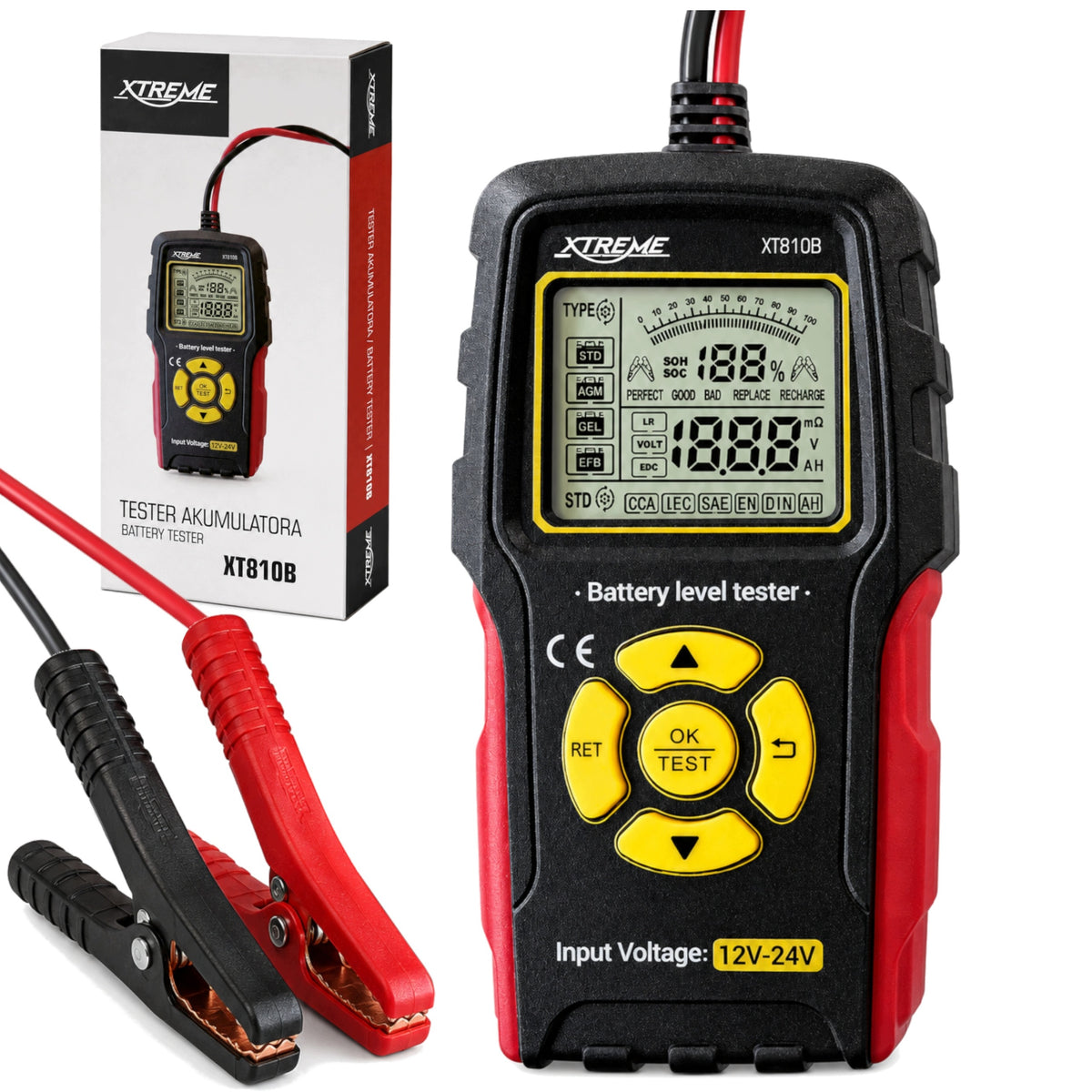

Contents of the set

• Battery tester XTREME XT810B
• Measuring cables terminated with terminals
• User manual in Polish and English
• Original manufacturer's packaging
