Automobilio akumuliatoriaus testeris FNIRSI BTM-24, 12V/24V, 2000A CCA, LCD ekranas

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus testeris FNIRSI BTM-24, 12V/24V, 2000A CCA, LCD ekranas. Kategorija: Baterijų testeriai.

• Gamintojas: Fnirsi
• Modelis: BTM-24

⭐⭐⭐⭐⭐

FNIRSI BTM-24 is an advanced, yet extremely easy to use 12V and 24V battery tester that replaces several diagnostic tools. In one measurement, you will check the voltage, inrush current up to 2000A CCA, state of charge (SOC), health status (SOH), internal resistance and correct operation of the alternator and charging system. This is a quick, clear answer to the question: is the battery working or is it already approaching the end of its life.

⚙ Specification:

• Manufacturer: FNIRSI
• Model: BTM-24
• Device type: Multifunctional battery and charging system tester
• Supported battery voltage: 12V/24V
• Scope of inrush current tested: Up to 2000 A
• Supported battery standards: CCA / EN / DIN / IEC / JIS / GB
• Supported battery types: AGM (flat plate, spiral), EFB, GEL, lead-acid (flooded)
• Voltage measurement range: 6 – 30 V
• Diagnostic tests: SoH health condition SOC charge status Internal resistance Boot test Load test Charging test
• Testing method: Non-destructive (without battery load)
• Test Modes: In/Out of Vehicle
• Display: 2,4" TFT color screen
• Display Modes: Day and Night Mode
• Data presentation: Number values + real-time voltage waveform graphs
• Control: Directional buttons + OK button
• Security: Reverse polarity, overvoltage, short circuit
• Length of measuring wires: About 61 cm
• Design: Integrated cable folding stand hole for hanging
• Housing material
• Impact resistant plastic: Menu language
• English / Chinese:
• Device dimensions: 80,5 × 155,8 × 28,2 mm
• Weight of the device
• About 479 g:
• Application: Passenger cars Motorcycles ATV Boats Commercial vehicles and trucks Fleets Golf carts

⭐Included:

• Battery tester FNIRSI BTM-24
• Measuring cables with insulated terminals
• User manual
• Data cable
• Transport case

⭐No more guessing – you know before the battery fails⭐

Dimming lights, start-up problems or random errors of electronics are the first warning signals. FNIRSI BTM-24 eliminates guesswork – it clearly shows whether the problem is the battery, alternator or installation. Thanks to this, you avoid costly blind repairs and replacement of efficient components.

⭐Non-destructive battery health test – safe and reliable⭐

The device uses a non-destructive diagnostic method, which means no load on the battery during the test. Simply select the battery standard and start the measurement with a single click. The result is presented in the form of a clear GOOD / CHARGE / BAD assessment along with precise technical parameters – you know exactly what to do next.

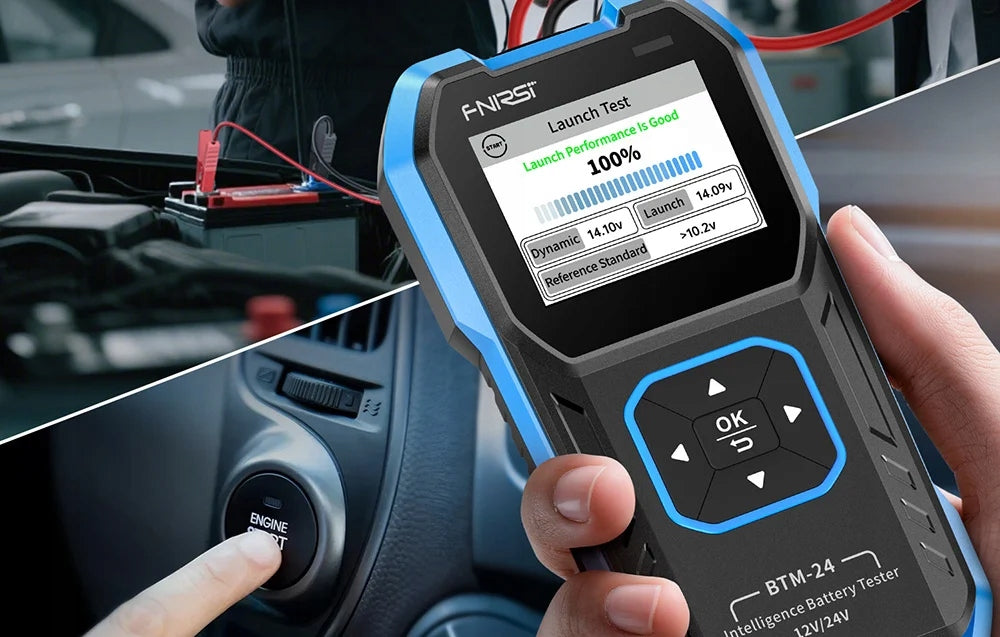

⭐One click to check engine start⭐

The One-Tap Cranking Test function records the voltage drop in real time when the engine is started. The tester immediately informs whether the start-up is within the normal range (>9,6V) or signals a problem. It is an indispensable tool for diagnosing weak batteries and problems with the start-up installation.

⭐Real test of charging and alternator while driving⭐

The BTM-24 monitors dynamic, minimum and maximum charging voltages, showing how the system responds to changes in engine speed and receiver switching on. The graphical voltage waveform chart allows you to assess the condition of the alternator, voltage regulator and wires with one glance – without guessing and without visiting the service.

⭐Full compatibility with batteries and vehicles⭐

The tester supports 6 battery standards: CCA, EN, DIN, IEC, JIS and GB, as well as AGM batteries (flat and spiral), GEL, EFB and classic lead-acid batteries. It will work well in passenger cars, motorcycles, quads, boats, vans, trucks, company fleets and golf carts – both inside and outside the vehicle.

⭐Readable screen and intuitive operation for everyone⭐

The TFT 2,4” colour screen with day and night mode guarantees excellent readability in all conditions. A simple menu guides the user step by step, which is why the device will be easily used by both a mechanic and a novice driver or buyer of a used car.

⭐Maximum occupational safety⭐

Robust, insulated crocodiles with a wide grip range provide a secure connection to the poles. Built-in reverse polarity and overvoltage protection protects the battery, vehicle electronics and the device itself – you test without stress and risk.

⭐Thoughtful design and set ready to work⭐

FNIRSI BTM-24 has an integrated tear-resistant cable, 61-centimeter clamps, a folding stand and a hole for hanging. The set includes a tester, instructions, data cable, and a practical case, ensuring that your device is always safe, mobile, and ready to use.

⭐Who is FNIRSI BTM-24 for? ⭐

It is an ideal tool for mechanics, workshops, DIYers, new drivers, company fleets and people buying used cars. One tester that gives you confidence, saves you money, and allows you to make decisions based on facts—not guesses.
