Automobilio atbulinės eigos daviklių modulis WH3Q-S-G8, 13 pin, nepilnas

Trumpai apie prekę

Prekė: Automobilio atbulinės eigos daviklių modulis WH3Q-S-G8, 13 pin, nepilnas. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

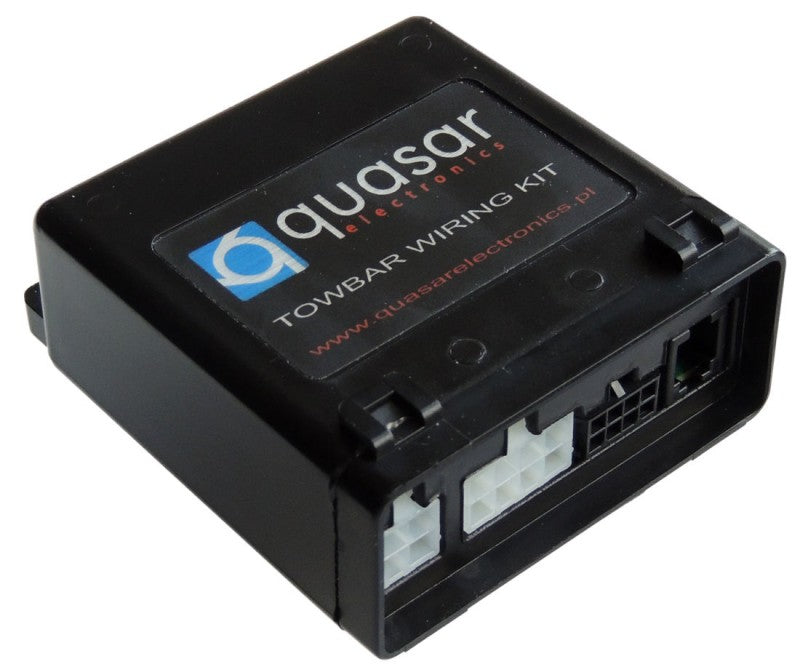

Digital module with standard functionality WH3(Q)-S with 8 wires in a 13-pin socket (8-wire connection on pin 8 is reverse light). The kit includes a set of accessories necessary to mount the module to the vehicle's electrical system - and the socket is already connected to the main wiring harness, which reduces installation time. THIS SET IS PERFECT FOR BIKE RACKS!

The module has standard functionalities, i.e. in addition to basic functions, it provides m.in.:

• sound signalling of the detection of the connected trailer;
• the possibility of switching off the parking sensor control unit (PDC);
• sequential control of the fog lamp (54G) in the car leaving it attached to the trailer;
• signalling of faulty trailer direction indicator lamps (Blink Control) with an audible signal from the buzzer.

The module can be connected (optional) LED-RGY-500 information light (LED 3 colors), which signals:

• connection of the trailer;
• burning out the direction indicator lamps of the trailer;
• switching on the trailer fog lamp;
• charging status of the caravan battery (when it is G13-ICM-KIT).

This kit can be extended to support all 13-pins in the socket by using G13-ICM-KIT. The kit includes the ICM module (intelligent charging of the trailer battery), the use of which is recommended with caravans. It protects against discharge of the car battery because it allows you to charge the trailer battery only when the car engine is turned on.

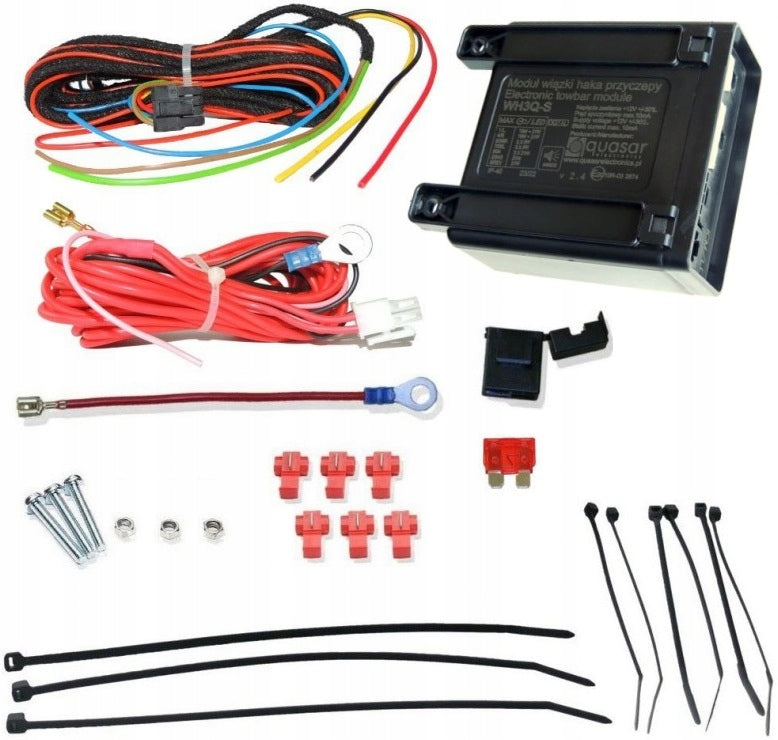

Elements of the set

• Control module (control panel) 1 pc

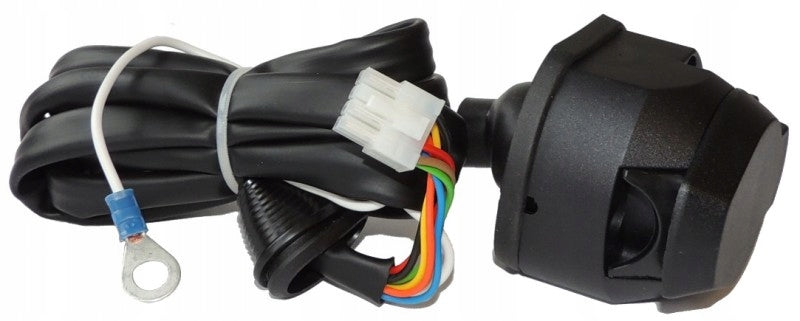

• Main harness with socket 13-pin 1 pc
• Signal beam (7 inputs) 1 pc
• Power harness 1 pc
• Mounting kit 1 set
• Screw set 1 set
• Assembly instructions 1 pc

Basic functions of the module

✅ Input current load: ≤2 mA

✅ Cooperation with LED and single-fiber car lighting: YES

✅ Support car installation with variable lamp supply voltage (PWM): YES (digital)

✅ Cooperation with LED lighting and incandescent trailer: YES

✅ Detection of trailer connection with incandescent lighting: YES

✅ Detection of trailer connection with LED lighting: YES

✅ Possibility to control the operation of the car parking sensor module: YES

✅ Detection of damage to trailer direction indicator lamp: YES

✅ Trailer reverse light control: YES

❌ Constant power supply on trailer socket: NO

⚠ Trailer battery charging circuit: (additional G13-ICM-Kit extension required)

⚠ Intelligent charging of trailer battery: (additional G13-ICM-Kit extension required)

Diagnostics and signaling

✅ Trailer connection signal: beep; LED-RGY-500 (optional, available for purchase)

✅ Indication of failure of trailer direction indicators: beep; LED-RGY-500 (optional, available for purchase)

✅ Indication of switching on the trailer fog lamp: beep; LED-RGY-500 (optional, available for purchase)

How to operate the rear fog lamps of the car

✅ Method of controlling the trailer fog lamp: Sequential

✅ Sequential way of controlling the trailer fog lamp: YES

✅ Complete shutdown of the rear fog lamp of the car: YES

Features of the electrical harness

• Installed hook socket on the beam (reduces assembly time)
• Power harness length: 5,0 m
• Beam length to socket: 1,7 m
• Input signal beam length: L=1,0 P=3,0 m

Technical data

• Supply Voltage: 10-18 V
• Maximum output load of position lamps: (each side) 3 x 5 W
• Maximum load output of stop lights: 3 x 21 W
• Maximum output load of direction indicator lamps: (each side) 21+10 W
• Maximum fog light output load: 21 W
• Maximum load output of reversing lights: 21 W
• Car reversing sensor control output load capacity: 0,5 A

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	13 PIN
Parametry	Product weight with unit packaging	0.5 kg
Parametry	EAN (GTIN)	5907662621459
Parametry	Manufacturer	Quasar Electronics
Parametry	Packaging status	original
