Automobilio gervė DRAGON WINCH DWM 12000 HD 12V

Trumpai apie prekę

Prekė: Automobilio gervė DRAGON WINCH DWM 12000 HD 12V. Kategorija: Keltuvai.

• Gamintojas: Dragon Winch
• Modelis: DWM12000HD-12V

Steel rope 30m

NEW HD MODEL, pull on a single line up to 5443 kg (and using a block of almost 11 tons)

Purpose: lavettes, roadside assistance, services (forest, energy, etc. ), off-road vehicles

The engine in the DWM 12000 HD winch has a huge power of 6,8HP, is well sealed and does not mind rain, mud or sand, but if you are looking for a winch that can even be submerged (typical hardcore offroad - check the Highlander winch series from Dragon Winch)

The durable three-stage planetary transmission is made of high-quality steel. Each of its elements has been precisely made and perfectly fitted, which guarantees us long-term, trouble-free operation. The transmission uses sliding machines, which further extend the life of the equipment and eliminate the problem of baking needle bearings.

The brake in the DWM 12000 HD is a separate element placed in the winch drum. It connects the engine to the transmission. It is supported by 3 linings to brake and hold the pulled object even more effectively.

Important practical notes:

• guide rollers should be attached to the mounting plate, not to the winch directly
• choose a winch with a pull 2 times the weight of the pulled vehicle (the maximum pull of the winch is given for the first layer of rope, with each subsequent layer the pull is smaller)
• for safety reasons, it is worth using a current hebel - an emergency current switch that cuts off the power from the battery (also available for purchase at our auction)
• connect the winch directly to the battery (plus and minus), i.e. the minus terminal is also connected directly to the battery and not e.g. for the car body
• we do not unroll the rope to the end, the winch should have a wound rope on the drum (3-4 drum circuits)
• in case of unrolling the rope to the end, wind the rope from the bottom

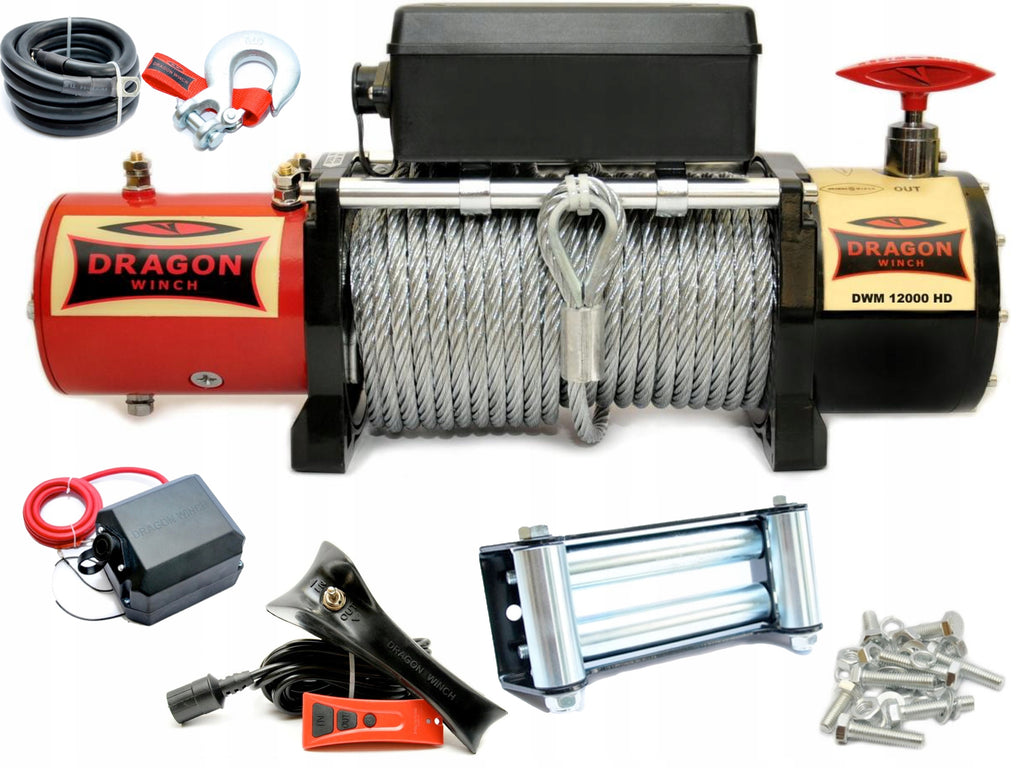

Includes:

• Dragon winch
• roller guide
• cables and screws
• relay
• steel rope with hook wound on the winch drum
• remote control on cable (3m cable length)
• wireless remote control (retractable in cable controller holder for convenience) with open ground range up to 30m

Technical data:

• Application: tow trucks, roadside assistance, services (forest, energy, etc. ), off-road vehicles
• Voltage: 12V (the same model is also available in 24V version at our other auction)
• Power: 6,8 HP
• Single line pull: 12000 lb/ 5443 kg (using a 24000 lb / 10886 kg block)
• Transmission: three-stage planetary gear
• Reduction: 265:1
• Brake type: dynamic
• Length of wire rope: 30 m
• Gross set weight: 41 kg
• Set of mounting screws: 254 mm x 114 mm
• Winch dimensions (LxWxH): 537 mm x 159 mm x 243 mm

Rolling speed of the rope (first layer of rope on the drum)

• ROPE LOAD (kg) none 1814 3629 5443
• ROPE SPEED (m/min) 5,9 4,4 2,8 0,0
• CURRENT CONSUMPTION 12V (amps) 58 158 314 415

Drawing force depending on the rope layer

• ROPE LAYER 1 2 3 4 5
• ROPE PULL (kg) 5443 4299 3701 3211 2557
• NUMBER OF ROPES IN DRUM (m) 5,3 11,5 18,6 27,3 30,0
