Automobilių dalių testeris KAWISH QDB-4A, PWM, 12–24 V

Trumpai apie prekę

Prekė: Automobilių dalių testeris KAWISH QDB-4A, PWM, 12–24 V. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: QDB-4A

The Kawish QDB-4A diagnostic tester is a highly specialized, yet intuitive device designed specifically for garages and car services. It is used to precisely test and control electromechanical components in vehicles, allowing for lightning-fast location of faults. The equipment allows direct control of actuators such as fuel injectors, ignition coils, stepper motors and metering valves. With a wide range of 12-24V DC input power supply, PWM signal support and a built-in multimeter for voltage and resistance measurement, the QDB-4A is a comprehensive tool in the hands of every mechanic and electromechanical engineer.

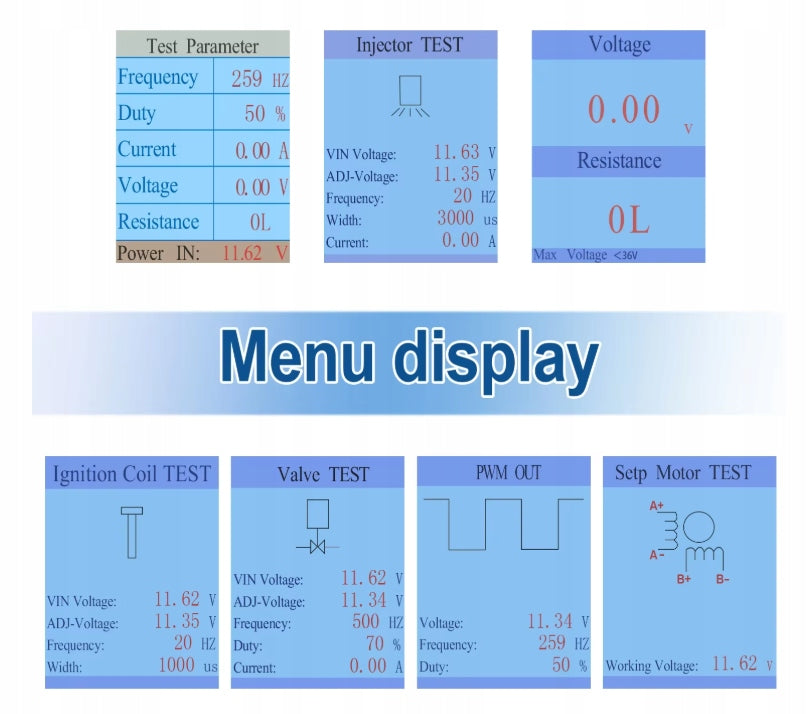

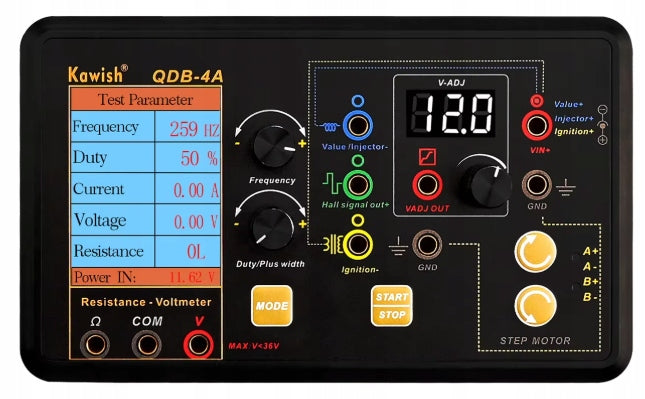

The device is enclosed in a handy housing, which is ideal for a dynamic workshop environment. The central control panel is equipped with a clear LED indication system and a precise knob with a button function, allowing you to instantly change the tested values. A single press of the encoder allows you to increase parameters such as frequency or duty cycle by tens, and another by hundreds, which significantly speeds up the test configuration. The tester has separate operating modes for individual components of m.in. Step Motor TEST, PWM OUT, Valve TEST, reverse polarity protection for meter input and the ability to simulate operating signals of systems such as 3-wire urea pumps with frequencies from 150 Hz to 1 kHz.

Key specification

- Brand: Kawish

- Model: QDB-4A

- Weight: approx. 450 g

- Input power supply: 12-24V DC

- Output power supply: Max 2A

- Adjustable VADJ output: 1.25V - 11.5V

- Built-in multimeter:

= Measurement of voltage 0-36V

= Resistance measurement 0-1 MΩ

- PWM signal output:

= Frequency 1-100 kHz

= Filling 0-100%

= Amplitude VPP 1V-11.4V

- PWM chip drive:

= Frequency 1-100 kHz

= Filling 0-100%

= Current Max 2A

- Stepper motor control: Max 1.5A current with left/right direction change support

- 3-pin urea pump test:

= frequency 150-1000 Hz

= Filling 1-99%

- Solenoid valve test:

= Frequency 1-500 Hz

= Filling 1-70%

- Electromagnetic injector test:

= Frequency 1-20 Hz

= Pulse width 0-3000 µs

- Ignition coil test:

= Frequency 1-20 Hz

= Pulse width 0-1000 µs support for 2-wire and 4-wire coils

- Operating temperature of the environment: 0 - 55 °C

- Brak possibility of reversing the poles at the input (positive and negative cannot be replaced) when measuring DCV below 36V

Device Specifications:

• Power supply and operating voltage: DC 12 – 24 V, maximum output current 2 A
• Multimeter – constant voltage (DCV): 0 – 36 V, maximum input voltage < 36 V
• Multimeter – resistance (DCR): 0 – 1 MΩ
• PWM output signal: frequency 1 kHz – 100 kHz, filling 0 – 100%, amplitude VPP 1 – 11,4 V
• Injector control: frequency 1 to 20 Hz, pulse width 0 to 3000 μs
• Ignition coil control: frequency 1 to 20 Hz, pulse width 0 to 1000 μs
• Electrovalve control: frequency 1 – 500 Hz, filling 1 – 70%
• Stepper motor control: variable/jumping, maximum load up to 1,5 A

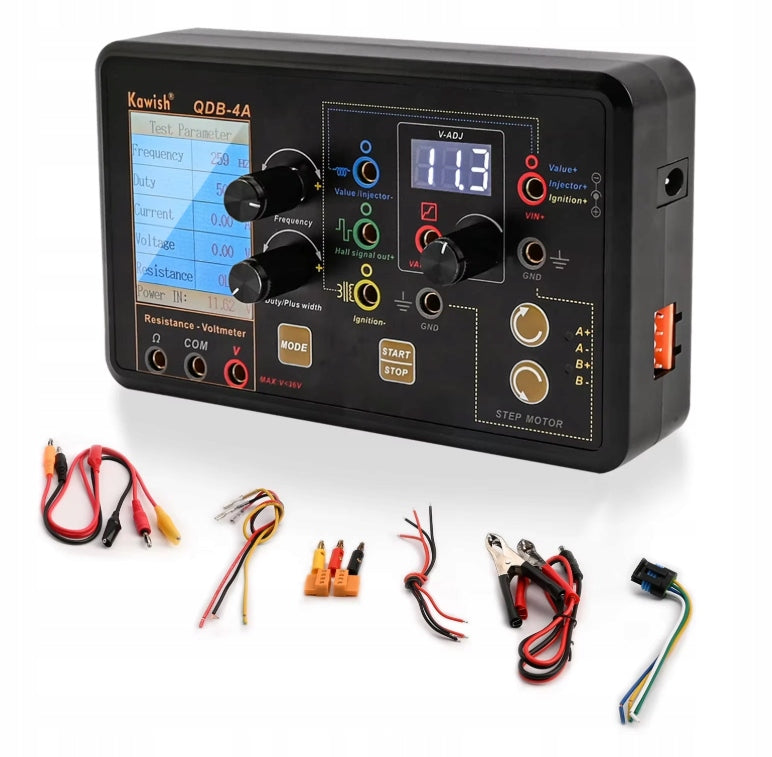

The set includes

- 1 x Kawish QDB-4A Diagnostic Tester

- 1 x Set of measuring wires for batteries and components

- 1 x Power cord

- 1 x User Manual

- 1 x Original packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	EAN (GTIN)	5905567119613
Parametry	Manufacturer code	QDB-4A
