Baseina pH un Rx automātiskā dozēšanas sistēma Aquajoy ar WiFi

Trumpai apie prekę

Prekė: Baseino pH ir Rx automatinė dozavimo sistema Aquajoy su WiFi. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: PDPR1H1HAW103

It is used for automatic measurement and proportional dosing of chemicals (acid and alkaline reagents) for private and commercial swimming pools.

Automatic pool chemistry dispensing system

It is designed to control and correct the pH level and parallel control of Redox potential. Control, adjustment and reading of indicators is carried out using touch buttons and a digital display. The availability of Wi-Fi in this model makes control more convenient. It is recommended for use in indoor and outdoor pools with a maximum capacity of up to 250 m³.

Dosage: up to 1.5 l/h

Pressure: up to 1.5 bar

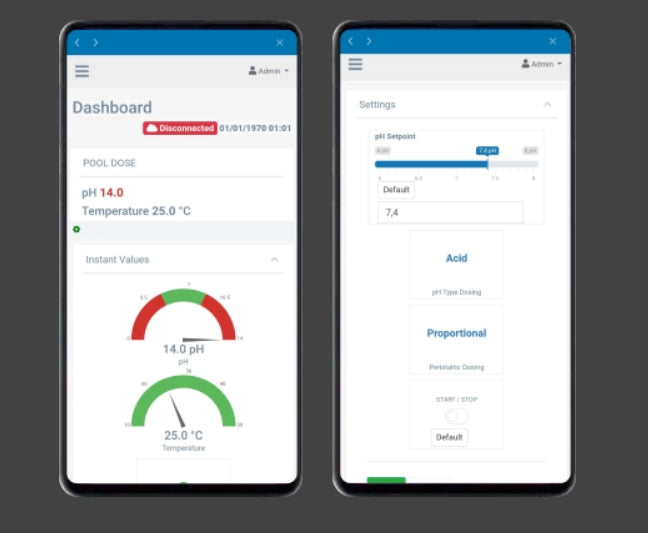

Control dosage from your smartphone using the SekoLink app

Download the app, scan the QR on your dosing system and control the dosing from your smartphone wherever you are! No technical expertise is required, enjoy a simple and clear interface.

• Monitor the operation of one or more dosing systems simultaneously 24 hours a day, 7 days a week.
• Monitor current data and statistics of water parameters in the pool and be sure of safe swimming.
• Receive low-chemical notifications and fault alerts.

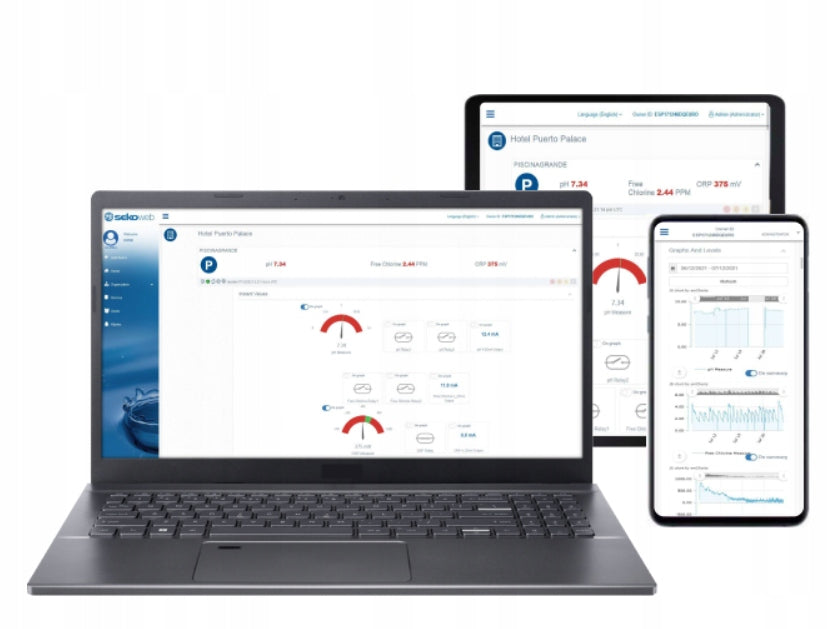

Manage dosing with SekoWeb software if you are an installer, technician, engineer or pool owner

Download the SekoWeb software and enjoy the complete freedom of remote control and dosing monitoring from your smartphone, tablet or computer. Wherever you are, manage your pool network with just a few clicks!

• Monitor multiple dosing systems located anywhere in the world.
• Enjoy full access to all settings and options.
• Get unlimited data analysis and flexible reporting in your app or via email to monitor your overall operating costs and chemical usage.
• Stay up-to-date on any failures with notifications and emergency reports.
• Delegate permissions and grant access to management permissions.

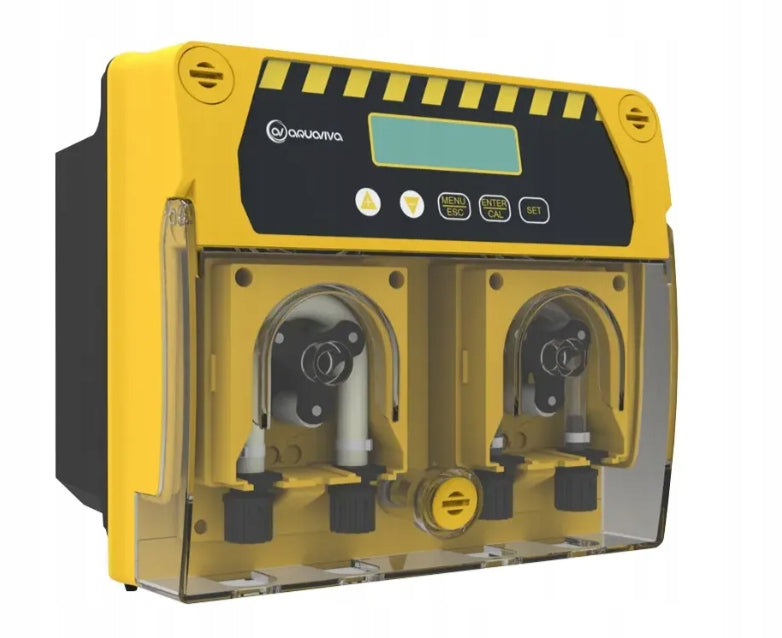

Aquajoy pH+Rx 1.5 l/h peristaltic metering pump system + pH set, Rx

The Aquajoy pH+Rx 1.5 l/h digital peristaltic metering pump system is the ideal solution for accurate dosing of chemicals into the pool without human intervention.

The pump system 100% eliminates overdose of chemical reagents. It is a technologically advanced equipment that controls and automatically maintains the pH level and concentration of disinfectant in pools with a capacity of up to 250 000 liters. The IP65 rating ensures reliable and durable operation of the device.

The Aquajoy pH+Rx system is equipped with an LCD display, which can be easily adjusted performance through menu settings or an automatic proportional dosing system depending on the signal from Redox and pH sensors. Sensors and calibration solutions are supplied with the pump system.

It is a complex indicator that takes into account the current level of disinfectant and pH in water. Based on the Redox value, the metering pump regulates the dosage of the disinfectant. It comes from the words Reduction - the degree of water pollution with organic substances and Oxidation - the ability to destroy impurities.

Using the RX electrode, the metering pump performs water analysis. Based on the obtained data, the pump independently adds the necessary amount of chlorine to the pool in order to raise or lower the RX to the desired level according to the specified settings.

Level of disinfectant in water:

• reduced level of disinfectant in water reduces Redox
• increased level of disinfectant in water increases Redox.

This is an indicator that characterizes the concentration of free hydrogen ions in water. This balance can be disturbed, causing a change in pH levels. The pH level is responsible for the properties and quality of water. The optimal indicator of the pH level of the pool water is considered to be the range from 7.2 to 7.4. This water is also called neutral water. If the indicator is higher than 7.4, the water will have an alkaline reaction, and if the indicator is lower, less than 7.2 - acidic.

Using the pH electrode, the metering pump performs an analysis of the acid-base balance of water. Based on the obtained data, the pump independently adds the necessary amount of reagent to the pool in order to raise or lower the pH to the desired level according to the specified settings.

pH level in water:

• decreased pH increases Redox. But at the same time, the risk of corrosion of equipment, metal parts and seams increases, as well as the destruction of the pool finish;
• elevated pH level lowers Redox, which leads to the appearance of stone, unpleasant odor and irritation of the eyes and skin

Automatic pH + disinfectant dispensing mode = always crystal clear water

The Aquajoy pH+Rx 1.5 l/h peristaltic metering pump system performs indicator analysis using Redox and pH electrodes. Based on these indicators, the pump automatically dispenses reagents in the required proportion. In this way, constant pH and Redox control is ensured without human intervention.

Dosing can be done proportionally in Pro Band mode or in continuous mode - ON/OFF.

In the Redox settings, you can program the dosing of the disinfectant in interval mode: it is possible to adjust the operating intervals and breaks in the range from 1 to 120 minutes.

Special modes increase water treatment efficiency

Save reagent consumption, protect equipment from damage and prevent failures in dosing:

• Pro Band - reduces the frequency of injections per minute after reaching a certain level of indicator in the pool water (Settpoint indicator in menu settings). It ensures maximum dosing precision, eliminating excessive reagent wear.
• Alarm Band - allows you to set the limit value of the electrode at which the pump stops. It also eliminates overdose of reagents in case of electrode failure or incorrect readings due to irregular electrode calibration. (* It is recommended to calibrate the electrode once a month. )
• OFA - stops dosing and activates the alarm signal if the required pool water indicator has not been reached within the set time. Protects against idling in the event of a failure, such as a pipe rupture.

12 Connection of pH and Redox sensor via BNC connector: provides automatic control of the selected pool water indicator. The sensors are supplied with a metering pump system.

3 Connection of the PT100: temperature sensor allows you to make temperature correction during pH dosing (the higher the water temperature, the lower the pH value). The sensor is sold separately.

45 Connection of liquid reagent level sensors: pumps emit an audible signal when liquid reagents run out. Then the pumps are blocked, which extends their service life. The sensors are supplied with a metering pump system.

6 Flow sensor connection: prevents the risk of reagent dispensing when the filter pump is turned off. The sensor is sold separately.

79 Connection of pH relay and Redox external pump: allows connection of an additional pump to increase the dose of the reagent. Additional pumps are sold separately.

8 Connection of alarm relay: enables remote control of reagent availability. The relay is sold separately.

10 Connecting the power supply of the metering pump system.

11 Switch.

12 Fuse 500 mA: protects pumps from surges, preventing failures.

13 Connection of pH and Redox pumps.

14 Not used.

15 Control panel connection: display and keyboard.

Principle of operation of peristaltic pumps

The principle of operation of peristaltic pumps is based on compression of the flexible tube by rollers moving around the perimeter. The liquid is pulled through the inlet valve, and squeezing the tube in narrow places of the track ensures that it is pushed evenly into the pool pipeline system.

In peristaltic metering pumps, pumped reagents do not come into contact with components and housing.

This allows you to dispense any reagents without exposing the materials to wear and tear. The tube is the only part that comes into contact with the reagent. It can be easily replaced at the end of its useful life.

Tubes of Santoprene

Santoprene is a durable material that combines the features of vulcanized rubber and thermoplastics. In terms of technological properties, it is similar to thermosetting EPDM rubber.

Santoprene is resistant to aging, abrasion, crushing and rolling. Santoprene tubes are ideal for dispensing all types of reagents, including chlorine, bases, and acids.

• Type of pumps: Peristaltic
• Material of the accounting component with reagents: Santoprene tubes
• Dispensing type: Fixed and proportional
• Control type: LCD display + keyboard + on button. /off.
• Ability to adjust injection frequency, injection/min: No
• Ability to adjust performance, l/h: Yes, from 0.1 to 1.5 in Pro Band mode
• Connecting pH electrodes: Yes, sensor included
• Scope of pH analysis: from 0 to 14
• Connecting Rx electrodes: Yes, sensor included
• Redox analysis range, mV: from 0 to 1000
• Pro Band function – the pump reduces the intensity of work as indicators approach a certain range: Yes
• Alarm Band function – protection against overdose in case of electrode failure. You can set the indicators at which the pump will stop: Yes
• OFA function – alarm and stop dosing if the desired indicator is not reached within the specified time: Yes
• Connecting the liquid reagent level sensor: Yes, sensor included
• Connecting the flow sensor: Yes, the sensor is sold separately
• Temperature sensor connection: Yes, the sensor is sold separately
• Connecting the remote control button: No
• Connection of water meter with impulse input: No
• Connection to Aquaviva dosing control station: No
• Delayed inclusion: No
• Calibration delay: No
• Collection of statistical data: No
• Timer: Yes
• Password: Yes
• Admissible pressure in piping system, bar: to 1.5
• Performance, l/h: to 1.5
• Diameter of connection (internal/external), mm: 4/6
• Reagent inlet and feed tube size (internal/external), mm: 4/6
• Degree of protection against dust and moisture: IP65
• Housing material: Fiberglass reinforced PP (PVDF rollers)
• Power supply, V: 230
• Power, W: 21

The Aquaviva brand is a leading manufacturer of equipment, components, and accessories for swimming pools and spas. A wide range of products includes: pumps and filters, dehumidifiers and waterfalls, water treatment and pool care equipment, lighting, pipes and fittings, components and accessories.

Aquaviva’s production facilities are located in Europe and Asia. The reliability of the products is confirmed by numerous certificates of quality and compliance with global production standards.

Aquaviva company means many years of experience, competitive price, reliable and innovative products.
