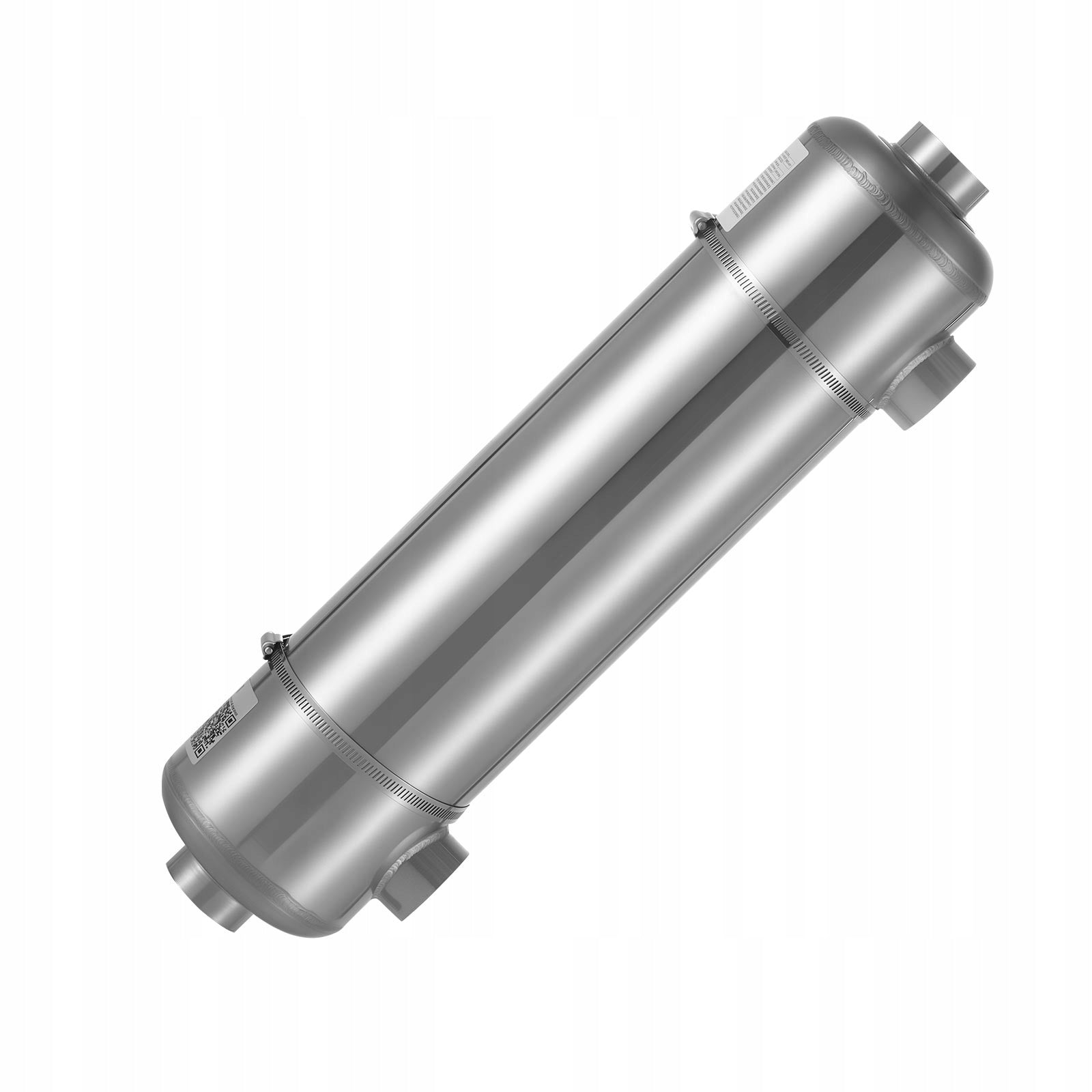

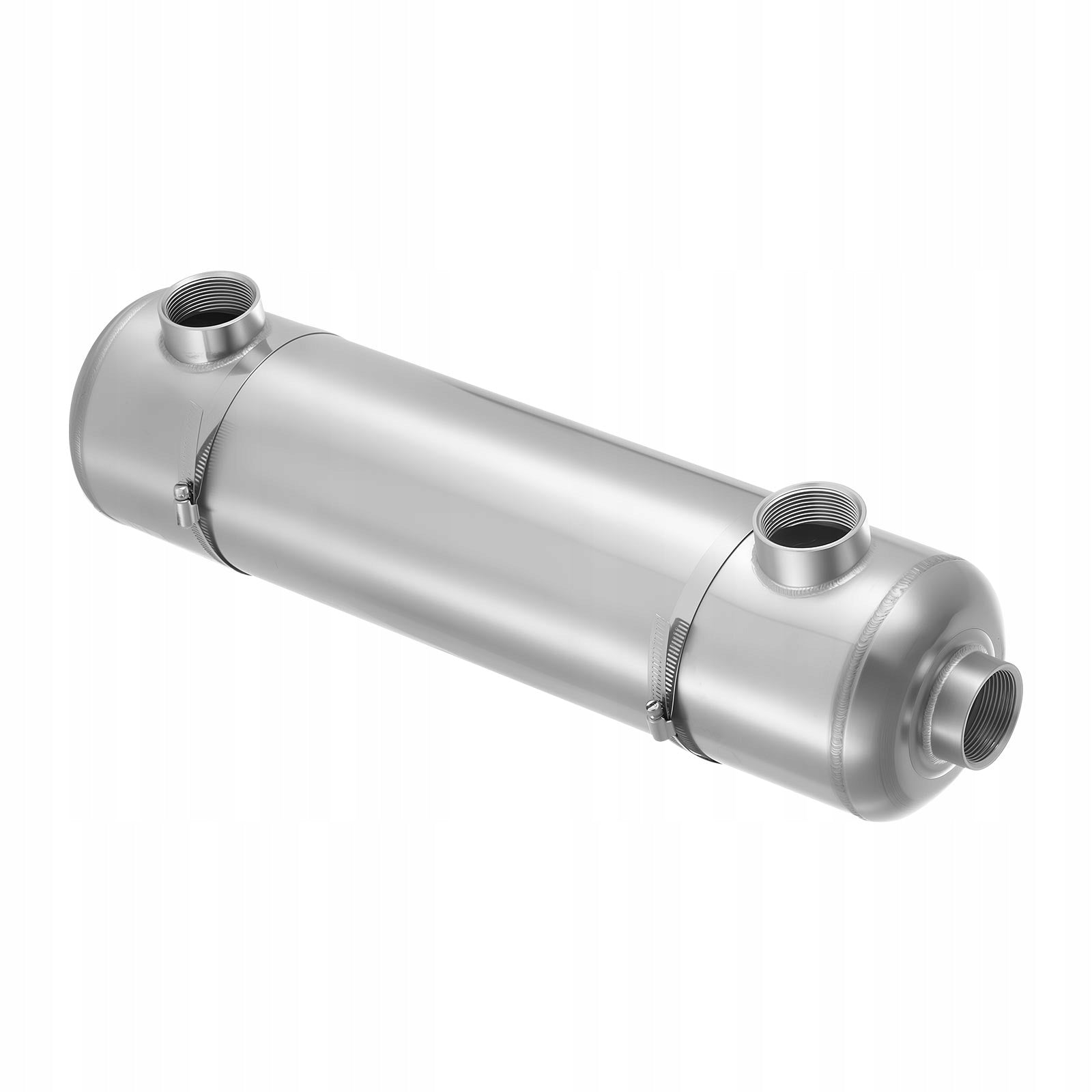

Baseino šilumokaitis VEVOR, 61,5 kW, 30 vamzdžių

Trumpai apie prekę

Prekė: Baseino šilumokaitis VEVOR, 61,5 kW, 30 vamzdžių. Kategorija: Baseinų šildytuvai.

• Gamintojas: Vevor
• Modelis: YCHRQBXG210

Reliable pool heating performance

Designed as a high-performance heat exchanger for swimming pools, this heat exchanger comes with mounting brackets and clamps that make it easy to install and provide secure attachment. Screws and sealing materials for joints are not included and must be purchased separately.

High efficiency

Large heat transfer area

Sturdy construction

Sealed and sealed

Wide range of applications

Specifications

Article model number: MF-210K

Material: 316L stainless steel

Connection: Pipe side: 2 x 1 1/2 inches FPT, Housing side: 2 x 1 1/2 inches FPT

Color: Silver

Heating power: 210 000 Btu/h (approx. 61,5 kW)

Heat exchanger surface: 5,0 ft² / 0,46 m²

Number of tubes: 30

Operating temperature: -28 to 110 °C / -18 to 230 °F

Net weight: 12,4 pounds / 5,6 kg

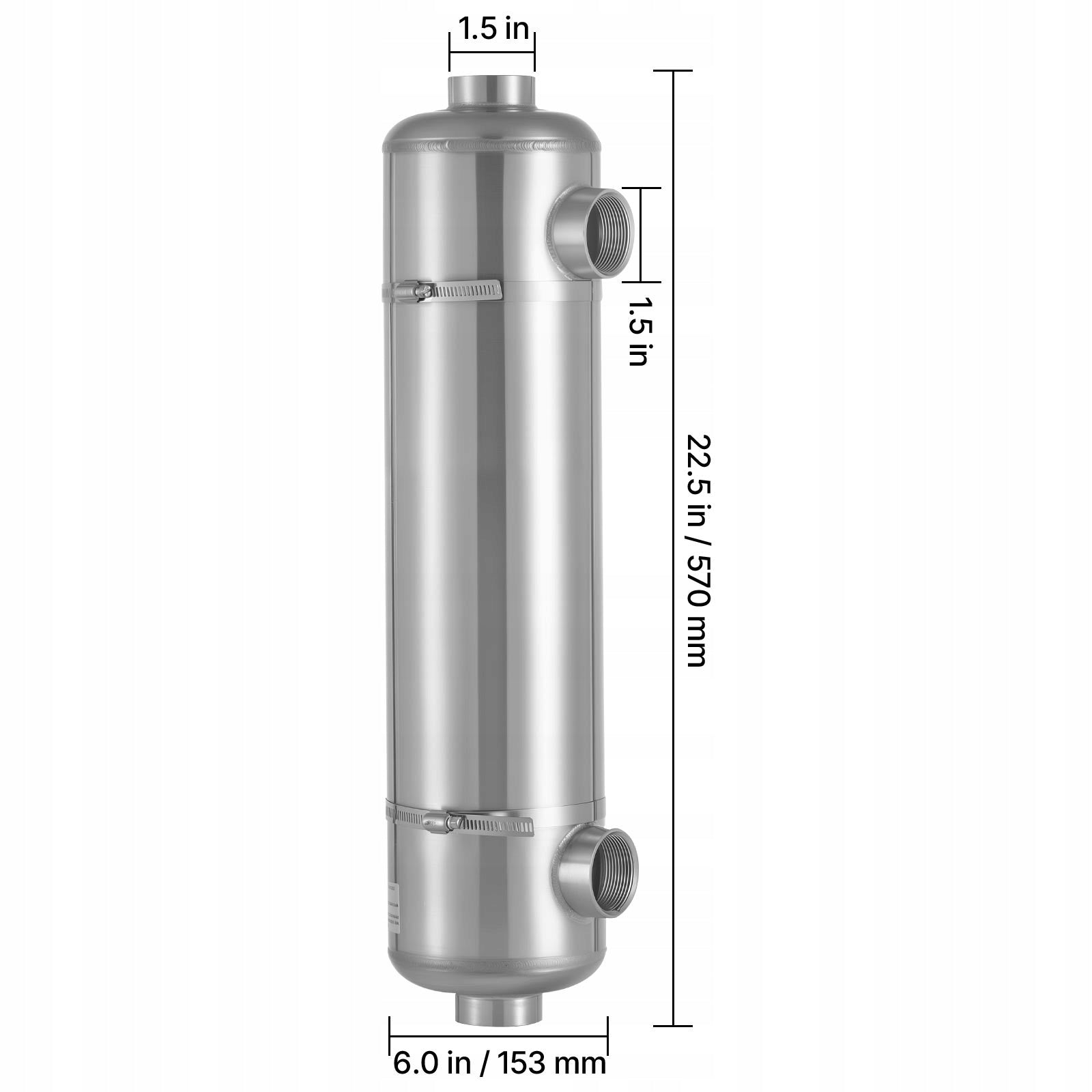

Product Dimensions: 5,2 x 6,0 x 22,5 inches / 133 x 153 x 570 mm

S304 Inlet and outlet

Connections FPT 1-1/2 inches (pipe side), connections FPT 1-1/2 inches (coat side). Before use, check the inlet and outlet connections to make sure they are properly connected.

Housing made of stainless steel 316

Seamless, one-piece, rolled construction, designed for high temperatures and high pressure, helps compensate for thermal expansion under the influence of freezing and thawing, and is designed for long service life.

Mounting brackets and clamps

Secure fastening with excellent durability even in demanding conditions, guaranteeing stable, continuous operation.

Wide range of applications

The heat exchanger for pool heaters is suitable for swimming pools, hot tubs and as a heat exchanger for hot tubs, as well as for aquaculture and water treatment applications.

High-quality materials

This device is designed as a robust heat exchanger for pool water heaters. They are made of 316 stainless steel, which guarantees a safe construction and stable operation.

Friendly reminder

When the temperature drops below freezing, use an antifreeze to prevent freezing inside the tank and associated structural damage or leaks. If the water contains undissolved solids such as sand, aquatic plants or leaves, it is recommended to use a filter to prevent congestion.

Package Contents

1 x Pool Heat Exchanger

2 x Mounting Brackets

2 x Stainless Steel Clamps

1 x User Manual

Key features

High efficiency and energy saving: The pool heat exchanger is equipped with stainless steel pipes (316), which optimizes the heat transfer efficiency. It offers high heating power up to approximately 61,5 kW (210 000 BTU/h), making it ideal for demanding pool heating applications.

Large heat transfer area: This heat exchanger consists of 30 capillary tubes and has an effective heat transfer area of 0,47 m² (5 ft²), thus ensuring efficient and reliable operation in a wide range of applications.

Robust construction: This pool heat exchanger is made of high quality 316 stainless steel and is resistant to high temperatures and pressures. It is rust resistant, suitable for use in wet conditions and has an operating temperature range of -28 to 110°C (from -18 to 230°F).

Tight and airtight: Designed for reliable use as a heat exchanger in swimming pools, it uses high pressure vacuum soldering technology and undergoes rigorous leak testing to guarantee long service life and reliable operation.

Wide range of applications: This pool water heat exchanger is suitable for indoor and outdoor pools, hot tubs, jacuzzi, aquaculture systems and water treatment stations. It provides fast heat transfer and constant temperature control, which translates into greater comfort.
