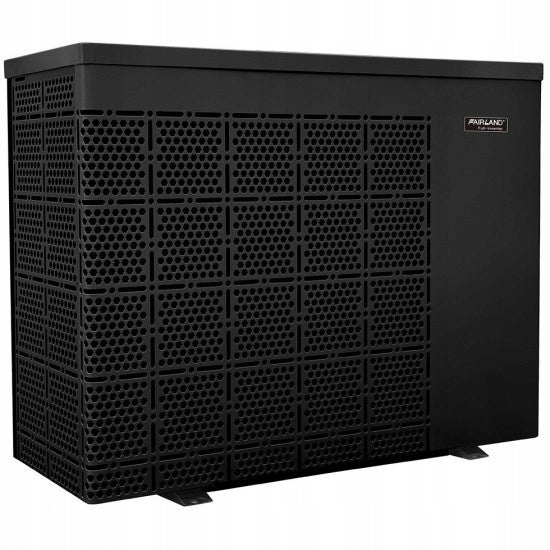

Baseino šilumos siurblys 6,5 kW INVERTER FAIRLAND

Trumpai apie prekę

Prekė: Baseino šilumos siurblys 6,5 kW INVERTER FAIRLAND. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Fairland
• Modelis: IPHCR15

Heat pump for swimming pool 30m3 6,5kW INVERTER PLUS FAIRLAND

Fairland Inverter-Plus IPHCR are pool heat pumps with full inverter technology. They are more expensive than classic heat pumps, but definitely more energy-efficient, because thanks to the inverters used, they smoothly adjust the efficiency (i.e. revolutions) of both the compressor and the fan, to achieve the desired temperature of water in the pool. These pumps are designed to work mainly with average capacities of 50%, which is enough to maintain the set water temperature throughout the bathing season. When deciding to buy an Inverter-Plus pump, we suggest choosing a larger model to keep the heat pump running most of the time, but at a lower speed. This work achieves a high COP refrigeration efficiency coefficient, 10 times lower noise levels, prolongs the life of the pump due to less intensive operation and provides at least half the operating costs compared to On/Off pumps.

WIFI AND BYPASS MODULE FOR FREE

BYPASS FOR SELF-ASSEMBLY FREE OF CHARGE

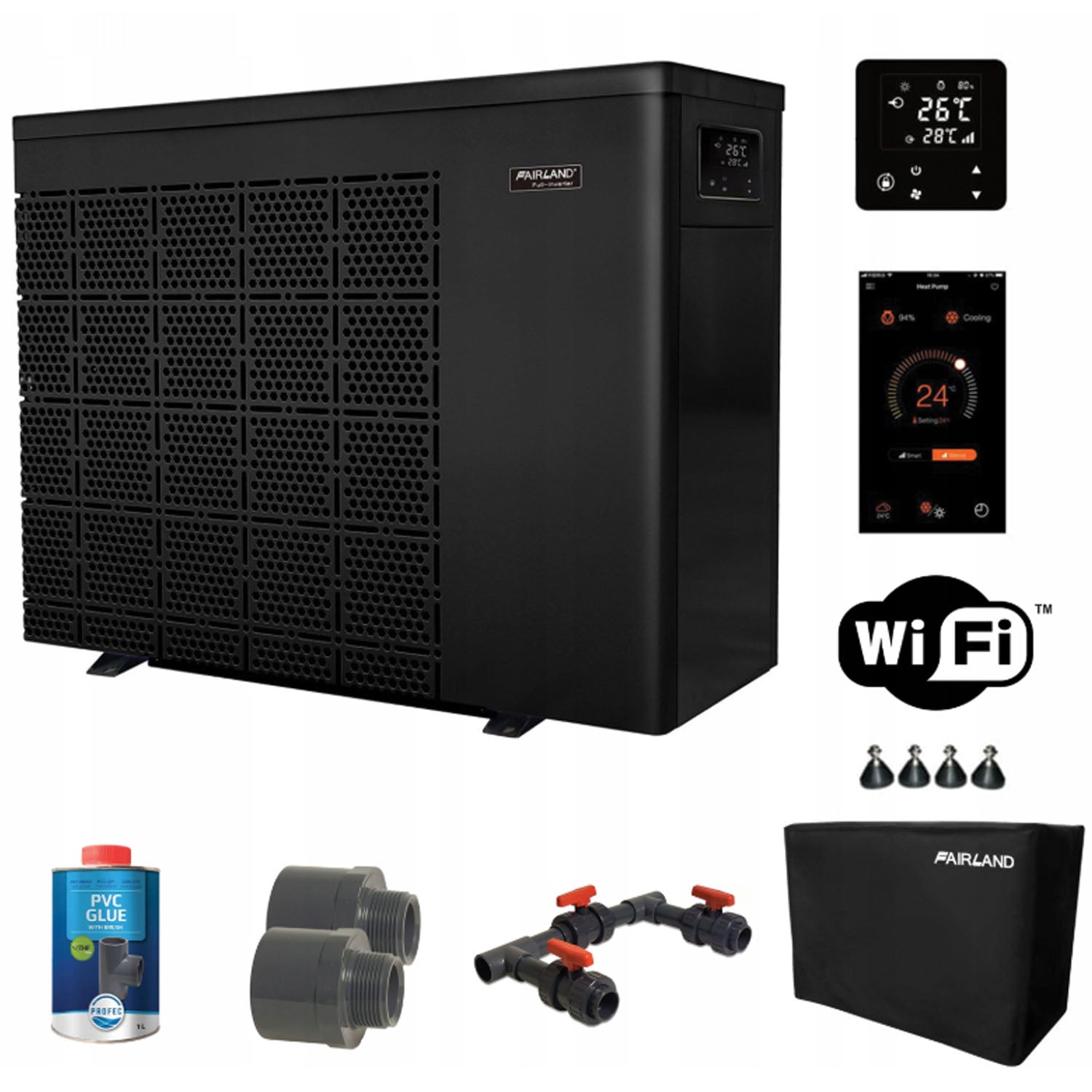

The set includes:

• 2 x 50 mm PVC tee
• 1mb x 50mm PVC Pipe
• 3 x 50 mm PVC ball valve
• 4 x 90 st 50 mm knee
• 2x 50 mm x 2 inch external thread
• PVC adhesive

Bypass should be cut and glued on its own.

Average COP

Average COP = 11,5 during the bathing season 180 days assuming A26 C/W26 C/H80 %

For the On/Off pump, the coefficient remains constant at COP = 5,0 over the entire period of 180 days, while for the Inverter-Plus pump after 5 days of water heating (beginning of the season), the coefficient reaches the average value of COP = 11,5.

Average COP = 7,0 during the bathing season 180 days assuming A15 C/W26 C/H70 %

For the On/Off pump, the coefficient remains constant at COP = 4,0 for the entire period of 180 days, while for the Inverter-Plus pump after 5 days of water heating (beginning of the season), the coefficient reaches the average value of COP = 7,0.

Low volume, quiet operation

The Inverter-Plus pool pumps use quiet Mitsubishi compressors and inverter fans.

Operation of the device while maintaining the set water temperature at 50% efficiency is about 10 times quieter than operation of classic On/Off heat pumps.

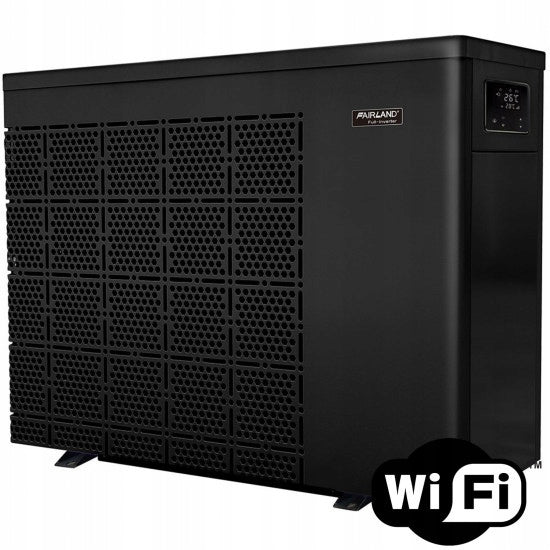

WiFi module FREE

The Inverter-Plus pump is equipped with a Wifi module so that we can control the operation and temperature using a smartphone.

The operation of Inverter-Plus pumps is very simple. A controller with a switch, buttons to set the water temperature, a mode and settings lock button and a display on which the inlet/outlet water temperature, pump efficiency and the selected operating mode are shown is installed on the pump housing.

Operation of the device boils down to turning on the pump and selecting the desired water temperature in the pool using the buttons. With the mode button, you can select the standard Smart mode or Silence silent mode. It is recommended to choose a silent mode at the beginning of the bathing season, when the water temperature has not yet reached the set point.

Selection of Inverter-Plus heat pumps for swimming pool:

The selection of the appropriate heat pump Inverter-Plus IPHCR is made on the basis of the volume of the pool, in accordance with the instructions from the table “Technical data”.

However, the manufacturer recommends that you always choose a larger pump model. This will keep the pump running longer at lower revs (efficiency) with the following benefits:

• significantly higher COP, thus ensuring at least half the COP
• The cost of heating the pool compared to On/Off pumps.
• faster heating of water,
• 10 times lower noise level,
• longer pump life due to less intensive operation.

Model - IPHCR15

Recommended pool volume (m3) - 15 - 30

Air temperature range (0C) - From -7 to 43

Parameters at A26 C/W26 C/H80% - temp. air/temp. water/humidity:

Heating power (kW) - 6,5

COP - efficiency factor - 14,7 – 6,0

COP - at 50% efficiency - 10,5

Parameters at A15 C/W26 C/H70% - temp. air/temp. water/humidity:

Heating power (kW) - 4,8

COP - efficiency factor - 7,3 – 4,5

COP - at 50% efficiency - 6,3

Parameters at A35 C/W28 C/H80% - temp. air/temp. water/humidity:

Cooling power (kW) - 3,0

Volume level at a distance of 1 m dB(A) - 37,8 - 47,2

Compressor - Inverter rotary with twin DC rotors from Mitsubishi

Fan motor - Inverter brushless DC

Heat exchanger (condenser) - Spiral titanium coated with PVC

Housing material - Aluminum alloy

Power supply - 230 V/50 Hz

Rated power - 0,13-1,06kW

WiFi - YES - built-in

Fuse (A) - 9,0

Power cord (mm2) - 3x1,5

Recommended water flow (m3/h) - 2–4

Pool water input/output fittings - d50

Refrigerant - R32

Net dimensions - L. - H. - width. (mm) -894x359x648

Net weight (kg) - 42



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Fairland
Parametry	Manufacturer code	IPHCR15
Parametry	Product weight with unit packaging	42 kg
