Baterijos testeris 10–100V 0–50A su Bluetooth ir WiFi

Trumpai apie prekę

Prekė: Baterijos testeris 10–100V 0–50A su Bluetooth ir WiFi. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 888998

1. [Remote monitoring]

The battery monitor supports real-time remote monitoring via Wi-Fi, Bluetooth and apps. Track battery status anytime, anywhere by connecting to your battery monitor from your smartphone or other devices.

2. [Enhanced user interface]

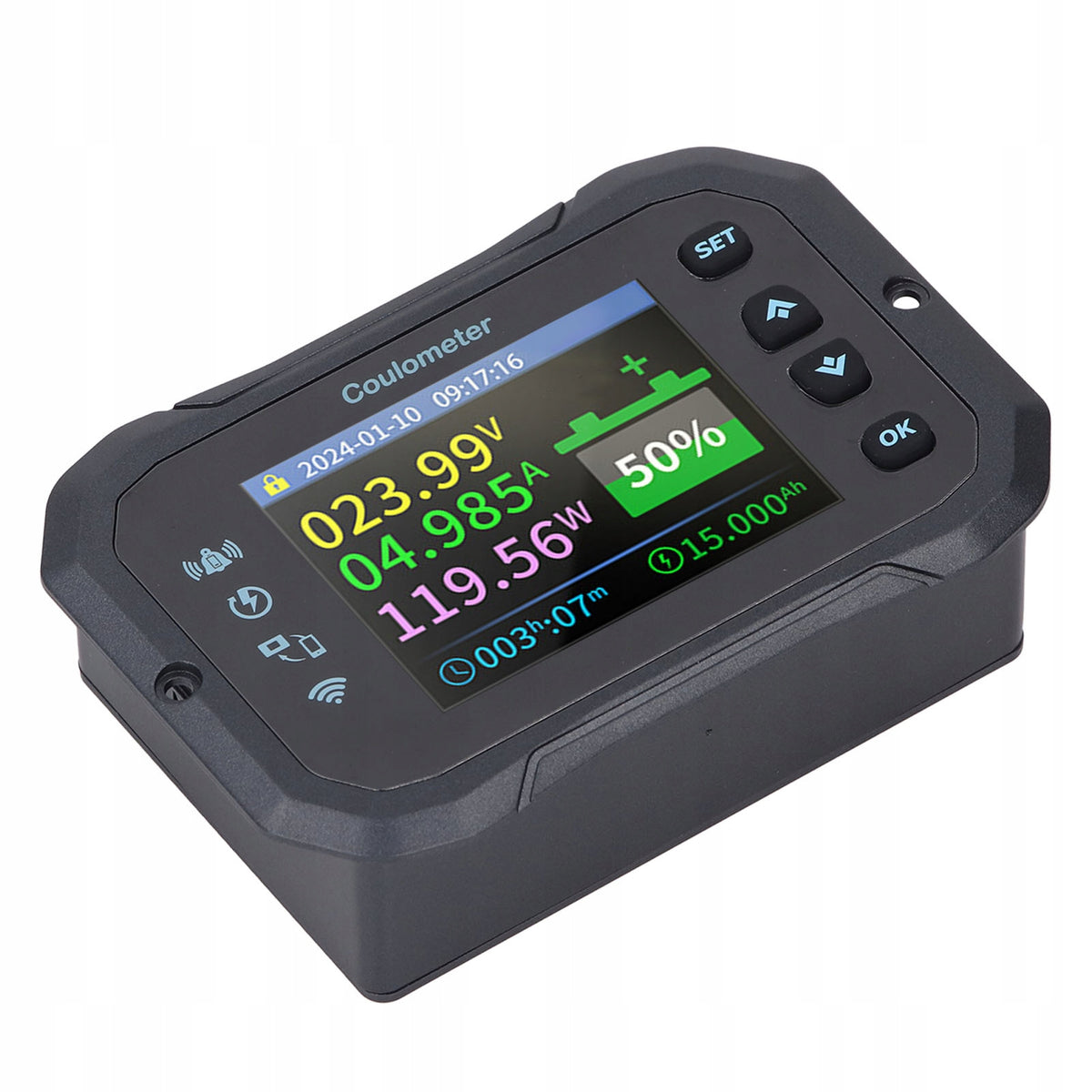

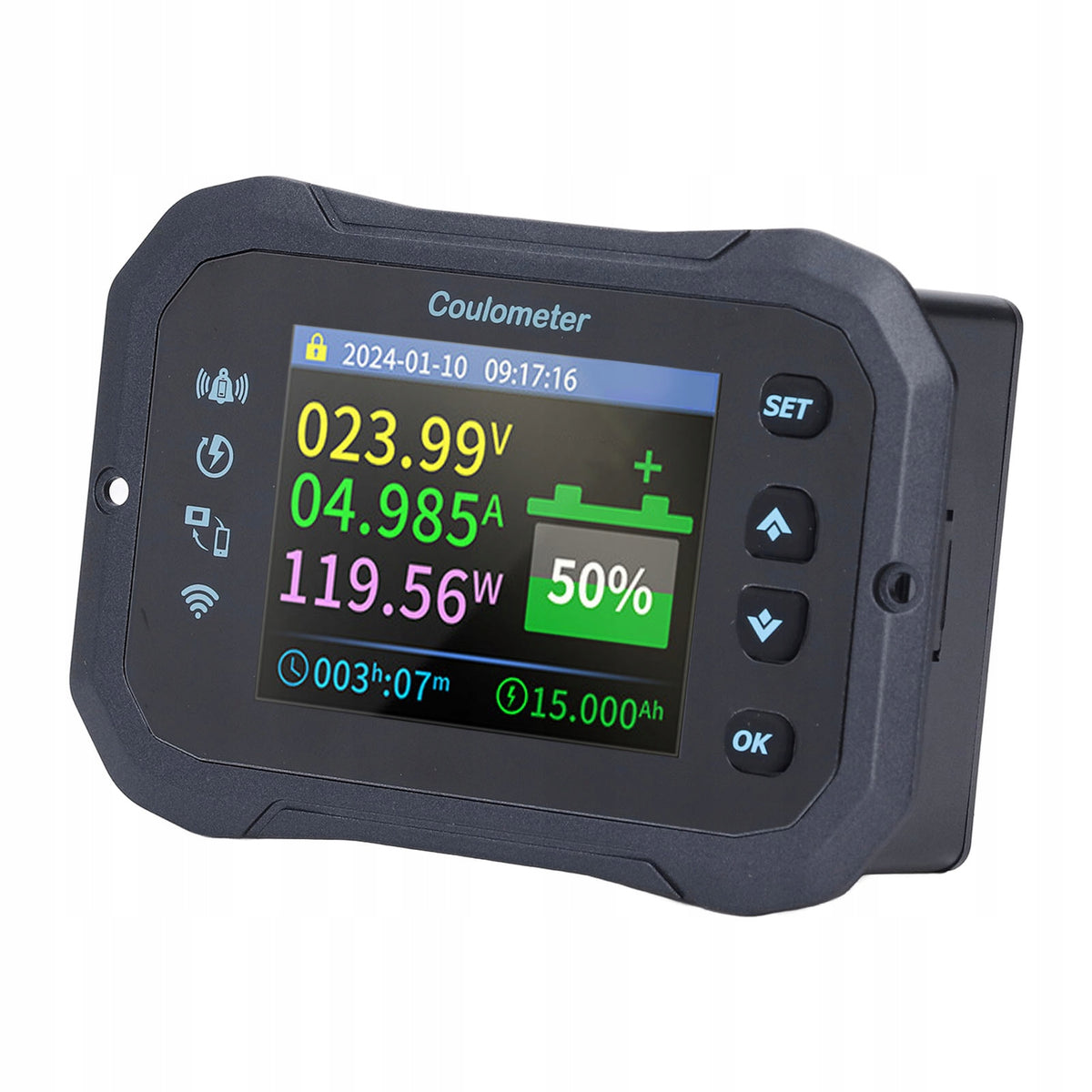

Equipped with 2,4 inch HD color LCD screen with optimized interface, offering larger and clearer text. With dark and light mode options for easy visibility of information. Silicone key provides smooth operation, quick response and comfort of touch.

3. [Measurements of multiple parameters]

This battery monitor can measure voltage, current, power, discharge capacity, watt-hour, time and other physical parameters. Set parameters to enable features such as overvoltage, undervoltage, overcurrent, overvoltage, overheating, and time-limited protection.

4. [Built-in reminder]

With a built-in reminder, you can set reminders with low capacity or low voltage. When the values fall below the set level, the buzzer will immediately turn on, accompanied by a pop-up reminder, so you can stay up to date with the status of the device.

5. [Wide battery compatibility]

Compatible with various battery types including VRLA, LFP, Li Ion, NI MH and other battery types in the 10 to 100V voltage range.

Specification:

Item Type: WiFi Battery Monitor

Material: ABS

Model: KM105F

Screen Size: 2,4 inch

Sampling Method: Shunt

Voltage Test Range: 10-100V

Current Testing Range: 0-50A

Current resolution: 0,001A

Capacity Display Range: 0-100%

Power Test Range: 0-5 kW

Power Resolution: 0,0001 W

Ampere-hour testing range: 0-9999,9Ah

Capacity Resolution: 0,001 Ah

Bluetooth connection distance: up to 10 meters without obstruction

Wi-Fi connection distance: up to 10 meters without obstruction

Remote Connection Range: Global

Voltage accuracy: ± 5% + 0,02 V

Current Accuracy: ±2+0,002A

Sampling rate: 5 times/second

Display Power Consumption: 0,9W

Screen shutdown time: 10 s, 20 s, 30 s, 40 s, 50 s, 60 s, AUTO (when discharging, the screen remains on when I≥15 mA, screen off when I20 s)

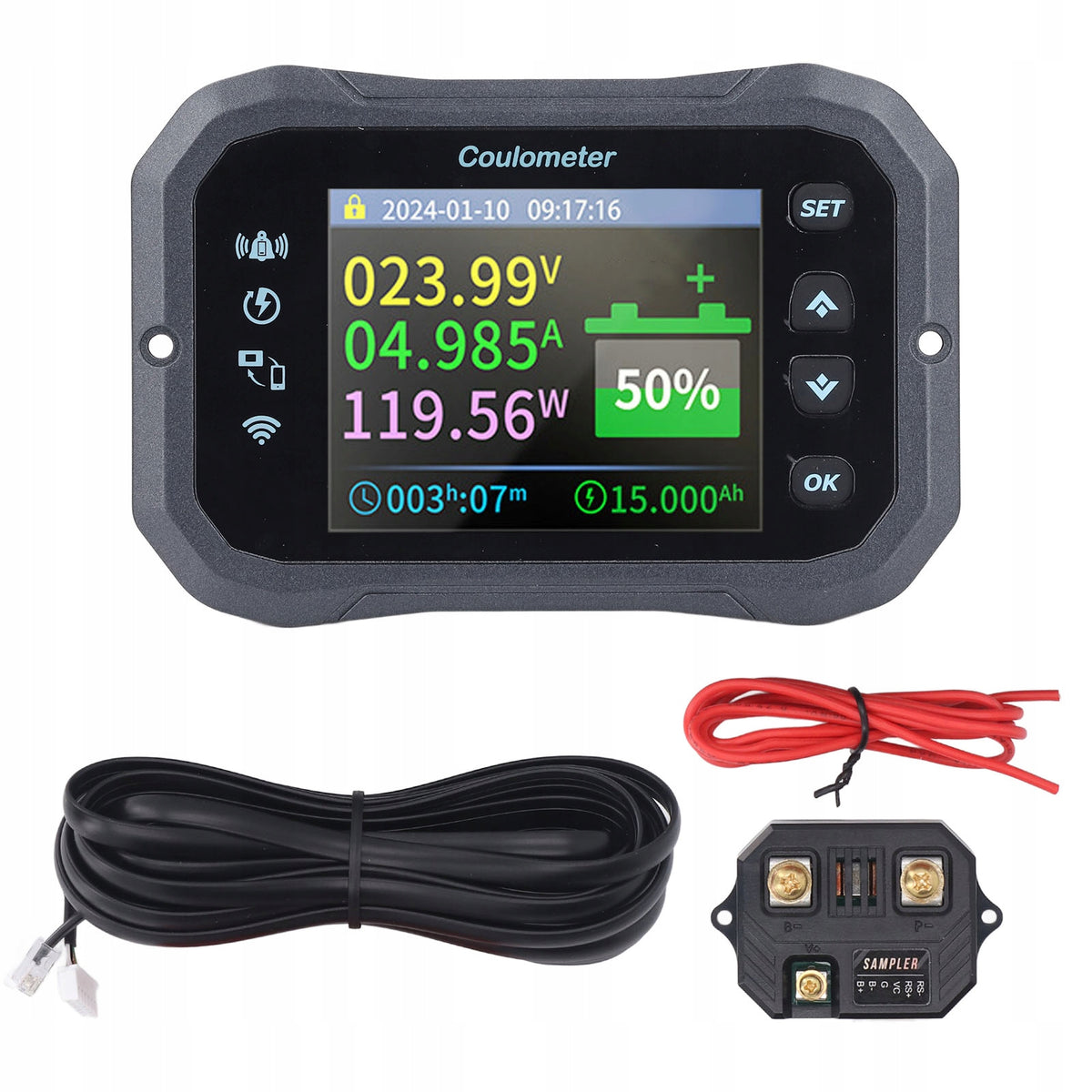

List of packages:

1 x WiFi Battery Monitor

1 x shunt

1 x 1 m red positive wire

1 x 5 m Communication cable

1 x User Manual
