Apraksts
Trumpai apie prekę

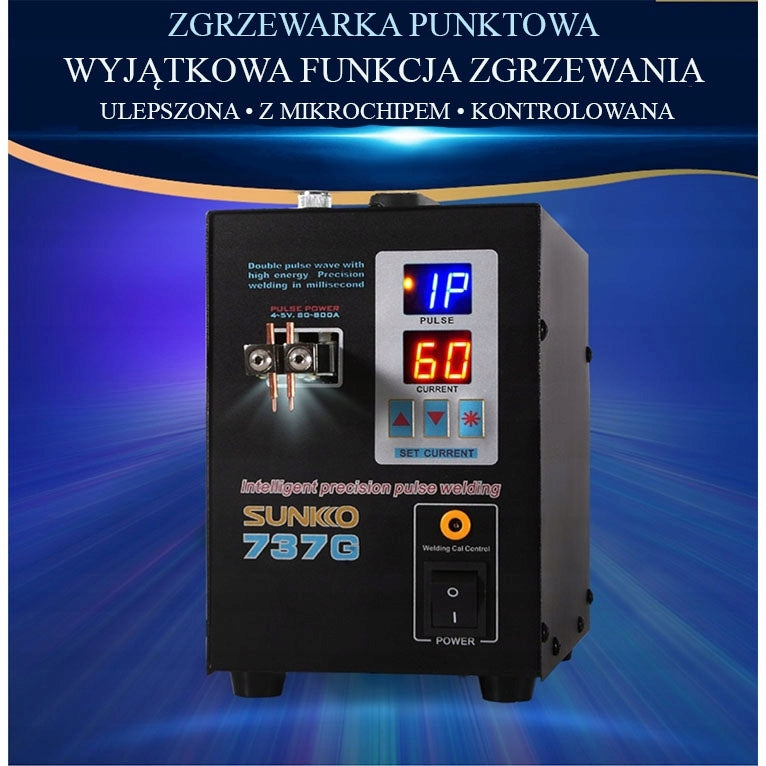

Prekė: Baterijų suvirinimo aparatas SUNKKO 737G, tinkamas 18650 akumuliatorių paketams. Kategorija: Sandarikliai.
- Gamintojas: no brand
- Modelis: 03C3-61363
The welding machine module is equipped with two operating modes, and the electrodes permanently attached to the device housing (current level setting 0~99) allow welding of nickel strips with a thickness of 0.03~0.2mm (0.15mm for pure nickel).
Notes on the use of SUNKKO 737 welding machine:
1. In order to achieve a good welding effect, the welding machine should be connected to a wall outlet to ensure stable power supply.
2. Due to the temporary large welding current, the rated operating current of the current switch should be 40-63A.
3. Set the pressure regulator to the appropriate value.
4. Keep the surface of the needles clean by cleaning them with sandpaper.
5. Keep the welding needles sharp.
6. When using the welding machine, temporary flashes of light may appear. The device uses high power and immediately discharges high intensity.
Input voltage: AC 110V/220V ± 10V
Primary Current: 2A~15A
Welding Current: 50A~800A
Welding pressure: 200g~700g
1 pulse: 0.05~0.12mm
2 pulses: 0.12~0.2mm
Size: 140x245x200mm
Weight: 4.3kg

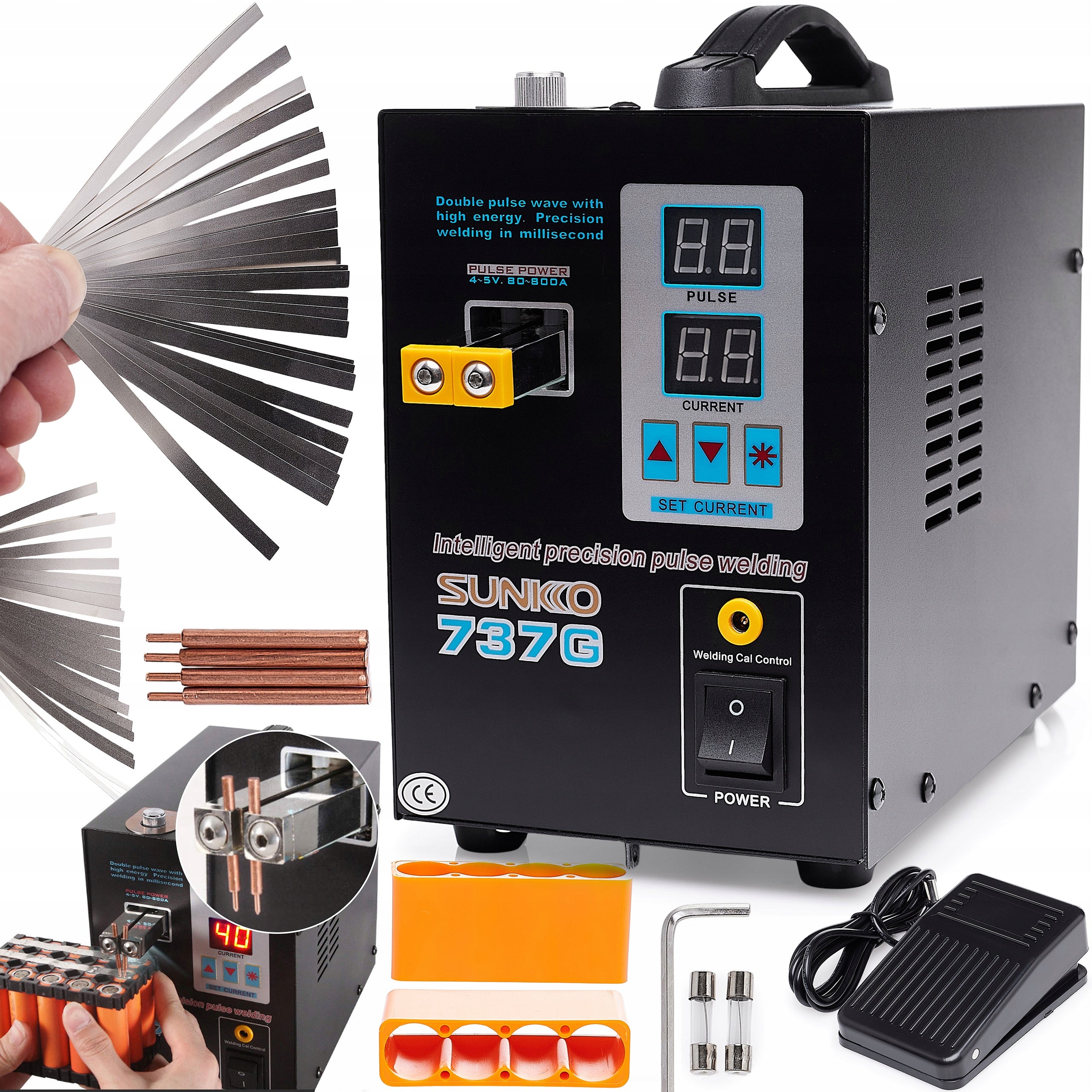

The set includes:
1 x SUNKKO 737G welding machine
1 x User Manual
1 x Allen Wrench
2 x fuse
4 x Welding Needle
1 x Foot Pedal
1 x Battery Operated Mold
30 x 0,1 x 4 x 100 mm nickel plate
30 x 0,15 x 5 x 100 mm nickel plate

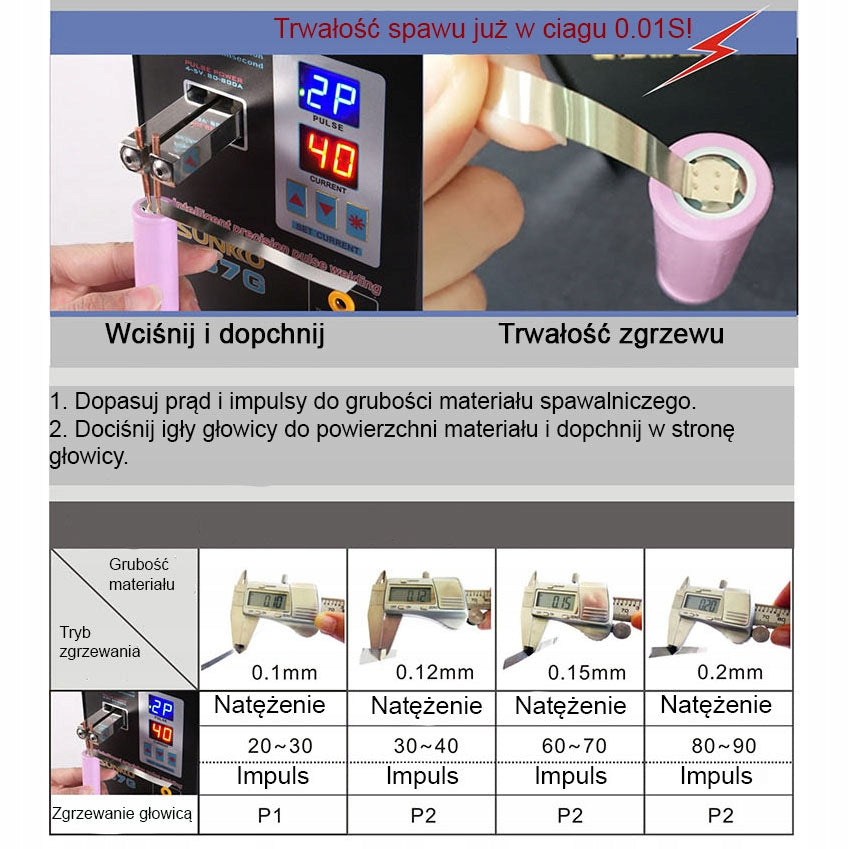

(1) The first and second digits show the current percentage of maximum intensity. Press (*) when the first digit starts flashing, you can adjust its value by pressing the up or down button. Press (*) to confirm.
(2) When the second digit starts flashing, you can also adjust its value by pressing the up or down button. Press (*) to confirm.
(3) P2 or P1 will start flashing. Select a pulse with the up or down button.
(4) Press (*) to confirm. The device will start working when the number stops flashing.
(5) Set higher current for welding material thicker than 0.1mm.
(6) Read the instructions when you have any doubts.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Series | SUNKKO 737G 03C3-61363 |
| Parametry | Maximum power | 4300 W |
| Parametry | Power supply | mains |
| Parametry | Device weight | 4.3 kg |
| Parametry | Manufacturer code | 03C3-61363 |
| Parametry | EAN (GTIN) | 5905902312792 |
| Parametry | Batteries included | no |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Purpose | for cells |
