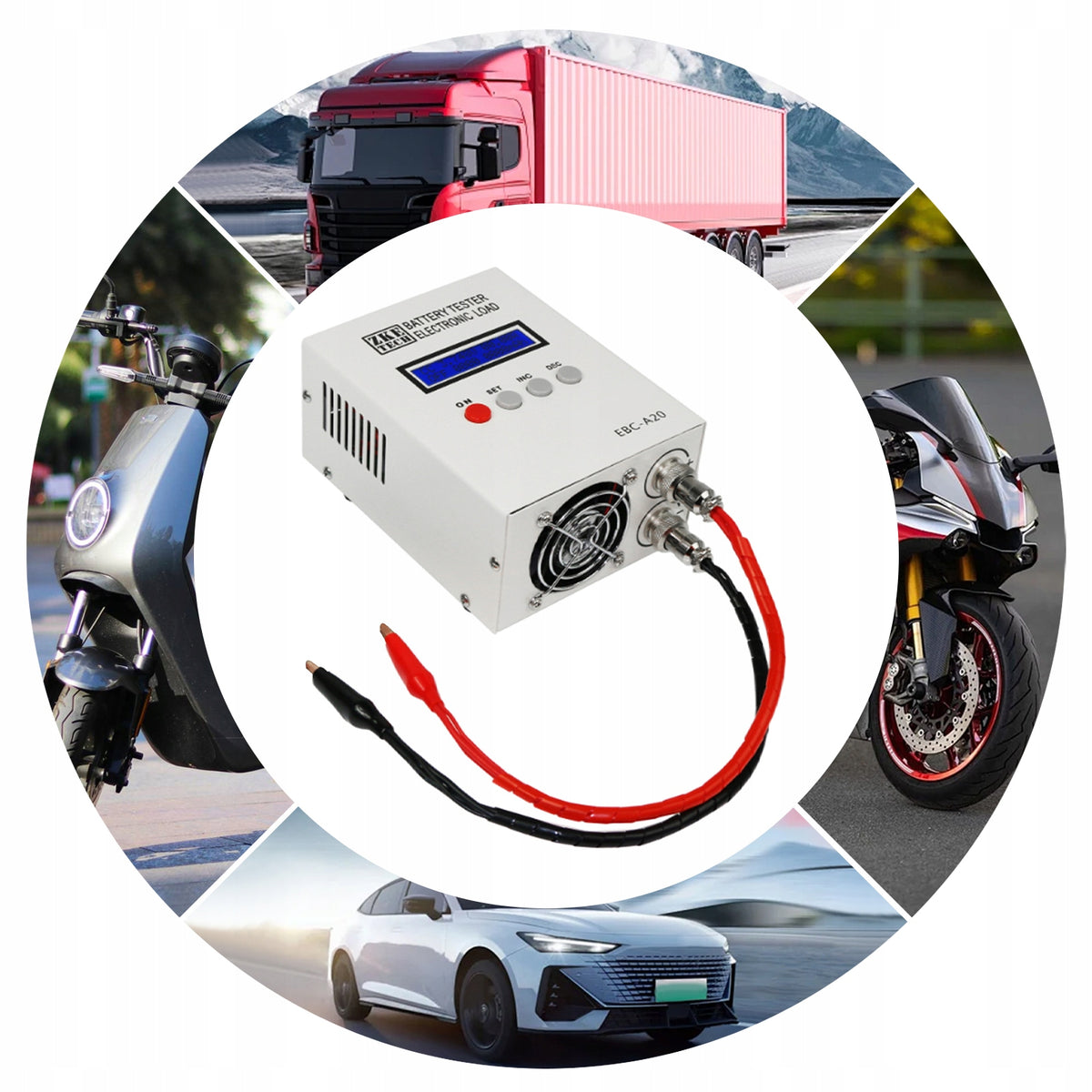

Baterijų talpos testeris ECB-A20

Trumpai apie prekę

Prekė: Baterijų talpos testeris ECB-A20. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: q1469

Main features

Durable construction: Made mainly of high quality cast iron, in the spraying process, resistant to impact and scratches, it is characterized by high durability and reliability, which guarantees long-term use.

High efficiency: The device allows you to perform 4-wire, voltage, and current tests using a variety of cables, ensuring accuracy. The capacity measurement accuracy is 10 Ah / 0,001 Ah, 10 A-100 A / above 0,01 A, 100 A / 0,1 A. This allows the device to accurately measure the battery capacity and help users understand the actual condition of the battery, avoiding equipment failure or performance degradation caused by inaccurate measurement of battery capacity.

3 operating modes: The device offers 3 operating modes: constant current discharge, constant power consumption, and constant voltage and constant current charging, allowing it to be adapted to different testing scenarios.

Charging and Discharging Function: The device supports charging and discharging functions, which helps users to comprehensively assess the performance of lithium batteries.

Good heat dissipation: The heat dissipation holes effectively prevent the device from overheating during long operation, while extending the life of the product.

Intimate design: The dedicated USB to TTL cable allows you to connect your computer to control startup with software and get more powerful features.

Specification

Model: EBC-A20

Material: Iron

Process: Spraying

Color: Broken White

Shape: Rectangular

Display Type: LCD

Computer Connection: USB-TTL Cable

Total power: 85 W

Power supply: DC 19 V-20 V, current over 3,5 A

Voltage setting: 0,00-30 V, minimum step 0,01 V (maximum 18 V during charging)

Current setting:

Discharge: 0,1 A-20 A, min. 0,01 A (automatic current limitation when power consumption is exceeded)

Charging: 0,1 A-5 A, min. 0,01 A (automatic current limitation when power consumption is exceeded)

3 modes: DSC-CC (direct current discharge), DSC-CP (constant power consumption), CHG-CV (constant voltage and constant current) Charging)

Voltage test: 0,0 – 4,5 V (low voltage), accuracy up to 0,003 V

4,5 V to 30 V (high voltage), accuracy up to 0,01 V

Current test: 0,1 – 20 A, accuracy up to 0,01 A

Capacity test accuracy: 10 Ah / 0,001 Ah, 10 A–100 A / above 0,01 A, 100 A / 0,1 A

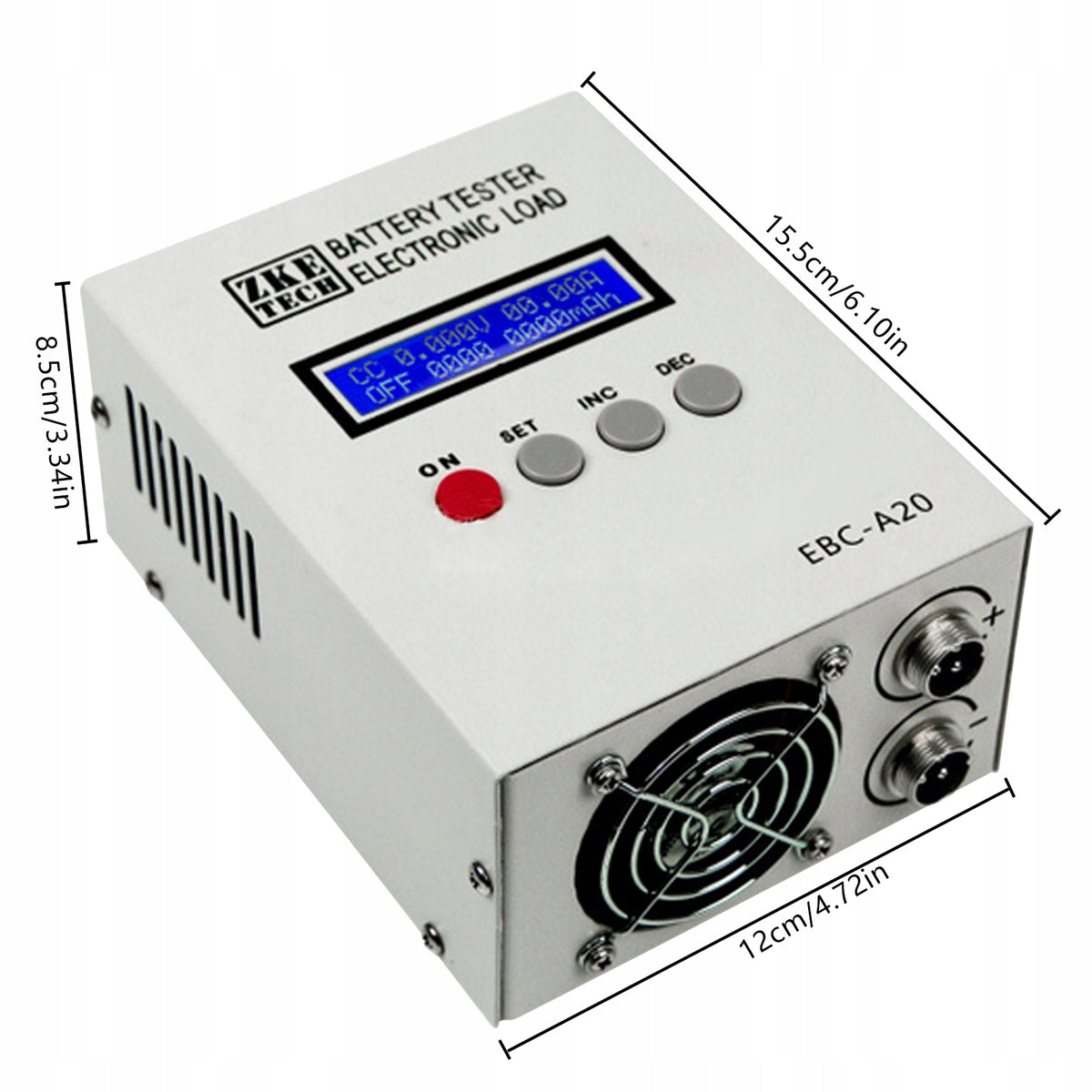

Product Dimensions: 12 x 15,5 x 8,5 cm / 4,72 x 6,1 x 3,34 inches

Package Dimensions: 28 x 25 x 14 cm / 11,02 x 9,84 x 5,51 inches

Gross weight: 1,74 kg / 3,84 lbs

Net weight: 1,65 kg / 3,64 lbs

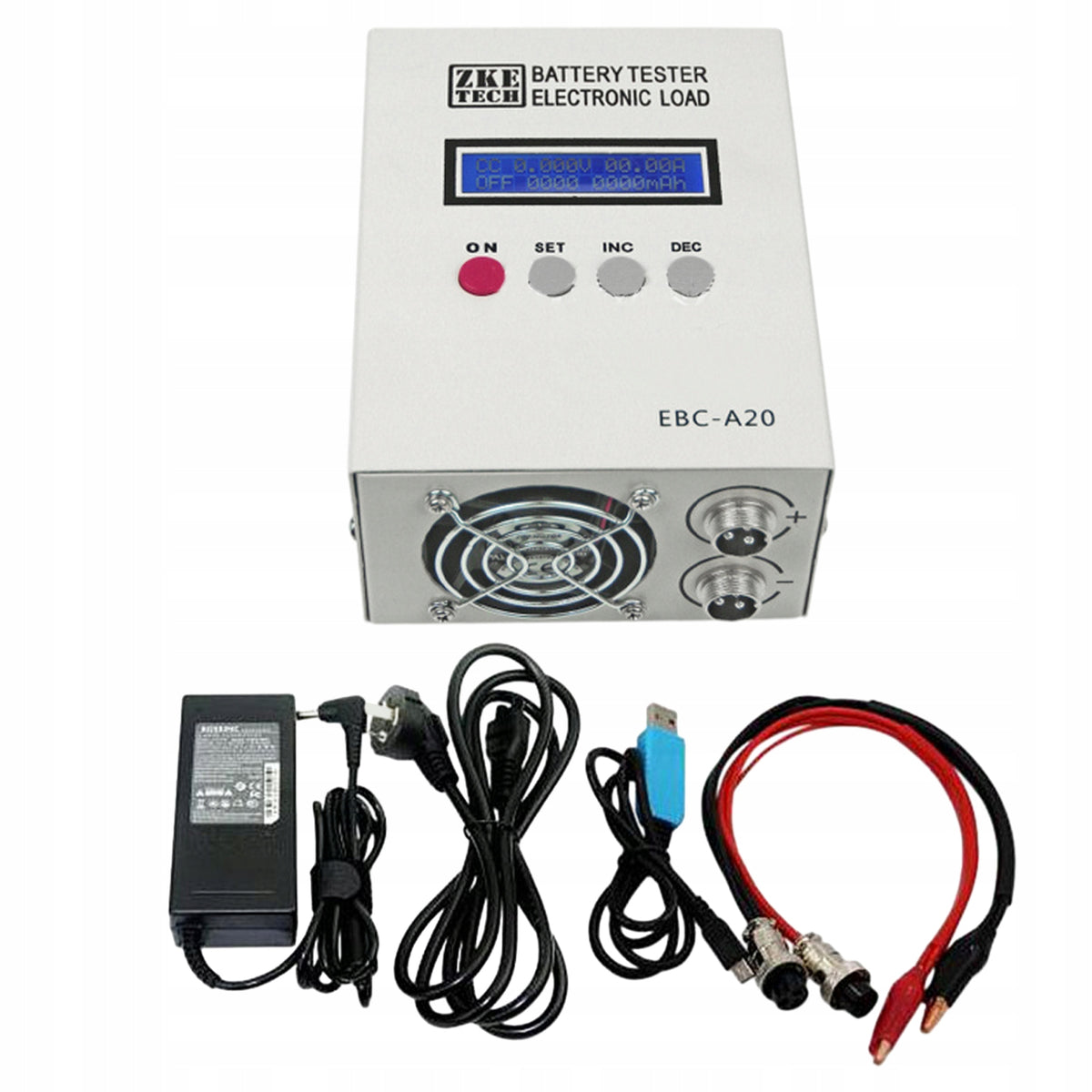

1 x Battery Capacity Tester

1 x Power Cord

1 x USB Cable

1 x Pair of Test Clips

1 x Adapter
