Baterijų testeris EBC-A01 su įkrovimo funkcija

Trumpai apie prekę

Prekė: Baterijų testeris EBC-A01 su įkrovimo funkcija. Kategorija: Baterijų testeriai.

• Gamintojas: EBC
• Modelis: EBC-A01

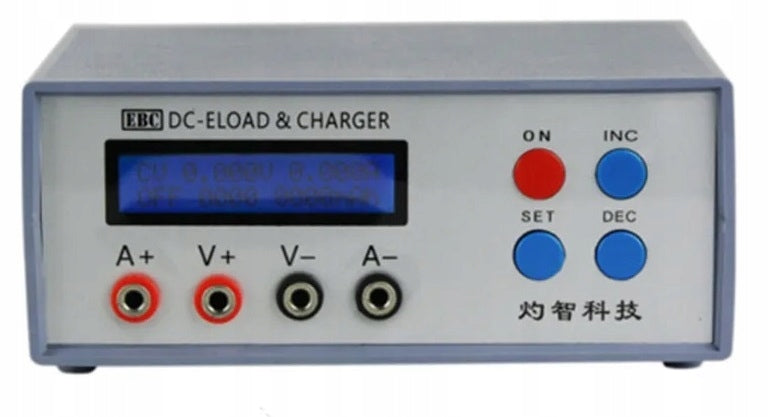

EBC-A01, created by the renowned manufacturer ZKE, is an advanced battery tester with small dimensions and lightweight design, providing precise measurements and wide configuration options. This compact model is designed for ease of use and flexibility in various test conditions. The device uses a 12V/2A power source, which ensures stable and sufficient power supply. The charging current depends on the performance of the power source, allowing it to be tailored to the specific needs of the user. The charging voltage covers a wide range from 0,00V to 30,00V, with a precise voltage change resolution of 0,01V. The charging current is equally flexible, with a range from 0,001A to 1,000A and a current regulation accuracy of 0,001A. Current measurement in this range is characterized by precision of 0,001A + 0,2%.

The tester offers various operating modes, including DSC-CC (constant current mode) and DSC-CP (constant power mode) for discharge function and CHG-CV (constant voltage mode) for charging function, with limitation for lithium batteries. The EBC-A01 enables automatic loading and unloading, controlled by set parameters, making it a versatile tool for a variety of applications. The capacity test operating mode, including charging, discharging and recharging, further extends the capabilities of this tester. Four-wire measurement ensures accuracy in voltage and current measurements, which is crucial for precise applications. Operation of the device is intuitive thanks to a clear LCD display that presents important information about voltage, current, operating time, capacity, power, energy and operating modes of the device. In addition, EBC-A01 has the function of connecting to a computer via a USB port, which allows operation from a dedicated application. The user has the ability to change functions, and the parameters are presented on the chart. The kit includes a TTL to USB converter, making it easy to communicate with your computer.

Technical parameters

• model: EBC -A01
• manufacturer: ZKE
• small size and weight
• simple configuration
• power source: 12V/2A
• charging current depends on the efficiency of the power source
• Charging voltage: 0,00 - 30,00V
• voltage change resolution: 0,01V
• charging current: 0,001 - 1,000A
• charging current adjustment resolution: 0,001A
• Current measurement: 0,001 - 1,000A
• operating modes:
• ⇒ DSC-CC: constant current mode - discharge function
• ⇒ DSC-CP: constant power mode - discharge function
• ⇒ CHG-CV: constant voltage mode - charging function - only for lithium batteries
• automatic charging and discharging limited by set parameters
• capacity test operating mode: charging - discharging - charging
• discharge mode voltage measurement (low): 0,00 - 4,50V
• Voltage measurement accuracy: 0,003V + 2%
• Voltage measurement in discharge mode (high): 4,50 - 30,00V
• Voltage measurement accuracy: 0,01V + 0,2%
• current measurement in discharge mode: 0,001 - 1,000A
• Current measurement accuracy: 0,001A + 0,2%
• capacity measurement:
• ⇒ to 10Ah, resolution: 0,001Ah
• ⇒ 10 - 100Ah, resolution: 0,01Ah
• ⇒ above 100Ah, resolution: 0,1Ah
• four-wire measurement - voltage and current measurement thanks to this solution are more accurate
• LCD display to operate the device
• display indicates: voltage, current, operating time, capacity, power, energy and operating modes of the device
• Computer connection: The tester can be operated from the computer application. The user can change functions, parameter changes are displayed on the chart. Additional calibration and updateability.
• communication with the computer via USB - the need to use a TTL to USB converter (included in the set)

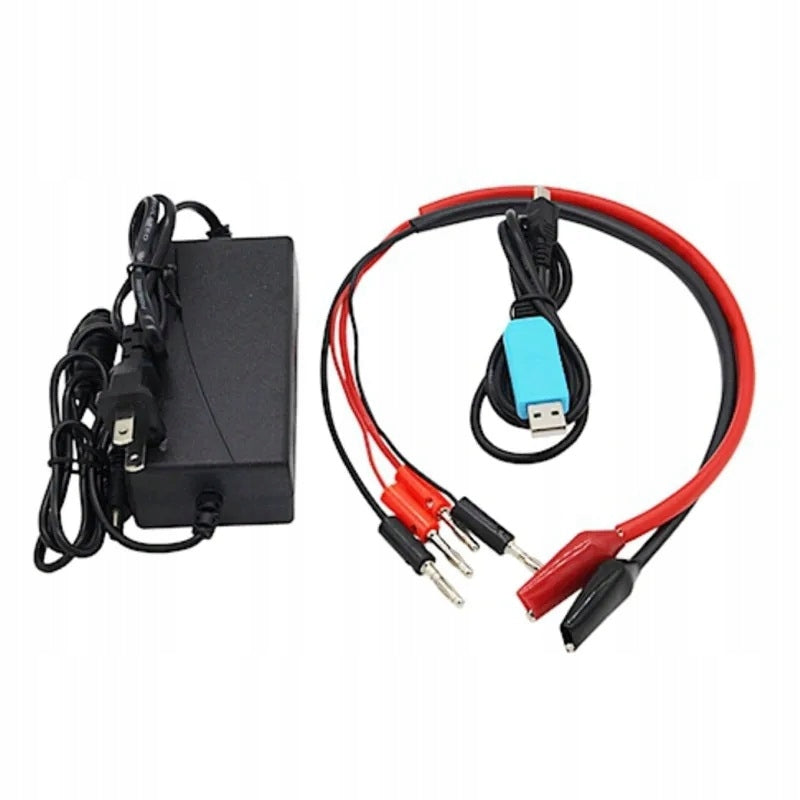

The set includes

- 1 x electronic load EBC-A01

- 1 x USB cable for communication

- 1 x crocodile terminated wire set (black + red)

- 1 x power supply: 12V/2A
