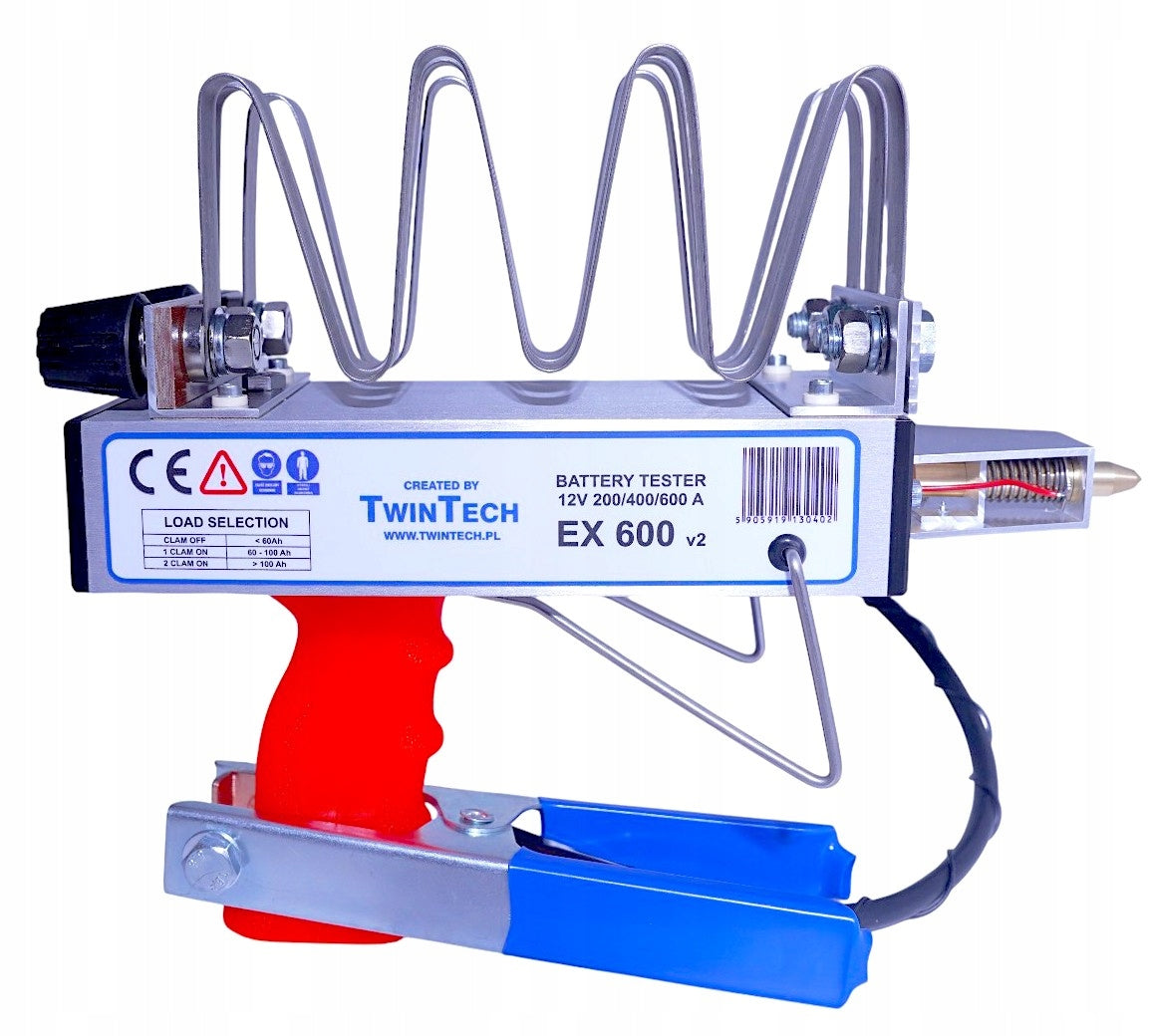

Baterijų testeris TWINTECH EX600 su svareliu

Trumpai apie prekę

Prekė: Baterijų testeris TWINTECH EX600 su svareliu. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: EX600

Version with large graphic display

The EX600 tester is used to test starter batteries with a voltage of 6 and 12 V. The measurement conditions should be approximated to the conditions prevailing at engine start-up. To this end, load resistors producing the load should be selected accordingly. The load is selected by attaching additional load resistors. The tester is made in accordance with the requirements of group B according to PN 866- 06500.

Parameters:

- Range of indications of voltmeter 19,99 V

- 0,01 V resolution

- Load current (relative to an efficient 12 V battery)

- High load current stability

- Accurate 4 wire voltage measurement

- Dedicated measurement program

- Auto-off feature

Load current (for an efficient 12 V battery):

- Terminals excluded EX600 - 200A

- One clamp attached EX600 - 400A

- Two clamps included EX600 - 600A

POLISH PRODUCT

THE HIGHEST QUALITY OF WORKMANSHIP

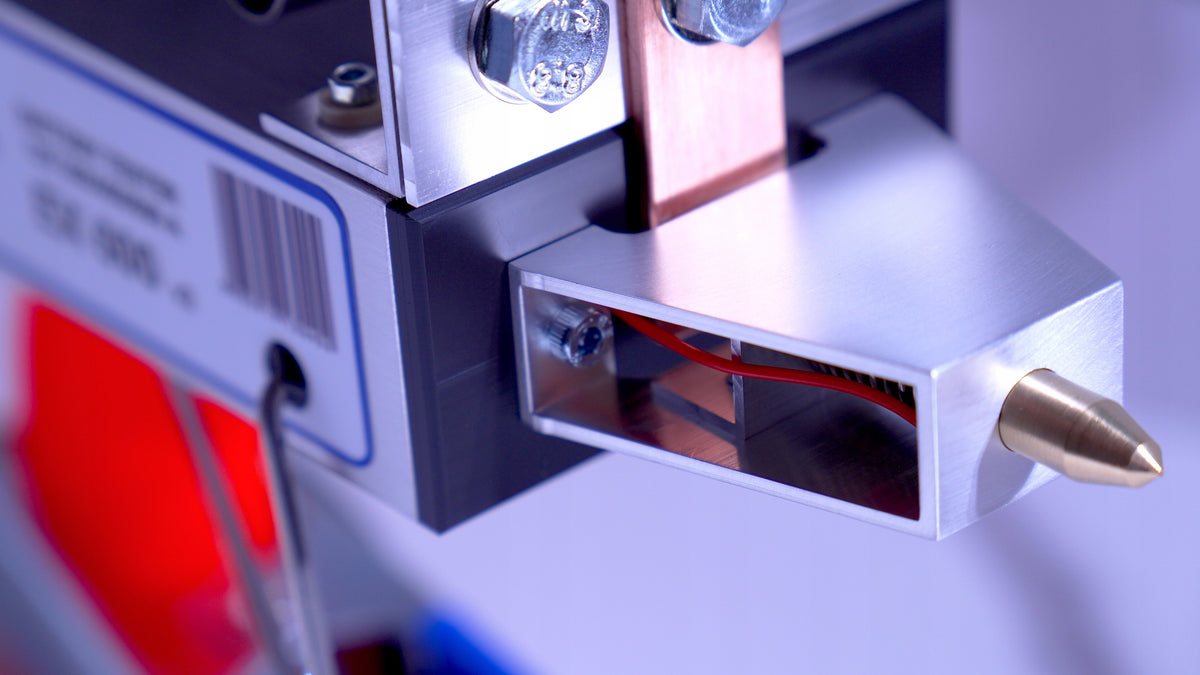

All CNC milled elements made of solid material guarantee the highest quality and many years of trouble-free operation.

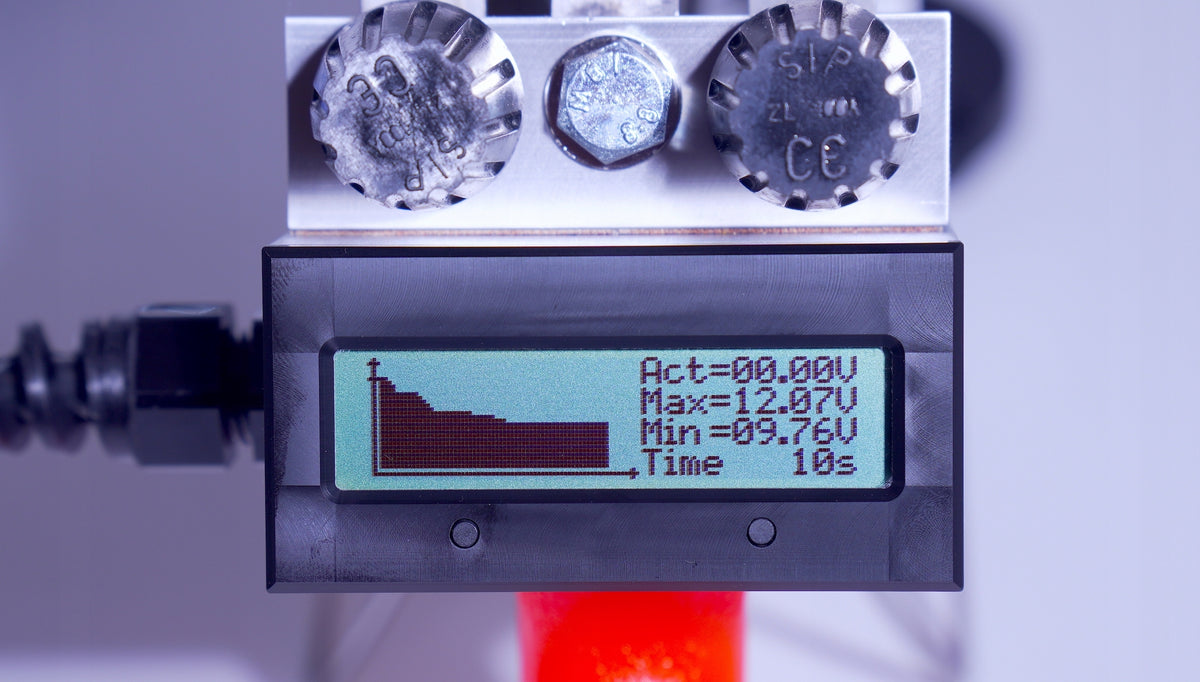

The load test is considered the most reliable and measurable method of checking the efficiency of the starter battery, as it simulates the actual operating conditions of the starter battery. It allows you to assess not only the level of resting voltage itself, but also the ability of the battery to maintain voltage stable during high power consumption. Several dozen voltage measurements per second that the tester performs during the test are presented in the graph, which makes it easier to analyze the results even for a less experienced user. The load test is recommended as final, especially if the initial tests give doubts, because it best reflects the real use of the battery.

Specifications
