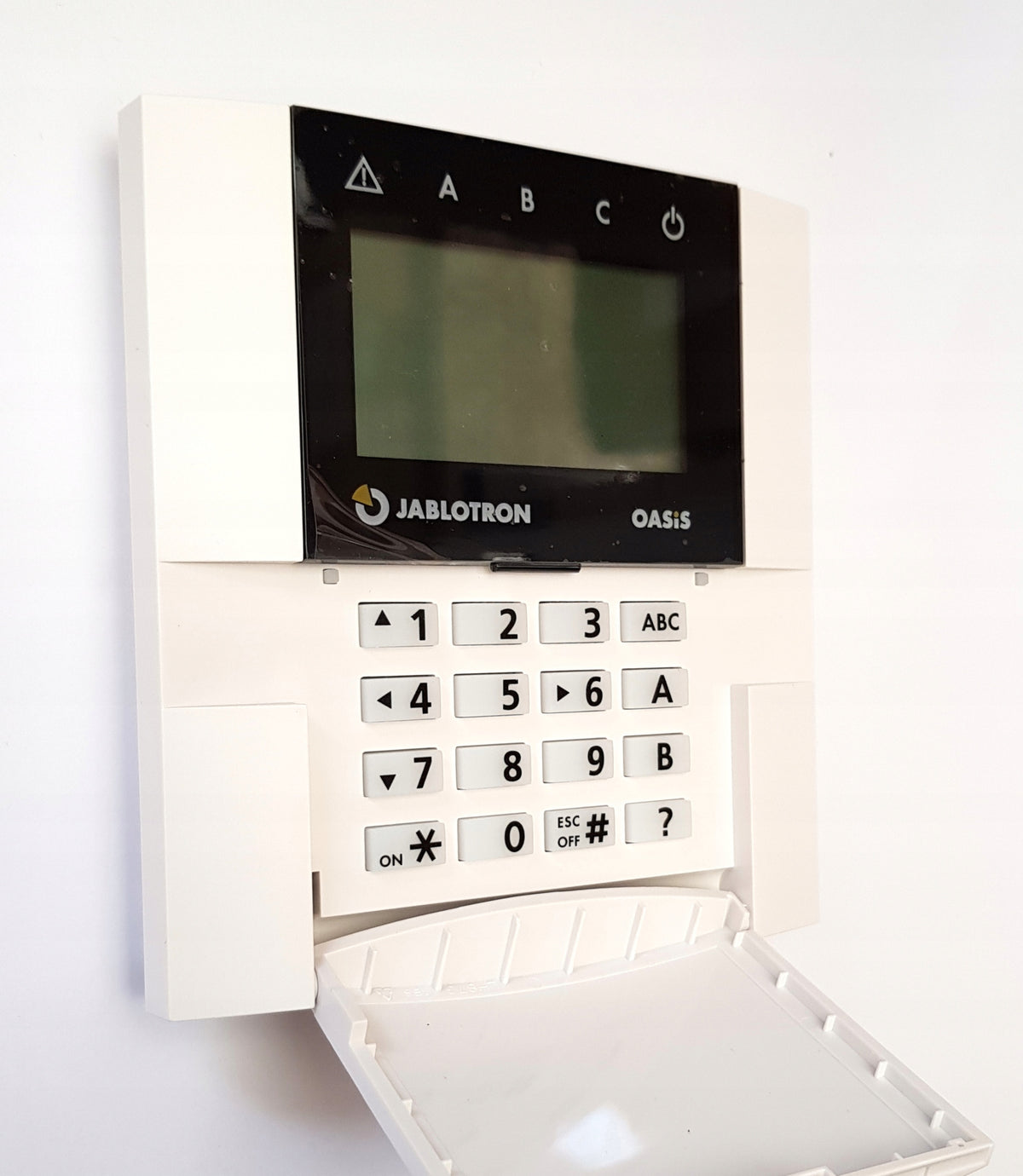

Belaidė JABLOTRON JA-81F OASiS LCD klaviatūra

Trumpai apie prekę

Prekė: Belaidė JABLOTRON JA-81F OASiS LCD klaviatūra. Kategorija: Rinkiniai.

• Gamintojas: Jablotron
• Modelis: JA-81F-RGB

Manipulator / Driver

Product does not include batteries

JA-81F enables system control and programming. It has a built-in proximity card reader, additionally it is equipped with an input for connecting a wired detector. The manipulator is powered by a battery and communicates with the control panel using a special OASIS radio transmission protocol (two-way communication). Keyboard in a flat case.

NEW PRODUCT

• Power supply: 2x lithium battery type CR123A (3.0V)
• Battery life: approx. 3 years (at max. 2 activations per day)
• Frequency: 868 MHz, OASiS protocol
• Range of action: approx. 100m (open space)
• Access control cards: Jablotron PC-01 or PC-02 (EM UNIQUE 125kHz)
• Input for opening detector: IN = normally closed (NC)
• Dimensions: 120 x 130 x 30 mm
• Compliant with EN 50131-1: II standards. inside
• Action temperature: -10 to +40 °C
• EN 50131-1, EN 50131-3, EN 50131-6, EN 50131-5-3: Class 2
• Compliant with: ETSI 300220, ETSI 300330, EN 50130-4, EN 55022, EN 60950-1
• Can be used according to: ERC REC 70-03

The keyboard has a function that allows you to set the backlight of the LCD screen according to the user's preferences or assign the color of the LCD backlight according to the state of the system (e.g. disarmed/armed system: blue, alarm: red, etc. ). It has a built-in proximity card reader, additionally it is equipped with an input for connecting a wired detector. The manipulator is powered by a battery and communicates with the control panel using a special OASIS radio transmission protocol (two-way communication). Keyboard in a flat case.

Available LCD backlight colors: pale blue, blue, green, marine, red, yellow, purple.

The Jablotron OASiS system operates at a frequency of 868 MHz, which ensures stability and resistance to interference. For programming OASiS series control panels, use a dedicated cable and OLink program, which can be downloaded at the bottom of the page. Jablotron devices are covered by a 36-month warranty period. In the case of the OASiS system, which will be installed by an authorized installer (installer after training), the devices are covered by a 60-month warranty period.
