Belaidis inverterinis lygintuvas su paleidimu, 180A, 12/24V, įkroviklis 30A

Trumpai apie prekę

Prekė: Belaidis inverterinis lygintuvas su paleidimu, 180A, 12/24V, įkroviklis 30A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: RED TECHNIC
• Modelis: 5900748401754

INRUSH CURRENT 180 A | 12 V | 24 V | 230 V | IP 65

Model: RTPI0167

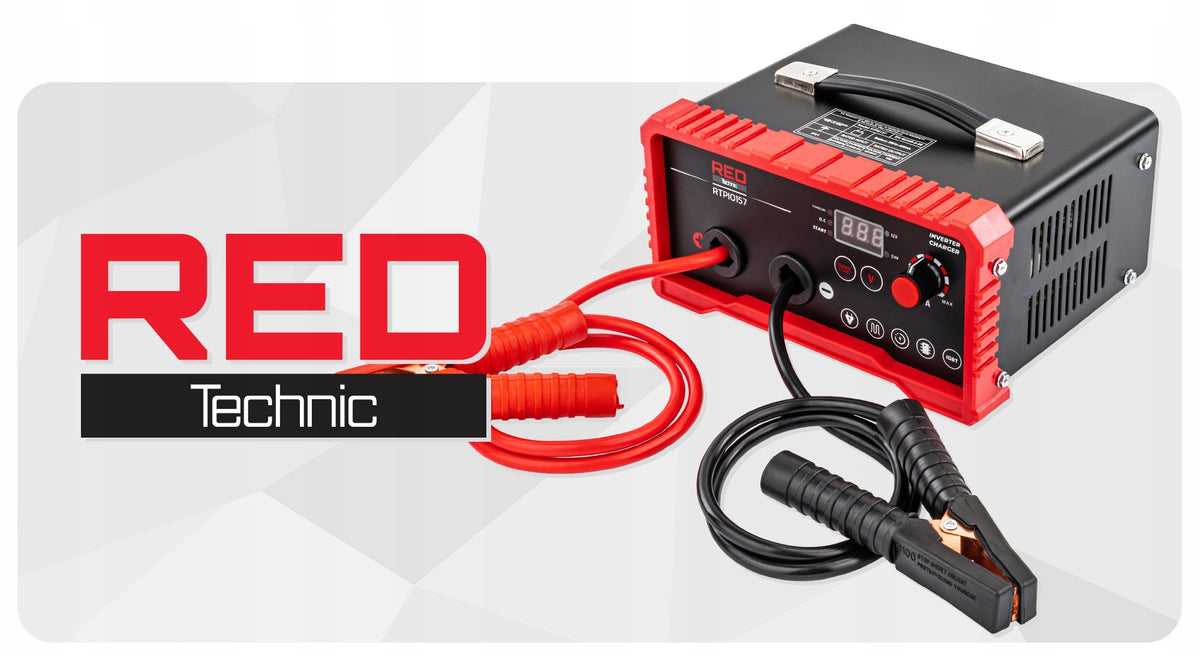

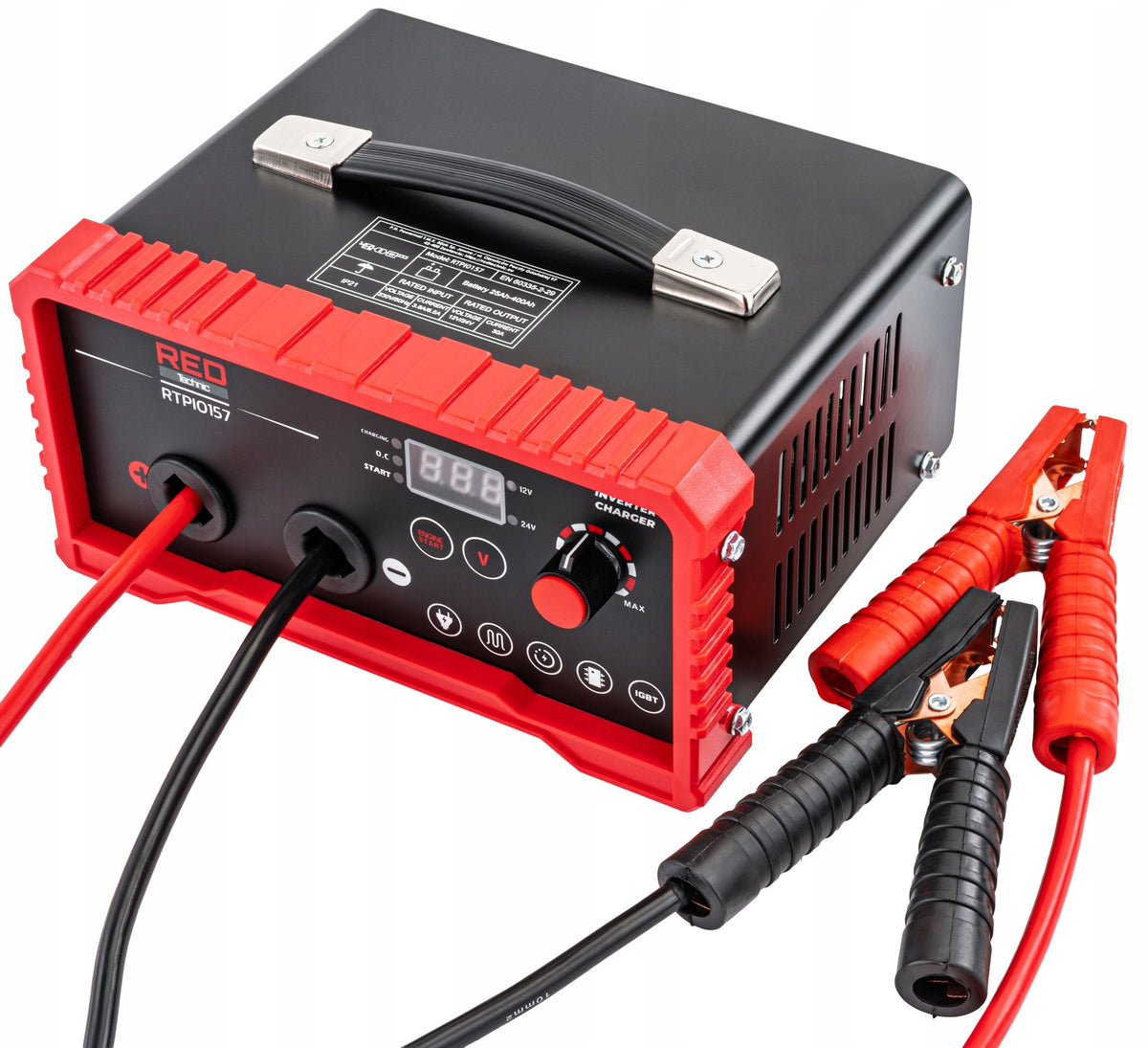

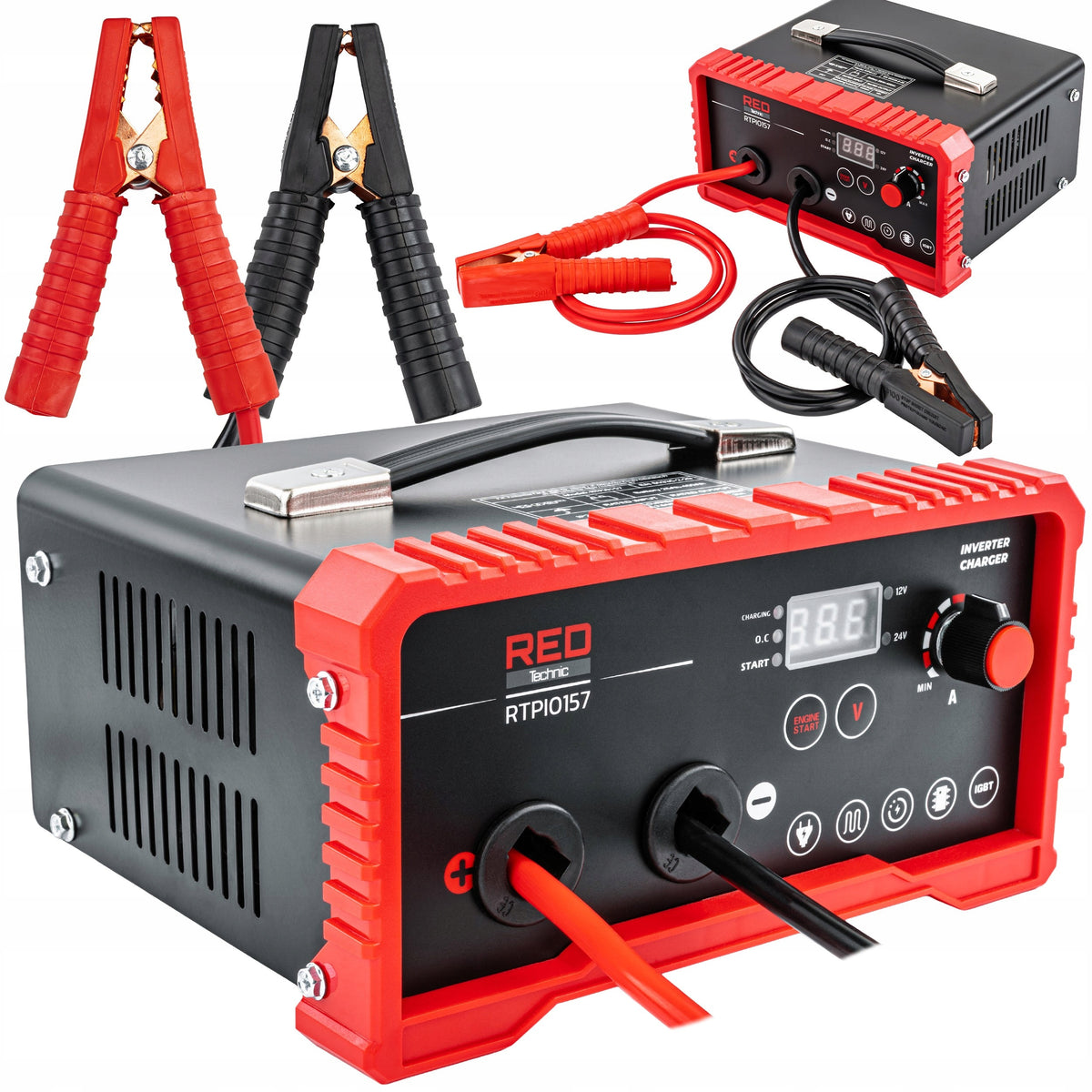

The RED Technic inverter rectifier is a compact, automatic device for charging WET, GEL and AGM batteries and starting 180 A motors. Thanks to IGBT technology, it offers high efficiency, overheating and short circuit protection, LCD screen and IP65 housing, ideal for workshops and handling of passenger vehicles, commercial vehicles and agricultural machinery.

🔵 ONE DEVICE FOR EACH TASK

Handle passenger cars, vans, agricultural machinery, etc. one device.

🔴 TECHNICAL DATA

• Rated voltage: 230V / 50Hz
• Maximum input power: 100 – 1450 W
• Charging current: 5 – 30 A
• Maximum inrush current: 180 A
• Battery capacity: 25 – 400 Ah
• Charging Current Voltage: 12V / 24V
• Operating temperature: -20°C – 40°C
• Output current DC 12V: 3,8 A
• Output current DC 24V: 6,5 A
• Efficiency: 98%
• Insulation class: IP65
• Inverter technology: IGBT
• Types of batteries supported: WET, MF, CA, EFB, GEL, AGM
• Power cord length: 180 cm
• Length of jumper cables: 92 cm
• Product weight: 2,6 kg
• Product weight with packaging: 3,2 kg
• Product Dimensions (L. / W. / h. ): 20 cm x 24 cm x 13 cm

🔴 CONTENTS OF THE SET

• RED Technic RTPI0167 rectifier
• User manual
• Original packaging

🔻 POWER SUPPLY AND MICROPROCESSOR CONTROL

Current and voltage parameters are automatically adjusted to the state of the battery, which stabilizes the output and realistically extends the life of the cells.

🔻 START JUMP START 180 A

Start-up mode gives up to 180 A exactly at the moment of turning the key, allowing you to start at deep discharge and reducing voltage drops of the installation.

🔻 1450W POWER AND IGBT TECHNOLOGY

Real power up to 1450 W and IGBT transistors ensure high switching efficiency, shorter charging time and compact dimensions of the device.

🔻 12/24 V AUTOMATIC CHARGING

Full automation leads the process from parameter selection to completion with sound signaling, maintaining stable current and voltage for battery protection.

🔻 COMPATIBLE BATTERY TYPES

WET, GEL and AGM lead-acid batteries are supported; the last operating mode is remembered for faster, more convenient operation.

🔻 SAFETY OF USE

Built-in protection protects against overheating (cut-off >150°C with automatic resumption), short circuit and reverse polarity, with immediate acoustic alarm.

🔻 LCD INTERFACE AND DIAGNOSTICS

The easy-to-read LCD screen shows the charging intensity of the battery.

🔻 RESISTANT DESIGN AND COOLING

IP65 rated housing, active fan cooling and copper conductors with full rubberized terminals guarantee reliability in workshop and garage conditions.

🔴 JUMP START 180A

The start-up mode delivers up to 180 A exactly at the moment of turning the key, which allows you to start even with deep discharge.

Intelligent current supply minimizes voltage drops and installation overload.

🔵 START WITHOUT STRESS

You turn the key and you go — the device gives the current exactly when the engine needs it. Get peace of mind on the road and feel like a professional in your garage.

🔴 WIDE APPLICATION

The rectifier is ideal for handling passenger cars, delivery cars, agricultural machinery, motorcycles, etc.

Thanks to its high resistance and IGBT technology, it can be used in both workshop and garage, ensuring reliable operation in all conditions.

🔴 ELECTRONIC SECURITY

The system protects against overheating (cut-off > 150°C with automatic resumption), turn and reverse polarity.

Acoustic signaling immediately informs about irregularities.

🔴 12/24 V AUTOMATIC CHARGING

The device automatically selects current and voltage to the battery state, conducting the process in fully automatic mode.

The stable output protects the cells and realistically extends the life of the battery.

🔴 IGBT TECHNOLOGY

IGBT transistors provide high switching efficiency with smaller dimensions. Real power up to 1450 W translates into shorter charging times and more reliable start.

🔴 LCD SCREEN AND SIGNALING

The clear LCD screen shows the current charging intensity of the battery.

When the battery is charged, the display shows 000 and the charging is maintained when the battery voltage drops.

🔵 POWER AND START-UP 180A

Choose the rectifier with the Jump Start 180A function, which will start the vehicle stably even with a fully discharged battery. The real power of 1450 W and microprocessor control guarantee fast, effective operation.

🔴 HIGH QUALITY CABLES

The highest quality copper wires ensure stable current efficiency and minimal energy loss.

The core made entirely of copper guarantees durability, and full rubber covers protect against frost and mechanical damage.

Reinforced crocodile clamps are fully protected, corrosion resistant and provide a secure connection even in harsh workshop conditions.

🔴 WORK IN ALL CONDITIONS

Robust housing with tightness class IP65 provides full protection against dust, moisture and spills, which allows safe use of the device in workshops, garages and outdoors.

Thanks to this resistance class, the rectifier maintains reliability and safety even in difficult operating conditions.
