Belaidis inverterinis lygintuvas su paleidimu, 400A, 12/24V, įkroviklis 40A

Trumpai apie prekę

Prekė: Belaidis inverterinis lygintuvas su paleidimu, 400A, 12/24V, įkroviklis 40A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: RED TECHNIC
• Modelis: RTPI0168

INRUSH CURRENT 400 A | 12 V | 24 V | 230 V | IP 65

Model: RTPI0168

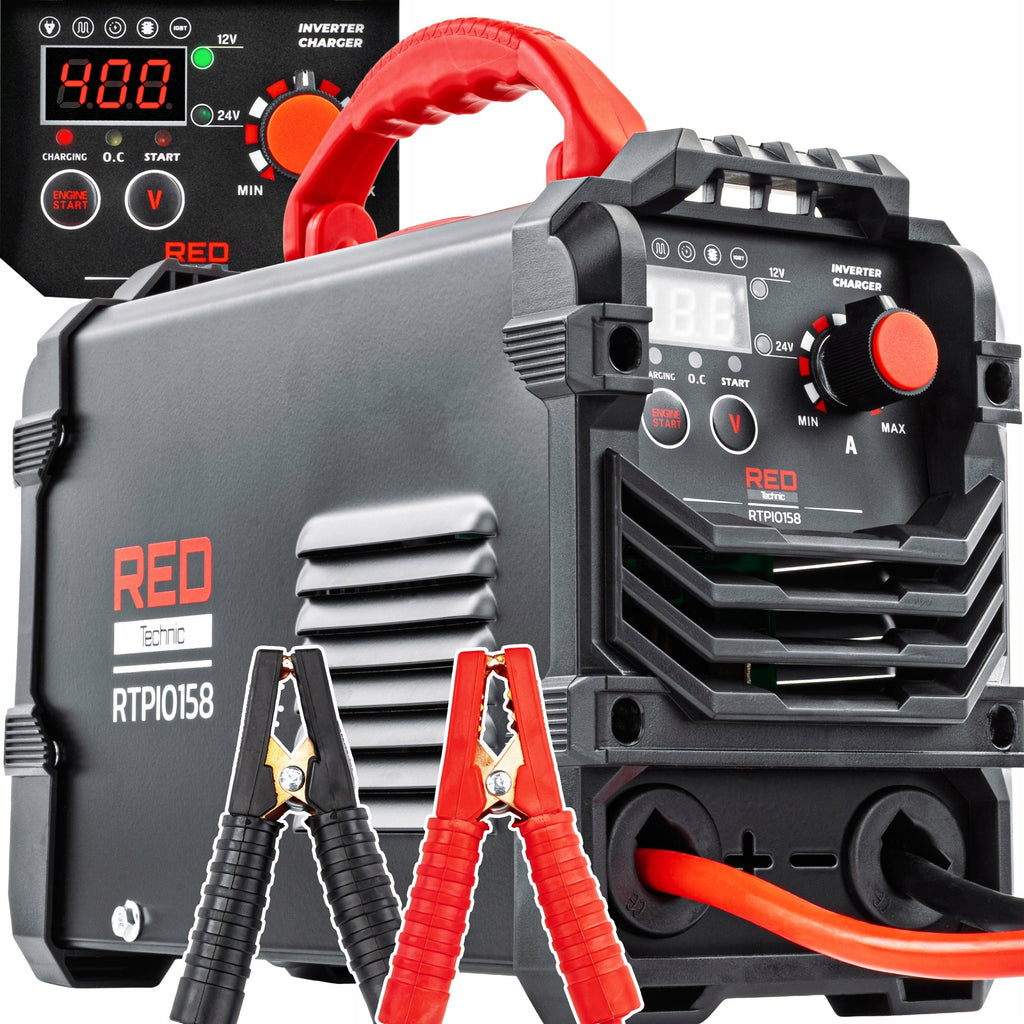

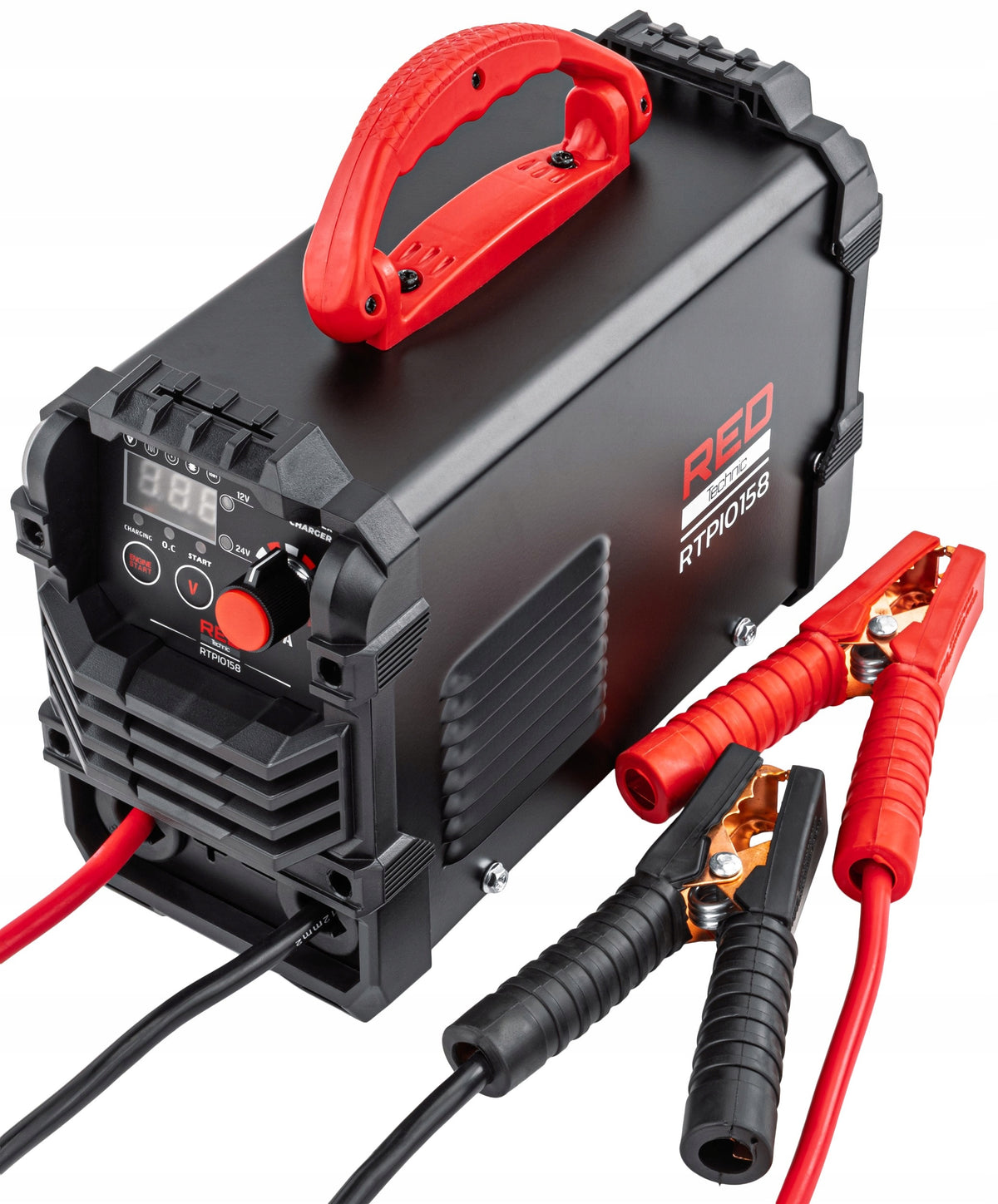

The RED Technic inverter rectifier is a compact, automatic device for charging WET, GEL and AGM batteries and starting 400 A motors. Thanks to IGBT technology, it offers high efficiency, overheating and short circuit protection, LCD screen and IP65 housing, ideal for workshops and handling of passenger vehicles, commercial vehicles and agricultural machinery.

🔵 ONE DEVICE FOR EACH TASK

Handle passenger cars, vans, agricultural machinery, etc. one device.

🔴 TECHNICAL DATA

• Supply Voltage: 230V / 50Hz
• Input power: 0,1 – 4,85 kW
• Charging current: 5 – 40 A
• Maximum inrush current: 400 A
• Battery capacity: 25 – 600 Ah
• Charging Voltage: 12V / 24V
• Output current DC (12V): 5,5 A
• Output current DC (24V): 8,8 A
• Efficiency: 98%
• Protection class: IP65
• Operating temperature range: -20°C to +40°C
• Inverter technology: IGBT
• Types of batteries supported: WET, MF, CA, EFB, GEL, AGM
• Power cord length: 200 cm
• Length of jumper cables: 190 cm
• Product weight: 3 kg
• Product weight with packaging: 3,5 kg
• Product Dimensions (L. / W. / h. ): 26,5 cm x 12 cm x 23 cm

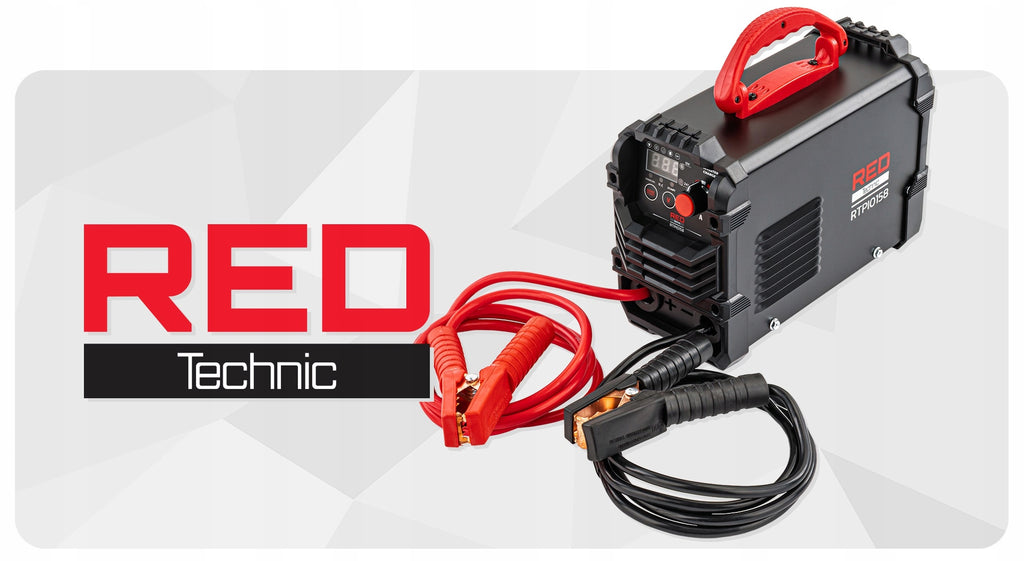

🔴 CONTENTS OF THE SET

• RED Technic RTPI0168 rectifier
• User manual
• Original packaging

🔻 POWER SUPPLY AND MICROPROCESSOR CONTROL

The 12/24V inverter rectifier with automatic current and voltage regulation adjusts charging to the battery status, maintaining a stable output and extending its lifespan.

🔻 START JUMP START 400A

The start-up mode delivers up to 400 A exactly at the moment of turning the key, effectively starting the vehicle even with deep discharge.

🔻 4,85 KW POWER AND IGBT TECHNOLOGY

High power of 4,85 kW and IGBT transistors ensure efficient switching, compact dimensions and low weight while maintaining efficiency.

🔻 COMPATIBLE BATTERY TYPES

Support lead-acid batteries: WET, GEL and AGM; full charging automation with last mode memory and process completion sound signaling.

🔻 SAFETY OF USE

Overheating protection (cut-off above 150°C with automatic resumption), short circuit and reverse polarity with audible alarm.

🔻 LCD INTERFACE

The easy-to-read LCD screen shows the charging intensity of the battery.

🔻 RESISTANCE AND QUALITY OF WORKMANSHIP

IP65 protection class resistant to dust and splashes, efficient fan cooling and copper wires with full rubberized clamps.

🔻 APPLICATIONS

Designed for passenger cars and vans as well as agricultural and construction machinery, ideal for working in workshop and garage conditions.

🔴 START JUMP START 400A

The start-up mode delivers up to 400 A exactly at the moment of turning the key, which allows you to start even with deep discharge.

Intelligent current supply minimizes voltage drops and installation overload.

🔵 START WITHOUT STRESS

You turn the key and you go — the device gives the current exactly when the engine needs it. Get peace of mind on the road and feel like a professional in your garage.

🔴 WIDE APPLICATION

The rectifier is ideal for handling passenger cars, delivery cars, agricultural machinery, motorcycles, etc.

Thanks to its high resistance and IGBT technology, it can be used in both workshop and garage, ensuring reliable operation in all conditions.

🔴 ELECTRONIC SECURITY

The system protects against overheating (cut-off > 150°C with automatic resumption), turn and reverse polarity.

Acoustic signaling immediately informs about irregularities.

🔴 12/24 V AUTOMATIC CHARGING

The device automatically selects current and voltage to the battery state, conducting the process in fully automatic mode.

The stable output protects the cells and realistically extends the life of the battery.

🔴 IGBT TECHNOLOGY

IGBT transistors provide high switching efficiency with smaller dimensions. Real power up to 4,85 kW translates into shorter charging times and more reliable start.

🔴 LCD SCREEN AND SIGNALING

The clear LCD screen shows the current charging intensity of the battery.

When the battery is charged, the display shows 000 and the charging is maintained when the battery voltage drops.

🔵 POWER AND START-UP 400A

Choose the rectifier with the Jump Start 400A function, which will start the vehicle stably even with a fully discharged battery. The real power of 4,85 kW and microprocessor control guarantee fast, effective operation.

🔴 COOLING SYSTEM

Built-in 3-inch fan actively dissipates heat, maintaining the optimal operating temperature of IGBT transistors.

Automatic rotation control prevents overheating, ensuring long-lasting reliability of the device and quiet operation even under full load.

🔴 HIGH QUALITY CABLES

The highest quality copper wires ensure stable current efficiency and minimal energy loss.

The core made entirely of copper guarantees durability, and full rubber covers protect against frost and mechanical damage.

Reinforced crocodile clamps are fully protected, corrosion resistant and provide a secure connection even in harsh workshop conditions.

🔴 WORK IN ALL CONDITIONS

Robust housing with tightness class IP65 provides full protection against dust, moisture and spills, which allows safe use of the device in workshops, garages and outdoors.

Thanks to this resistance class, the rectifier maintains reliability and safety even in difficult operating conditions.

Following technological progress and cooperation with innovative factories invested in modern solutions for the future needs of the 21st century, we present the RED TECHNIC brand. Our products are not only distinguished by modern designm, but also combine minimalism with solid quality, offering attractive quality-price ratio. To meet practical needs with ease of use, we encourage you to take a closer look at the RED TECHNIC brand and make an informed choice. Discover innovation, design and reliability in one – choose RED TECHNIC as your partner in technological exploration for the future!

✅ RELIABILITY OF POLISH QUALITY:

The RED Technic rectifier is not only a tool, it is a guarantee of reliability, precision and attention to detail – features that distinguish our device on the market. Invest in confidence by choosing a product from a Polish manufacturer!

💵 BEST VALUE FOR MONEY:

By choosing RED Technic, you are investing wisely! Our tool offers the highest quality without overpaying. It is an ideal choice for any customer who values high quality, but also wants to save.

👷 ♂ IDEAL DESIGN FOR PROFESSIONALS AND HOBBYISTS:

Advanced design forProfessionals and Hobbyists: Whether you are a professional with high demands or a hobbyist who values reliability – our device will certainly meet your expectations. It is precisely designed to meet a variety of needs.

🔧 FULL WARRANTY AND POST-WARRANTY SERVICE:

By choosing RED Technic, you will gain access to the comprehensive service, which will take care of your needs at every stage. We guarantee support when needed, providing you with peace of mind and confidence.

⚙ EASY ACCESS TO PARTS AND COMPONENTS:

With RED Technic, maintenance and repairs become easy and convenient. We guarantee instant access to all parts and components, eliminating unnecessary delays. With us your tool will always be ready for action.

💯 SATISFACTION GUARANTEE:

We are sure that our product will meet your expectations. We offer a satisfaction guarantee, which means that in case of any doubts you can contact us and we will find the best solution for you.

Specifications
