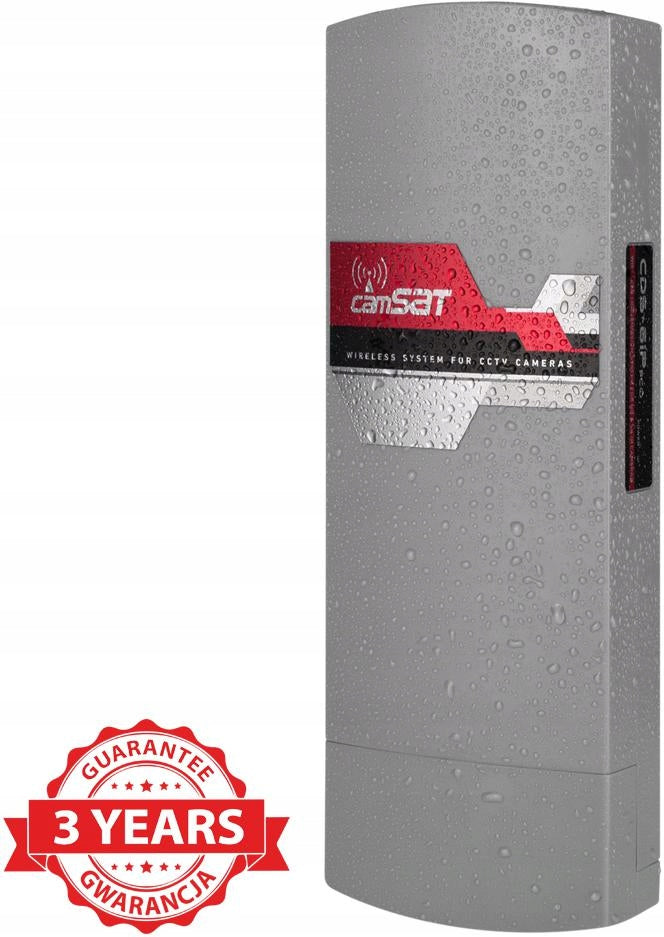

Belaidis vaizdo siųstuvas CAMSAT CDS-6IP eco

Trumpai apie prekę

Prekė: Belaidis vaizdo siųstuvas CAMSAT CDS-6IP eco. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: CDS-6IP eco

CAMSAT CDS-6IPeco

The most important features

• 2 LAN ports,
• 300Mbps in the air
• 12-63M bitrate from camera to DVR
• 5.2-5.6-5.8GHz,
• 16 channels of work,
• power supply: 12-24V DC and PoE24V,
• 14dbi built-in antenna with 60 degree angle,
• power 27dbi 500mW,
• range 2km,
• IP55,
• supports any IP cameras up to 16Mpix,
• latest and safe WPA-2PSK radio encoding

IMPORTANT INFORMATION FOR THE RIGHT SELECTION:

• 16 bridges on one installation – the ability to run as many as 16 radio bridges side by side on 16 separate work channels
• One bridge transmits multiple images from multiple cameras i.e. that e.g. for 8 cameras connected by switch you need a bridge consisting of 2 CDS-6IP eco units
• CDS-6IP eco is a single radio unit. You need 2 units to run the wireless bridge.
• Working in a “star” – one receiver can be paired with up to 8 transmitters and you can connect several cameras to each transmitter.
• The transmission of 16 cameras by one radio bridge – the number of cameras depends on the sum of BITRATE and radio distance. The CAMSAT CALCULATOR and charts will help you choose the exact equipment.

Description

Radio unit to build a wireless bridge from IP cameras to NVR

The most popular wireless module for wireless connection between IP CCTV cameras and NVR/VMS recorder. It provides transmission over a distance of 2km operating in a stable radio band 5.1 – 5.8GHz. It transmits all data between the cameras and the recorder in both directions, taking into account the priorities for VIDEO streams and PTZ control.

Other radio units in the CDS-6IP xx family are 100% compatible:

• CDS-6IP Multi 4PoE – It has 4 PoE ports that can power IP cameras, a wide range of power supply voltages from 12V to 48V DC.
• CDS-6IP 3PoE – It has 3 PoE ports and can be powered from a PoE switch
• CDS-6IP SMA – Built-in directional antenna and additional connectors for external antenna increasing range.
• WiFi – The latest software in CDS-6IP units enables radio connection to Ubiquiti WiFi LOCO m5 computer devices

CDS-6IP eco – wireless transmitter for IP cameras

CDS-6IPeco is a very easy to configure wireless transmission system designed for audio/video signal transmission in the 5 GHz frequency band. The system is designed for wireless connection of IP cameras with a recorder at a distance of up to 2km (option: up to 5km). Two-way transmission ensures that all data is transmitted in both directions. The latest versions work with IP cameras with very high resolution up to 16 Mpix – UHD, 4K, HD.

Special transmission protocols

CDS-6IPeco is not a computer device for Internet transmission but a transmitter for continuous and uninterrupted transmission of powerful high-resolution images. The implemented special audio/video protocols ensure transmission of all HD and 4k image frames with negligible transmission delay. In addition to simultaneous transmission of many images and sounds, it also allows you to control PTZ rotary cameras and transfer all data between the recorder and cameras.

Video HD without losing frames

CCTV CALCULATOR

Selection of wireless antennas for IP cameras - camera bitrate range and speed calculator

In order to quickly select wireless transmitters for IP cameras, we have prepared an application that calculates the required number of radio units in a given CCTV installation.

Please use the calculator for the selection of radio devices and you will choose the right number of wireless devices for IP cameras.

Speeds and range recommended for 100% percent transmission including interference occurring in the 5GHz band:

• 63M bitrate – 100m,

• 59M bitrate – 500m,

• 48M Bitrate – 1000m,

• 33M Bitrate – 1500m,

• 12M Bitrate – 2000m.

Specification

• Specification
• Type of work point-to-point, point-to-multipoint
• VIDEO BRIDGE, MASTER / SLAVE operating mode
• CE radio operating band: 5180-5350 MHz; 5470-5725 MHz
• Number of working channels CE 16
• Supported resolutions All IP camera resolutions up to a maximum bitrate of 63M e.g. 16Mpix, 4k, UHD, HD 1080p cameras, other
• IP cameras 1-16 Mpix (up to 63M bitrate)
• Max. bitrate (total transmission) 63M bitrate – 100m, 59M bitrate – 500m, 48M Bitrate – 1000m, 33M Bitrate – 1500m, 12M Bitrate – 2000m
• LAN inputs/outputs 2 x LAN (RJ45 10 / 100 Base-TX)
• PoE - camera power supply from LAN ports No (Option available on models: CDS-6IP Multi 4PoE, CDS-6IP 3PoE, CDS-EasyIP)
• PoE IN - radio unit powered from PoE switch No (Option available in models: CDS-6IP 3PoE, whole family CDS-EasyIP xx)
• 64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK transmission encoding
• Internal antennas, integrated 14 dBi MIMO (double polarity H-V), Antenna operating angle: H-60°, V-25°
• Standard range (with integrated antennas) 2 km
• Output power 27 dBm (500 mW e.i.r.p.)
• OFDM digital modulation
• Power consumption 11 W
• Power supply 12V DC 1A and PoE in 24V standard (PoE24 power supply included)
• Operating temperature from -20°C to 70°C
• Protection class IP55
• Dimensions 88x235x40 [mm]
• Camera resolution 16 Mpix, 30 mpix, Full HD
• LAN ports 2

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	CDS-6IP eco
Parametry	Model	CDS-6IP eco
Parametry	Brand	no brand
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5902610350115
