Belaidis WiFi rėlės jungiklis TUYA SMART, 16A, 2 vnt.

Trumpai apie prekę

Prekė: Belaidis WiFi rėlės jungiklis TUYA SMART, 16A, 2 vnt.. Kategorija: Automatizavimo moduliai.

• Gamintojas: Appio
• Modelis: 0158

Set of 2x WiFi relay for circuit breaker and mains socket

An all-in-one Wi-Fi relay that turns your switch or outlet into a smart device controlled by your smartphone!

Key features of the product:

• The relay works with traditional switch and network socket,
• You can manage it from two of the most popular TUYA and Smart Life applications. You can connect thousands of devices available on the market or in our offer, e.g. wifi cameras, carbon monoxide, gas sensors, alarm, motion sensors, power strips,
• It has a mini size, fits in the mounting box, behind a switch or power outlet,
• Perfect for stairway system,
• The relay operates in the standard Wi-Fi band 2,4 GHz,
• Manage your lighting from anywhere in the world where you have access to the Internet,
• Schedules for automatic turning on and off lighting,
• Create groups of devices and then control them with a single click,
• The status of the connected device in real time is available in the application,
• Voice control with voice assistants: Amazon Alexa and Google Home,
• You can share devices added in the app with your family, friends or colleagues so that they can also control them,

Set a work schedule

You can schedule the operation of the circuit breaker or power socket by setting the hours of their on and off in the application. Thanks to this, you have full control over the devices connected to the list and over electricity bills.

Safe for users

The relay is made of the highest quality materials. During production, the manufacturer focused primarily on safety and the possibility of long-term use.

WiFi communication

• Operation via the TUYA or Smart Life app
• Voice support with Google Home and Amazon Alexa
• Timer - turn on the device/lighting for a specified period of time
• Ability to set the state of the relay after voltage failure
• Control electrical devices from any location in the world from your Smartphone
• Schedules - switching on the device / lighting at certain times of the day, e.g. at sunrise or sunset

Schedules and Timers

Do you want to fully automate the operation of your electrical appliances and not wonder if you have turned something on or off? Set a relay schedule! You can choose from:

• Countdown - countdown - one-time shutdown after a set time,
• Schedule - schedule - switching on and only at specific times of selected days,
• Circulate - work in the on/off loop. For example: on for 1 minute, off for 2 minutes - in a continuous loop, at certain times and days,
• Random - accidental on and off. The turn-on and off times are generated randomly. Used e.g. to simulate the presence at home during holidays,
• Inching - countdown when turned on. After each turn on, the relay will turn off after the set time. Forgetting to turn off the light? - set this function for 30 minutes. After each switch on, the relay will turn off the light automatically after 30 minutes.

Technical data:

• Set of 2!
• Product code: 0158_2
• Maximum LED power: 150W
• Input voltage: 100-240V~ 50/60 Hz
• Max. Load Current: 10A/16A
• Wi-Fi standard: 2,4 GHz 802,11 b/g/n
• Application name: Tuya Smart / Smart Life
• Operating temperature: -10 ℃ ~ +40 ℃
• Size: 40 x 40 x 20 mm
• Reset button on housing
• LED signaling - does not squeak!

Requires full power supply in the can - L and N

❓ What is a Wi-Fi relay and what is it used for?

It is a small device mounted in a can that allows you to turn a regular switch or outlet into a smart controlled from your phone, voice or automatically.

❓ Does the relay work with a traditional switch and outlet?

Yes. Works with ordinary light switches and power sockets – no need to replace them.

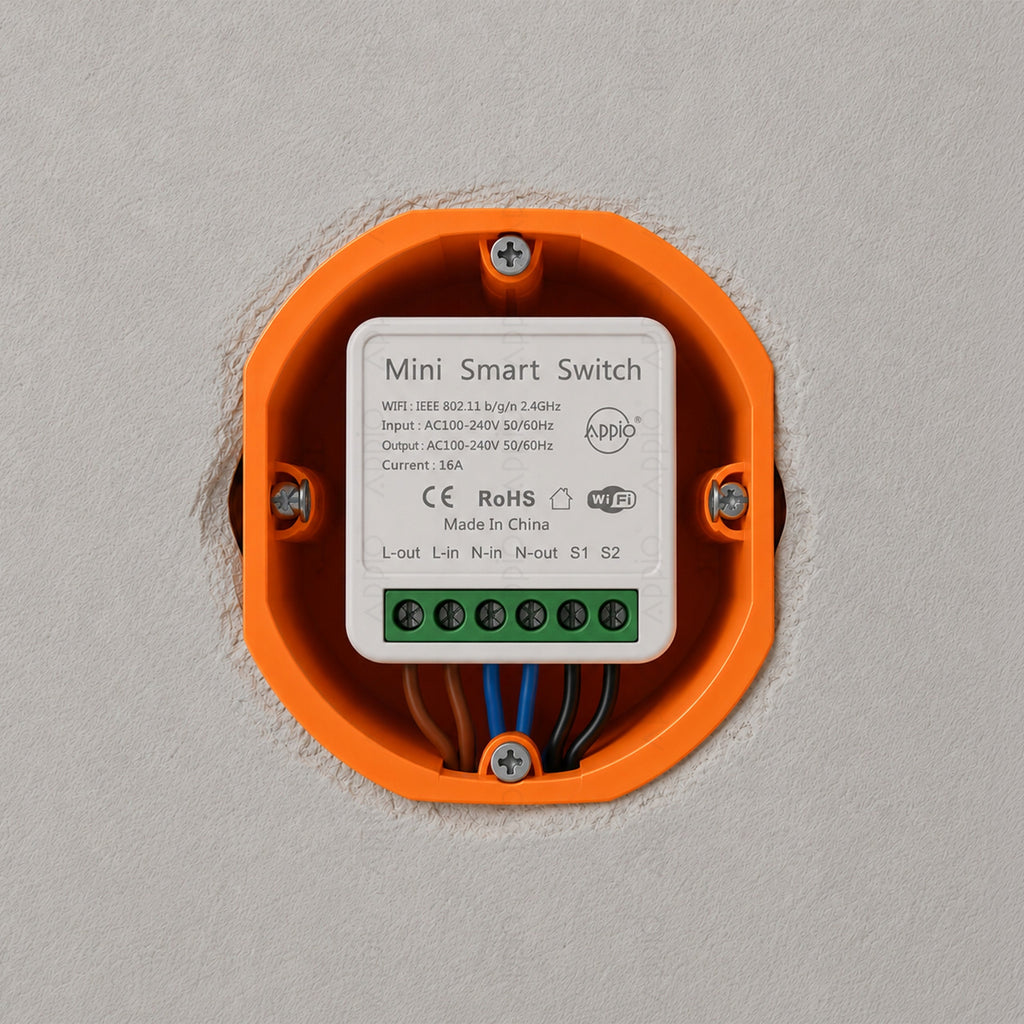

❓ Will the relay fit in the can under the switch?

Yes. It has compact dimensions and is designed for mounting in a can, behind an on/off switch.

❓ Can I control the light or device from my phone?

Yes. Control is via the Tuya Smart or Smart Life app, from anywhere you have access to the Internet.

❓ Does the relay support voice control?

Yes. It works with Google Home and Amazon Alexa so you can control your voice.

❓ Can I set the automatic on and off?

Yes. The application includes schedules and timers, e.g.:

• switching on at a specific time,
• automatic shutdown after time,
• Random action – simulation of presence.

❓ Will it work in a stair installation?

Yes. The relay works great in stair systems and allows you to conveniently control the light from several places.

❓ Can you see in the app if the device is turned on?

Yes. The application shows the current status of the device in real time.

❓ Is the relay safe?

Yes. It is made of high quality materials, has LED signaling and is adapted to long work.

❓ What power supply is required?

The relay requires full power supply in the can, i.e. L and N cable.
