Belaidžiai varikliai BetaFPV 0802 22000KV, 4 vnt., Air75 II FS

Trumpai apie prekę

Prekė: Belaidžiai varikliai BetaFPV 0802 22000KV, 4 vnt., Air75 II FS. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: 01050026_3

⭐ Brushless motors BetaFPV 0802 22000KV (2026) - 4pcs | Air75 II Freestyle ⭐ series

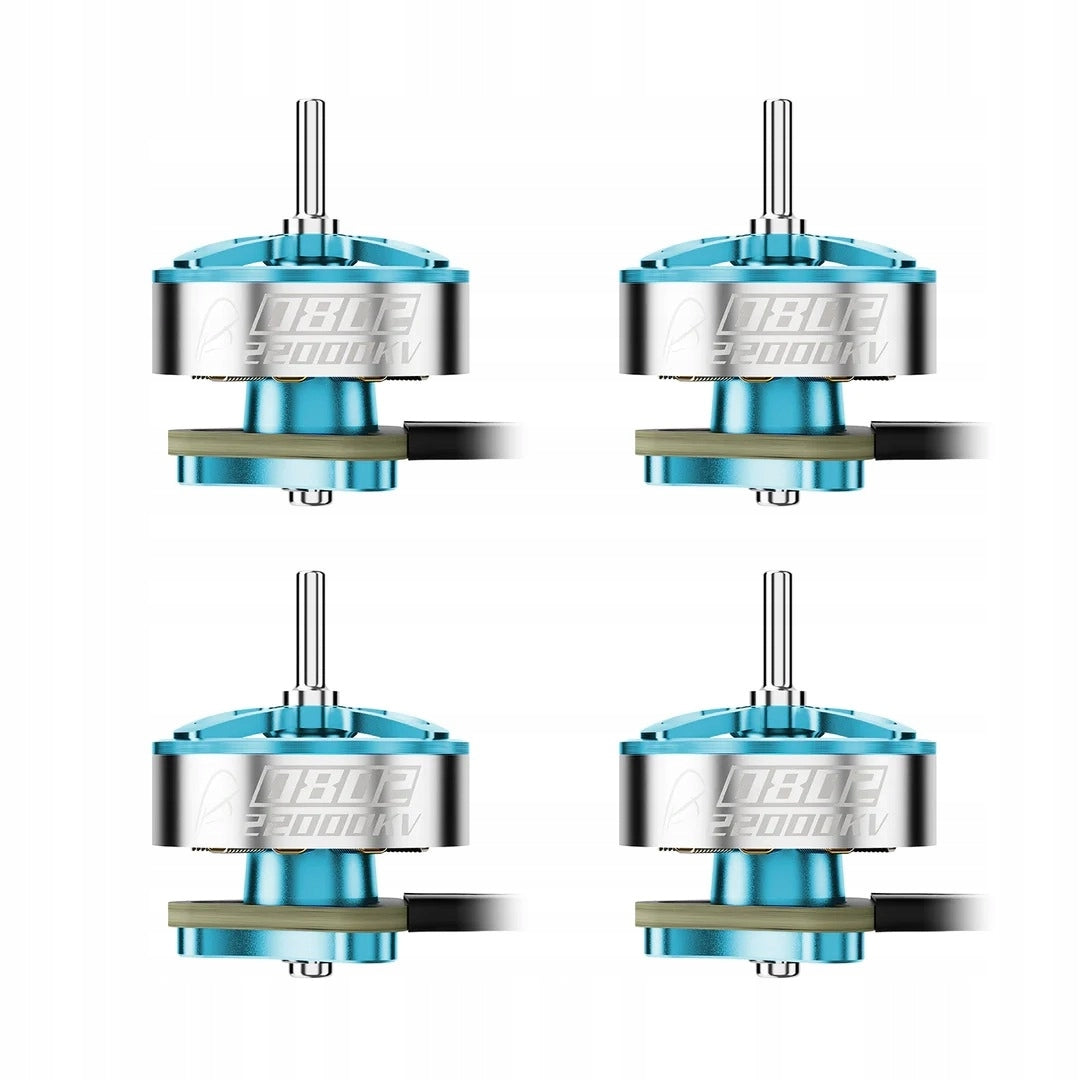

✅Brushless motors BetaFPV 0802 22000KV (2026 edition) – Set of 4.

The set of four brushless motors BetaFPV from the 0802 series (2026 edition) in the Freestyle 22000KV version is an advanced drive designed for light FPV microdrones powered by a single cell (1S). Designed specifically for the flagship Air75 II design, these engines offer the perfect compromise between atomic dynamics and incredible work culture. It is an ideal choice for pilots expecting surgical precision when performing backyard freestyle evolutions and smooth throttle rod operation.

✅ Key advantages

• New generation stator core (0,10 mm): The use of ultra-thin stator plates with a thickness of only 0,10 mm has dramatically reduced the energy losses caused by eddy currents. This translates into higher electrical efficiency, less heating of engines and noticeably longer flight time on one battery.
• Optimized linear characteristics: The 22000KV version is characterized by brilliant torque and predictable response at low and medium gas values. This allows you to fully control the drone just above the ground and precisely avoid obstacles.
• Increased crash resistance: The bell and shaft embedding design has been mechanically reinforced, making the motors perfect for withstanding the rigors of aggressive freestyle flying and hard landings on concrete surfaces.

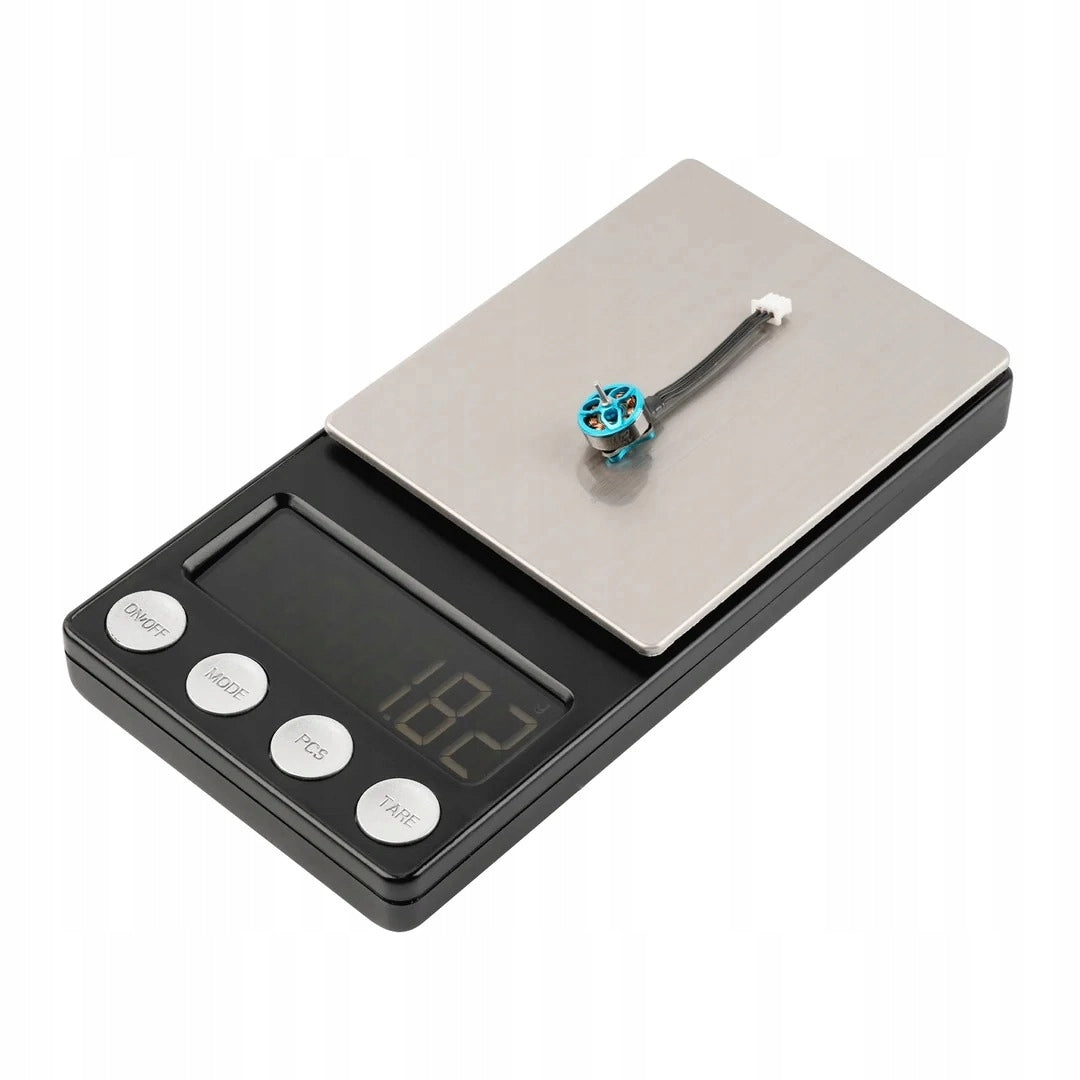

• Feather weight micro-drive: One engine weighs only 1,88 g, which allows you to keep the drone’s extremely low weight, crucial for maintaining agility in the Whoop class.

✅ Easy plug-and-play installation

The motors are equipped with soft and flexible 30AWG wires with an optimal length of 35 mm, terminated with a factory JST1.25 (3-pin) plug. This allows you to instantly connect your drive to compatible flight controllers (FCs) without the need for a soldering iron.

✅ Technical specification

• Manufacturer: BetaFPV
• Model / Size: 0802 (2026 Edition)
• KV value: 22000KV (Freestyle version)
• Power supply (rated voltage): 4,2V (1S LiPo/LiHV)
• Maximum power: 22,73 W
• Maximum current consumed: 5,90 A
• Bearing Type: Durable Brass Bushings
• Shaft diameter: 1,0 mm
• Length of external shaft: 4,0 mm
• Wires: 30AWG / length 35 mm
• Connector: JST1.25 (3-pin)
• Mounting holes: 3 × M1.4 evenly distributed around the circumference Ø6,6 mm (EQS)
• Weight: approx. 1,88 g (with cable and plug)

✅ Composition of the set

• Brushless motor BetaFPV 0802 22000KV (2026) Freestyle × 4 pcs.
• Mounting screws M1.4×3 × 12 pcs.
