Benzīna invertora ģenerators 3800W, 230V, vara tinums

Trumpai apie prekę

Prekė: Benzininis inverterinis generatorius 3800W, 230V, varinė ritė. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: HW-API-3750I
• Įtampa: 230 V

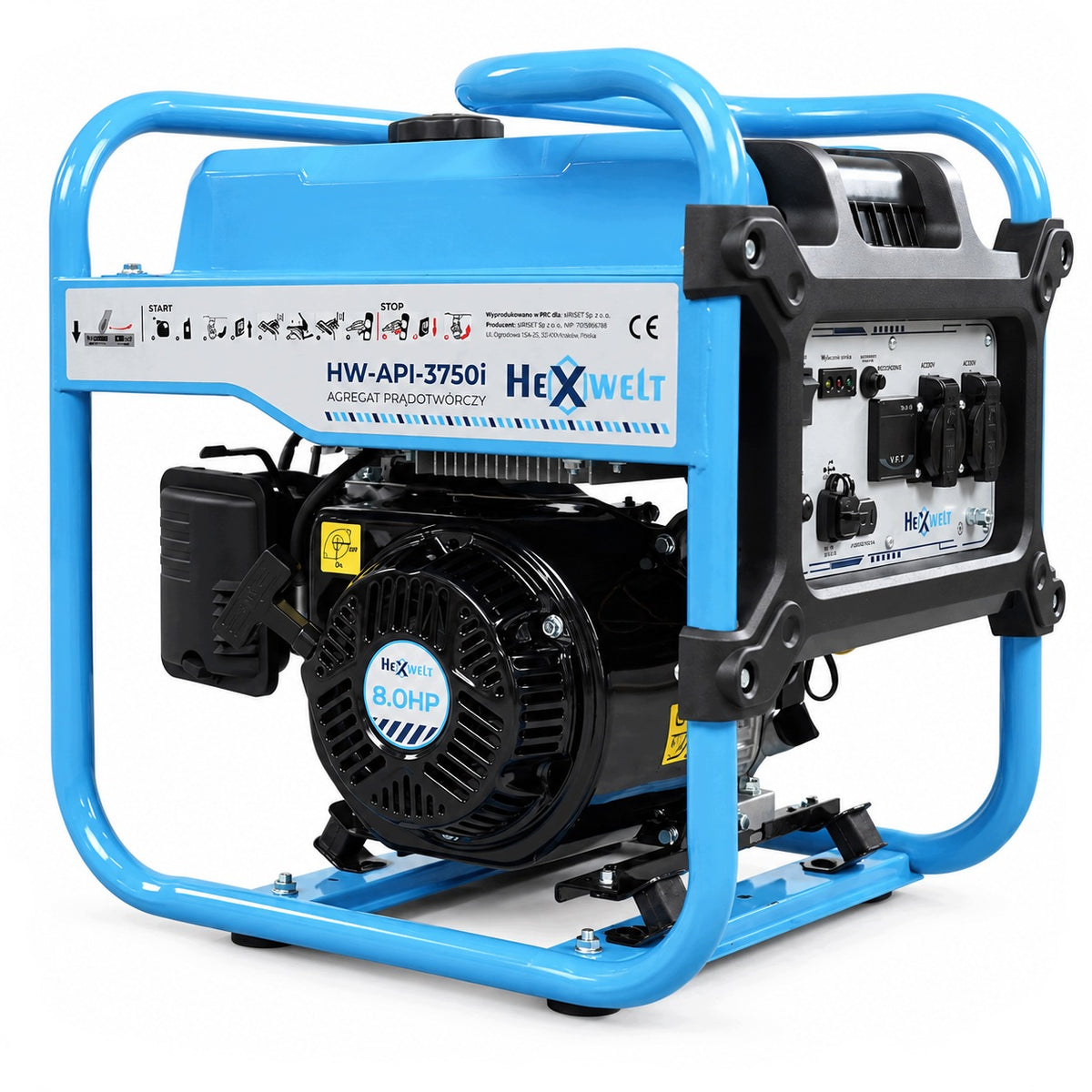

HEXWELT HW-API-3750i Inverter Generator

Gasoline-powered inverter generator, designed to provide reliable electricity wherever you need an independent power source. This model offers a rated power output of 3.5 kW and a maximum power output of up to 3.8 kW. It features a durable copper-wound alternator for improved performance and longevity.

Parameters

• Nominal power: 3,5 kW
• Maximum power: 3,8 kW
• Engine: BS170F, 4-stroke OHV
• Engine capacity: 223 cm³
• Engine power: 8 hp / 5,97 kW
• Fuel tank: 10 l
• Working time on a full tank: to approx. 4,8 h
• Generator winding: copper
• Frequency: 50 Hz
• Sockets: 2 × 230 V
• USB: USB + USB Type-C
• DC output: 12 V / 6 A
• Oil capacity: 0,6 l
• Net weight: 26,25 kg
• Gross weight: 28,5 kg

Nominal power 3,5 kW. Maximum 3,8 kW

Parameters given clearly, without understatement.

The unit provides 3,5 kW of nominal power and 3,8 kW of maximum power. This makes it easier to select the devices to be powered and plan the load on the unit. The operating frequency is 50 Hz.

INVERTER TECHNOLOGY

A solution designed for more controlled electricity generation.

HW-API-3750i is a inverter unit. This is an important feature for users who expect a more modern way of managing the operation of the generator than in the case of simple conventional constructions.

4-STROKE ENGINE OHV 223 cm³

The heart of the device is the 4-stroke BS170F OHV engine with a capacity of 223 cm³. Its power is 8 hp / 5,97 kW. Such a unit has been selected to cooperate with a generator offering up to 3,8 kW of maximum power.

COPPER IN THE WINDING OF THE GENERATOR

Technical specifics that are worth knowing before buying.

The winding of the generator was made of copper. This is an important design parameter that allows the customer to know exactly what solution he is dealing with.

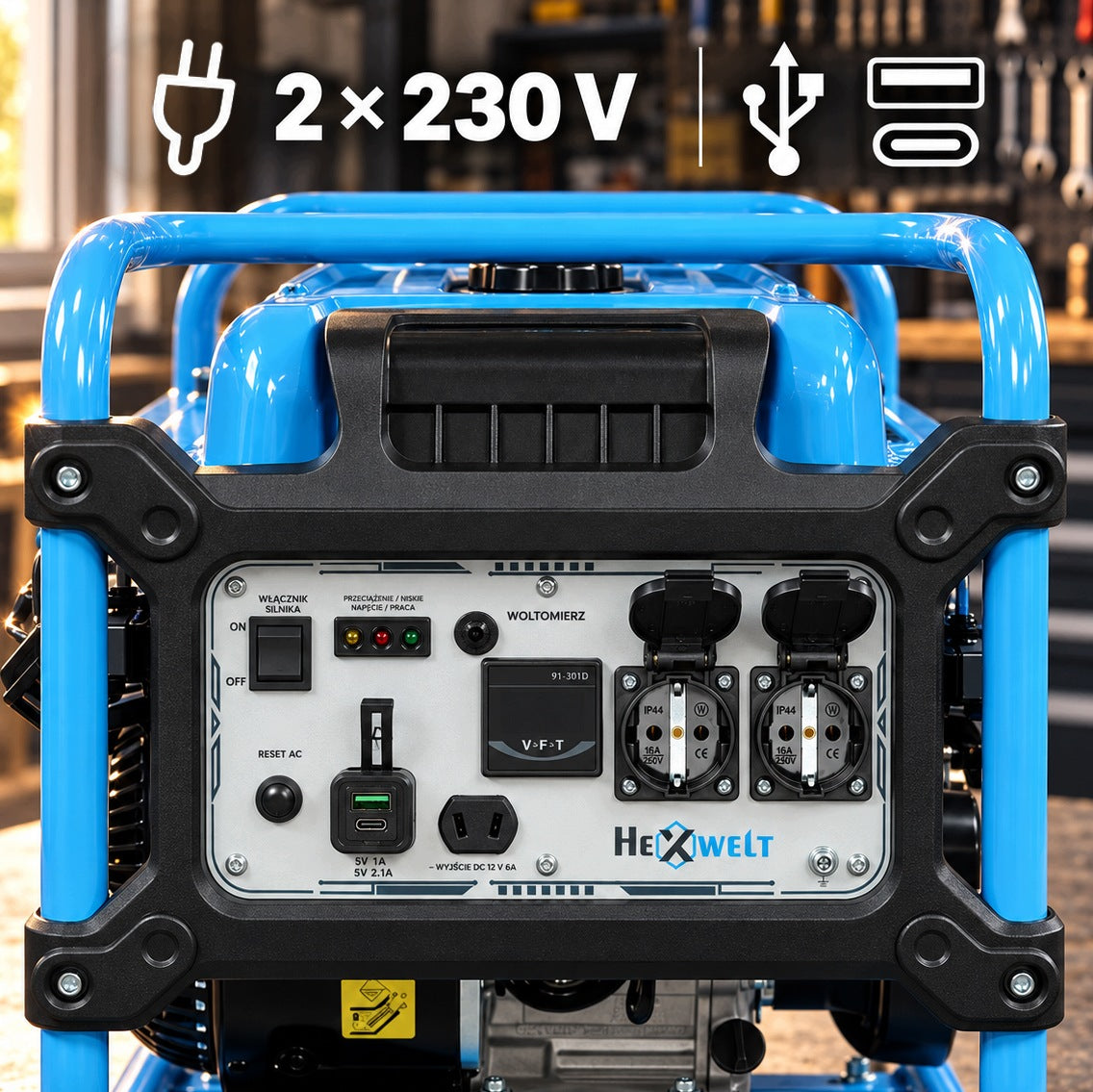

MANY POSSIBILITIES OF CONNECTION

The unit is equipped with a set of outputs that allow you to power various devices:

• 2 × socket 230 V
• 1 × USB
• 1 × USB Type-C
• DC output 12 V / 6 A
• USB ports with parameters 5 V / 1 A and 5 V / 2,1 A

Thanks to this, one device can support both classic 230 V receivers and selected devices using USB.

VOLTMETER AND WORK CONTROL

The unit has a voltmeter, DC circuit protection and three indicator lights related to the operation and overload of the device. This makes it easier to control the condition of the unit during use.

UP TO 4,8 HOURS OF OPERATION ON A FULL TANK

The declared working time on a full tank is about 4,8 hours. Actual time may depend on load level and working conditions.

FUEL TANK 10 L.

A larger tank means fewer fuel replenishment breaks.

The tank capacity is 10 liters

FUEL LEVEL INDICATOR

The built-in fuel level indicator allows you to control its amount on an ongoing basis and better plan the further operation of the device.

MANUAL STARTER

The device is activated using the manual starter. This is a simple solution that does not require an additional boot system.

OIL AND ENGINE OPERATION

The capacity of the oil system is 0,6 l. The audit documentation indicates the possibility of using oils:

• 10W-30, 10W-40, 15W-30 and 15W-40.

The unit also has an air filter and a strainer at the fuel filler, which support the proper operation of the unit.

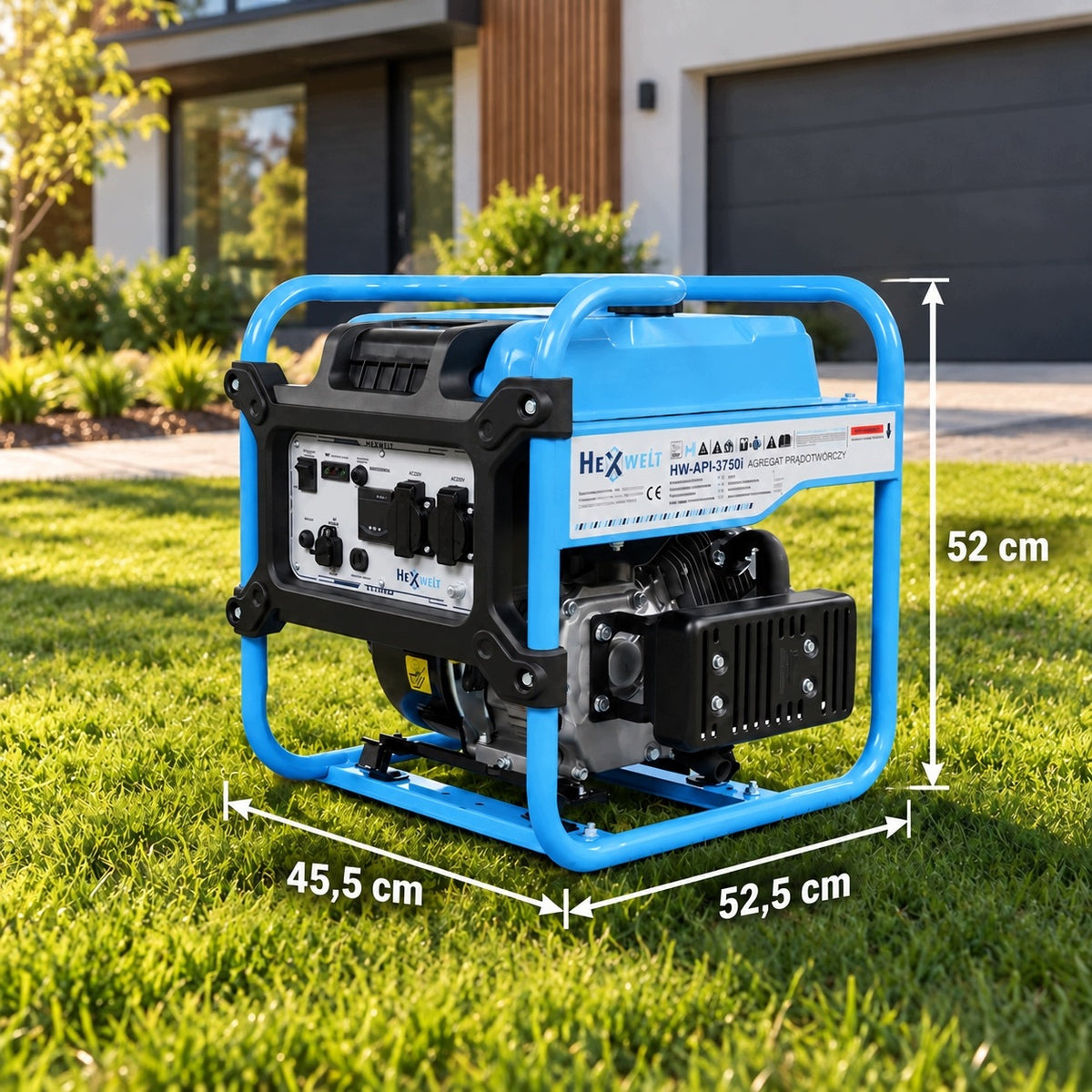

COMPACT DIMENSIONS AND WEIGHT 26,25 kg

• The net weight of the aggregate is 26,25 kg and the gross weight with packaging is 28,5 kg. The carton measures 51 × 46 × 53 cm.

IN THE SET YOU GET THE NECESSARY ACCESSORIES

• generator set
• instruction in 15 languages
• 2 × 230 V plug
• 4 × anti-vibration pad
• key to candles
• 4 × fixing screw with washers and nuts
• fuel funnel

The product is protected in cardboard and foil, and the instructions and accessories are packed separately.

HEXWELT HW-API-3750i

Aggregate for a customer who wants to know real parameters of the device, kit equipment and connection options before buying. Power up to 3,8 kW, 223 cm³ motor, copper generator winding and a wide set of outputs create a functional power source for applications requiring independent access to energy.

FAQ – FREQUENTLY ASKED QUESTIONS

1. What is the power of HEXWELT HW-API-3750i?

The unit offers 3,5 kW of nominal power and 3,8 kW of maximum power. The operating frequency is 50 Hz.

2. What engine is used in the aggregate?

The model is equipped with a 4-stroke BS170F OHV engine with a capacity of 223 cm³ and a power of 8 hp / 5,97 kW.

3. Does the unit have a copper winding?

Yes. The winding of the generator is made of copper.

4. What sockets and outputs does the unit have?

The device has 2 × 230 V, 1 × USB, 1 × USB Type-C and DC 12 V / 6 A output. USB ports work with 5 V / 1 A and 5 V / 2,1 A parameters.

5. How long can the unit run on a full tank?

The fuel tank has a capacity of 10 l, and the declared working time on a full tank is up to about 4,8 hours. Actual time depends on the load and working conditions.

6. Does the unit have a fuel level indicator and operating parameters control?

Yes. The device is equipped with a fuel level indicator, a voltmeter, DC circuit protection and three indicator lights related to operation and overload.

7. How does the unit start?

The unit has a manual starter.

8. What oil can be used and how much do you need?

The capacity of the oil system is 0,6 l. The documentation indicates oils 10W-30, 10W-40, 15W-30 and 15W-40.

9. What is included in the set?

The set includes aggregate, instructions in 15 languages, 2 230 V plugs, 4 anti-vibration pads, a candle wrench, 4 mounting screws with washers and nuts and a fuel funnel.

10. Is this an inverter unit?

Yes. HEXWELT HW-API-3750i is an inverter unit.
