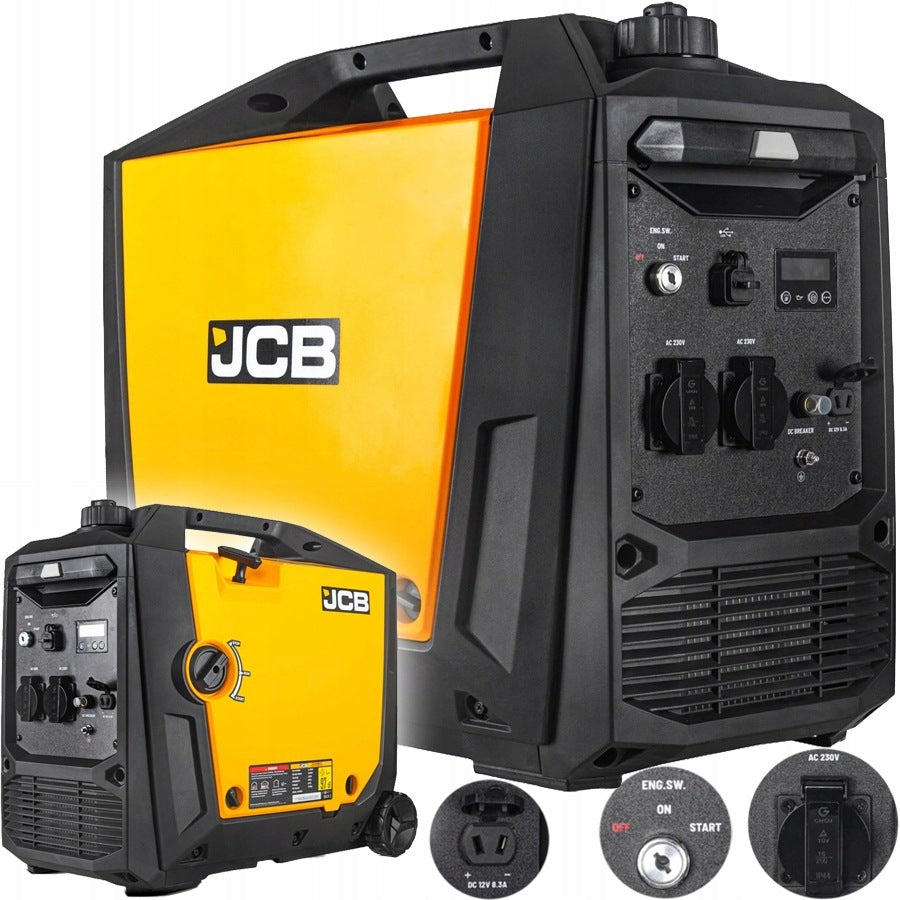

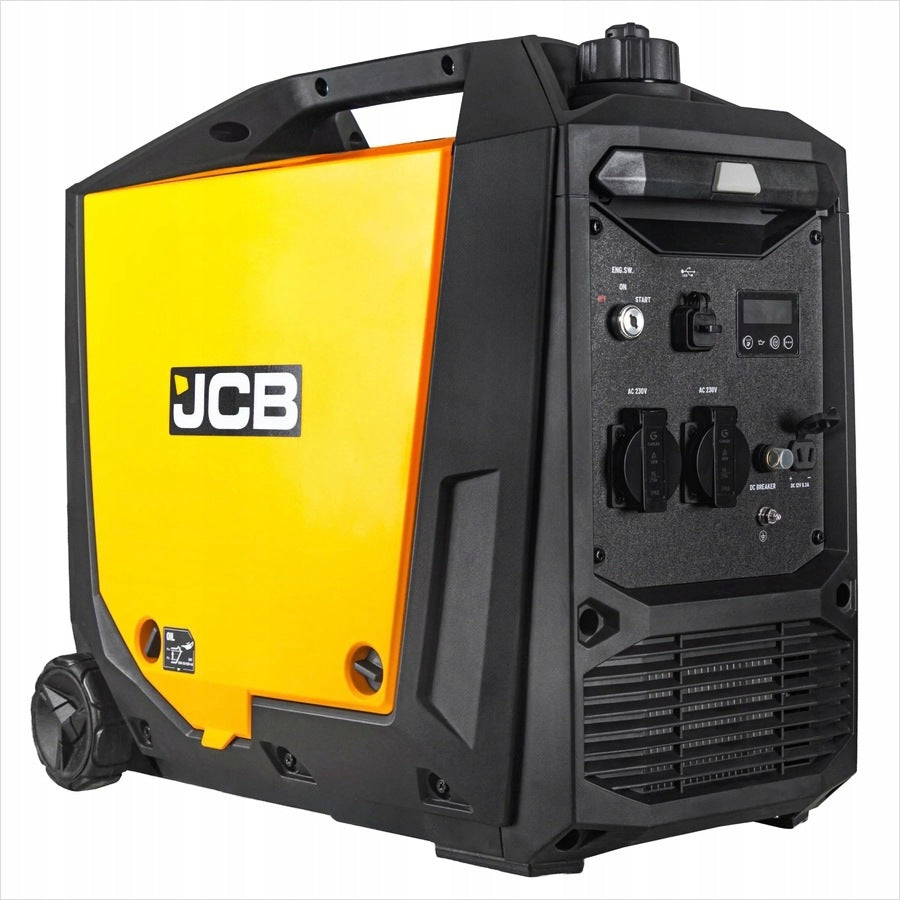

Benzīna invertora ģenerators JCB IG4200, 3,8 kW, 230 V

Trumpai apie prekę

Prekė: Benzininis inverterinis generatorius JCB IG4200, 3,8 kW, 230 V. Kategorija: Elektros generatoriai.

• Gamintojas: JCB
• Modelis: IG4200E
• Įtampa: 230 V

DESCRIPTION OF THE PRODUCT:

JCB IG4200E-EU is a powerful aggregate andnover designed to power single-phase devices of 230 V. It offers 3800 W of continuous power and 4200 W of peak power, thanks to which it provides a greater power supply when working with power tools, home appliances, electronic equipment and receivers used in the field.

The inverter technology used ensures stable output voltage parameters, which is why the unit can also power more demanding electronics, controllers, computer equipment or measuring devices.

The model is equipped with an electric E-Start actuated with a key and a classic manual starter. Thanks to this, daily operation is convenient, and in an emergency, the engine can still be started manually.

The larger fuel tank with a capacity of 9 liters, ECO mode and compact design make the IG4200E well suited both as a mobile power source and protection in the event of a power grid failure.

KEY FEATURES:

• Continuous power 3800 W – large supply for powering home, workshop and field equipment
• Top power 4200 W – additional reserve during a temporary increase in energy consumption
• Inverter technology – stable power supply also for sensitive electronics
• Voltage 230 V – cooperation with popular single-phase devices
• E-Start with key – quick and convenient starting of the engine
• Manual start-up – additional possibility of starting the unit
• ECO mode – adjusting the engine speed to the current load
• 2 sockets 230 V 16 A – possibility of powering several devices
• 12 V DC output and USB – additional options for connecting receivers
• Display of operating parameters – easier control of the unit
• Low oil indicator – additional engine protection
• Overload protection with AC Reset – protection of the output system
• Suppressor with spark protection – increased work safety
• Fuel tank 9 l – greater convenience during extended use
• Weight 29,5 kg – a good combination of high power and mobility

TECHNICAL DATA:

• Producer: JCB
• Model: IG4200E-EU
• Reference: JCB-IG4200E-EU
• Type: inverter aggregate
• Continuous power: 3800 W
• Peak power: 4200 W
• Rated voltage: 230 V
• Frequency: 50 Hz
• Rated current: 16,5 A
• AC sockets: 2 × 230 V 16 A
• DC Output: 12 V
• USB port: yes
• Engine: 4-stroke OHV, single cylinder, air-cooled
• Engine capacity: 174 cm³
• Engine speed: 4500 rpm /min
• Ignition system: TCI
• Spark plug: F7RTC
• Candle gap: 0,7 – 0,8 mm
• Starting system: electric E-Start + manual
• Fuel: lead-free petrol
• Fuel tank capacity: 9 l
• Recommended oil: SAE 10W30
• Oil system capacity: 0,45 l
• ECO mode: yes
• Overload protection / AC Reset: yes
• Low oil level indicator: yes
• Silencer with spark protection: yes
• Sound power level LwA: 95,7 dB(A)
• KpA/KwA uncertainty: 3 dB(A)
• Dimensions: 585 × 360 × 530 mm
• Net weight: 29,5 kg

INVERTER TECHNOLOGY – STABLE POWER SUPPLY:

JCB IG4200E uses an inverter system that electronically processes the generated energy and stabilizes the output voltage parameters.

Thanks to this, the unit can be used to power not only classic power tools, lighting or working devices, but also equipment more sensitive to energy quality.

It will work, among others, with power supply:

• consumer electronics
• computers and power supplies
• controllers
• measuring devices
• automation
• chargers
• devices used in motorhomes and camping

E-START AND MANUAL START:

The aggregate is equipped with an electric E-Start start system, which allows you to start the engine with a key.

This is particularly convenient with regular use, as it eliminates the need to use the starter cable every time.

At the same time, manual start-up has been maintained, which is an additional possibility of starting the device e.g. in the event of battery discharge.

ECO MODE – ECONOMICAL WORK:

The ECO function allows you to adjust the engine speed to your current energy demand.

With less load, the engine can run at lower speeds, which translates into:

• reduction of fuel consumption
• lower load on the power unit
• quiet work
• more economical use of the aggregate

This is especially practical when powering receivers whose power consumption changes over time.

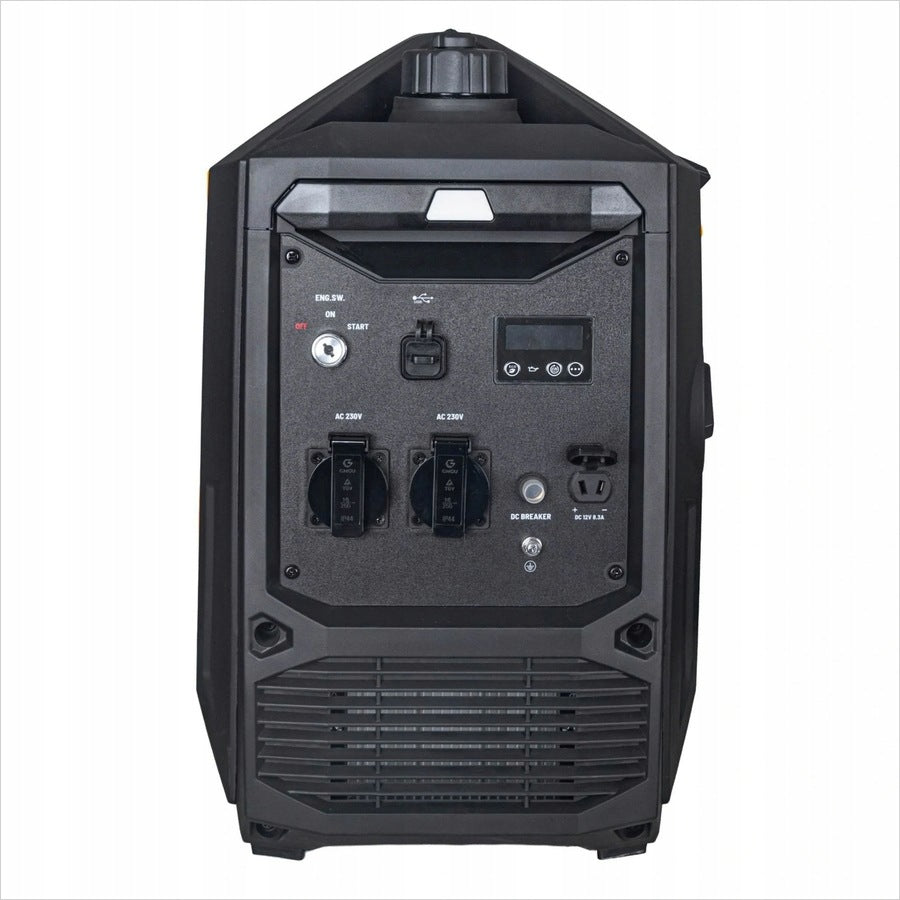

FUNCTIONAL CONTROL PANEL:

The aggregate panel is equipped with the most important connectors and control elements:

• 2 × socket 230 V 16 A
• DC 12 V output
• USB port
• display of operating parameters
• exit readiness indicator
• overload indicator
• low oil indicator
• ECO mode
• AC Reset function

In case of overload or short circuit, the power supply of the outputs is disconnected, and after removing the cause, you can restore the work using the AC Reset function.

4-STROKE OHV ENGINE:

The drive source is a single-cylinder, four-stroke OHV petrol engine with a capacity of 174 cm³, air-cooled.

The engine operates at speeds up to 4500 rpm. /min, uses TCI ignition system, and SAE 10W30 is the recommended oil.

The higher engine capacity compared to the smaller model allows to achieve 3,8 kW of continuous power and 4,2 kW of peak power.

FUEL TANK 9 L:

Model IG4200E is equipped with a gasoline tank with a capacity of 9 liters.

A larger fuel supply is particularly useful for extended use on construction sites, plots, on farms or during emergency power supply, as it reduces the need for frequent refuelling.

At the same time, the unit remains relatively compact – its net weight is 29,5 kg.
