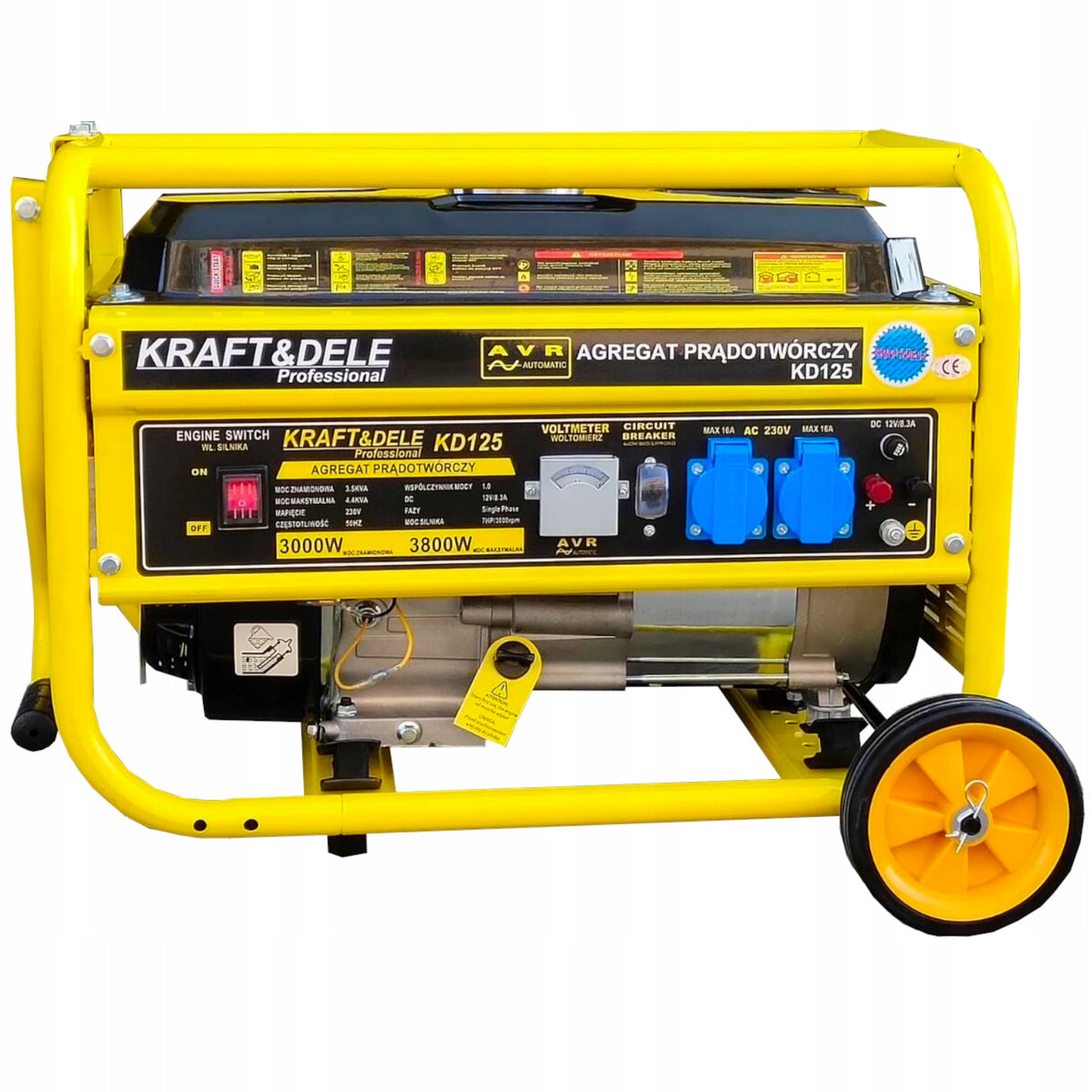

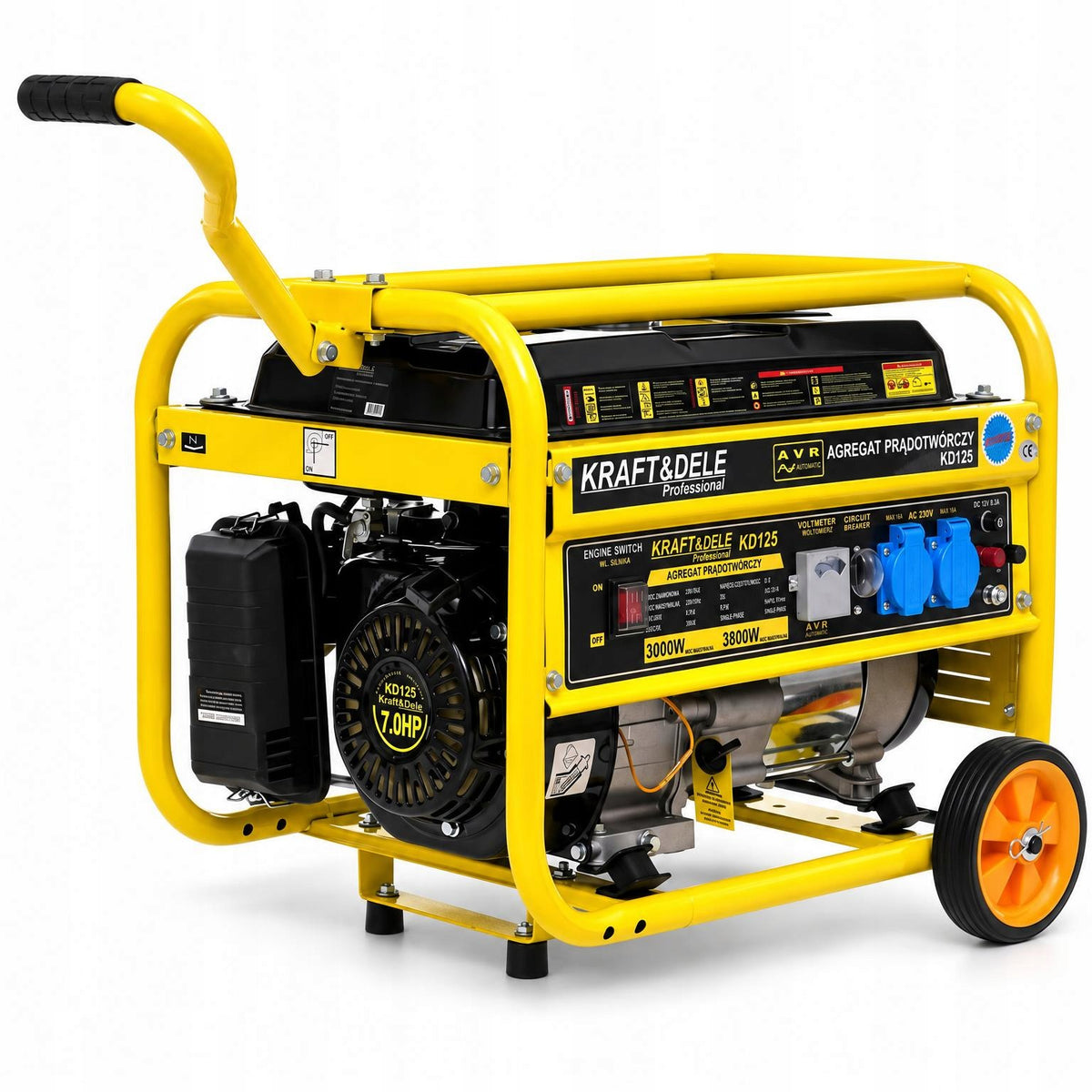

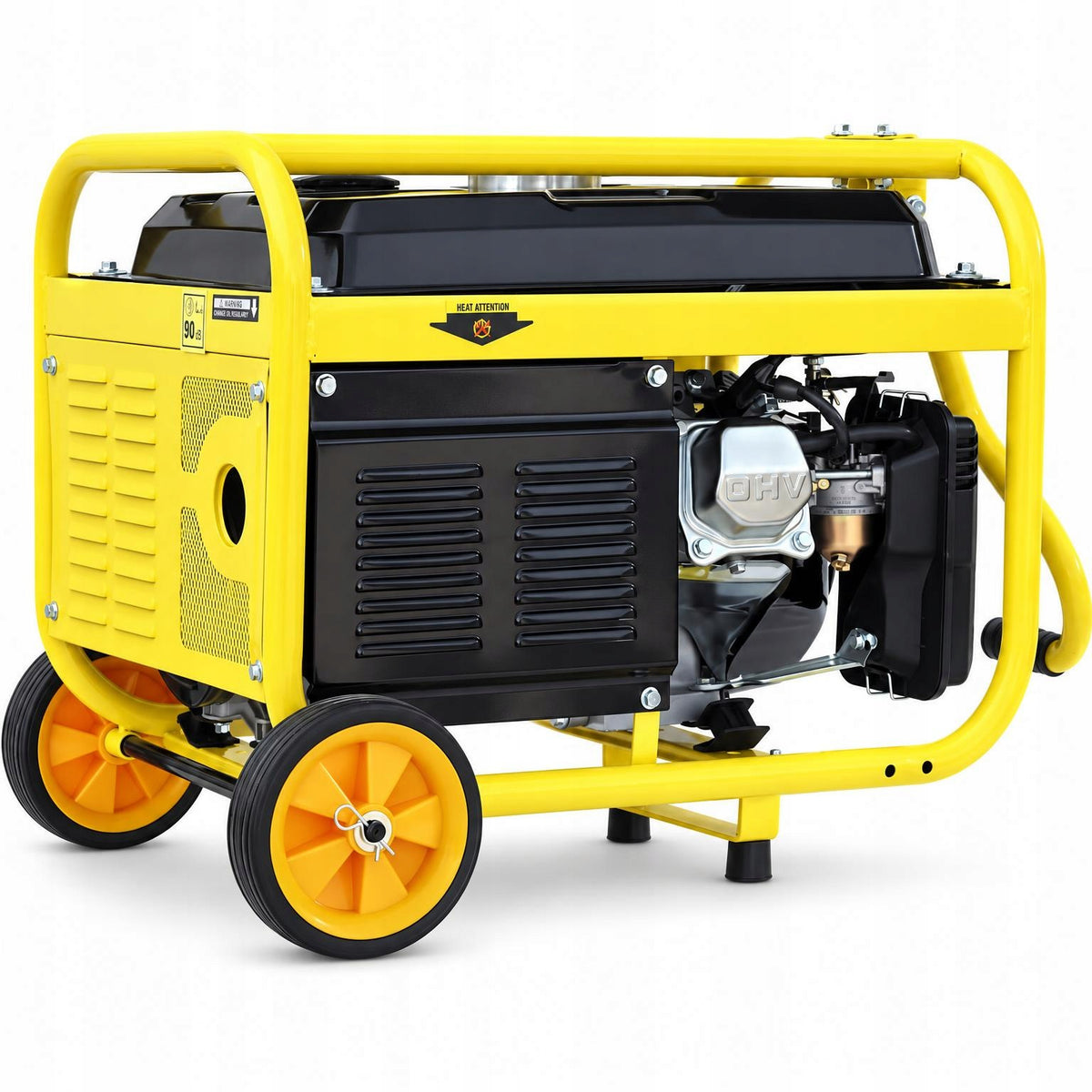

Benzīna vienfāzes ģenerators KRAFT&DELE, 3800W, 230V, 15L

Trumpai apie prekę

Prekė: Benzininis vienfazis generatorius KRAFT&DELE, 3800W, 230V, 15L. Kategorija: Elektros generatoriai.

• Gamintojas: Kraft&Dele
• Modelis: KD125
• Įtampa: 230 V

Portable single-phase unit will work as an emergency power source and during work and trips outside the home. The petrol engine, 15 l tank and two 230 V sockets form a practical set for using electricity away from a permanent installation.

• Nominal power 3000 W – a clear reference point when selecting devices for power supply
• Maximum power 3800 W – additional power over face value
• 2 sockets 230 V – possibility of connecting two receivers
• 1 output 12 V – additional possibility of using the unit
• Reservoir 15 l – about 12 hours of operation on one tank
• 4-stroke engine with 7 HP power – power unit of the unit
• Handle and wheels – easier movement of the device weighing 39 kg

Generator: nominal and maximum power

The generator offers 3000 W of nominal power and 3800 W of maximum power. Distinguishing these values helps to plan the load wisely: when selecting devices that are to work for a long time, be guided primarily by the nominal power. The maximum power describes the higher value achieved by the unit, not its nominal load.

Single-phase voltage of 230 V and frequency of 50 Hz allow you to use the unit as an energy source for properly selected receivers. Before connecting several devices, it is worth taking into account their total power demand, especially when one of them consumes more energy at start-up.

What distinguishes the Kraft&Dele unit

• 3000 W nominal power and 3800 W maximum – two clearly defined values facilitate load selection
• About 12 hours of operation on a 15 l tank – more convenient work planning without frequent fuel replenishment
• Two 230 V sockets and 12 V output – various options for connecting receivers
• Voltmeter and voltage regulator – equipment helpful when using the unit
• Wheels and transport handle – easier to move the device between workplaces

The unit responds to a load change: with low demand, it operates at lower speeds, and when the load increases, it automatically increases the speed. This solution adapts the engine operation to the current use of energy.

Handle and wheels for easy transport

The unit weighs 39 kg, so the way it is moved matters. Transport handle and wheels help to move it to the desired place without having to carry all the weight each time.

This is useful when you use the unit in different parts of the property, prepare a workstation outside or transport the device to the place of departure. The frame surrounds the components and the unit is mounted on cushioning cushions. The dimensions of 55 × 60 × 80 cm allow you to plan the space needed for storage and transport in advance.

4-stroke air-cooled engine

The source of the drive is a 4-stroke engine with 7 HP power, powered by unleaded petrol 95 or 98. The engine is air-cooled and the aggregate is started manually. This is specific information that makes it easier to prepare fuel and station before starting work.

When planning the location, take into account the operation of the internal combustion engine and its exhaust system. The unit should be used outdoors, away from openings leading to buildings. This allows you to use its emergency power supply without setting up a working device in your home or office.

15 l tank and fuel level indicator

The tank holds 15 l of unleaded petrol 95 or 98. The approximate working time on one tank is about 12 hours, and the average combustion is 1,2 l/h. These values help to estimate the amount of fuel needed per working day or departure; the actual time depends, among other things, on the load of the unit.

The built-in fuel level indicator makes it easy to control the condition of the tank without guessing how much gasoline is left. It is especially useful when the unit is supposed to work for many hours and you want to plan the refueling moment before a longer power outage.

Emergency power supply and outdoor applications

The unit can serve as an emergency source of energy for properly selected devices used in the home or office. It is also useful where access to a permanent electrical system is difficult: during a stay at the campsite, when working in the field and in the surroundings of vehicles such as motorhomes, trucks or tractors.

You can also consider its use during trips related to a boat or yacht and when powering devices used for work. In any case, select receivers for a single-phase power supply of 230 V and a nominal power of 3000 W. Put the working unit outside – not in the room, vehicle or on board in an enclosed space.

Panel with two 230 V sockets, 12 V output and voltmeter

On the panel there are two single-phase sockets 230 V. They allow you to connect two receivers without limiting yourself to one starting point of the generator, as long as their total demand is within the capabilities of the generator. The additional 12 V output extends the range of applications of the device.

Voltmeter allows you to observe the voltage indication during operation, and the voltage regulator is part of the aggregate equipment. Clear focus of sockets and control elements on one panel makes it easy to check settings and organize connected wires.

Specification

• Brand: Kraft&Dele
• Model and manufacturer code: KD125
• EAN: 5903957000398
• Condition: new
• Type and type: portable single-phase aggregate
• Nominal power of generator: 3000 W / 3 kVA
• Maximum generator power: 3800 W / 4,4 kVA
• Voltage and frequency: 230 V / 50 Hz
• Engine: 4-stroke, air-cooled
• Engine power: 7 HP
• Fuel: unleaded petrol 95 or 98
• Startup: manual
• Capacity of tank: 15 l
• Working time on the tank: about 12 hours
• Average combustion: 1,2 l/h
• Single-phase sockets 230 V: 2
• Output 12 V: 1
• Voltage regulator, voltmeter and fuel level indicator: yes
• Sound pressure level: 90 dB(A)
• Materials: stainless steel, aluminium, plastic
• Attachment: cushioning cushions
• Color: yellow, black
• Dimensions (H × W × D. ): 55 × 60 × 80 cm
• Weight of the device: 39 kg
• Weight with unit packaging: 40 kg

Equipment useful from the first start-up

The set includes two 230 V plugs and a set of cables for charging batteries, which allows you to use the aggregate output designed for this purpose. The candle wrench and screwdriver are handy tools for your device operation activities.

The set also includes a instruction manual for using in Polish. Before the first start-up, it is worth familiarizing yourself with the principles of preparing the unit, connecting receivers and safe operation described in it.

The set includes

• 1x Kraft&Dele KD125 generator set
• 1x set of battery charging cables
• 2x 230 V plug
• 1x candle wrench
• 1x screwdriver
• 1x instruction manual in Polish
