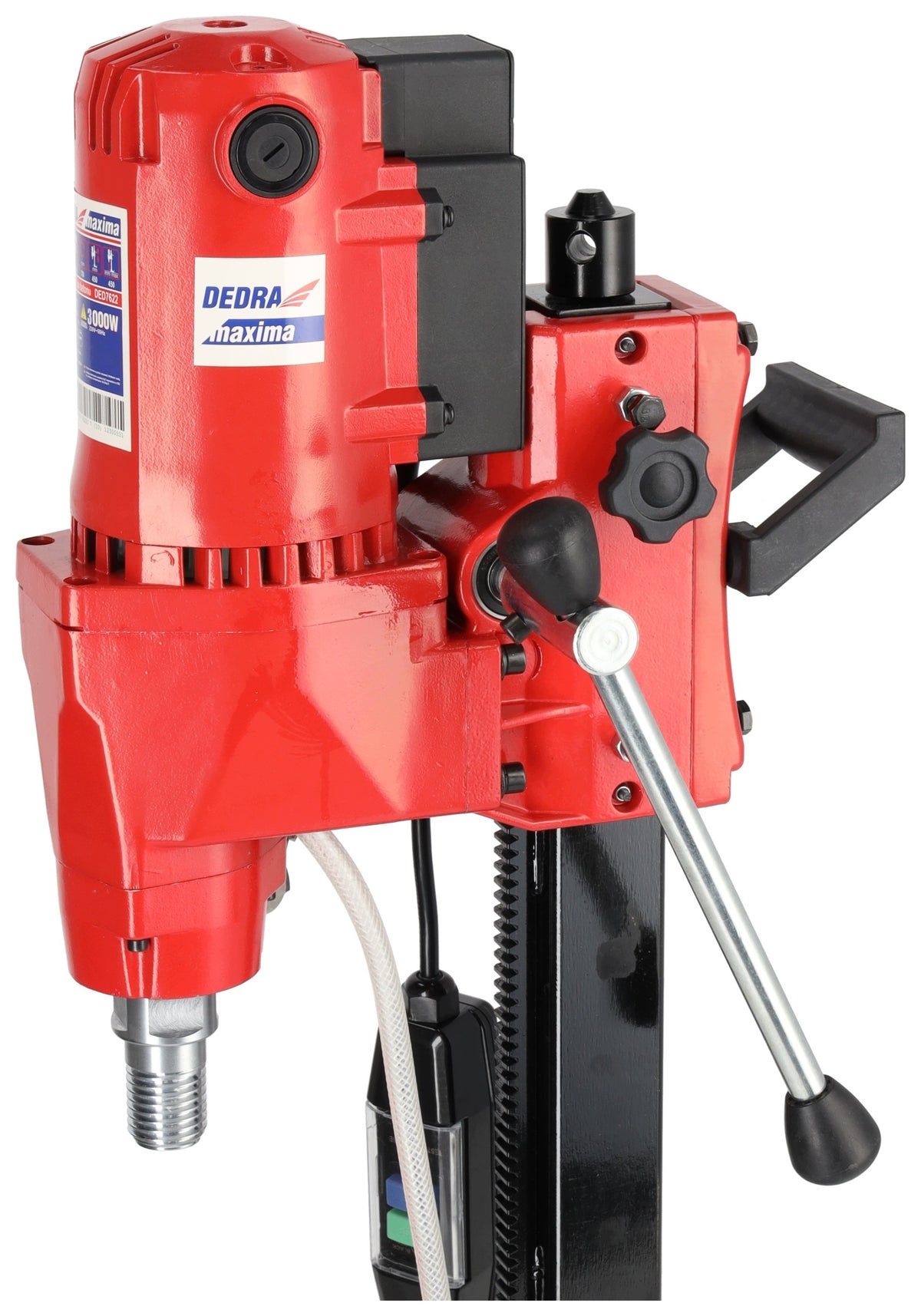

Betono gręžimo staklės DEDRA, deimantinė karūna 80–205 mm, su stovu, 3000 W

Trumpai apie prekę

Prekė: Betono gręžimo staklės DEDRA, deimantinė karūna 80–205 mm, su stovu, 3000 W. Kategorija: Grunto grąžtai.

• Gamintojas: Dedra
• Modelis: DED7622
• Svoris: 23.8 kg

Ø 80 to 205 mm | Tripod | Crown Mount: 1 ¼'' | Water Cooling | Overload Clutch | PRCD Module

Solid diamond drill

Designed for making precise, large holes in concrete, reinforced concrete, brick, stone and other hard materials.

Drilling range Ø80 – 205 mm, power 3000 W, speed 700 rpm /min, stable tripod and standard 1¼" crown mount ensure installation and construction work as well as for demanding workshop applications.

Features and technical parameters of the DEDRA DED7622 drilling rig:

• Engine power: 3000 W
• Supply Voltage: 230V, 50Hz
• Number of Gears: 1
• Rotation speed: 700 rpm
• Drilling ground clearance on a tripod: 450 mm
• Tripod drilling stroke: 450 mm
• Drilled hole diameter range: 80-205 mm
• Mounting Thread Diameter: 1 ¼'
• Degree of protection: IP20
• Water dispensing system
• Tripod for anchoring to the ground
• Quick change system for electrographite brushes
• Anti-overload clutch
• PRCD module
• Weight of the device: 23,8 kg
• Package Dimensions: 80 x 34 x 23 cm

Included with the drill are:

• Tripod with base and drill holder
• Feed lever arm
• lever arm nut
• ampule key
• Flat Wrench
• Set of electrographite brushes
• Assembly instructions in Polish
• Warranty card – 2 years of service protection

Large holes Ø 80 – 205 mm

Drilling rig supports diamond crowns ranging from 80mm to 205mm

This allows you to do m.in.:

• installation culverts
• holes for pipes
• sewerage passages
• ventilation openings
• electric culverts
• technological holes
• passage through walls and concrete elements.

(Diamond crown not included)

3000 W – power for large crowns

The 3000W motor is designed to work with large diamond crowns.

It is a suitable solution for making large culverts in concrete and reinforced concrete, where an ordinary drill or hammer drill does not provide adequate stability and the possibility of using a large lace.

Stable tripod included – precise drilling

The drilling rig is designed to work on a stable tripod that can be anchored to the ground.

This solution allows you to:

• accurately set the drilling site,
• lead the crown without accidentally moving,
• make long and deep holes,
• increase the repeatability of work,
• reduce the burden on the operator.

Tripod parameters:

• clearance: 450 mm
• Drilling stroke: 450 mm

Standard 1¼" crown mount

The drilling rig has a universal 1¼" diamond crown attachment.

This is a popular standard used in diamond drilling rigs for making large holes.

Water cooling

The drilling rig has a water dispensing system, allowing water to be brought to the drilling site.

Water Cooling:

• reduces overheating of lace,
• helps maintain the right temperature during operation,
• reduces dusting,
• allows you to work effectively with crowns designed for wet drilling.

The device can be connected to a suitable water source, e.g. hose or hydronets.

700 RPM /MIN – Speed to large crowns

The drilling rig has 1 gear and a rotational speed of 700 rpm. /min.

It is a solution aimed at working with large diamond crowns.

When drilling large diameters, only the maximum number of revolutions does not count – the right combination of power, rotational speed, stable handling and properly selected lace is crucial.

Safety at work

DEDRA DED7622 is equipped with an overload clutch

The overload clutch helps protect the device in case of excessive load or sudden blockage of the lace. It reduces the transmission of torque to the operator, increasing control over the drilling rig during operation.

The drill is equipped with a PRCD module -

The PRCD module increases operator safety by reducing the risk of electric shock in the event of leakage current.

For concrete, reinforced concrete, brick and stone

The DEDRA DED7622 drilling rig is designed for impact-free diamond crown drilling in:

• CONCRETE
• REINFORCED CONCRETE
• BRICKS
• STONE
• SUPOREXIE AND OTHER BUILDING MATERIALS

The selection of a specific lace should depend on the type of material and the required hole diameter.
