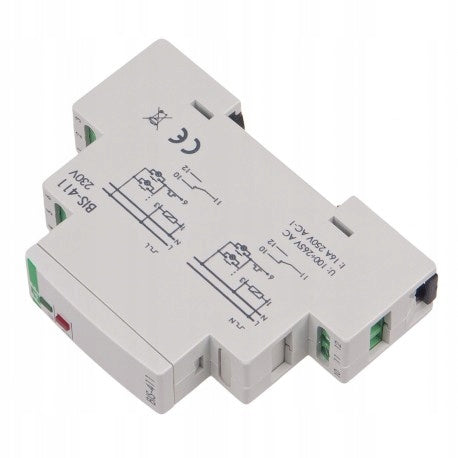

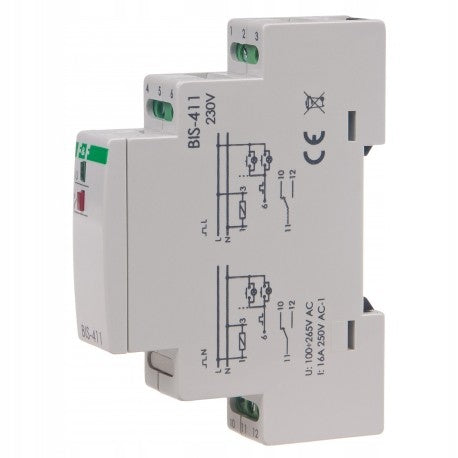

BISTABLE ON-OFF RELAY F&F 230V BIS-411
BISTABLE ON-OFF RELAY F&F 230V BIS-411 Brand F&F
BISTABLE ON-OFF RELAY F&F 230V BIS-411 EAN (GTIN) 5908312594017
Lai tuvinātu, virziet kursoru virs attēla Noklikšķiniet uz attēla, lai tuvinātu
BISTABLE ON-OFF RELAY F&F 230V BIS-411BISTABLE ON-OFF RELAY F&F 230V BIS-411 Brand F&FBISTABLE ON-OFF RELAY F&F 230V BIS-411 EAN (GTIN) 5908312594017

Bistabilus įjungimo-išjungimo relė F&F BIS-411, 230V

Cena:
€45,79
Noliktava:
Pieejams noliktavā

Apraksts

Trumpai apie prekę

Prekė: Bistabilus įjungimo-išjungimo relė F&F BIS-411, 230V. Kategorija: Išoriniai moduliai.

  • Gamintojas: F&F
  • Modelis: BIS-411

Product Description

Power supply: 230 V

Max load: 16 A

Assembly: on 35 mm rail

Works with backlit buttons.

Electronic bistable relay allows to switch on lighting or other device from several different points using parallel connected control buttons

Action

Bistable relay principle of operation:

Switching on the receiver occurs after a current pulse caused by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next pulse or after the power failure.

ATTENTION!

BIS-411 230V can work with backlit buttonsi (? I< 5mA).

  • Power supply voltage: 165÷265 V AC
  • Local control: YES
  • Maximum load current AC-1: 16 A
  • Executive element: relay
  • Contact configuration: 1 × NO/NC
  • Contact separation: YES
  • Resistance to impact currents - cooperation with LED: NO
  • Number of channels: 1
  • Functionality: on/off
  • Delay of action: 0,1 ÷ 0,2 s
  • Control pulse current: less than 5 mA
  • Cooperation with backlit buttons: YES
  • State memory after power failure: NO
  • Turn on time: NO
  • Dedicated central control inputs: NO
  • Radio control: NO
  • Connection: screw terminals 2,5 mm?
  • Tightening torque: 0,4 Nm
  • Power consumption: 0,7 W
  • Working temperature: -25 ÷ 50 °C
  • Dimensions: 1 module (18 mm)
  • Assembly: on 35 mm rail
  • Degree of protection: IP20

Note!!!

Shipping takes place up to two working days/48 hours.

They are made depending on the time of purchase, usually on the same day as the purchase, but for various reasons beyond our control, it can be shipped the next day.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and order fulfillment.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Kind other
Parametry Series BIS-411
Parametry Brand F&F
Parametry Power supply mains
Parametry Manufacturer code BIS-411
Parametry EAN (GTIN) 5908312594017
Parametry Product weight with unit packaging 0.13 kg
