„Bluetooth“ modulis Audi A4 B6, A6, S6, A8, TT, A3, A2 Chorus, Concert, Symphony radijoms

Trumpai apie prekę

Prekė: „Bluetooth“ modulis Audi A4 B6, A6, S6, A8, TT, A3, A2 Chorus, Concert, Symphony radijoms. Kategorija: Siųstuvai.

• Gamintojas: SSYET
• Modelis: USB AUX VW AUDI SKODA SEAT

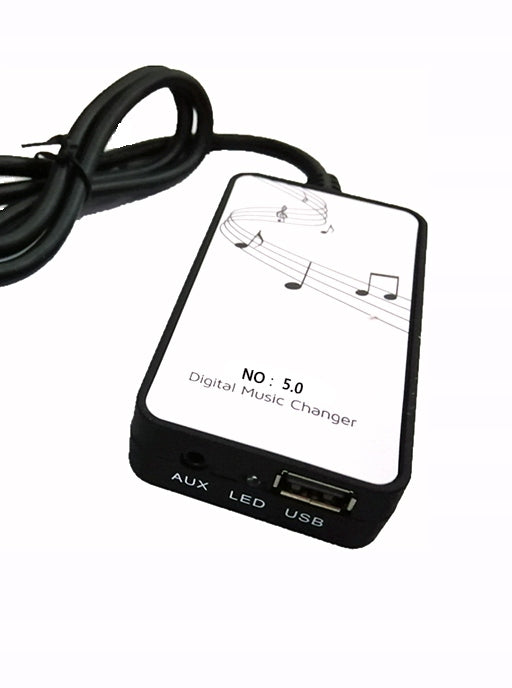

Adapter Module with bluetooth speakerphone designed for cars: Audi

Enabling wireless playback of Bluetooth music via factory radio, conducting conversations, as well as playing music via usb and aux port, the module is operated from the radio and steering wheel.

• Conversations

Thanks to the built-in bluetooth module in version 5.0, we can conduct hands-free conversations

• Bluetooth music (A2DP)

Music can be streamed wirelessly streaming from your phone from apps such as Tidal, Youtube, Spotify, Deezer, mp3 from your phone, voice messages and more

• USB

Thanks to USB, we can play music from pen drive do 64 gb in popular foormats such as MP3 and FLAC

• AUX

We can connect a JACK cable to the device (external device)

Support devices with radio level and steering wheel (AVRCP)

Connection plug&play

The module is connected directly to the factory radio in a dedicated port (plug&play) , the device can be placed in the glove compartment and the microphone can be removed in a convenient place

Equipment enables the following options

• Connecting to factory plug & play player
• Hands-free calling
• Transfer music from your phone wirelessly from the app (youtube, tidal, spotify, etc.) or music tracks, voice messages, etc.
• Play songs from usb up to 64gb, in format : mp3 , flac ,wav
• Support from the steering wheel and radio

AUDI

Audi A2 1999-2005

Audi A3 2001-2006

Audi A4/S4 1998-2006

Audi A6/S6 2001-2004

Audi A8/S8 1999-2003

Audi ALLROAD 2000-2005

Audi TT 1999-2005

FULL NAME OF RADIOS COOPERATING WITH THE AUDI 8PIN/20PIN ADAPTER:

Audi Chorus 2, Concert 1, Concert 2, Symphony 1, Symphony2, Navigation Plus 1, Navigation Plus 2 (without MMI)

. .

AUDI

Audi A3 2008-2010

Audi A4/S4 2007-2009

Audi R8 2006-2009

Audi TT 2007-2010

FULL NAME OF RADIOS COOPERATING WITH THE CHANGER (AUDI RADIO 12PIN):

Audi

Concert 3, Chorus 3, Symphony 3,

Chorus 2 Plus, Concert 2 Plus, Symphony 2 Plus

Navigation Plus 3,

Delta 6, Delta 7,

Navi Bns 5.0 (WITHOUT MMI), Navi Rns-E (WITHOUT MMI), Altea CD01

. .

• Plug & play installation
• A2DP wireless music streaming
• Conducting hands-free conversations
• Steering wheel operation
• support up to 594 songs (6 folders of 99 songs)
• memory of the last played track
• small dimensions of the device
• power supply from the radio
• plays mp3, wma, flac format
• support pen drive (64GB), jack-jack (AUX cable)
• Folder support
• Simple navigation from the radio
• clear sound

-DAC resolution:20BIT

- Harmonic distortion: 0,05%

-S/N ratio: 90db

- 20Hz-20Khz frequency response

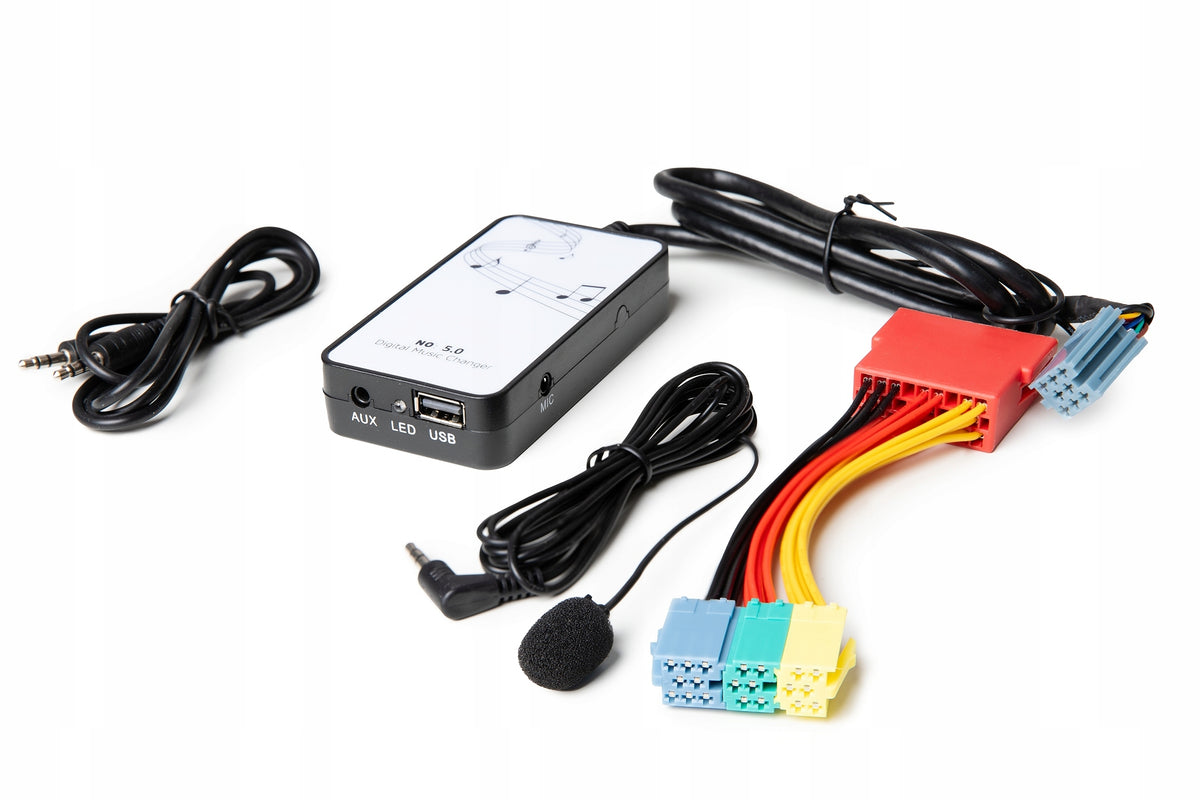

Assembly 20pin

1. Turn off the ignition in the car, pull out the radio (no need to drink power)

2. We remove the wide bone from the radio (photo1), prepare the received adapter 20 pin (photo2) , use the received adapter as a transition (photo3) , plug in a dedicated radio port (photo4)

3. Mass cable (wire with eye) is connected to the screws on the radio

4. Start the ignition and check the correct operation of the device.

5. If the test passes correctly, it will wipe the wire from the changer and place the radio in your pocket.

Assembly 12pin

1. Turn off the ignition in the car, pull out the radio (no need to drink power)

2Adapter plug into a dedicated port.

3. Mass cable (wire with eye) is connected to the screws on the radio

4. Start the ignition and check the correct operation of the device.

5. If the test passes correctly, it will wipe the wire from the changer and place the radio in your pocket.

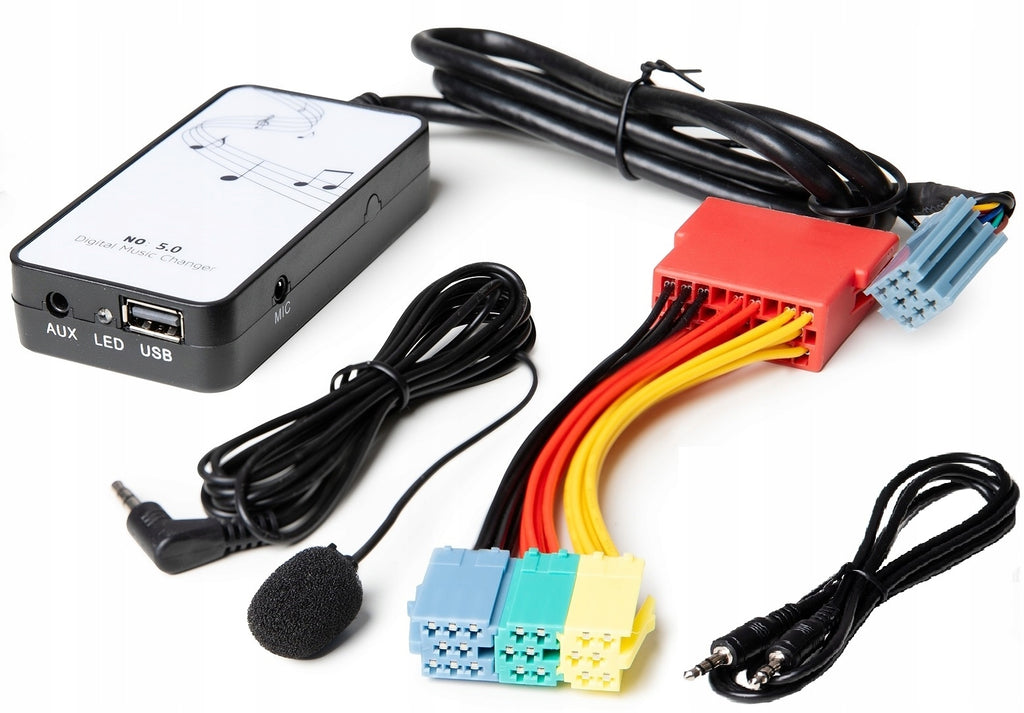

-Bluetooth changer

-microphone

-Connection cable with radio

-jack-jack cable

-Instructions in language. Polish

Specifications
