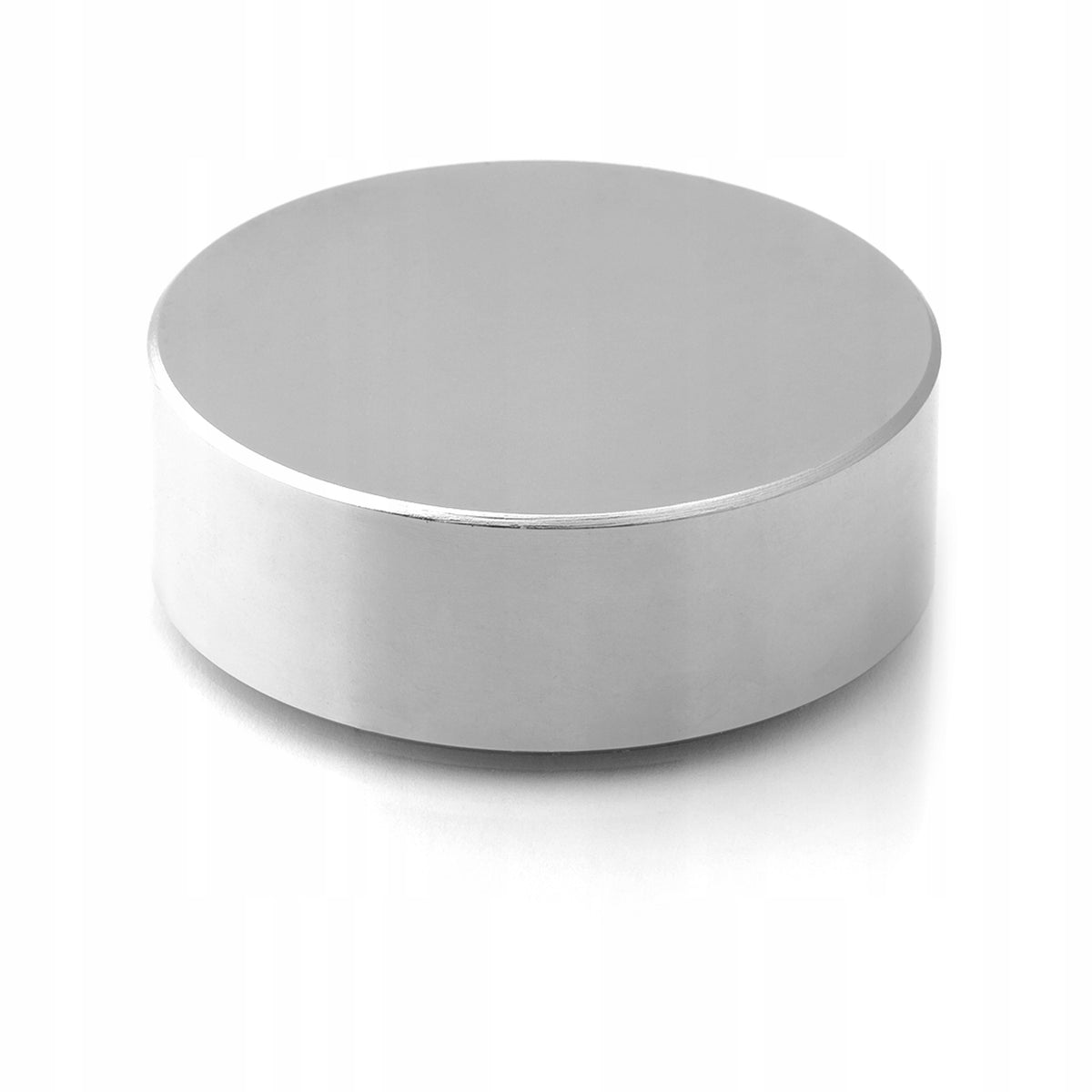

Cilindrinis neodimio magnetas MW 45x15 N38

Trumpai apie prekę

Prekė: Cilindrinis neodimio magnetas MW 45x15 N38. Kategorija: Neodimio magnetai.

• Gamintojas: Euromagnesy
• Modelis: MW 45x15 N38

The auction concerns 1 pieces of cylindrical, neodymium magnet with dimensions:

• Diameter 45 mm (+/- 0,1 mm)
• Height (Thickness): 15 mm (+/- 0,1 mm)
• Coating: Ni+Cu+Ni

Neodymium magnets, despite their sometimes small size, are considered the strongest magnets in the world. They receive their neodymium power by combining several components that produce a very strong magnetic field in the right proportion. There are several types of neodymium magnets - cylindrical, ring and plate magnets, which further expands their application possibilities.

They are one of the strongest magnets on the market, and thanks to their strength and small size, they have many technical, commercial or consumer applications.

They are used m.in. In:

• medicine
• Headphone design
• sensors
• gauges
• engines
• clips

• Magnet weight: ~ 178,83 g
• Magnet lift capacity: ~ 41,37 kg
• Maximum operating temperature: 80°C

• Coercive Hcb ≥11,3 [kOe]; ≥899 [kA/m]
• Br 1,22-1,25 [T];12,2-12,5 [kGs]
• Energy density (BH)max 287-310 [kJ/m3]; 36-39 [MGOe]
