DALI šliuzas euLINK Lite Fibaro, MODBUS RTU/TCP, RTS

Trumpai apie prekę

Prekė: DALI šliuzas euLINK Lite Fibaro, MODBUS RTU/TCP, RTS. Kategorija: Išoriniai moduliai.

• Gamintojas: Eutonomy
• Modelis: EULINK LITE

An absolute novelty on the market.

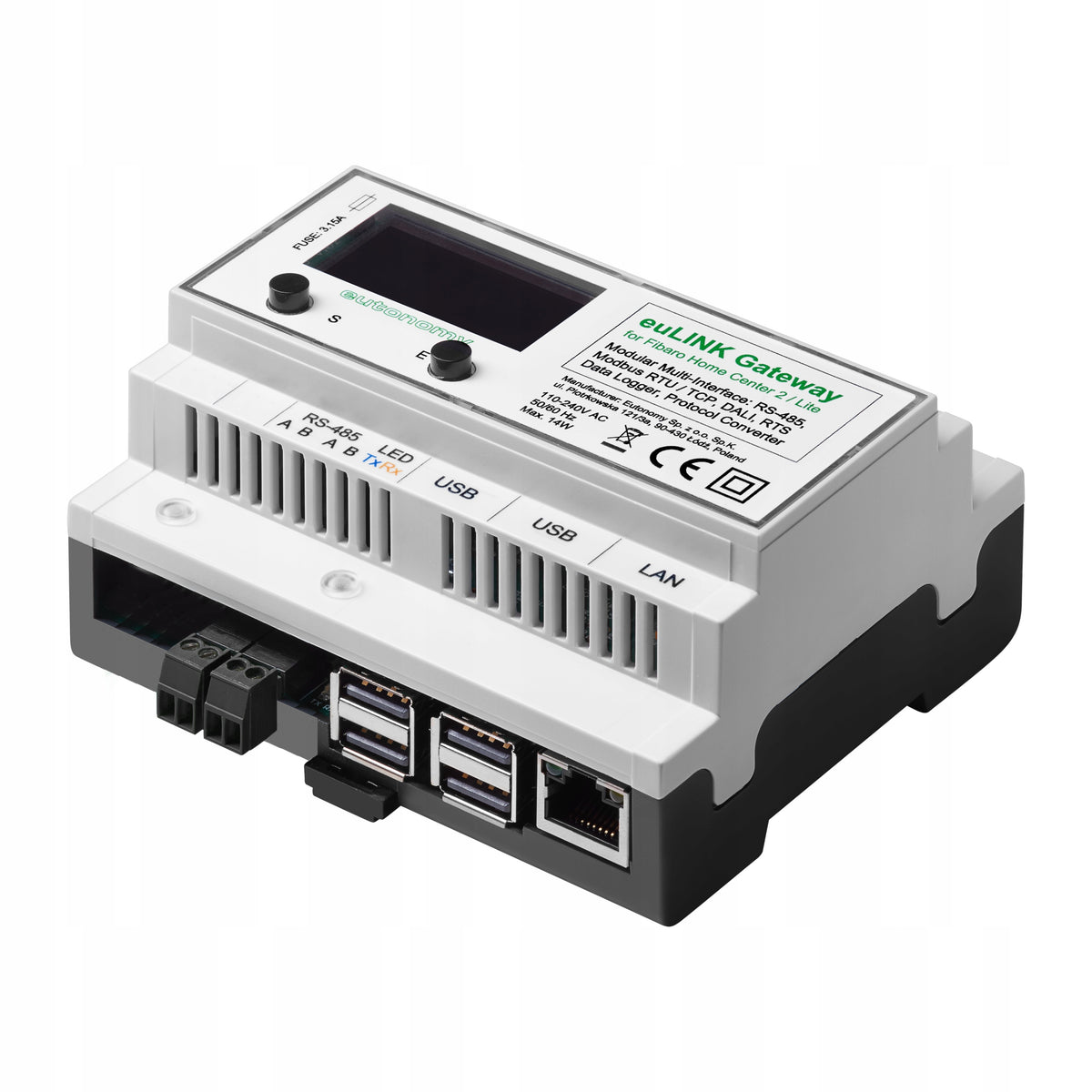

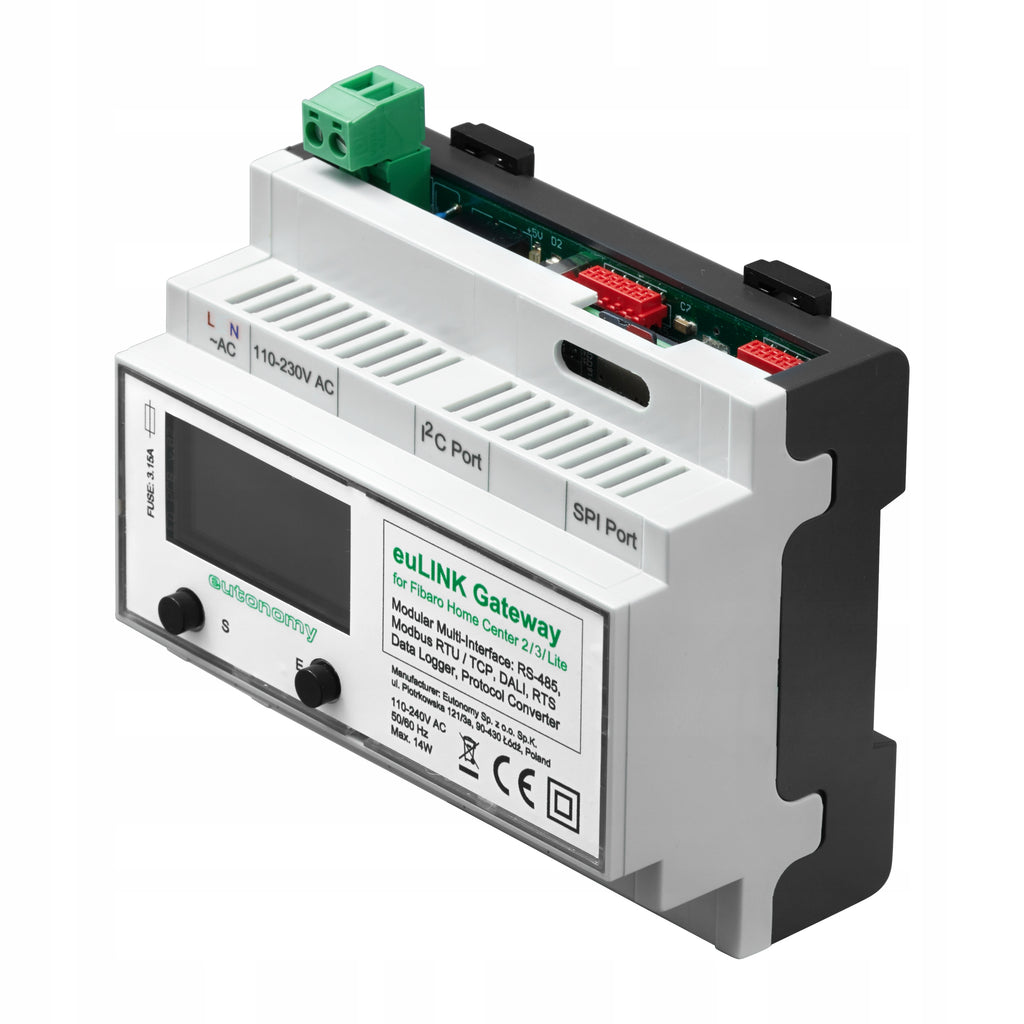

Multi-protocol gate euLINK Lite 1G RS-485/MODBUS/DALI.

The device is dedicated to integration with the FIBARO system of products communicating via the DALI bus and/or using Modbus RTU /TCP, RTS protocols.

The euLINK gateway is a unique device that integrates FIBARO with DALI lighting control systems.

Necessary FIBARO & DALI integration devices:

1. The euLINK gateway for DALI control requires an additional device which is the euLINK DALI port, the device must be purchased separately and is available at our auctions.
2. We can connect 1-2 DALI ports to the euLINK Lite gateway.
3. We can connect 1-4 DALI ports to the euLINK 2G gateway.
4. Each port can communicate with DALI's 64 "addresses".
5. Each euLINK DALI port also requires the purchase and installation of a 15V DALI bus power supply (available at our auctions).

How is the FIBARO & DALI integration implemented?

1. We can configure a new group of DALI luminaires, as well as control an existing (previously fully configured) group of DALI luminaires.
2. Each DALI "address" is a single LED single color lighting fixture or 1 with 3 colors for RGB lighting. If we use sensors or other devices in the DALI installation, each of them will be represented in the DALI network as a separate "address"
3. The euLINK gateway scans the connected installation via the DALI port and thus has an up-to-date list of luminaires on the DALI bus. Attention!!! any luminaire or other device must be pre-programmed to be visible in the DALI bus. For this you should use a special device and/or software dedicated to DLAI (DALI programmer available at our auctions).
4. The luminaires prepared in this way (or groups thereof) are then automatically imported into the Fibaro HC2/HCL/HC3/HC3L/YUBII control panel as virtual devices with the same bulb icon as ordinary Fibaro modules (e.g. dimmers).
5. After correctly importing devices from the euLINK gateway to the FIBARO control panel, the status of each brought lighting fixture is automatically updated in the FIBARO control panel, but it does so only if it detects the actual state change on the DALI bus. Pressing the "bulb" icon in the FIBARO application (on a smartphone, tablet or computer) will send from the FIBARO control panel to euLINK the command to turn on or off the appropriate DALI luminaire, which will be converted into a command sent via the DALI bus with the destination address of the indicated DALI luminaire or group of luminaires. In this way, the FIBARO user is able to control DALI luminaires in the same way as light sources powered by Z-Wave modules.

• If the DALI luminaire has dimming functions, it will be represented as a "bulb with slider",
• If the luminaire performs only the on/off function, it will be a bulb as a kind of switch (as is the case, e.g. for FGS-223 modules).
• The euLINK gateway also supports DALI LED RGB(W) luminaires.

euLINK is an extremely simple common communication platform for all installations and facilities operating in the IoT (Internet of Things) space in the building.

With it, you can connect:

• electrical, telecommunications, HVAC (heating, ventilation, air conditioning, etc.),
• alarm,
• sound systems,
• monitoring,
• safety,
• Measurements and virtually all others that may be in the building.

euLINK is the ONLY SOLUTION ON THE MARKET dedicated to the FIBARO platform and offering such wide functionality.

Below we present the DALI port, which is an essential device for the implementation of FIBARO integration - DALI

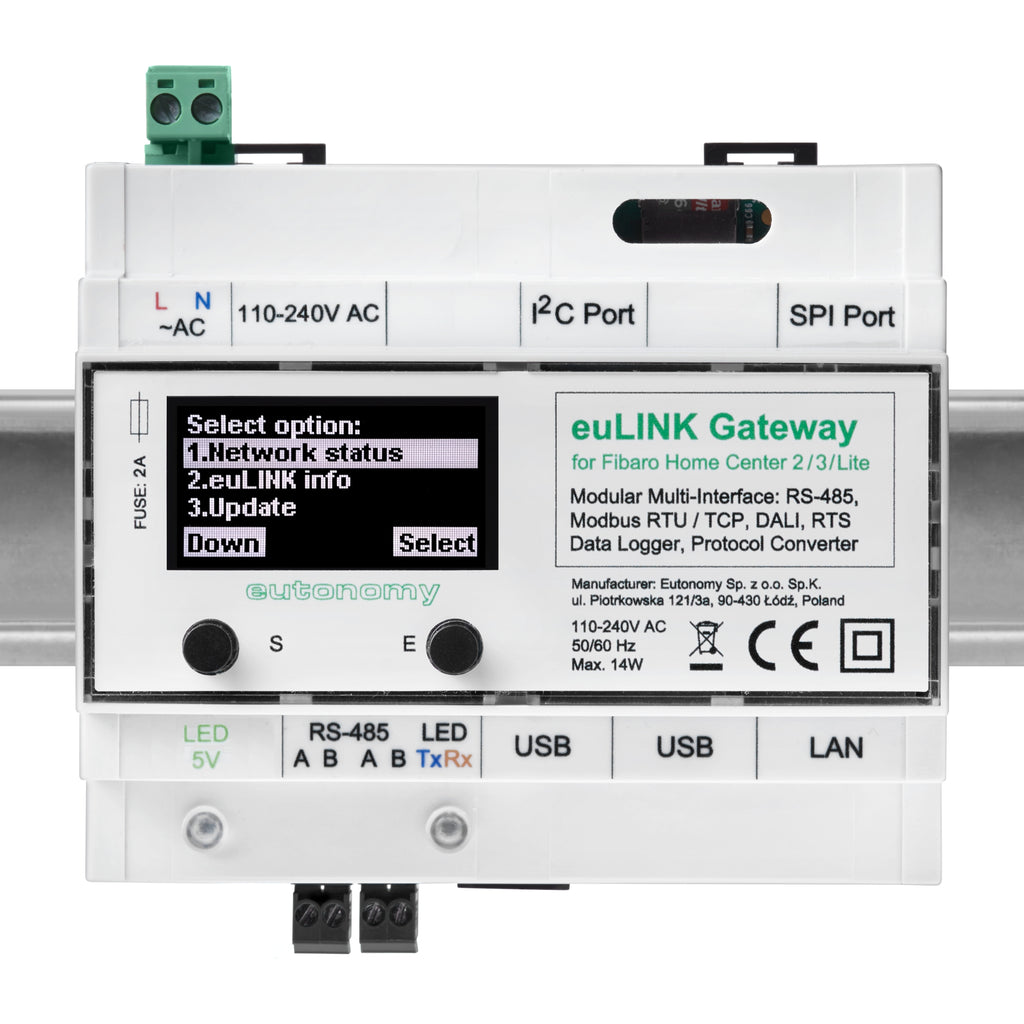

Installation of the port on the DIN rail

The tape comes with a cascade connection and expansion with additional ports.

Specifications
