DC-DC keitiklis 12V į 5V, 5A

Trumpai apie prekę

Prekė: DC-DC keitiklis 12V į 5V, 5A. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

DC converter 24V/36V/48V to 12V 5A 60W input 17 to 55V IP67

• Converts DC input voltage 17 to 55V to DC output voltage 12V. Suitable for DC power supply installations with a rated voltage of 24V, 36V and 48V, provided that the actual input voltage is within the specified range. The output current is 5A and the output power is 60W. It enables 12V DC power supply of devices with appropriate voltage and power requirements.

• Aluminum housing and silicone flooding support heat dissipation and provide protection against dust, water and shocks. Compact design with mounting holes for easy installation.

Product advantages

• Wide DC input voltage range: DC input voltage 17 to 55V allows use in various DC power supply systems.

• DC 12V output: for powering devices with a rated voltage of 12V, the load of which falls within the range of output capabilities of the converter.

• Aluminum alloy housing: supports heat dissipation and provides mechanical protection.

• Silicone flooding: protects internal components and increases resistance to moisture, dust and shock.

• Protection rating IP67: for installation in areas requiring protection against dust and water.

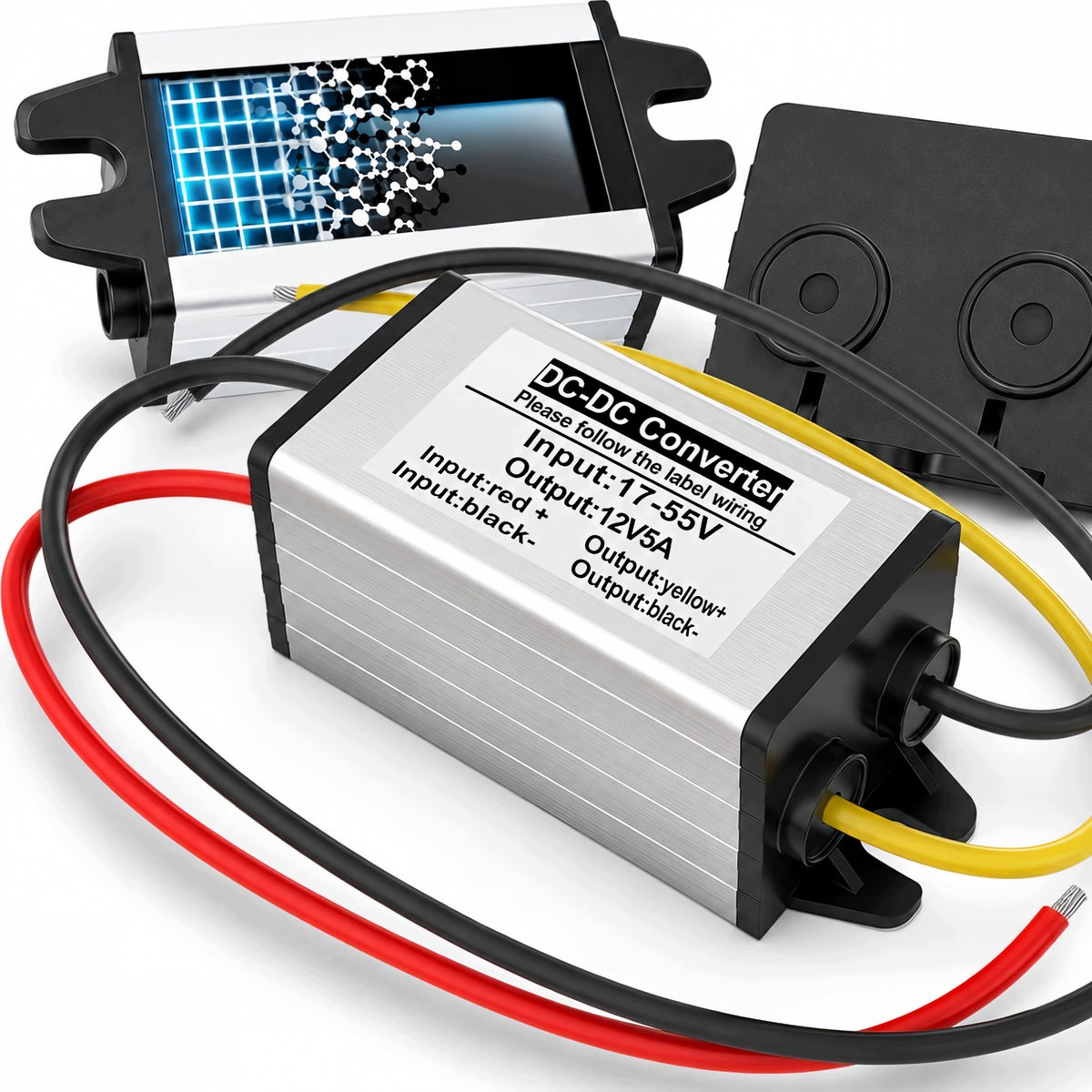

• Four connection wires: clearly marked positive and negative poles of inputs and outputs make it easy to identify and connect.

Voltage converter connection diagram

① Rechargeable battery (17 – 55V)

② Positive pole of entry

③ Negative pole of entry

④ DC-DC Lowering Converter

⑤ Positive pole output

⑥ Negative pole exit

⑦ Device connected to output (12V 5A)

Application

• For powering 12V LED lighting, electronic modules and other DC devices with compatible parameters. It can also be used to process voltage in auxiliary power circuits inside devices.

• When selecting the converter, check the operating and starting current of the powered device. In the case of motors, water pumps and similar loads, an adequate supply of current capacity shall be ensured during start-up.

Technical parameters

• Product type: DC-DC voltage lowering converter

• Input voltage: DC 17 – 55V

• Supported installation rated voltages: 24V / 36V / 48V; actual input voltage must be in the range of 17 to 55V

• Output voltage: DC 12V

• Output current: 5A

• Output power: 60W

• Housing material: aluminium alloy

• Flooding material: silicone

• Degree of protection: IP67

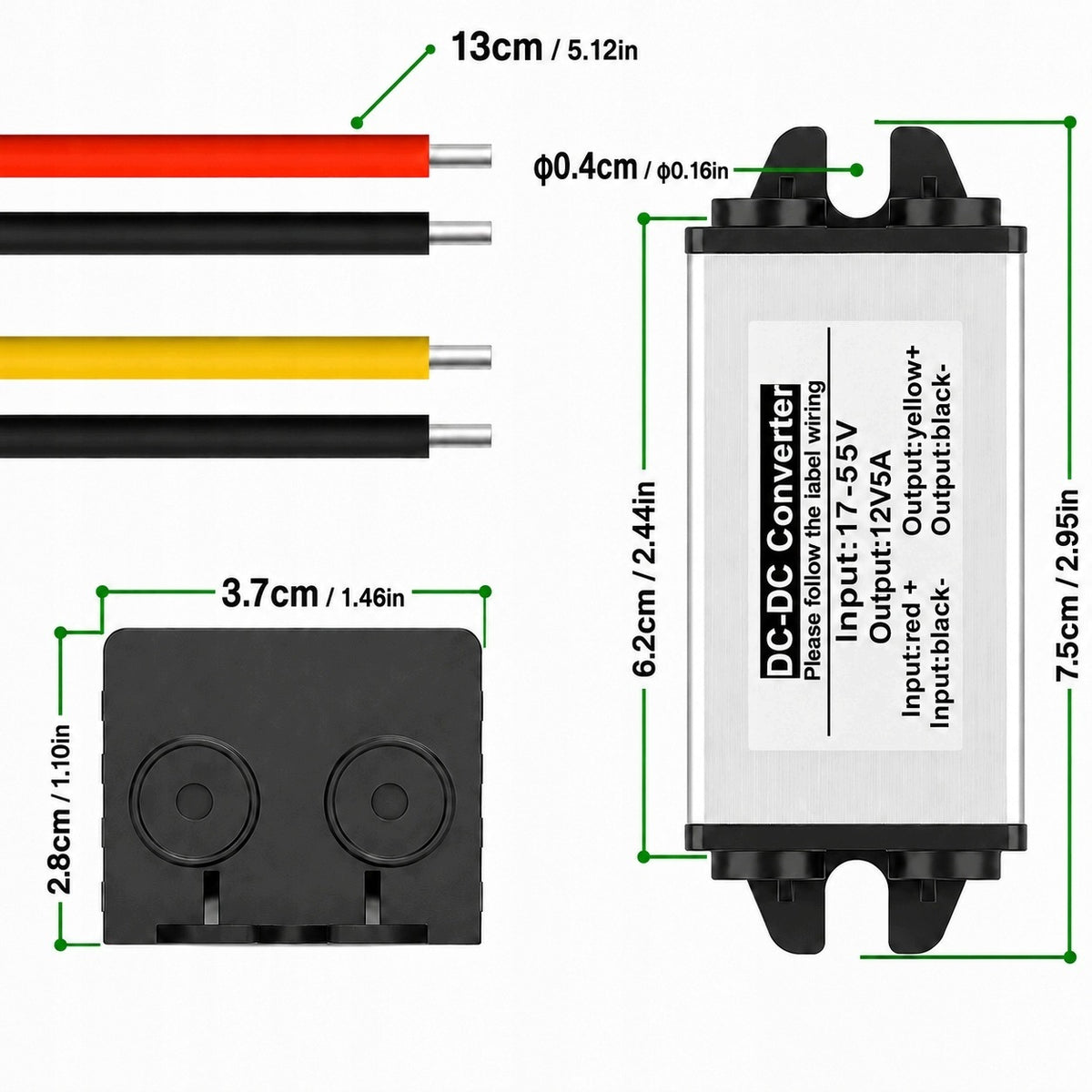

• External dimensions: approx. 75 × 37 × 28mm, with mounting brackets, without wires

• Housing length: approx. 62mm

• Mounting hole wheelbase: approx. 67mm, details on dimensional drawing

• Diameter of mounting holes: Ø4mm

Notes on installation and use

① Connection of wires should be made with the power supply disconnected. Before turning on the power supply, make sure that the input, output and positive and negative poles are properly connected.

② The product is a constant voltage lowering converter. It must not be connected directly to the AC network.

③ The actual input voltage must remain in the DC range 17 to 55V. When powered from the battery, check its voltage after a full charge.

④ The power source must provide sufficient power. The load must not exceed the output capabilities of the converter; an adequate supply must also be left.

⑤ The place of installation should allow effective heat dissipation so that its accumulation does not interfere with the operation of the device.

⑥ Wire connections should be additionally insulated and protected against water. The degree of protection of the housing does not mean that exposed connections have the same level of protection.
