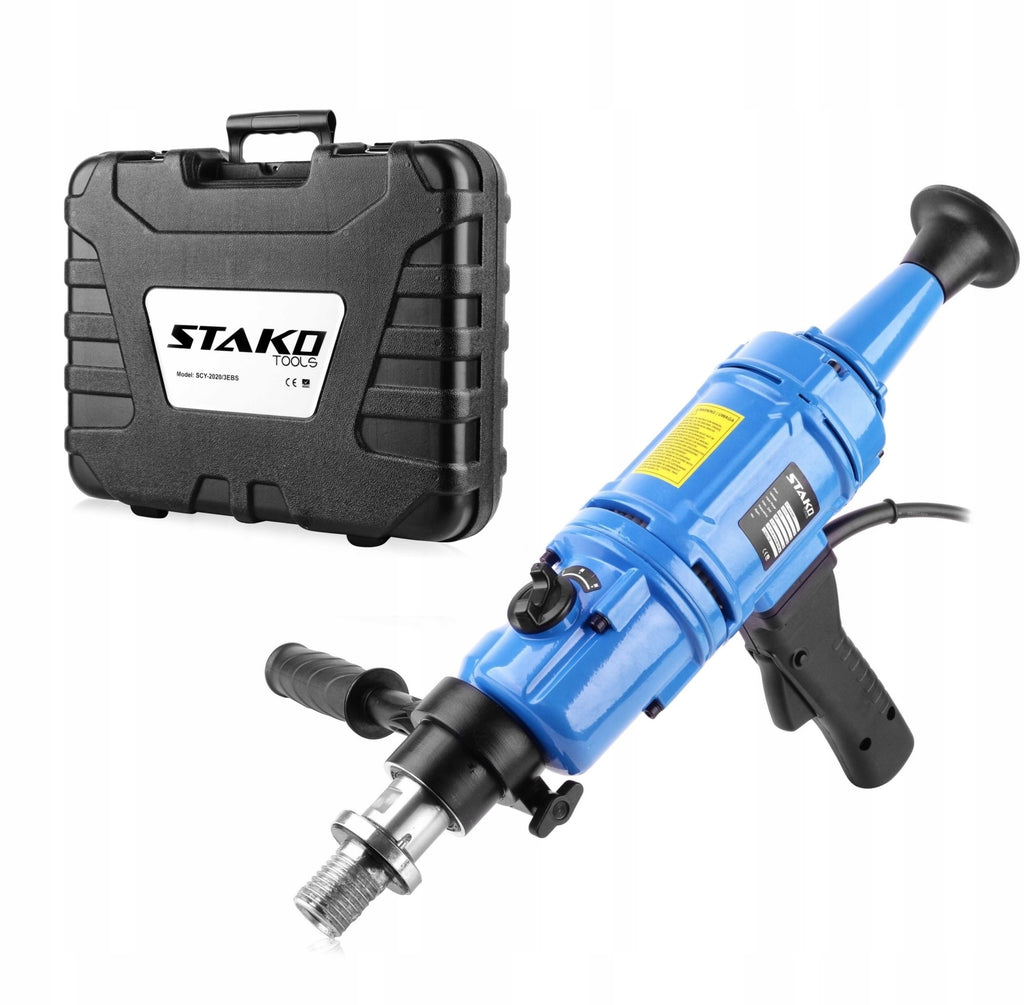

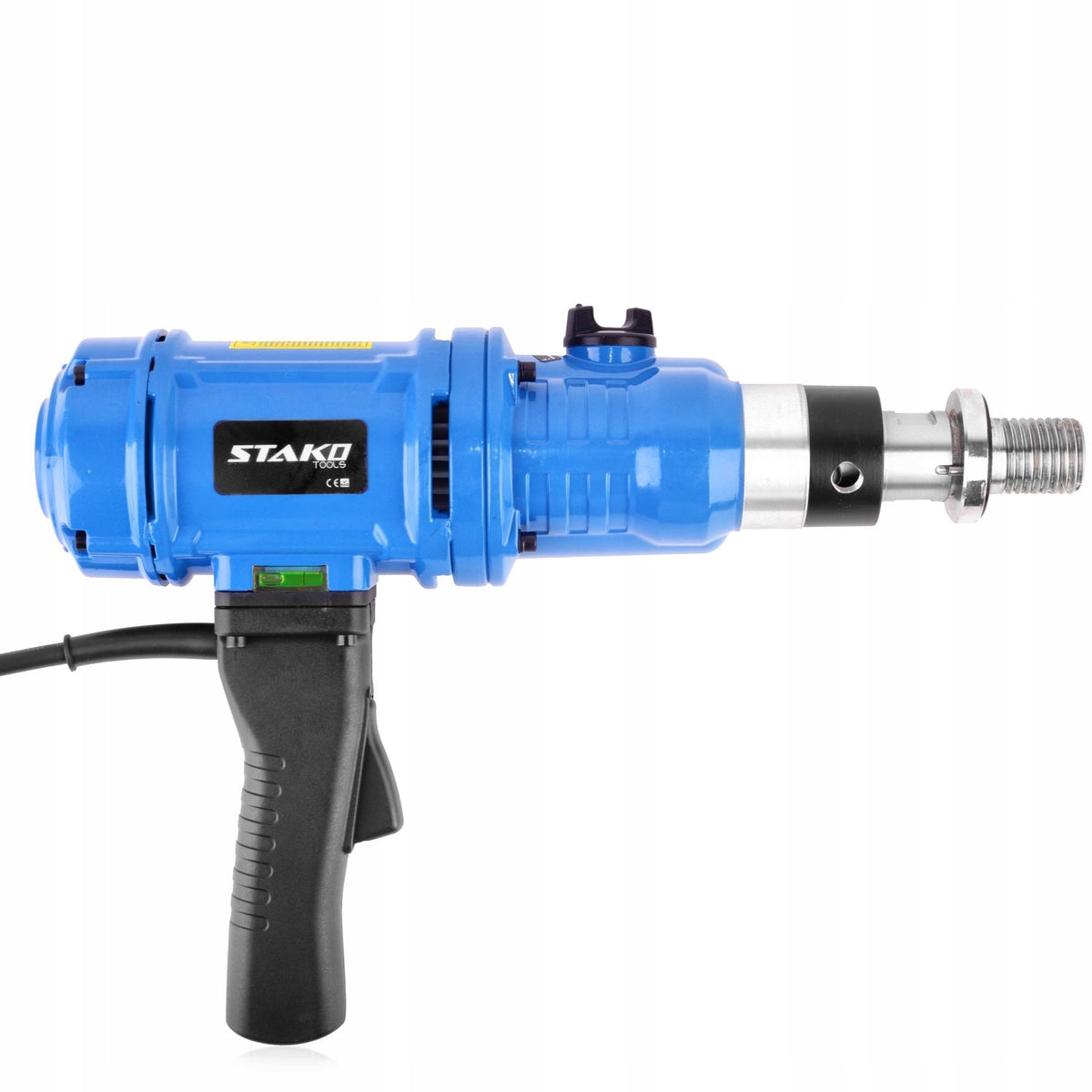

Dimanta urbja kronis betonam STAKO, 202 mm, 3 pārnesumi, 2730 apgr./min.

Trumpai apie prekę

Prekė: Deimantinė gręžimo karūna betonui STAKO, 202 mm, 3 pavaros, 2730 aps./min.. Kategorija: Grunto grąžtai.

• Gamintojas: Stako
• Modelis: SCY-2020/3EBS
• Svoris: 6 kg

* Designed for professional applications in the construction industry, for drilling holes with diamond crown drills, in various types of hard materials such as: concrete, reinforced concrete, brick, stone, etc.

TECHNICAL DATA:

• Engine power: 2100 W
• Power supply: 230 V / 50 - 60 Hz
• Soft start: YES
• Speed control: YES
• I gear: 100 - 590 rpm
• II gear: 100 - 1310 rpm
• III gear: 100 - 2730 rpm
• Oil lubricated transmission: YES
• Possibility of using a tripod: YES (60 mm mounting)
• PRCD residual current circuit breaker on power cord: YES
• Mechanical safety clutch to protect against overload: YES
• Universal drill bit attachment:
• External thread: 1. ¼"
• Internal thread: ½"
• Maximum drilling diameter: 202 mm
• Vertical and horizontal drilling capability: YES
• Weight: 6 kg

THE MAIN ADVANTAGES:

• ✅ high build quality and solid construction
• ✅ simple operation
• ✅ wide range of drilled holes - max. fi 202 mm
• ✅ high engine power - 2100 W
• ✅ speed control
• ✅ universal drill bit attachment
• ✅ has an overload clutch and PRCD module

The clutch protects the engine and transmission from the adverse effects of overloads.

Integrated connection to the water supply allows you to connect the drill to a garden hose or hydronet. Wet work eliminates dust and also significantly reduces the wear of the diamond drill.

This equipment will last you a long time and will work in all conditions.

THREE-SPEED TRANSMISSION:

The drilling rig is equipped with an advanced gearbox with three-speed transmission, which is an extremely important element, ensuring optimal drilling speed, precisely adapted to various hole diameters and different materials. Thanks to this solution, the user can freely adjust the drilling speed, achieving the best results both for delicate finishing works and for more demanding applications, while minimizing the wear of the drill.

The device offers three modes of operation:

• L mode (100 - 590 rpm) - is a low speed, ideal for drilling with large drill diameters. With this mode, the user can precisely control the drilling speed, ensuring efficiency and accuracy even during jobs that require greater strength and stability.
• Mode M (100 - 1310 rpm) - provides an average rotational speed, which allows for universal use.
• H mode (100 - 2730 rpm) - offers high rotational speed and high torque, ideal for drilling with small drill diameters, ensures fast and precise completion of tasks.

PRCD MODULE:

The device is adapted to work with water, which is why the power cord is equipped with a residual current module PRCD with IP66 protection against punctures, it protects the user from shock and prevents accidental start-up of the device.

The drill bit can be mounted on a tripod, which greatly facilitates precise drilling.

Drilling with a tripod is not only safer, but also relieves the operator, which is important during work.

The following are available at our other auctions:

• stand as a separate product,
• drill included with various tripods to choose from.

We invite you to familiarize yourself with our offer!

INCLUDED IN THE SET:

• 1 x Drilling rig model SCY-2020/3EBS
• 1 x PRCD module on power cord
• 1 x Side Handle
• 1 x Pressure Holder
• 1 x Water supply hose + tap + fitting
• 1 x Flat Wrench 32
• 1 x Spare set of carbon brushes for engine
• 2 x Earplugs
• 2 x Allen Wrench
• 1 x Operation and Safety Manual
