Dimanta urbšanas mašīna betonam WABROTECH WT160/2PD ar statīvu WT45s, 1900W

Trumpai apie prekę

Prekė: Deimantinė gręžimo mašina betonui WABROTECH WT160/2PD su trikoju WT45s, 1900W. Kategorija: Grunto grąžtai.

• Gamintojas: WABROTECH
• Modelis: Wiertnica do betonu WT160/2PD statyw
• Svoris: 18 kg

• External thread: 1 1/4” UNC
• Internal thread: 1/2”
• Engine power: 1900 Watt
• Power supply: 230 V / 50 Hz
• Rotation speed:
• 1. Run 1150 rpm.
• 2. Run 2340 rpm.
• Drilled hole diameter range: 22 mm – 202 mm
• (for reinforced concrete and hard stone up to 162 mm)
• Soft-start (slow start): YES
• Clutch: mechanical
• Additional protection: overload
• Maximum drill length: 450 mm
• Dimensions: 520 x 110 x 150 mm
• Weight: 7 kg

Tripod:

• Incline: 45°
• Max. dimensions: 410 x 260 x 930 mm
• Base dimensions: 300 x 235 mm
• Weight: 12,50 kg

Hand drill WT160/2PD is a handy, convenient design, recommended to professionals in the construction and construction industry and all those who need a solid, reliable and above all ergonomic drilling device. Combined with the universal spindle and the power of 1900 W provided by an efficient engine, we have received one of the best drilling rigs in its price category available on the market today! The device is suitable for applications throughout the construction industry, and materials such as natural stone, asphalt, reinforced concrete or brick are not a challenge when drilling.

Thanks to a special switch, you can also drill dry with the possibility of connecting a vacuum cleaner, which will work well for work that needs to maintain greater cleanliness of work.

WT160/2PD has a gearbox with a 2-speed transmission, which will allow you to better choose the drilling speed depending on the diameter of the hole and the material. Properly selected rotation speed also reduces the wear of the drill.

• Run L - has a speed of 1150 rpm. /min and high torque, which is ideal in a duet with large diameter drill bits.
• Run H - will provide you primarily with a high speed of 2340 rpm. /min perfect for smaller diameters.

Our core drill uses a mechanical clutch that protects the transmission and engine from damage. However, if the crown drill is jammed in the workpiece material during manual drilling, the machine may rotate rapidly, which may pose a potential hazard to the operator. Therefore, where possible, we recommend using the stand for drilling rigs, whose task is to increase the stability of the device, minimizing the risk of uncontrolled rotation and increasing the overall level of work safety.

The presented model has a base designed so that the drilling angle can be adjusted in the 45° range.

The feed lever can be mounted on both the left and right sides of the tripod.

The stand base is equipped with four stabilizing screws, allowing you to position the tripod on an uneven plane.

Microstroke function

Delivering impact pulses with a frequency of 29.000 strokes/min supports and enables faster drilling progress.

When using a drill with laser-welded segments (usually designed for dry operation), we get the opportunity to drill using a microstroke, which significantly accelerates drilling.

When we have available drills with soldered segments (usually designed for wet work), we use microstroke only in the process of sharpening the drill.

Spindle with 1/2” and 1 1/4” threads

The spindle with 1/2” and 1 1/4” threads makes our drilling rig support virtually all drills and accessories available on the market.

Built-in level

Built-in level that ensures precise drilling of holes in a simple and convenient way. This advanced feature makes it easy to achieve a perfectly horizontal position when making holes, which is crucial for a professional end result.

The device has a protective PRCD residual current circuit breaker – crucial when drilling wet holes.

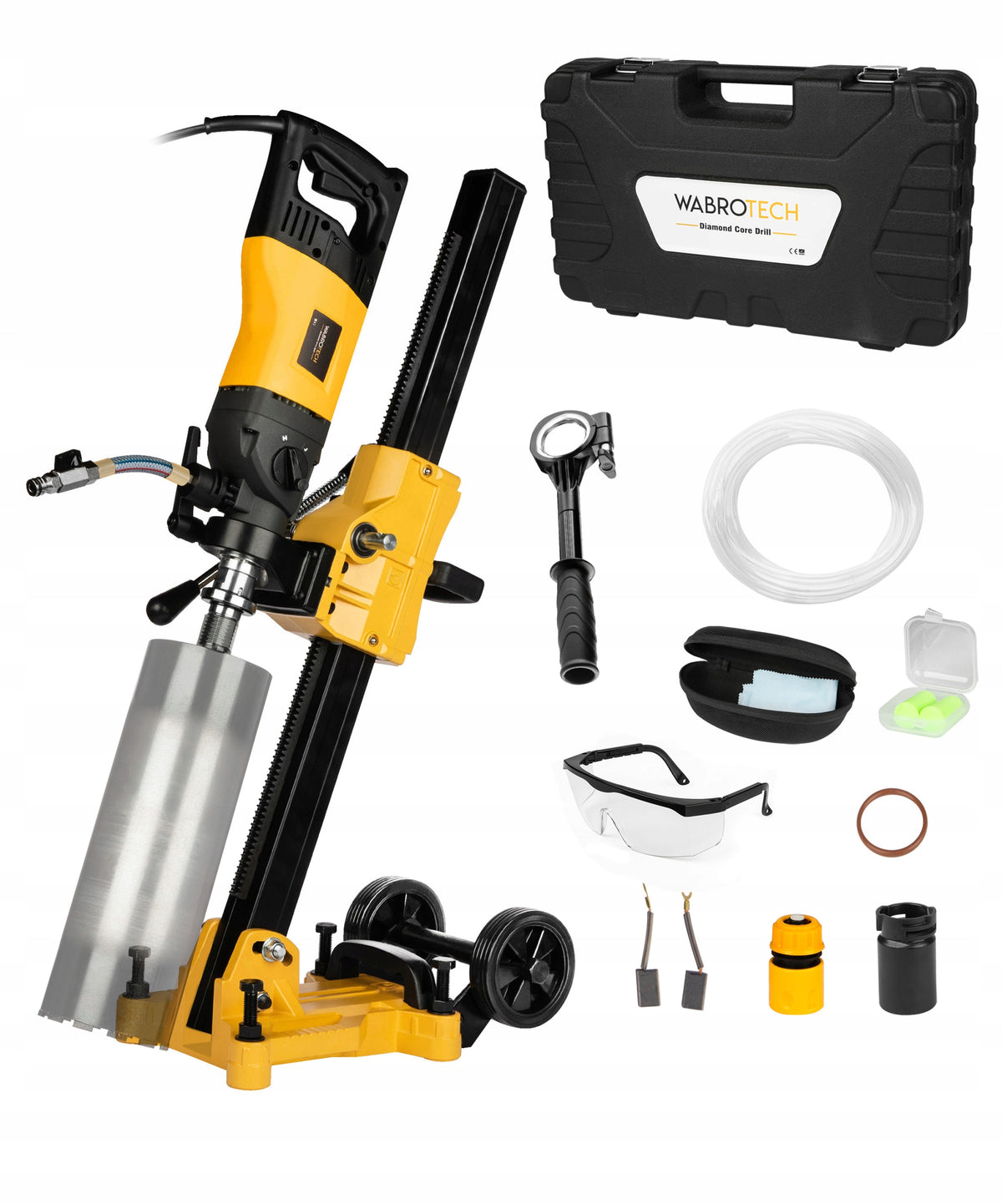

Included:

• 1 x Drilling Rig WT160/2PD
• 1 x WT45S Inclined Tripod
• 1 x Cooling Water Hose
• 1 x Water Connection Fittings
• 1 x Vacuum Cleaner Adapter
• 1 x Front Handle
• 1 x Safety Glasses
• 1 x Earplugs
• 1 x Set of mounting keys
• 1 x PRCD residual current circuit breaker (on power cable)
• 1 x Brush Set
• 1 x Feed Lever
• 1 x Clamp
• 4 x Stabilizing Screws
• 1 x Transport Wheels
• 1 x Anchor Kit
• 1 x Manual
• 1 x Transport case for drilling rig (free)
