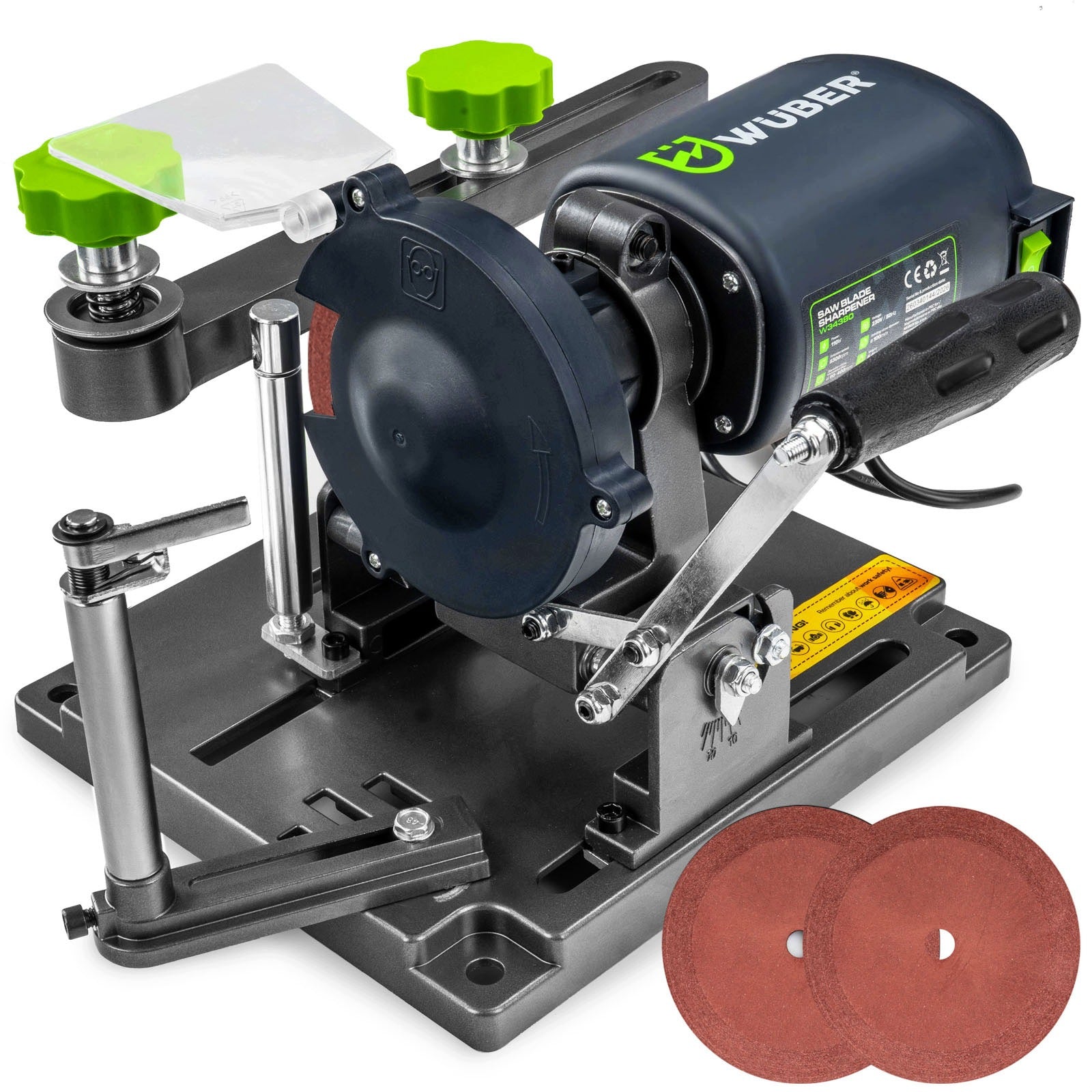

Diskinių pjūklų galąstuvas su 2 akmenimis

Trumpai apie prekę

Prekė: Diskinių pjūklų galąstuvas su 2 akmenimis. Kategorija: Įrankių galąstuvai.

• Gamintojas: Wuber
• Modelis: W34380 OSTRZAŁKA DO PIŁ TARCZOWYCH WIDIOWYCH
• Galia: 110 W

► Power 110 W | ► Speed 5300 rpm | ► Angle Adjustment 0-25° left and right | ► 5° Graduation | ► Blade Range 90-400 mm | ► Conical Centering Element | ► Centering Hole 30 mm | ► Sharpens Front and Back of Tooth | ► Spark Guard | ► 2 Grinding Wheels Included

❓ You throw away blunted discs, because each time you waste time driving them to the sharpening point?

✅ Thanks to our sharpener, you will restore the sharpness of your teeth in the workshop.

⚙ Technical specification

• Producer: WUBER
• Model: W34380
• Product Type: Arrow for saw blades
• Type of sharpened discs: View
• Supply Voltage: 230 V / 50 Hz
• Power: 110 W
• Rotation speed: 5300 rpm
• Diameter of sharpened disc: 90-400 mm
• Diameter of the centering hole of the disc: 30 mm
• Angle adjustment range: 0-25° left and 0-25° right
• Angle pitch: every 5°
• Grinding stone diameter: 100 mm
• Grinding stone thickness: 7,5 mm
• Stone mounting hole diameter: 10 mm
• Number of grinding stones included: 2
• Base dimensions: 25,5 x 22,5 x 2,5 cm (length x width x height)
• Power cord length: 2 m
• Weight: 5,4 kg

⭐ Set once and return to the same setting

✅ 0-25° angle adjustment left and right ► You choose the angle for the tooth geometry of your disc.

✅ Division every 5° ► Precise ability to choose the angle of sharpening: the teeth of the spectral disc usually have 10-15° of attack.

✅ Locking pin ► Presses the sharpened disc and stops it on the next tooth, thanks to which the stone hits the same place every time.

✅ Stone feed lever ► You lead the stone to the tooth with your own hand, so you decide how much material you collect.

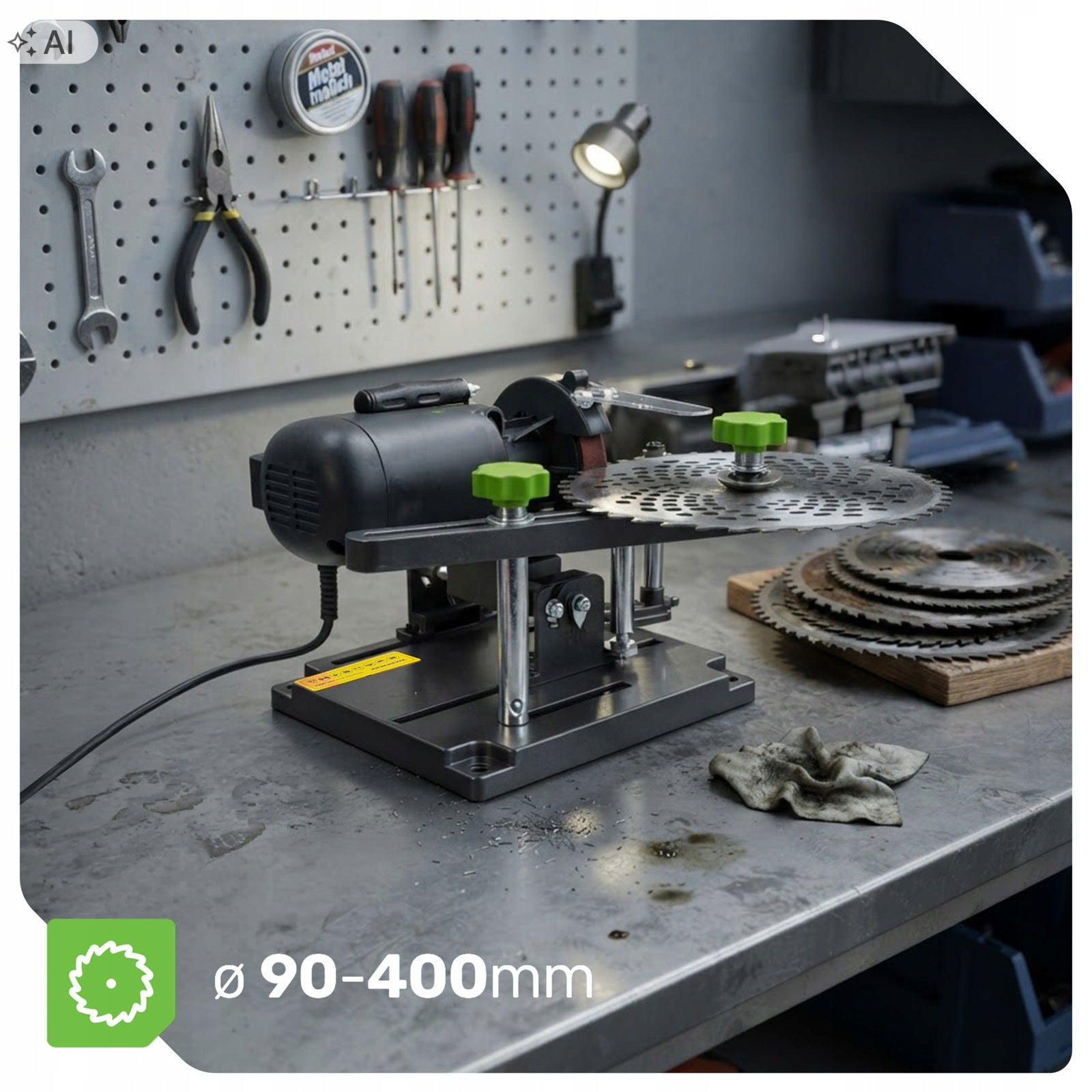

✅ Disc range 90-400 mm ► You can handle both small hand saw discs and large ones with a slash.

✅ Conical centering element ► The disc sits in the axis of the stem itself, so you do not set it with your hand before each sharpening.

⚡ Metal where it determines accuracy

✅ Metal base, motor housing, arm and support ► The metal construction is characterized by high rigidity, so that the set angle does not escape during sharpening.

✅ Base with mounting holes ► You screw the sharpener to the workbench and sharpen without vibration.

✅ Weight 5,4 kg ► The sharpener stands stable on the counter.

✅ Shield support ► Supports the disc plane right next to the stone, so the large disc does not bend under pressure.

✅ Filing guard ► Covers the stone from the operator's side, so that metal filings do not fly towards your face. (For complete safety, we recommend using glasses)

✅ 2 grinding stones included ► You start sharpening immediately after unpacking, without having to search for and buy accessories.

⭐ With the WUBER Sharpener you will sharpen:

► Spectral discs for circular saws

► Steel discs

► Discs for slashes and table saws

► Set of discs before the carpentry season

⭐ 110 W: power selected for carbide, not for breaking material

Sharpening the spectral disc involves collecting a thin layer from the tooth. Sintered carbide is hard but brittle.

Poorly sharpened tooth with a device of too high power of the order of 800 W catches microcracks and crumbles at the first cut in wood.

The 110 W engine at 5300 rpm guides the stone at a rate at which the tooth sharpens gradually and without the risk of damaging the disc.

In this case, more power of the device does not mean a better sharpener.

What do you gain?

Thanks to the precisely selected power for sharpening the widii, you will not damage the discs when sharpening them.

⚡ Sharpening for pennies - low power consumption

The sharpener takes 110 W regardless of whether you sharpen one blade or the whole set.

The effect?

Preparing all the discs costs you as much electricity as a light bulb in the workshop.

⭐ Adjustable sharpening angle to the right and left

The adjustment screw releases the head, and the graduation cast in the body shows the tilt in both directions. The range reaches up to 25° on each side.

The tilt on both sides also supports discs with teeth spaced alternately, in which subsequent teeth have the opposite angle.

How does it work?

You set the angle under the tooth geometry of your disc and tighten the screw. The head stays in this position throughout the sharpening.

⚡ From small hand saw blade to large with slash

The 90-400 mm range will handle most of the discs that you have in your workshop.

The centering element tapers downwards, so the dial rests against the cone with the edge of the hole and sits exactly in the axis.

⭐ Front and rear tooth surface

The stone can be set to sharpen the attack surface of the tooth or its back. This is determined by the mutual position of the shield and puck.

What do you gain?

You restore the full geometry of the tooth, not just its tip.

⚡ Repetitive sharpening position or the same effect on each tooth

The locking pin rests against the shield. You rotate the disc to the next tooth, and the stem stops it itself in a repetitive position. (This guarantees the same angle)

The support of the shield stands right next to the stone and supports the plane from below. (This guarantees the same height)

The effect?

Your work is repetitive. Each tooth on the perimeter has the same height and the same angle.

⭐ Screwed edger works without vibration

In the base plate with dimensions 25,5 x 22,5 cm there are mounting holes. You let the screws in and attach the sharpener permanently to the workbench.

⚡ Two grinding stones included

The set includes two 100 mm discs with a thickness of 7,5 mm, with a mounting hole of 10 mm.

✔ Set includes:

► 1x Shield Sharpener WUBER W34380

► 2x Grinding stone 100 mm

► 1x Socket wrench 8/10

► 1x Socket wrench 14/17

► 1x Allen Wrench

► Metal washers

► 1x User manual in Polish

► Manufacturer's packaging

👉 The spectral shield visible in the photos is for illustrative purposes only and is not included in the offered set. The object of sale is the sharpener itself.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Power	110 W
Parametry	Power supply	mains
Parametry	Disc internal diameter	10 mm
Parametry	Outer disc diameter	100 mm
Parametry	Additional information	transparent protective cover
Parametry	Tool weight	5.4 kg
Parametry	Manufacturer code	W34380 OSTRZAŁKA DO PIŁ TARCZOWYCH WIDIOWYCH
Parametry	EAN (GTIN)	5906436761605
Parametry	Product weight with unit packaging	5.66 kg
Parametry	Packaging status	original
Parametry	Kind	electric
